Bolt CBP-C1 Manual de usuario
Bolt
Inspiration strikes.

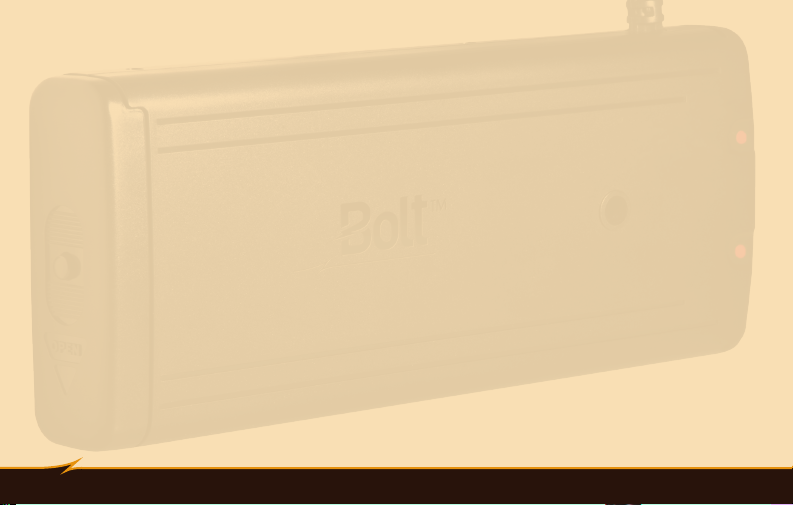

Compact Battery Pack
User’s Manual
COMPACT
BATTERY PACK
User’s Manual
Inspiration strikes
Inspiration strikes
2 |
Copyright © 2013 Gradus Group.
Bolt and other names of Bolt products are trademarks of Gradus Group. Other product and corporate names mentioned herein are trademarks of their respective holders.
Introduction |3
Introduction
Thank you for choosing the Bolt Compact Battery Pack.
This professional battery pack will extend the ash
capacity and boost the recycle speed of your ash unit.
Its compact design, versatile mounting and carrying
options, and compatibility with a range of AA battery
types make it easy and convenient to use.
Among the benets you’ll enjoy:
• Option to use 4 or 8 AA batteries at a time.
• Faster ash recycle times.
• Lower standby power consumption and higher charge
efciency than similar packs.
• Built-in thermal protection switch to automatically
prevent overheating.
4 |Overview
2
4
5
6
7
1
8
Overview |5
Overview
1. Battery set A indicator light
2. Battery set B indicator light
3. Flash connector
4. Flash connection cable
5. Battery holder
6. Battery holder lid
7. Battery holder lock release button
8. Mounting slot
9. Soft case
10. Mounting screw
CBP-C1CBP-N1 CBP-N2
10
9
3
6 |Warnings
Warnings
• Do not disassemble or attempt to maintain this product yourself. There are high-voltage components inside
the Compact Battery Pack. Contact with them can produce a dangerous electric shock.
• Keep this product and AA batteries out of reach of children.
• Always install AA batteries of the same type, brand, and age in the Compact Battery Pack. Do not combine
different types or brands, or used and new batteries. This could cause batteries to leak corrosive liquid,
generate heat, or explode.
• Install batteries in the holder in the proper orientation, according to the positive and negative polarity
indicator in each battery bay. Installing batteries in the reverse orientation could cause them to leak
corrosive liquid, generate heat, or explode.
• Do not use or store the Compact Battery Pack in ammable conditions (such as environments containing
ammable gases or liquid chemicals). This could cause permanent damage the product, cause a re, or cause
an electric shock.
• Do not clean the Compact Battery Pack with agents containing ammable substances such as paint thinner,
benzene, or paint remover.
• This product is not water resistant. Keep it away from rain, snow, and humidity. If water or moisture gets
inside batteries, they could corrode, ignite or cause electric shock.
Warnings |7
• If the Compact Battery Pack is damaged, do not touch any exposed interior metal parts. If touched,
they may generate an electric shock or cause a malfunction. Remove the batteries from the holder and
disconnect the pack from your ash unit, and take the product to an authorized service center for repair.
• If you detect heat, smoke, or a burning smell coming from the Compact Battery Pack, immediately stop
operation and once smoking has subsided remove the batteries to prevent the product from igniting or
melting. Take the product to an authorized service center for repair.
• Do not touch the Compact Battery Pack with wet hands, as this may generate an electric shock.
• Do not drop or otherwise cause a strong physical impact to the Compact Battery Pack, as this could cause a
malfunction that might cause it to explode or ignite.
• Remove all batteries from the Compact Battery Pack before long-term storage in order to prevent the
product from igniting or leaking corrosive liquids.
• Do not store or use this product at temperatures above 104°F (40°C).
• Keep the metal contacts in the battery holder clean and free of corrosion and dirt. Do not touch them with
your ngers. Corrosive oils and residue on the contacts can damage the Compact Battery Pack and prevent
it from functioning.
• To avoid overheating and damaging your ash unit, please wait for at least 10 minutes after 20 continuous
ashes at full power. Refer to your ash unit’s manual for information on its continuous full-power ash
capacity and limitations.
8 |Warnings
Battery Warnings
• Dispose of used batteries properly. Never heat them or throw them into a re, as this could cause the
batteries to leak corrosive liquids, generate heat, or explode.
• If corrosive liquids seep from the batteries and get in your eyes, immediately wash your eyes with water
and consult a physician. Your eyes could be seriously injured if not treated quickly.
• If corrosive liquids seep from the batteries and get on your skin or clothes, immediately wash with water.
Prolonged contact could injure your skin.
• Do not short-circuit or disassemble the batteries. This could cause batteries to leak corrosive liquids,
generate heat, or explode.
• Do not carry or store batteries with metallic materials such as necklaces or hair pins. Such materials may
cause batteries to short-circuit, leak corrosive liquid, generate heat, or explode.
• When using rechargeable batteries, charge them only with a charger approved by the battery maker to
avoid the possibility of batteries leaking corrosive liquid, generating heat, or exploding. Make sure that
batteries are installed in the charger in the proper orientation.
• Always follow the warnings and instructions printed on the batteries to avoid activities that could cause
batteries to leak corrosive liquid, generate heat, or explode.
• Remove dead batteries from the Compact Battery Pack immediately, so that they do not leak corrosive
liquid, generate heat, or explode.
Installing Batteries |9
OPEN
Installing Batteries in the Compact Battery Pack
The versatile Compact Battery Pack can be used with several AA battery types:
• Alkaline (1.5V)
• Lithium (1.5V)
• Nickel-metal hydride (Ni-MH) (1.2V)
To install batteries, unplug the Compact Battery Pack from your ash unit and follow these steps:
1. Press down on the battery holder lock release button
and slide the battery holder lid in the direction of the
arrow on the lid to release the holder. Remove the
battery holder from the pack.
1
10 |Installing Batteries
OPEN
2. With the holder laying at, insert four batteries in
the open battery bays. Angle the negative (at) end
of each battery down against the contact in the bay
and then press the positive end rmly into place.
Make sure that each battery is installed in the proper
orientation by matching the (+) and (-) polarity
symbols on the battery to the (+) and (-) symbols on
the battery icon in the bay.
3. Flip the holder over to expose the additional four
battery bays and install the batteries.
3
2
