Blueshark Studio Vertical Modular Paint Storage Manual de usuario
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 1 of 7
Vertical Modular Paint Storage Instructions
You will Need.
Parts
he Paint Storage is composed of:
Five (5) detachable boards for 26mm or mixed paint bottles.
Six (6) detachable boards for 36mm paint bottles.
o detach the parts please press gently but firmly on the pieces with an inwards
motion, if the parts do not detach easily then use a sharp knife to carefully cut along
the edges of the piece.
Each Piece is Marked with a Letter and a Number refered during the Assembly
Warning: Use preferencialy PVA glue on all wood to wood contact surfaces.
Some parts do not require Glue and can be interchaged if needed.
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 2 of 7
Assembly instructions
Side Plates
Modular Bases
4x on 36mm and Mixed patterns.
3x on 26mm pattern.
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 3 of 7
36mm or 26mm Shelf (Uses Modular bases
Handle
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 4 of 7
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 5 of 7

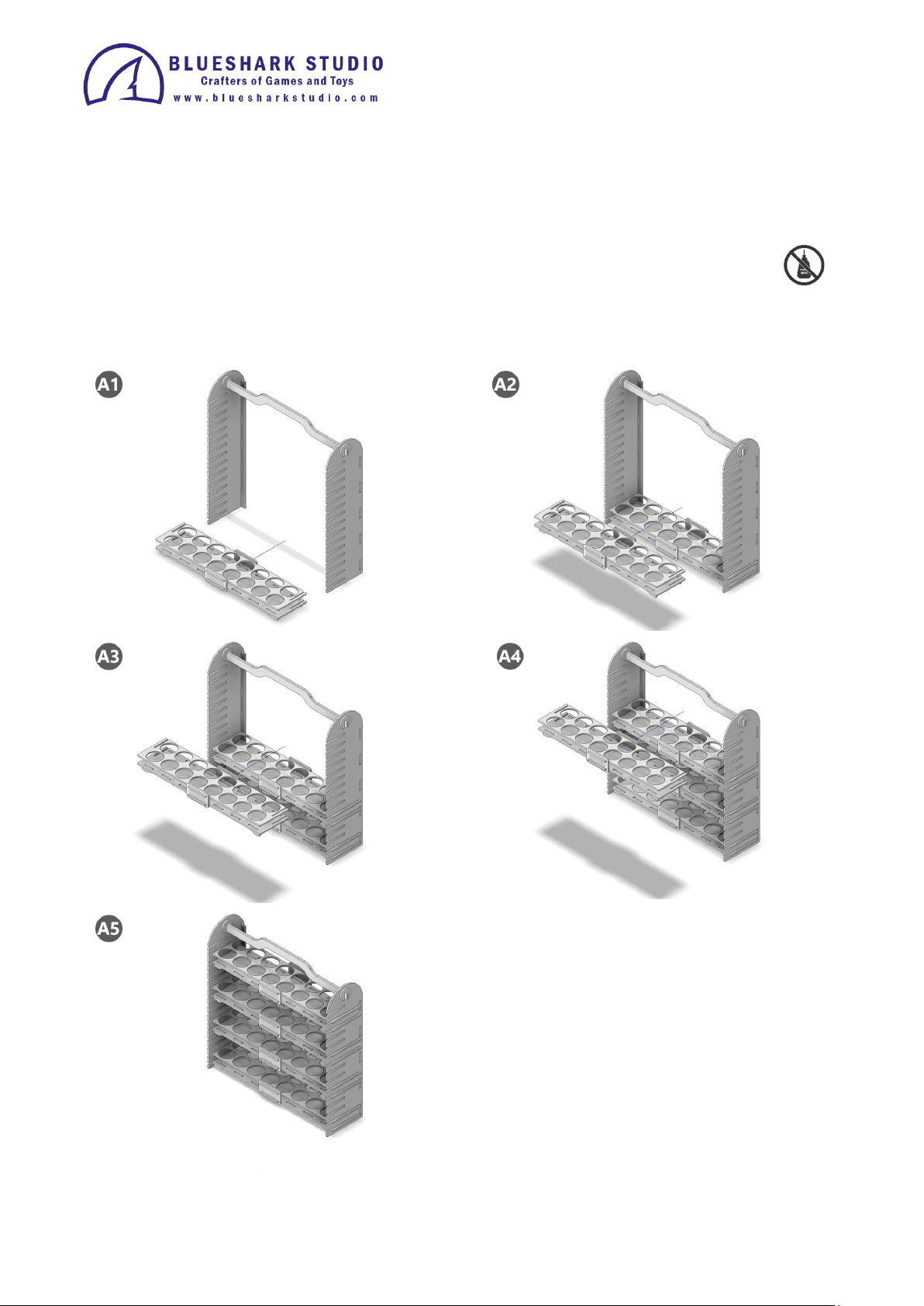

Shelves Assembly
The Shelves do not require glue, they an be assembled by slide fitting the previous built on steps 4
to 8 on the finished stru ture.
The use of glue will strengthen the stru ture but will make the shelves position permanent, if using
glue please assemble the stru ture first without glue to make sure everything is in pla e, and then
apply the glue.
Shelves (36 mm bottles)
The bottom Shelves slide into positions 1, 5, 9, 13
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 6 of 7
Shelves (26 mm bottles)
The bottom Shelves slide into positions 1, 6,11
Shelves (Mixed 36 and 26 mm bottles)
The bottom Shelves slide into positions 1, 5 for 36mm, Position 9 for the 26mm and position
15 for the lonely shelf.
Blueshark Studio Paint Station and Extras
Assembly Instructions
2020
Page 7 of 7
