Dear User,
WE congratulate you on your choice of mobility scooter –Travel Lite. Our goal is for you to
continue to feel satisfied with your choice of both vendor and product.
1General
1.1 Symbols
Signal words are used in this manual and apply to hazards or unsafe practices which could
result in personal injury or property damage. See the information below for definitions of the
signal words.
Danger Admonition
Warning indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
Warning Admonition
Indicates a hazardous situation that could result in damage to property if it is not
avoided.
Notice Admonition
Indicates an important but not hazardous situation which, if not avoided, could
result in damage to the product or other property.
1.2 Safety Instructions
All information, pictures, illustrations and specifications are based upon the product
information available at the time these operating instructions were printed. Pictures and
illustrations used in these operating instructions are representative examples and not
intended to be exact depictions of the various parts of the scooter. We reserve the right to
make changes to the product without prior notice.
Check ALL parts for shipping damage. If shipping damage is noted, DO NOT use.
Contact carrier or dealer for further instruction.
Weight Limitation
The weight limitation of the Travel Lite is 100 kg (220 lbs).
Use for only one person, DO NOT carry any other passenger.
General Warnings
DO NOT use this product or any available optional equipment without first
completely reading and understanding these instructions and any additional
instructional material such as owner’s manuals, service manuals or instruction
sheets supplied with this product or optional equipment. If you are unable to
understand the warnings, cautions or instructions, contact a healthcare
professional, dealer or technical personnel before attempting to use this
equipment - otherwise, injury or damage may occur.
ALWAYS check the mobility scooter for proper tightness before using.
BLIMO is not responsible for personal injuries or property damage resulting from any
person’s failure to follow the warnings and instructions in this manual. BLIMO is not
responsible for injuries or damage resulting from failure to exercise good judgment.
Unapproved Replacement of Parts
If any part is replaced without approval from BLIMO, the scooter warranty will
become void. BLIMO accepts no liability for any loss that occurs as a result of a
control system component being opened, adjusted or modified without
permission.
2 Warnings and Precautions
2.1 Operation
In some instances, including where certain medical conditions exist, users should
practice operating their scooter under the supervision of an assistant who is familiar
with the operation of the scooter and with the abilities and limitations of the user.
Do not drive the scooter over any curbs or obstacles higher than specified in the
technical specifications section of the manual. When driving over a curb or similarly
elevated surface, cross it at a 90 degree angle (perpendicular). Crossing such surfaces
at any other angle may result in the scooter’s tipping.
Reduce your speed when driving on uneven terrain or soft surfaces. Never use your
scooter on stairs or escalators. Always take the elevator.
Do not lift or move the scooter by any of its removable parts. Doing so could lead to
personal injury and property damage, including damage to the scooter.
Do not use the scooter to pull any kind of object and never hang excessive weights on
the backrest. Doing so could lead to personal injury and property damage, including
damage to the scooter.
In the event of a collision with a wall, door or other fixed object when operating the
scooter, always make sure all parts of the scooter are undamaged before operating it
again. Failure to do so could lead to personal injury.
Do not let children drive the scooter without supervision. Do not drive the scooter on
public streets or roads. Obey all local pedestrian rules and be aware that vehicle
drivers may have difficulty seeing you.
Do not operate your scooter under the influence of alcohol. Consumption of alcohol
may impair your ability to operate your scooter safely.
Some physical impairments or the use of prescription and nonprescription medication
may limit your ability to operate your scooter safely. Be sure to consult with your
physician about your physical limitations and medications.
2.2 Operation - Slopes
When driving downhill, select the slowest speed and proceed with caution. Driving
down a slope may shift the user’s center of gravity forward. If the scooter rolls faster
than you would like, stop the scooter by releasing the joystick and begin descending
again more slowly.
Avoid sudden stops or starts. Stop by releasing the joystick rather than by turning the
power off. Turning off power while the scooter is in motion will cause the scooter to stop
suddenly.
When driving up a slope, try to keep moving at a steady speed. Stopping and starting
the scooter while moving up a slope makes the scooter more difficult to control.
Do not drive up or down slopes with gradients greater than those set forth in the
technical specifications section of this User’s Manual. There is a risk that the scooter will
not maneuver safely.
Do not drive up or down ramps that are not equipped with proper edge protection
along the sides to prevent the scooter from falling off the ramp.
Do not drive up or down hazardous inclines such as a surfaces covered with snow, ice,
or wet leaves, or a surface that is uneven.
2.3 Operation - Turning
Turning your scooter at high speeds may cause it to topple with personal injury as a
result. The risk of tipping over is increased by high turning speeds, sharp turns, uneven
surfaces, abrupt changes in direction, and driving from an area of low traction (e.g.
lawn) to an area of high traction (e.g. sidewalk). To avoid tipping over, personal injury
and property damage, reduce speed and turn less sharply.
2.4 Driving
The Driving Range stated in the technical specifications of this manual represents the
theoretical driving range, actual driving ranges will vary depending on battery status,
tire selection and driving conditions. Frequent driving on slopes, rough ground or
frequently climbing curbs etc., will also reduce the driving range.
Driving in the dark is only permissible if the scooter is equipped with functioning lighting
at the front and rear, or as per applicable national or local traffic regulations.
2.5 Transfer into or out of the scooter
Make sure the power is turned off before getting into or out of the scooter. When
transferring into or out of the scooter, every precaution must be taken to reduce the
distance between the scooter and the place to which the user is transferring. Too great
a distance may cause the user to overexert him or herself, lose balance or fall. BLIMO
recommends that users transfer in the presence of or with the assistance of an
attendant.
2.6 Transporting the Scooter
The scooter may only be transported in vehicles approved for this purpose. The vehicle
must be suitably designed, insured and equipped to transport a person in a scooter. No
matter how securely it is fastened in the vehicle, a scooter is not designed to be a car
seat and cannot offer the same degree of safety as offered by standard car seats.
Before transportation, check that the scooter is properly secured and that wheels are
locked.
2.7 Environmental Conditions
Protect the scooter from exposure to any type of moisture, including rain, snow, mud or
spray. Exposure to moisture may cause the scooter to short-circuit, catch fire and
cause personal injury or property damage. If it has been exposed to moisture, do not
operate your scooter until it has dried completely.
If any of the shrouds or the panel has cracks or tears, they must be replaced
immediately. Failure to do so may allow moisture to enter the electronics and cause
personal injury or property damage, including fire.
Be extremely careful when operating your scooter during icy or slippery conditions.
Such conditions can lower the performance and safety of your scooter which could
lead to an accident, personal injury and property damage, including damage to the
scooter.
Exercise extreme caution when using oxygen in close proximity to electrical circuits
and other combustible materials. Contact your oxygen supplier for instruction in the
use of oxygen.
3Getting to know your scooter
3.1 Overview
3.2 Technical Specifications
Item No.
Travel Lite
Scooter frame
Aluminum alloy
Measurements (L*W*H)
(780-945) * 510 * (800-960) mm (Adjustable length and height)
Front wheels
8 inch PU solid tire (9 inch optional)
Rear wheels
8 inch PU solid tire (9 inch optional)
Max. speed
8 km/h
Ground clearance
70 mm
Drive
Rear wheel
Brake
Electromagnetic brake
Total weight
21 kg (without battery)
Loading capacity
100 kg
Endurance mileage
15 km
Max. grade ability
8°
Height of crossing
40mm
Controller
Brushless controller 24V 60A
Motor
Brushless motor 180W
Charger
DC24V/2.0A
Lithium battery
24V 12.5Ah, Net weight 1.9 kg, Charging time 2-8 hours
Scooter frame
Scooter foldable, frame forward-backward adjusting, height
adjustable of steering column.
Note: The actual endurance mileage after the battery is fully charged will
decrease with the service life, which is a normal loss.
Front LED light
Operation Panel
Joystick
Height adjusting handle
Locker of steering column
Front wheels
Bumper bar
Lithium battery
Switch: Drive-Manual
Seat
Handgrip
Rear/Drive wheels
Frame adjusting handle

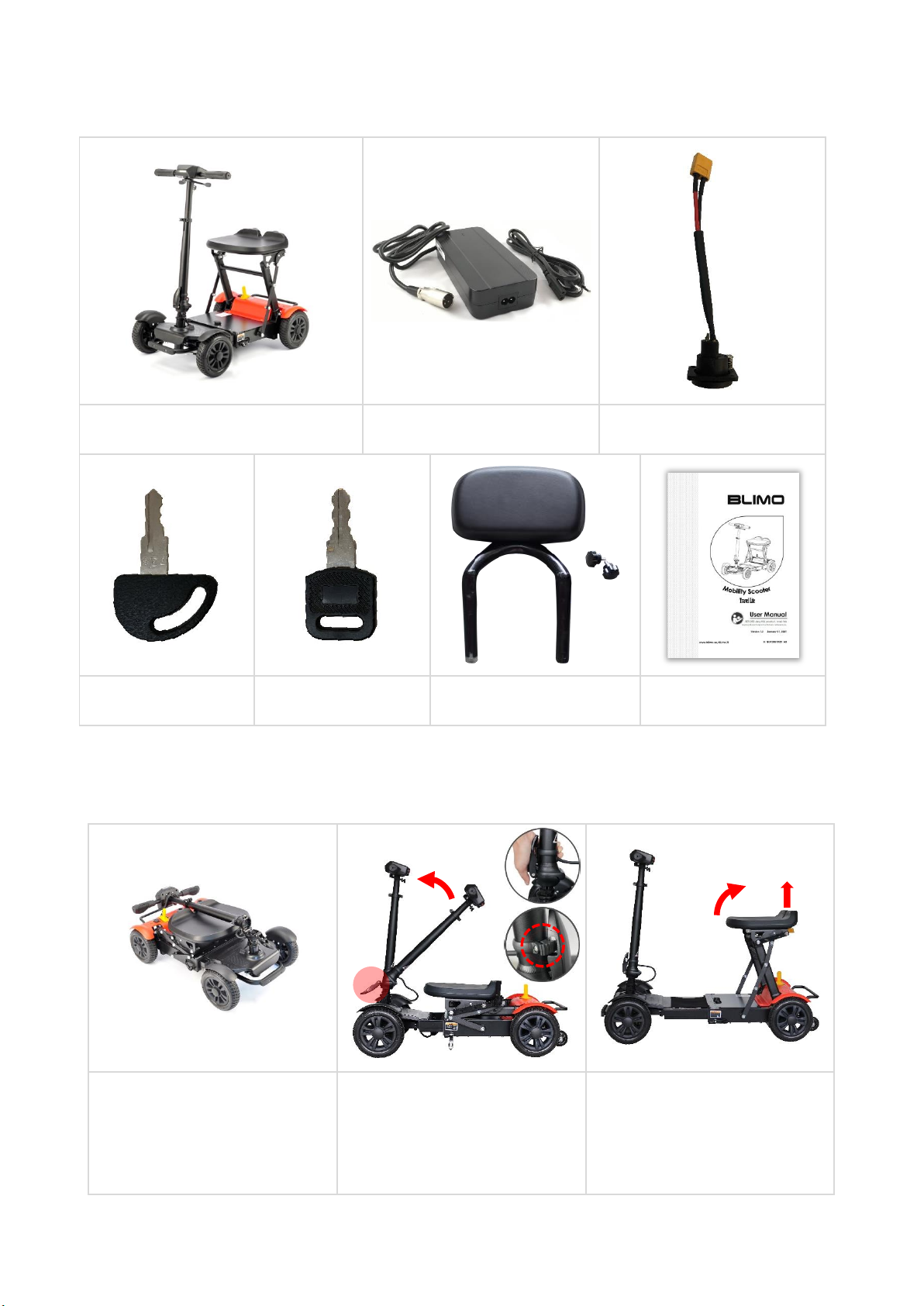

3.3 Parts (Packing) List
Mobility Scooter
Charger
Charging Cable
(Just as gift, free of charge)
Power Key * 2
Battery Box Key * 2
Backrest and Knobs
(Need to buy)
User Manual
4Preparing for Use
4.1 Unfold and Adjust your scooter
Unwrap all packing
Lift the steering column
upward and lock the locker
Turn the buckle to make
locker more safe and avoid
releasing
❶Grip the back of seat
and lift upward;
❷Grip the front of seat and
push backward until the
right position.
❶
❷
Turn left or right to lock the
seat
(This knob is at the back of
seat)
Seat locked
Please make sure both sides
pins of the seat are pop-up
after locking
Open both sides handles
One hand hold the seat,
another hand push the
steering column forward,
then lock both sides
handles
Drive-Manual mode switch
(Please switch to Drive
mode before driving)
Open the handle and
adjust the height of steering
column to fit for you, then
lock
Backrest
(Need to buy)
Insert the backrest to seat
Lock it by knobs
(Remove backrest by
opposite steps)
4.2 Fold your scooter
Open both sides handles
One hand hold the seat,
another hand push the
steering column backward,
then lock both sides
handles
Pull out and Turn left or right
(This knob is at the back of
seat)
Seat released
and could be folded
Grip the back of seat and
lift upward a little, push
forward and press
downward at the same
time.
Release the handle of
locker
Fold the steering column
5Driving
5.1 Operation panel
Battery level
indicator
Speed indicator
Driving distance
indicator
LED front light turn ON/OFF
Setting top speed:
High: Top speed limit –8km/h
Low: Top speed limit –4km/h
Buzzer/Trumpet
Power turn ON/OFF
(Left) PULL:
Backwards
(Right) PULL:
Forwards
Left handgrip
Right handgrip
