Blaupunkt Oslo1Dock Manual de usuario

Instruction Manual Model: OSLOIDOCK

DAB+ RADIO WITH DOCK FOR IPAD

Thank you for buying the Blaupunkt Digital Radio.The following instructions will assist you in

operating all the features of this product.

You may already be familiar with using a similar unit, but please take the time to read the

instructions relevant for your model.

Your safety is very important, so please ensure you read the safety instructions before you operate

this unit.

This Digital Radio has been designed to give you many years of trouble -free service.In the unlikely

event that your product fails to work normally, please call one of our qualified service engineers

on the full free warranty line -1300 055 518 .

Contents

YourDAB+ Radios

Introduction

Contents .......................................................................................................

Introduction...................................................................................................

Safety Instructions............................................................................................

Your DAB+ .....................................................................................................

What is DAB+.................................................................................................

Getting Started...............................................................................................

Operating Instructions......................................................................................

Warning /Troubleshooting/Technical Specifications................................................

6-7

8-11

Safety Instructions

Plaese ensure that you read all of the safety instructions before using this unit.

Safety Considerations

Cleaning

Position the power cable and other connected cables so that they are not likely to be walked

on, pinceed or where items can be placed on or against them.

Do not use the unit in humid or damp conditions.

Do not allow the unit to get wet.

Never allow children to insert foreign objects into holes or slots on the unit.

The ventilation should not be impeded by covering the openings with tiems such as news-

papers, tablechoths, curtains, etc. This may cause overheating

No naked flame sources, such as lit candles, should be placed on the unit.

Do not expose the unit to dripping or splashing, and no objects filled with liquids,such as

vases ,they should not be placed on the unit.

Do not place the unit in closed bookcases or racks without proper ventilation.

Disconnect the unit from the mains supply before cleaning.

Do not use any liquids or aerosol cleaners, as this may damage the unit. Use a soft, dust

free cloth.

Servicing

Please refer to the warranty line for all servicing of units under warranty.

Consult your retaile if you are ever in doubt about the installation/operaton/ safety of

the product.

YourDAB+ Radios

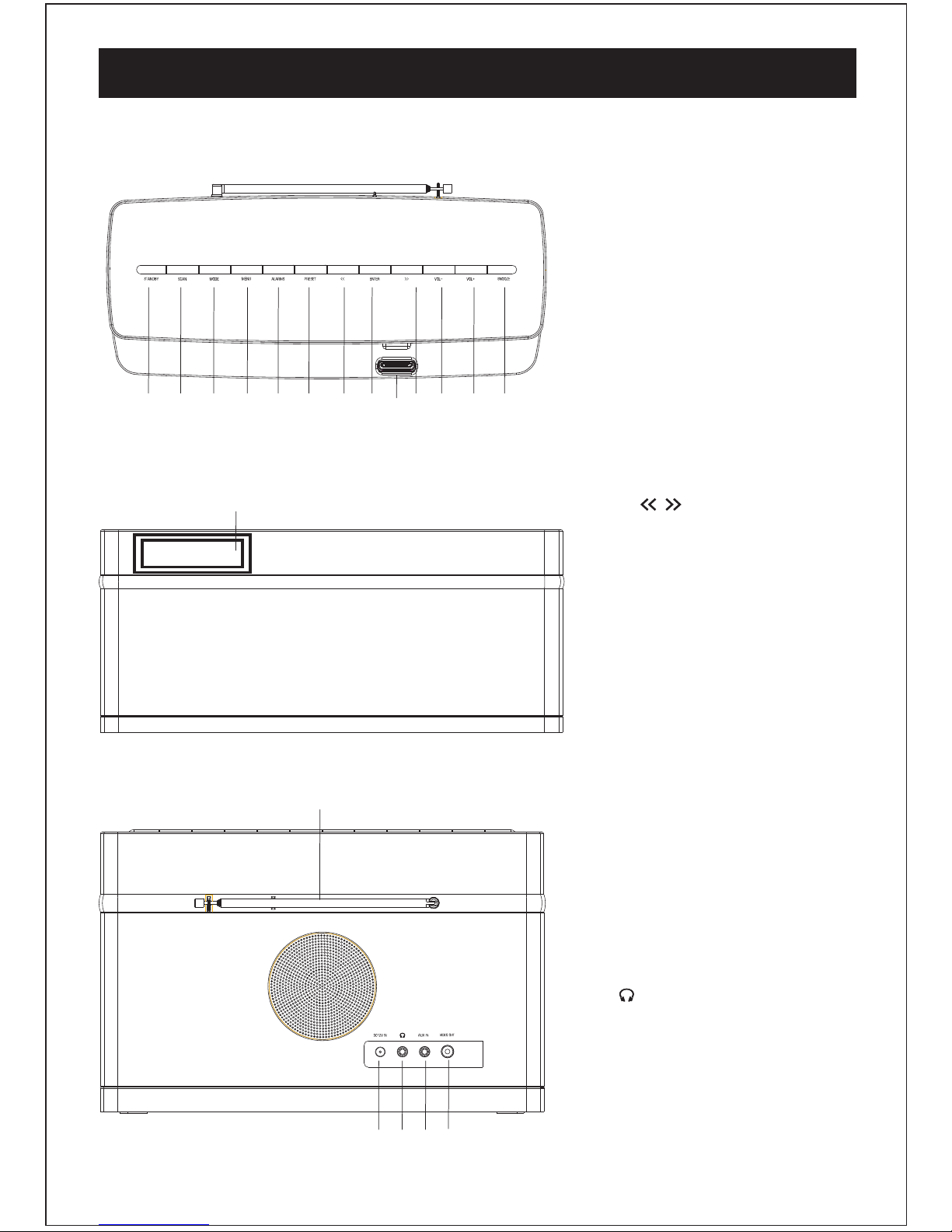

Top view

21 345 6 789 10 11 12

1.STANDBY

Press to start,press to go to

STANDBY mode.

2.SCAN

Press to scan radio channels.

3.MODE

Press to select DAB or FM

radio and AUX input.

5.ALARMS

Press to setup alarm .

4.MENU

Press to view channel/time/

date/RDS.

6.PRESET

Press to store and preset radio

stations .

7/10.

Back /Press to store and preset

radio stations .

8.ENTER

Press to confirm the selection.

11/12.VOL-/VOL+

Press to adjust the volume level.

13.SNOOZE

Press to enter SNOOZE mode .

14.Display

LED display showing all

information on the radio.

15.ANTENNA

The radio comes with a

telescopic antenna. adjust

the antenna for best reception.

16.DC12V IN

Use this to the enclosed DC

power supply.

18.AUX IN

Use 3.5mm audio cable to

connect to audio device.

Front view

16 17 18

Back view

17. (HEADPHONE)

You can connect your headphone

to this unit for personal listening.

9.DOCKING

Connect iPhone/iPod

19.VIDEO OUT

Connect other video device.

What is DAB+

Digital DAB+ was developed in Europe by a consortium of broadcasters and manufactures.

DAB+ uses digital compression techniques to transform the source material, i.e. music and

speech,into better quality audio.

Analogue systems suffer from an effect called "multipath distortion". This is caused because

waves do not behave in a orderly fashion, but bounce and reflect off buildings etc. DAB+ sees

this as an advantage and uses the direct and reflected signals to actually reinforce the end

result, allowing for better service most of the time.

Broadcasters can transmit text to your radio, this way you can read the name of the DJ,

Artist ,song title or any other information they choose.

Check you local coverage at www.digitalradioplus.com.au

Interference free reception

Scrolling Test

DAB+ Coverage

A signal DAB+ frequency can be used to cover the whole of Australia, solving many of

the problems experienced with the earilier analogue

all of the available stations in your area.

No need to re-tune

system. DAB+ scan automatically tunes in

Getting Started

1.Press the STANDBY button to turn on the radio.

2.Press the STANDBY button again to enter STANDBY mode.

Note: It is recommended that the unit is switched off and remove the adapter

from outlet during storms or if being left unused for long period of time.

Carefully remove your DAB+ receiver form the box.(We recommend you keep the package for

future reference.)

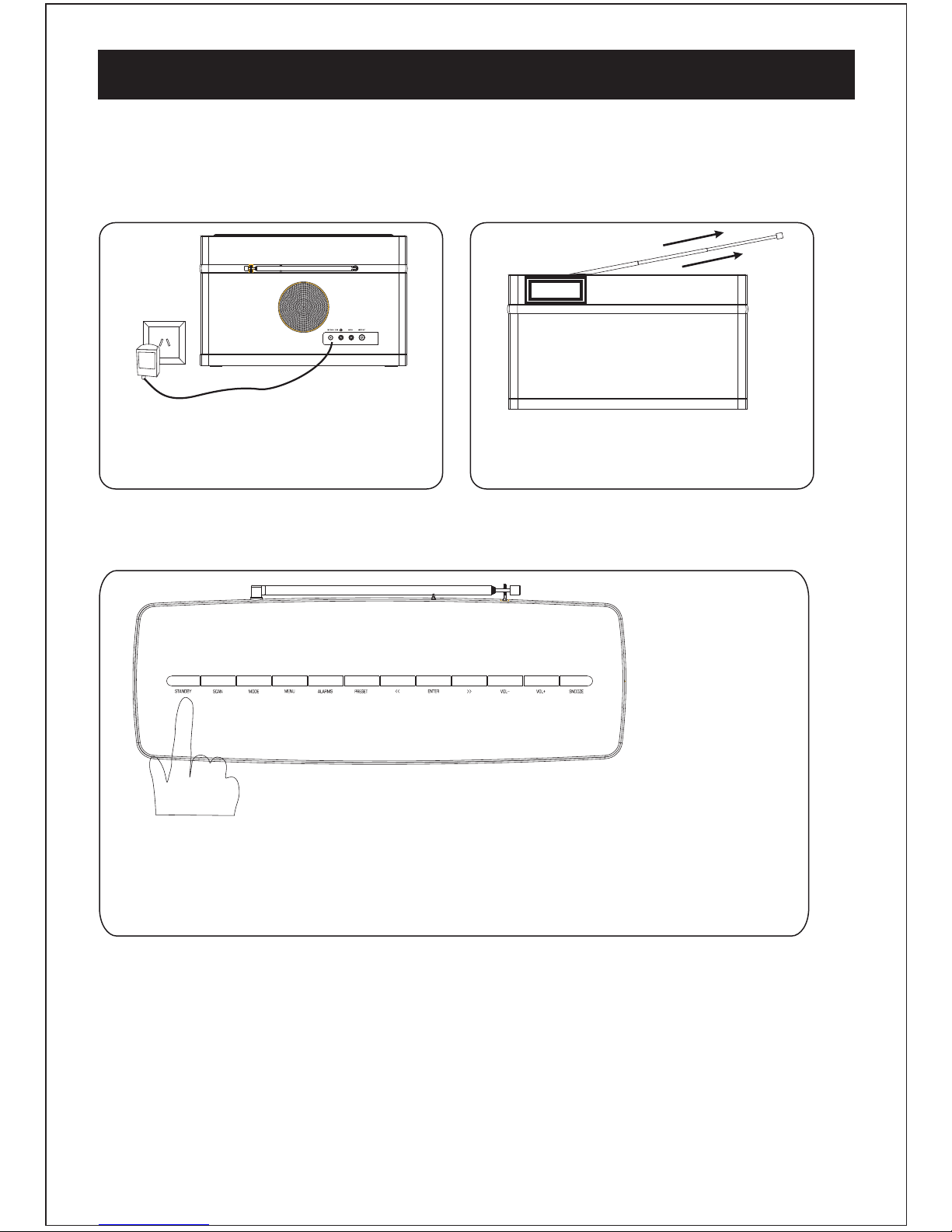

1.Connect the power 2.Exetend the telescopic aerial

Connect the power adabtor provided

to the unit and then connect to you wall

outlet and turn on the power.

Extend the telescopic aerial for the

best reception possible

3.Turning on the radio

Getting Started

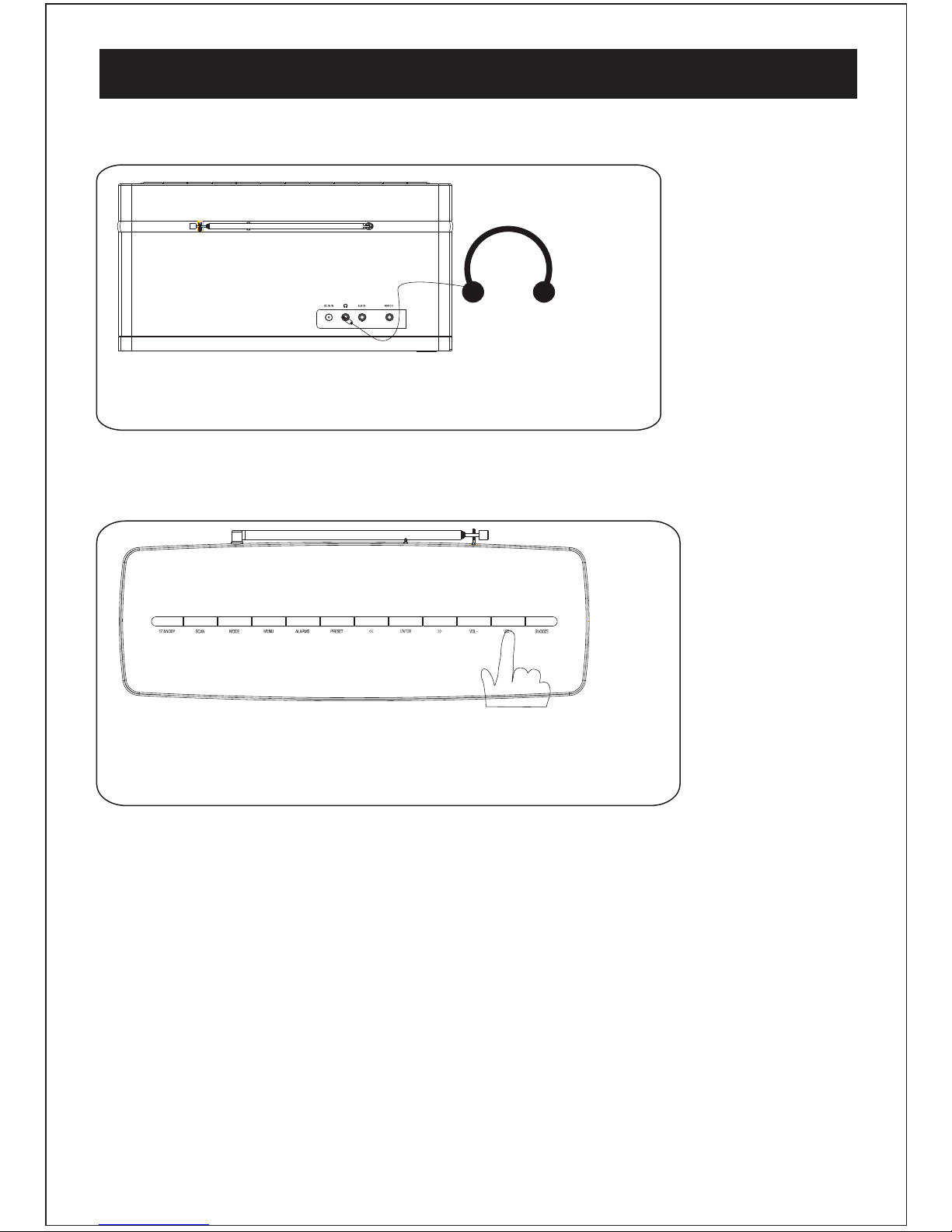

4.Connecting headphones

5. Changing the volume

Adjust the volume level by pressing the VOL+ button to increase

the volume or decrease the volume by pressing the VOL- button.

Connect your headphones to the 3.5mm

headphone socket on the back of the unit as shown above.

Operating Instructions

1.In the main menu, use the navigation buttons to select the Full scan menu.

2.Press the ENTER button to confirm and the unit will perform a full scan and store all

available DAB+ stations, same steps can be control in FM mode.

You can also choose to manually scan for your favorite DAB+/FM station to obtain optimum

reception.

1.In the main menu, use the navigation buttons to select the Manual tune menu.

2.Press the ENTER button to confirm

3.Use the navigation buttons to scroll through the available frequencies.

4.Press the ENTER button to confirm and play.

Playing your DAB+ radio

1.Pleae make sure your unit is switched on.

2.Press the MODE button to select the DAB+ radio mode.

3.Press the and buttons to scroll through the stations in the station list.

4.To scan for all new stations or to rescan for weak stations, press the SCAN button

and the radio will scan and store all available stations. We recommend scanning for

new stations every so often to pick up any newly launched digital radio stations.

Using the menu in DAB+ mode

Press and hold the MENU button to select the main menu, press the and buttons

to scroll through the options listed: Full scan ,Manual tune, DRC,Prune,DR320-V1.06

Storing a station preset

You can store up to 10 DAB+ station presets for easy play back.

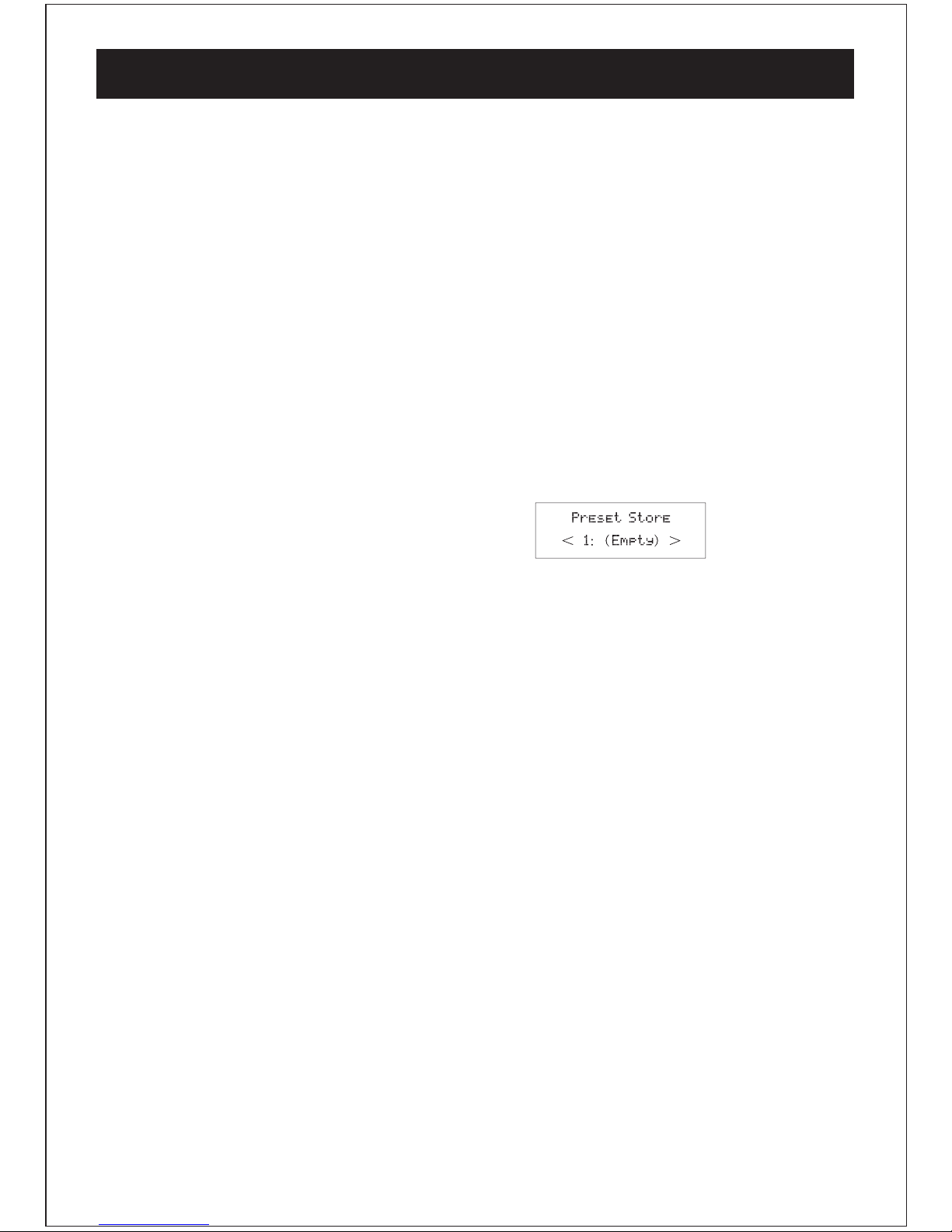

1.Select the station you wish to preset, press and hold the PRESET button until

the display shows, then release the button.

2.Using the and buttons choose the preset number(1-10) you wish to use, then

press the ENTER button to store the station.

3.Repeat this access to preset all 10 stations.

Recalling a station preset

1.Press the PRESET button and use the and buttons to select your desired preset station.

(This is to overide any station you have pre-set which you no longer set in your list)

2.Press the ENTER button to play the station.

Operating Instructions

<Prune>

If your station list includes that you can no longer receive, you can select the Prune

option to remove any stations that can no longer be received form the station list.

1.Press the MENU button to access the main menu.

2.Press the and button until Prune is displayed.

3.Pres the ENTER button to confirm.

4.Use the and buttons to select Yes or No to prune and then press the ENTER

button to confirm.

Press the MENU button to view the various radio information provided by the station

broadcaster, the information will be displayed on the second line. Press the MENU button

repeatedly to scroll though the information provided, please refer below.

: Once you reach the last info setting the next press will return you to the first setting.Note

-This shows the current station is broadcast in stereo or mono.Audio mode

-This is the scrolling message that the broadcaster may DLS(Dynamic label segment)

include with their transmissions.

-This shows the signal transmission level.Singal strength

-This is the type and description of the program provided by the DAB+ station.Program type

-This shows the current time and date provided by the broadcaster.Time and Date

-This displays the channel number and the transmission frequencyChannel frequency

-If the transmission signal contains any error, it will appply corrections. Signal error

The amount of signal corrections are displayed as a numerical value between 0 and

99, as the value increases, you will hear the signal degrade . To improve reception ,try

adjusting the position of the antenna.

Radio information

<DRC>

Dynamic range control(DRC) adds or removes a degree of compensation for the

differences in the dynamic range between radio stations.

1.Press the MENU button to access the main menu.

2.Press the and button until DRC is display.

3.Pres the ENTER button to confirm.

4.Using the and buttons to select off ,low or high to prune and then press the

ENTER button to confirm.

In the main menu ,you can find what software version your DAB+ radio . This option will display

the version number of the software currently installed in your radio. This will be helpful toa

technician who is servicing the radio currently has.

Operating Instructions

Playing your FM radio

To switch from DAB+ to FM , press the MODE button to select the FM mode.

Setting ALARM1 or ALARM2 is simple, when you follow the below steps:

1.Press the ALARMS button to select ALARM1 or ALARM2 ,then press the and buttons

to select OFF/ON,after that ,press the ENTER button to confirm.

2.Once in ALARM1 or ALARM2 , press the and buttons to adjust the Hours ,then press the

ENTER button to confirm; press the and button to adjust minutes then press the ENTER

button to confirm.

3.Press the and buttons to select the ALARM mode (once,daily,weekends,weekdays) ,then

press the ENTER button to confirm.

4.Press the and buttons to select ALARM type(DAB+,FM, Beep tone1,Beep tone2),then press

the ENTER button to confirm. If you select DAB or FM, you should select station you desired.

5.Press the and buttons to adjust alarm volume as desired, then press the ENTER button to

confirm.

6.To turn off the alarm you will need to change the ON setting to OFF.

7.To silence the alarm , press the STANDBY button.

Alarm setting

Clock setting

The radio clock can be set manually as below;

1.Press MENU button in standby mode to enter clock setting.

2.Press and buttons to select 12H or 24H, then press the ENTER button to confirm.

3.Press the and buttons to adjust the Hours ,then press the ENTER button to confirm

press the and button to adjust Minutes ,then press the ENTER button to confirm

4.Press the and button to select Year, then press the ENTER button to confirm

5.Press the and button to select Month ,then press the ENTER button to confirm.

6.Press the and button to select Day ,then press the ENTER button to confirm.

1.Press the SCAN button to automatically search for the next available frequency.

2.If you find the reception is poor, use the Manual tuning option to fine tune station,

or make sure your aerial is adjusted accordingly

Auto tune

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Radio de Blaupunkt

Blaupunkt

Blaupunkt PP20 Manual de usuario

Blaupunkt

Blaupunkt Derby H Manual de usuario

Blaupunkt

Blaupunkt KV 900 Manual de usuario

Blaupunkt

Blaupunkt Nashville DAB35 Manual de usuario

Blaupunkt

Blaupunkt BR-50DAB Manual de usuario

Blaupunkt

Blaupunkt PR5BL Manual de usuario

Blaupunkt

Blaupunkt PP12BK Manual de usuario

Blaupunkt

Blaupunkt PR8BK Manual de usuario

Blaupunkt

Blaupunkt BTA-6000 Manual de usuario

Blaupunkt

Blaupunkt Lido L 7659310 Manual de usuario

Blaupunkt

Blaupunkt oslobludab Manual de usuario

Blaupunkt

Blaupunkt IR 18E Manual de usuario

Blaupunkt

Blaupunkt BA-10 Manual de instalación y operación

Blaupunkt

Blaupunkt BR-90DABi Manual de usuario

Blaupunkt

Blaupunkt PP5BR Manual de usuario

Blaupunkt

Blaupunkt KC BT 25 Manual de usuario

Blaupunkt

Blaupunkt BCR-9 DABi Manual de usuario

Blaupunkt

Blaupunkt KR12SL Manual de usuario

Blaupunkt

Blaupunkt RX 19-1 Manual de usuario

Blaupunkt

Blaupunkt Phoenix MP33 Manual de usuario

Blaupunkt

Blaupunkt Lido de Luxe L Manual de usuario

Blaupunkt

Blaupunkt PP11BT Manual de usuario

Blaupunkt

Blaupunkt HR50DAB Manual de usuario

Blaupunkt

Blaupunkt PP15DAB Manual de usuario

Manuales populares de Radio de otras marcas

EisSound

EisSound KBSound iSelect Manual de usuario

Midland

Midland 1001LWX Manual de usuario

Konig

Konig HAV-SR41 Manual de usuario

Roberts

Roberts exprssion Manual de usuario

VDigi

VDigi DD3.0 Manual de usuario

Radio Shack

Radio Shack 21-1863 Manual de usuario

Roberts

Roberts Stream 207 Manual de usuario

Sony

Sony Walkman SRF-M97 Manual de usuario

Stanley

Stanley FatMax FMC770 Manual de usuario

auna

auna DAB-Radio 10026947 Manual de usuario

SOUNDMASTER

SOUNDMASTER UR190 Manual de usuario

HYT

HYT TC-320 Manual de usuario

auna multimedia

auna multimedia Yellowstone 10026851 Manual de usuario

B-Tech

B-Tech GMRS-V2 Manual de usuario

Weierwei

Weierwei VEV-V8 Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB750 Manual de usuario

Telefunken

Telefunken TF-1505 Manual de usuario

Makita

Makita LXRM03 Manual de usuario
