Blaupunkt TEV-501 Manual de usuario

VIDEO

Travel Entertainment

Video unit

TEV-501

Operating and installation instructions

Bitte aufklappen

Open here

Ouvrir s.v.p.

Aprite la pagina

Hier openslaan a.u.b.

Öppna här

Por favor, abrir

Favor abrir

ENGLISH DEUTSCHFRANÇAISITALIANO

NEDERLANDS

SVENSKAESPAÑOL

PORTUGUÊS

6789:;< =>

?@ABC

1313

ENGLISH DEUTSCHFRANÇAISITALIANO

NEDERLANDS

SVENSKAESPAÑOL

PORTUGUÊS

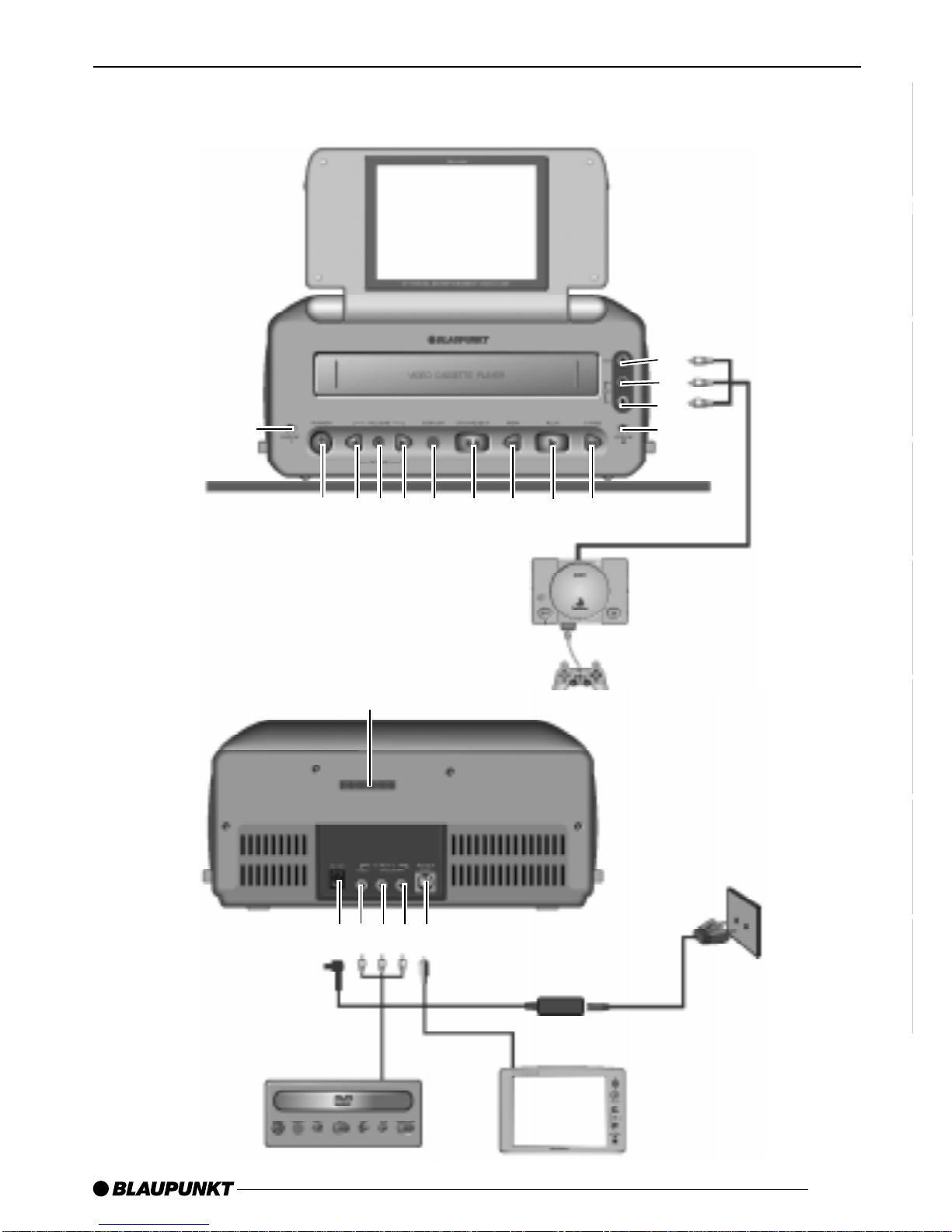

1Video input VIDEO IN

2Audio input, left channel

AUDIO IN L

3Audio input, right channel

AUDIO IN R

4Headphone output 1

HEADPHONE 1

5Headphone output 2

HEADPHONE 2

6On/off button POWER

7Volume control, quieter

VOLUME, picture controls

8Sequence switch for setting

contrast, brightness, colour and

tint PICTURE

9Volume control, louder

VOLUME, picture controls

:Infrared receiver for remote

control, optional SENSOR

;Stop button, eject cassette from

the unit STOP/EJECT

<Fast rewind button REWIND

=Playback button PLAY

>Fast forward button FFWD

?Input for 12-volt direct current

DC 12V

@Video input VIDEO IN

AAudio input, left channel

AUDIO IN L

BAudio input, right channel

AUDIO IN R

COutput for an external monitor

AV OUT

DInput for an optional television

receiver

CONTROLS

CONTENTS

Notes ...................................... 15

Securing and installing

the TEV-501 ............................ 16

Before using for the first time ......... 16

Securing the TEV-501

between the front seats ................. 17

Operating the TEV-501 in buildings . 18

Operating the TEV-501 ........... 18

Switching the TEV-501 on/off ........ 18

Playing a video cassette ................ 18

Inserting a video cassette ........... 18

Removing a video cassette ......... 18

Playing a video cassette ............. 18

Fast tape winding....................... 19

Connecting external sources

(games consoles, DVD players

and television receivers) ................ 19

Connecting a games console/

DVD player to the TEV-501 ........ 19

Connecting an external monitor .. 19

Connecting a television

receiver to the TEV-501 ................. 19

Headphone connection .................. 19

Adjusting the volume ..................... 20

Adjusting the picture ...................... 20

Adjusting the contrast ................ 20

Adjusting the brightness ............. 20

Adjusting the colour ................... 20

Adjusting the tint ........................ 20

Technical data ........................ 21

1515

ENGLISH DEUTSCHFRANÇAISITALIANO

NEDERLANDS

SVENSKAESPAÑOL

PORTUGUÊS

NOTES

To ensure that the TEV-501 is well

ventilated, only operate the unit with

the case opened.

Only use the supplied power supply

unit. Always disconnect the power

supply from the socket or cigarette

lighterfirst,beforedisconnectingthe

cable from the TEV-501.

Never touch the unit with moist

hands.

To clean the unit, only use a dry, lint-

freecloth.Neveruseharshcleansing

agents or thinners.

Dangerofelectricshock.Neveropen

theunit’shousing.Itdoesnotcontain

any components that can be

serviced by the user.

Removethe videocassette fromthe

unit when not in use.

Thank you for deciding to use a Blau-

punkt product. We wish you a lot of fun

with your new piece of equipment.

Before operating the TEV-501 (Travel

Entertainment Video) unit for the first

time, please read these operating

instructions carefully and keep them in

theTEV-501’scaseforfuturereference.

Please observe the following safety

instructions to ensure you operate the

TEV-501 safely and in a manner that

will not be of danger to anyone.

TheTEV-501mustbeconnected

to a switched power supply (e.g. the

cigarette lighter) and must not be

connected directly to the vehicle

battery. To avoid the battery running

flat,disconnecttheTEV-501fromthe

power supply when not in use.

The TEV-501 must always be

secured in its case using the Velcro

straps.Fasten theunit tothe eyelets

at the side.

Ensure that the unit is attached and

secured in accordance with these

operating instructions.

The S-hooks and all the straps must

be attached and fastened correctly

toavoid the unitcausing injury inthe

event of an accident.

Securing and installing

the TEV-501

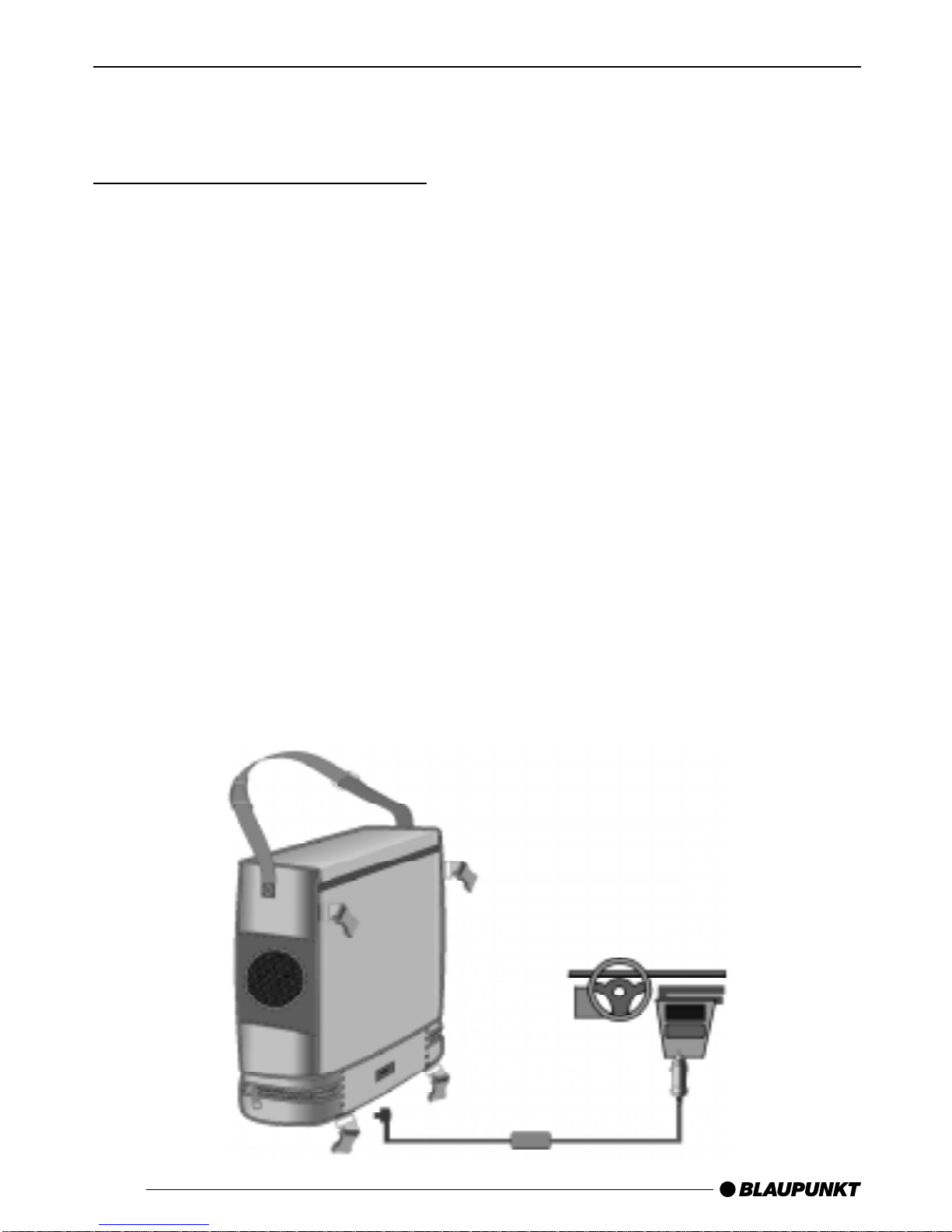

Before using for the first time

➮Open the lower storage

compartment of the TEV-501’s

case, and remove the cigarette

lighter adapter and the four straps.

➮Close the lower storage

compartment.

➮Remove the unit from its case.

➮Thread the adapter cable through

the opening in the case.

➮Connect the plug to the DC 12V

input of the TEV-501.

➮Place the unit back into the case.

➮Secure the TEV-501 using the

Velcro straps located inside the

case by threading the Velcro straps

through the eyelets on the side of

the unit.

SECURING AND INSTALLING THE TEV-501

DC 12V

1717

ENGLISH DEUTSCHFRANÇAISITALIANO

NEDERLANDS

SVENSKAESPAÑOL

PORTUGUÊS

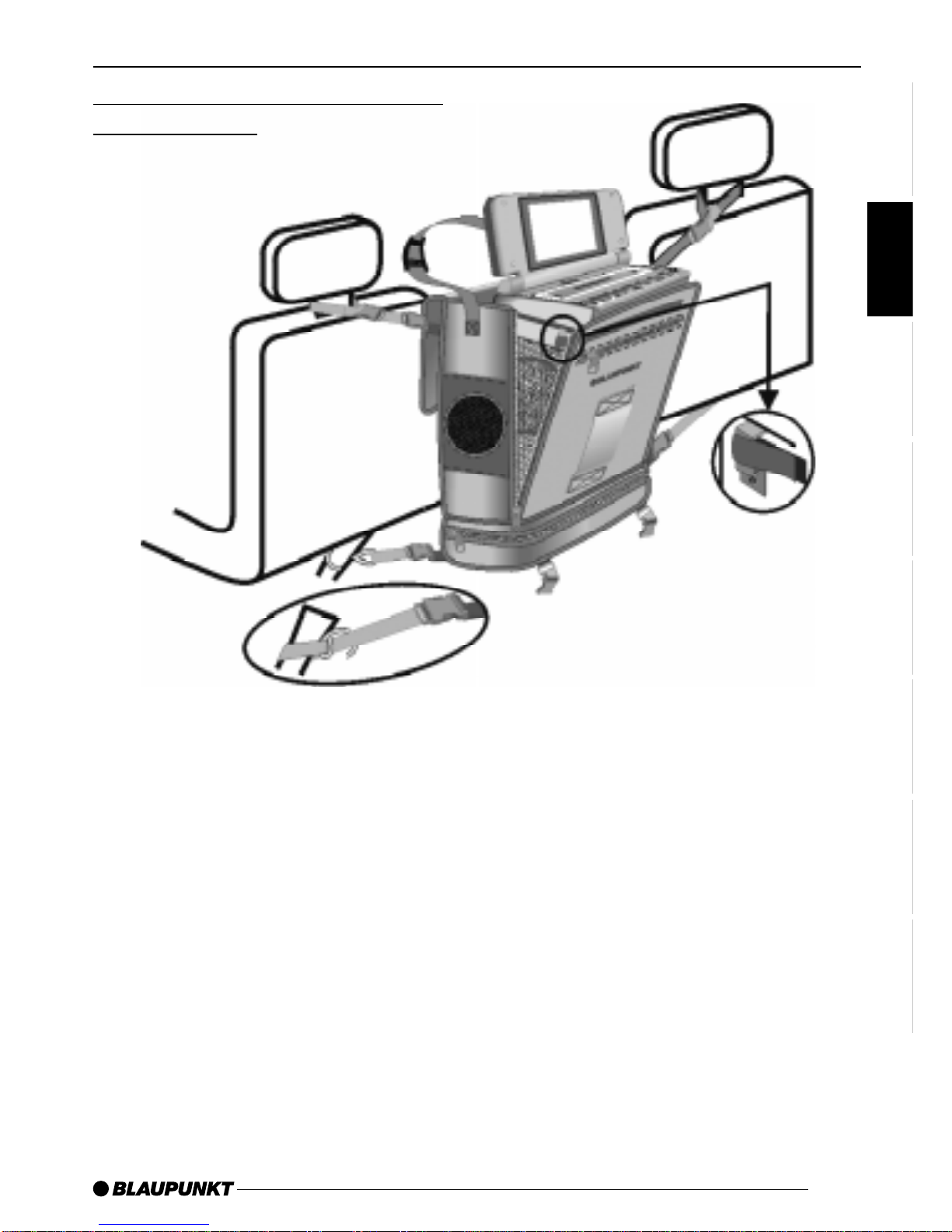

Securing the TEV-501 between

the front seats

➮Repeat this procedure for the

passenger seat.

➮Now take one of the straps that

does have an S-hook attached.

➮Connect the buckle of the S-hook

strap with one of the buckles at the

lower end of the case.

➮Place the strap around the seat rail

of the driver seat or the lower

safety belt attachment point.

➮Thread the strap through the S-

hook.

➮Pull the strap tight.

SECURING AND INSTALLING THE TEV-501

➮Take one of the straps that does

not have an S-hook attached.

➮Place the strap around one of the

headrest supports on the driver

seat.

➮Fasten the belt around the

headrest support using the two

buckles.

➮Connect one of the strap’s buckles

to the corresponding buckle on the

side of the bag. You can adjust the

length of the strap to suit the

conditions in the vehicle interior.

Operating the TEV-501

Switching the TEV-501 on/off

➮Press the POWER button to switch

the TEV-501 on/off.

Playing a video cassette

Note

The TEV-501 is designed to play

standard consumer video cassettes of

theVHS variety(Video Home System).

Nevertryinsertingothercassettesother

than VHS cassettes into the TEV-501.

Suitable VHS video cassettes are

labelled with the VHS symbol. Blau-

punkt-Werkecannotacceptanyliability

for damage that may occur from using

other video cassettes in this unit.

Inserting a video cassette

➮Carefully insert a video cassette

with its printed side uppermost and

its flap side first into the cassette

compartment of the TEV-501.

Removing a video cassette

➮With playback stopped, press the

STOP/EJECT button.

Playing a video cassette

➮To begin playback, press the PLAY

button.

Note

Video cassettes will be played

automaticallyiftheirrecordingprotection

mechanism has been activated.

➮Repeat this procedure for the

passenger seat.

➮Open the case’s upper lid.

➮Flip up the monitor.

➮Open the zip fasteners at the front

of the case. The unit is angled at

around 15°. Close the zip fasteners

until the unit is set at an angle that

you find convenient.

Operating the TEV-501 in

buildings

➮Place the unit on a secure and

level surface.

➮Open the lower storage

compartment in the TEV-501’s

case, and remove the power

supply unit.

➮Connect the output of the power

supply unit to the DC 12V input of

the TEV-501.

➮Connect the mains power cable to

a 220-volt socket.

OPERATING THE TEV-501

1919

ENGLISH DEUTSCHFRANÇAISITALIANO

NEDERLANDS

SVENSKAESPAÑOL

PORTUGUÊS

Fast tape winding

To fast forward the tape,

➮Press the FFWD button.

To fast rewind the tape,

➮Press the REW button.

Connecting external sources

(games consoles, DVD players

and television receivers)

You can connect up to two external

videoandaudiosourcestotheTEV-501

(e.g. a games console or DVD player),

and use the monitor and loudspeakers

for the output. The TEV-501 has two

separate inputs for video signals and

stereo audio signals. The inputs are

locatedonthefrontandbackoftheTEV-

501.Ifalltheinputsareinuse,theTEV-

501 gives priority to the inputs at the

front of the unit.

Connecting a games console/DVD

player to the TEV-501

➮Use a suitable cable to connect a

games console/DVD player to the

VIDEO IN, AUDIO IN L and

AUDIO IN R inputs at the front or

back of the TEV-501.

ToavoiddamagetotheTEV-501

and the games console, make

absolutely certain that the cable

coloursmatchthejackcoloursonthe

units.

➮First switch on the games console.

➮Now switch on the TEV-501.

To enable an external source to output

on the TEV-501,

➮Press the STOP button.

Connecting an external monitor

You can connect a monitor to the TEV-

501 in order to output to this monitor.

➮Connect an external monitor or

television to the AV OUT

connection on the TEV-501.

Connecting a television receiver

to the TEV-501

Thereisa32-pinconnectionattheback

of the TEV-501 to allow you to connect

the optionally available TET-01

television receiver. If you want to

purchase a television receiver for the

TEV-501, please contact a Blaupunkt

dealer.

Headphone connection

There are two 3.5 mm headphone

connections at the front of theTEV-501

labelled HEADPHONE 1 and

HEADPHONE 2. You can connect

headphones to either of these jacks. If

you connect a headphone to the

HEADPHONE1jack,theunit’sinternal

loudspeakerswillbedeactivated.Ifyou

only connect up the HEADPHONE 2

jack, sound will be outputted

simultaneously over the internal

loudspeakers.

OPERATING THE TEV-501

Otros manuales para TEV-501

Tabla de contenidos

Otros manuales de Receptor de coche de Blaupunkt

Blaupunkt

Blaupunkt Denver CD147 Manual de usuario

Blaupunkt

Blaupunkt MALTA RCR 45 Manual de usuario

Blaupunkt

Blaupunkt 200 Series Manual de usuario

Blaupunkt

Blaupunkt Newport CD85 Manual de usuario

Blaupunkt

Blaupunkt Wiesbaden SQR 45 Manual de usuario

Blaupunkt

Blaupunkt RCM 127 Manual de usuario

Blaupunkt

Blaupunkt DENVER Denver CD70 Manual de usuario

Blaupunkt

Blaupunkt Heavy Duty Series Manual de usuario

Blaupunkt

Blaupunkt MIAMI CD73 Manual de usuario

Blaupunkt

Blaupunkt NASHVILLE DAB47 Manual de usuario

Blaupunkt

Blaupunkt STOCKHOLM RCM 126 Manual de usuario

Blaupunkt

Blaupunkt ALICANTE Alicante CD31 Manual de usuario

Blaupunkt

Blaupunkt Washington CM147 Manual de usuario

Blaupunkt

Blaupunkt LONDON RDM 43 Manual de usuario

Blaupunkt

Blaupunkt San Diego MP27 Manual de usuario

Blaupunkt

Blaupunkt Phoenix MP33 Manual de usuario

Blaupunkt

Blaupunkt MUNCHEN RDM 126 Manual de usuario

Blaupunkt

Blaupunkt Phoenix CM 127 Manual de usuario

Blaupunkt

Blaupunkt New Orleans MD70 Manual de usuario

Blaupunkt

Blaupunkt ST. LOUIS 7 642 183 110 Manual de usuario

Blaupunkt

Blaupunkt San Francisco 300 Manual de usuario

Blaupunkt

Blaupunkt Bremen RCM 43 Manual de usuario

Blaupunkt

Blaupunkt Lexington C32 Manual de usuario

Blaupunkt

Blaupunkt RPC 250 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario

Medion

Medion Car Audio Manual de usuario
