Lima CR 47

Radio / Cassette

Operating instructions

Lima CR47 d® 13.05.2002, 10:33 Uhr1

Table of Contents

Features......................................................................................................................................... 19

Traffic Safety and Precautions....................................................................................................... 19

Detachable Face (Release Panel).................................................................................................20

Electrical Connections ................................................................................................................... 21

Installation...................................................................................................................................... 23

Maintenance .................................................................................................................................. 25

Location of Controls....................................................................................................................... 26

Instructions – General Operation................................................................................................... 27

Audio Operation............................................................................................................................. 28

Radio Operation............................................................................................................................. 29

Cassette Tape Player Operation.................................................................................................... 30

Troubleshooting Guide .................................................................................................................. 31

Blaupunkt Telephone Hotline ......................................................................................................... 31

Specifications................................................................................................................................. 32

Lima CR47 gb® 13.05.2002, 10:37 Uhr18

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

Features

•Radio Features

-15 FM/5 AM Presets, Including 5 FM and 5 AM Travelstore Presets

-Station Scan

-Local/Distant Seek and Manual Tuning

•Cassette Tape Player Features

-Auto-Reverse Cassette Mechanism

-True Fast-Forward/Rewind

-Hard Permalloy Tape Head

-Radio Monitor with Radio Preset Access

•Audio Features:

-10 Watts x 4 Channel Integrated Amplifier

-Adjustable Maximum Turn-On Volume

-Bass, Treble, Balance and Fader Control

-Loudness Button

-Mute Button

•Other Features:

-Detachable Face

-Illumination, Amber Night Design

-Display Priority Control

-Temporary Display Change Control

-Clock Recall

-179 x 50 x 150 mm DIN/ISO Chassis

-Detachable Wire Harness

-Snap-In DIN Sleeve and Mounting Hardware

Your unit’s detachable front faceplate makes the unit useless to would-be thieves.

Designed, Engineered and Manufactured By Blaupunkt.

Traffic Safety and Precautions

•Do not adjust your unit in difficult driving conditions that demand your full attention.

•As the driver of a motor vehicle, it is your responsibility to pay attention to the traffic situation

at all times. Never use your unit in a way that could distract you.

•Always make sure that you are still able to hear any warning signals coming from outside of

the vehicle, such as police or fire engine sirens, so that you can react accordingly.

•If your vehicle was parked in direct sunlight resulting in a considerable rise in temperature

inside the vehicle, allow the unit to cool off before operating it.

Lima CR47 gb® 13.05.2002, 10:37 Uhr19

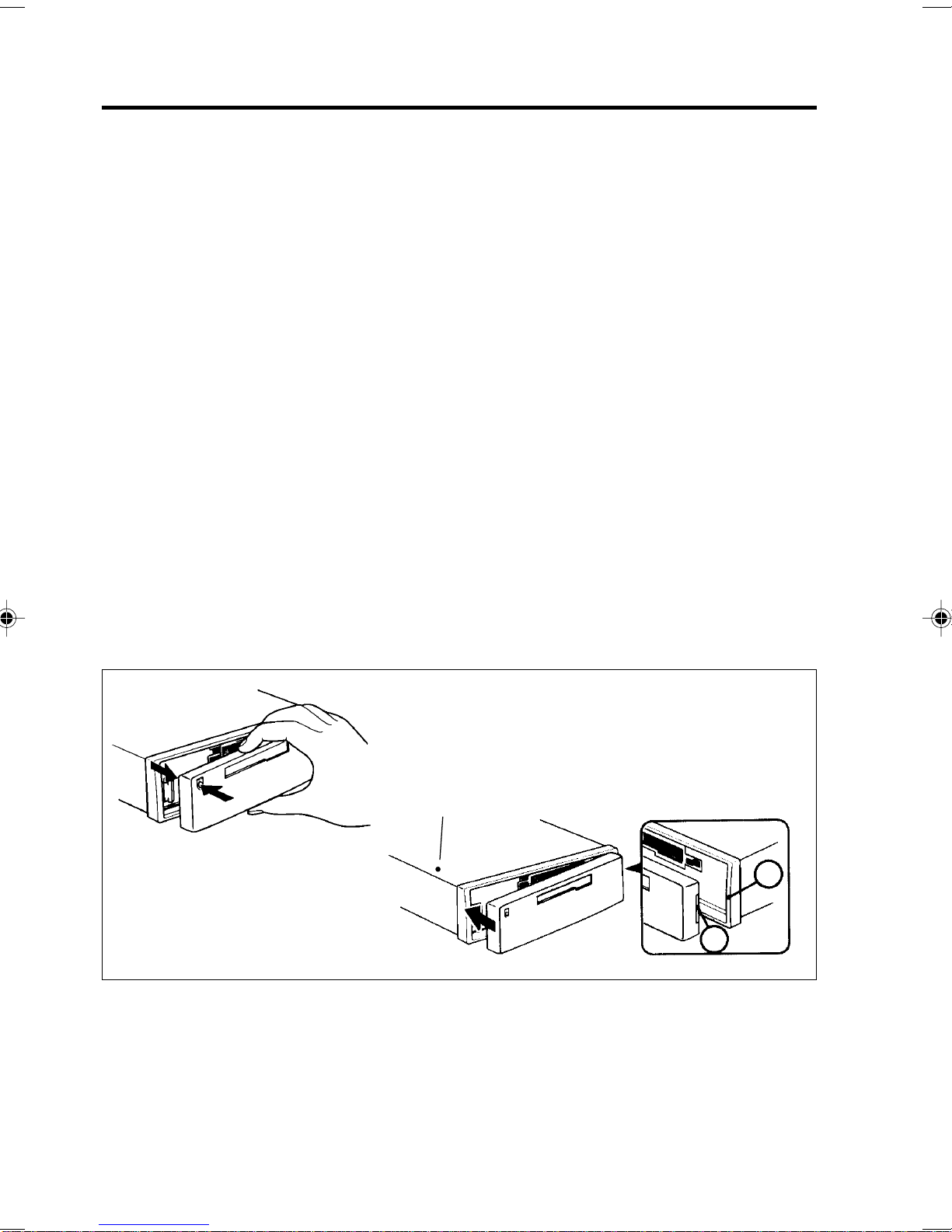

Detachable Face (Release Panel)

Detaching and Attaching the Face:

The face of this unit can be detached and taken with you to prevent it from being stolen.

Detaching the Face:

Press the REL (Release) Button and detach the face by gently pulling it off as illustrated.

Note: Do not pull it straight out from the chassis. Be sure not to drop the face when detaching it

from the chassis. Do not expose the face to direct sunlight, heat sources such as hot air ducts or

leave it in a humid place.

Attaching the Face:

Apply the right hand side of the face to the chassis by sliding (part B) of the face to (part A) at

the front of the chassis. Gently push the left side of the face against the front of the chassis until

it snaps into place.

Note: Make sure that the face is inserted right side up. Do not press against the display window.

Do not press hard against the face when attaching it to the chassis, it may be easily attached

with gentle pressure.

Affixing Faceplate For Retail Display:

The faceplate can be affixed to the unit’s chassis, which is desirable for a retail display, for

example. This should only be done in situations where the unit can be accessed from

behind the mounting surface. Once the faceplate is affixed, the release keys cannot be

used to remove the chassis.

To affix the faceplate:

Insert the black bolt into the hole at the left front of the top of the radio. See * below.

Lima CR47 gb® 13.05.2002, 10:37 Uhr20

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

Electrical Connections

To avoid the aggravation of costly mistakes and serious damage, please carefully read all of the

instructions before you begin. Carefully follow all instructions.

General Recommendations

•If you’re not confident that you can install the unit correctly, have it installed by a qualified

Blaupunkt installation technician.

•Use this unit only with negative ground 12 Volt (11-16 Volt) direct current (DC).

•Be sure to detach the faceplate before you start to connect or install the unit.

•We recommend making and testing all electrical connections before installing the unit.

Connect the leads (wires) according to instructions and diagram below.

Electrical Connection Instructions

1. Disconnect the vehicle battery’s negative terminal before making connections.

2. Connect the speakers and/or external amplifiers (if you have any) following the guidelines in

the “Speaker Connection” section below.

3. Connect the antenna output lead to the antenna motor trigger input terminal (if you have

one). The total amperage required of the antenna lead must not exceed 100 mA. Do not

connect the antenna lead to the antenna’s power supply input.

4. Connect the ground lead to a grounded metal part on the vehicle. We recommend

grounding all audio system ground leads (head unit, external amplifier, etc.) to a common

grounding point, preferably a non-painted surface under the instrument panel.

5. Connect the battery input lead to a source of constant battery power, preferably a terminal

to an appropriate slot in the fuse box.

6. Connect the ignition input lead only after the other leads are connected. Be sure to connect

the ignition lead to a positive (+) 12 Volt power terminal that is energized only when the

ignition key is set to the on position or accessory position.

7. Cover the ends of any unused leads with electrical tape. This will prevent them from

touching the vehicle or each other and causing a short-circuit and damage to the radio or

vehicle.

8. Reconnect the vehicle’s battery.

9. Verify that no fuses have blown.

10. Plug the harness into the unit.

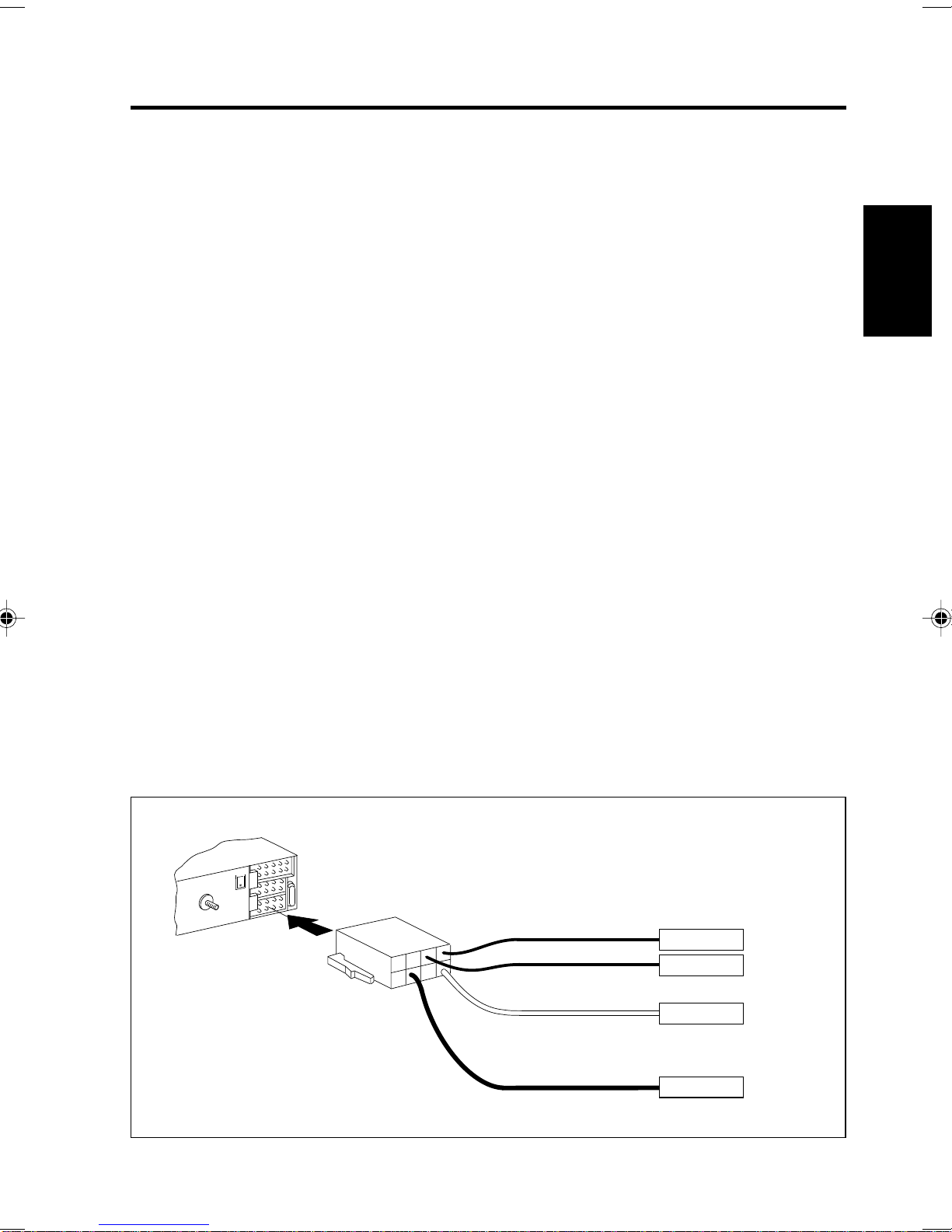

Electrical Connections

Ignition +12V

Battery

Antenna

+12V

Ground –

Lima CR47 gb® 13.05.2002, 10:37 Uhr21

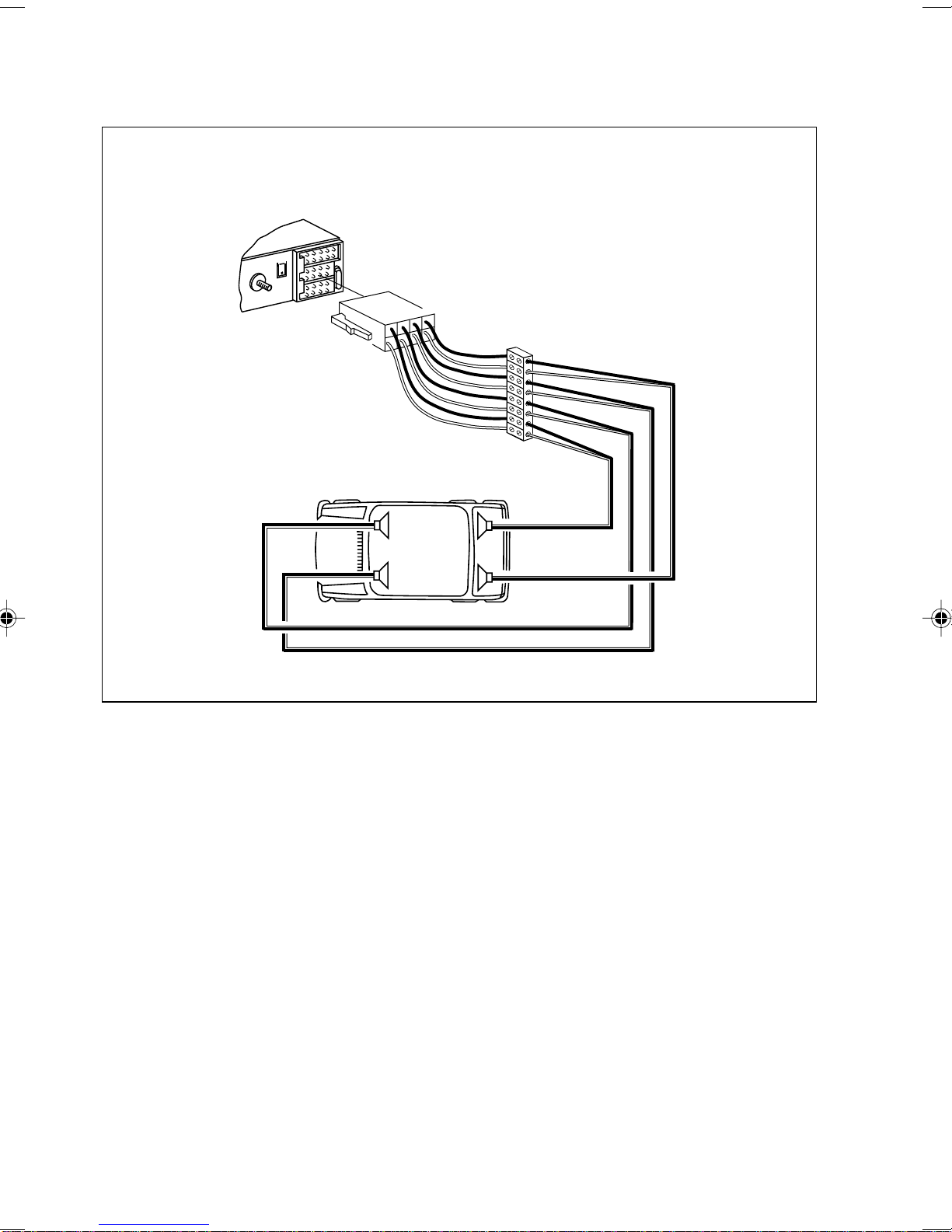

Speaker Connections

Attach the faceplate and test the unit.

Once the connections have been successfully made, you can begin to mount the unit.

RRRFLF LR

Speaker Connections

Lima CR47 gb® 13.05.2002, 10:37 Uhr22

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

Installation

Recommendations

•The illustration below shows a typical installation, however, you may need to adjust the

installation, depending on the unit. If you have questions or need additional installation

hardware, consult your Blaupunkt dealer.

•Make sure the unit is firmly anchored and does not vibrate.

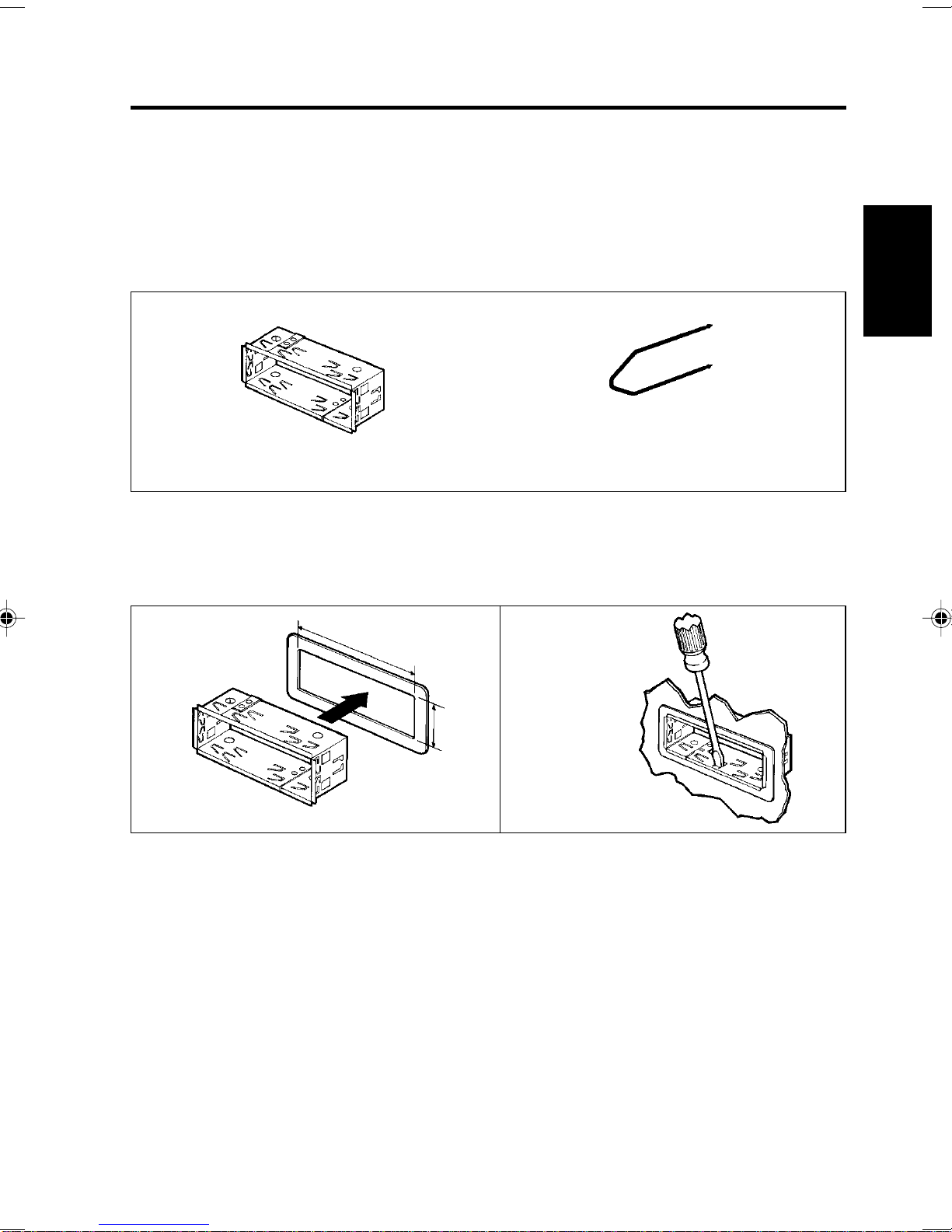

Mounting Hardware

Mounting The Unit in Most Dashboards

1. Install the Sleeve in the dashboard.

2. Select and bend the appropriate tabs to hold the sleeve firmly in place.

Sleeve Release Keys

Bend these tabs

Lima CR47 gb® 13.05.2002, 10:37 Uhr23

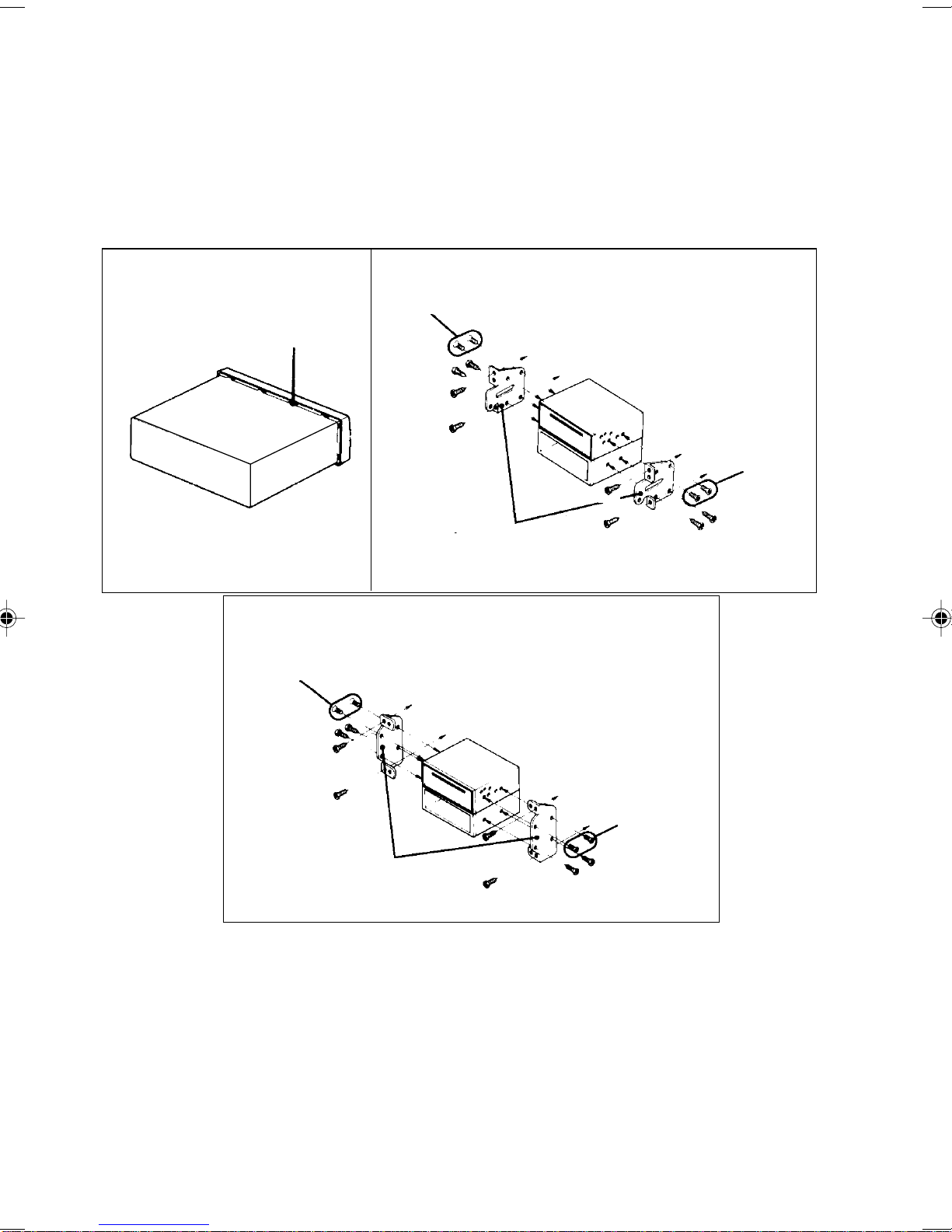

Mounting the Unit in a Japanese Car

You may have difficulty mounting this unit in some Japanese cars that have ISO mounting

features. In this case, consult your Blaupunkt dealer.

1. Run a blade along the slits on the back of the front trim ring, unscrew the two side screws,

and separate it from the unit. Save the trim ring and related hardware in case you ever want

to install the unit in another vehicle.

2. Use the vehicle’s own mounting hardware to attach the unit.

Slit

Bracket

Support

Bracket

Support

to dashboard/center console

max. size

M5x8

max. size M5x8

max. size

M5x8

max. size M5x8

2 NISSAN

2 TOYOTA

to dashboard/center console

Lima CR47 gb® 13.05.2002, 10:37 Uhr24

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

Maintenance

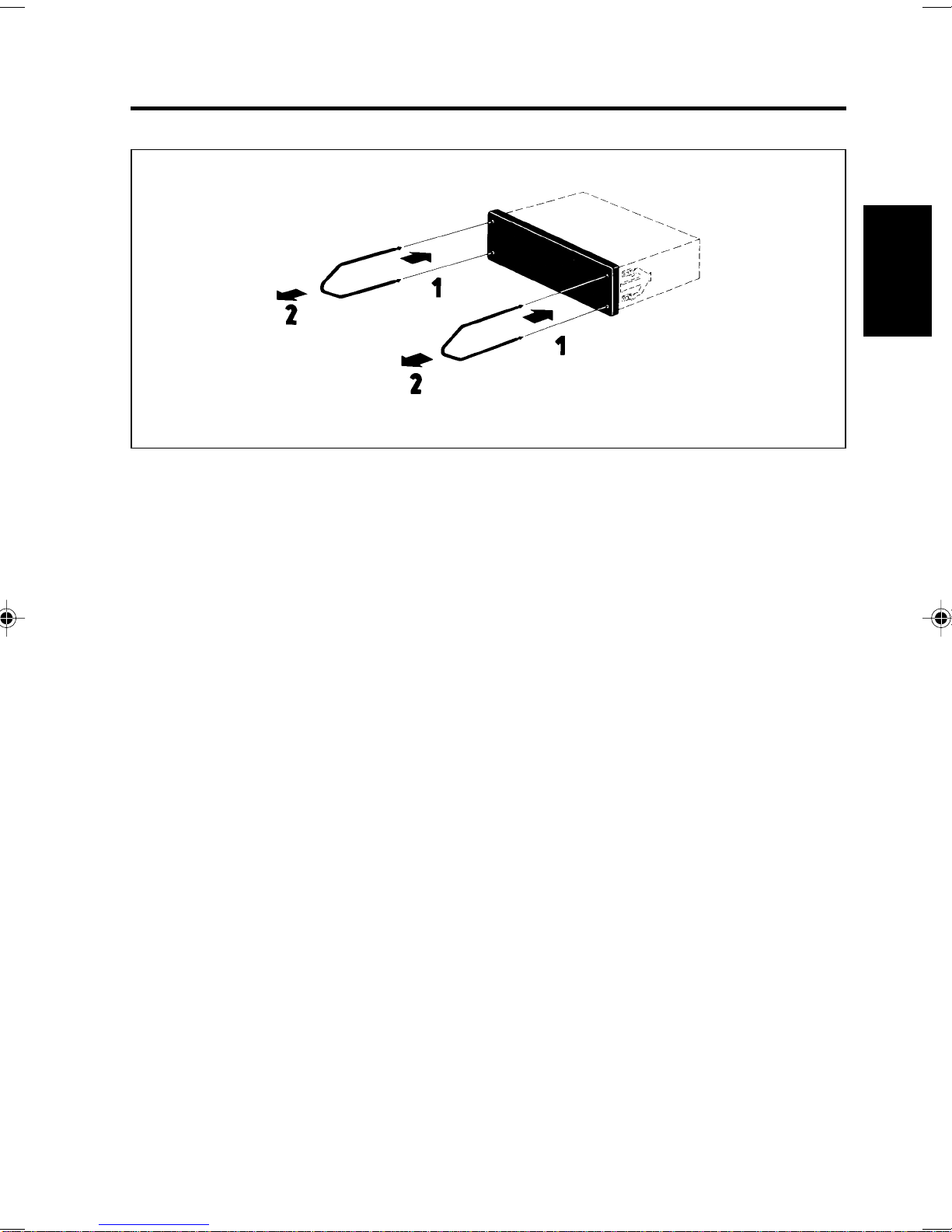

Removing the Unit

Use the Release Keys as shown below. Keep them in a safe place in case you need them in the

future.

Fuse Replacement

When replacing the fuse, be sure to use one with the correct amperage, which will be stated on

the fuse case. Never use a fuse that has a stated amperage exceeding the one supplied for this

unit, as this could cause malfunction and serious damage to the unit.

Lima CR47 gb® 13.05.2002, 10:37 Uhr25

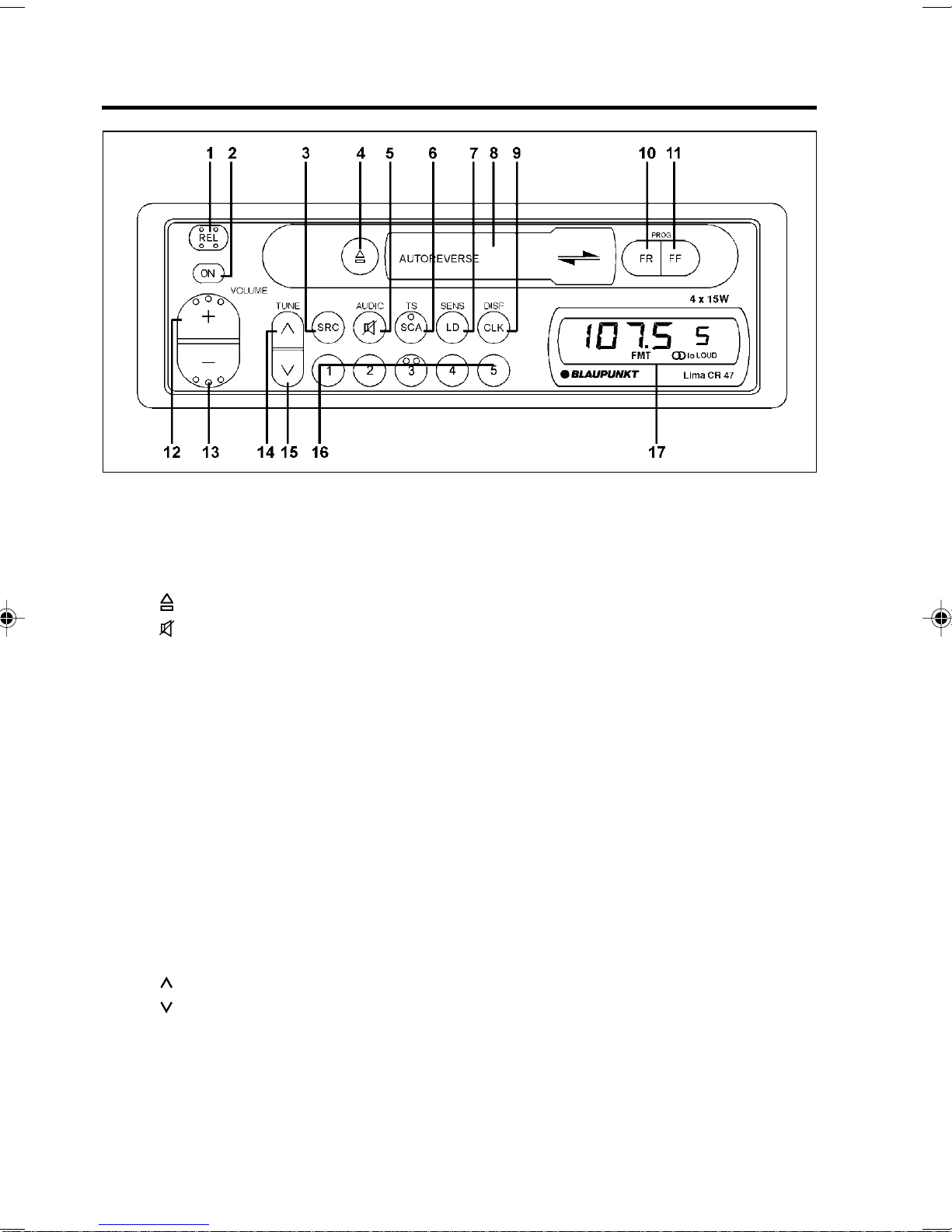

Location of Controls

1REL (Release) – Detaching Faceplate

2ON (Power) – Turning Unit On

3SRC – Source and Radio Band Select

4– Cassette Eject

5– Mute

AUDIO – Audio / Clock Adjust :00

6SCA – Scan

TS – Travelstore

7LD – Loudness

SENS – Tuning Sensitivity

8Cassette Insertion Slot

9CLK – Clock Recall

DISP – Display Change

10/11 PROG – Tape Program Change (reverse)

10 FR – Fast Rewind

11 FF – Fast Forward

12 + – Volume + / Bass + / Treble + / Balance Left / Fade to Front

13 – – Volume - / Bass - / Treble - / Balance Right / Fade to Rear

14 – Seek and Manual Tuning / Clock Hours

15 – Seek and Manual Tuning / Clock Minutes

16 1, 2, 3, 4, 5 – FM/AM Presets

17 Display

Lima CR47 gb® 13.05.2002, 10:37 Uhr26
