Product Handbook

FOR THE BLADEZ MOBY 35/40

GAS POWERBOARD

Models: PB-SE802

PB-SE803

PB-SE1802

PB-SE1803

PLEASE BE SAFE WHEN RIDING

ALWAYS WEAR A HELMET AND OBEY ALL LAWS!

Powered Personal Transportation

GAS POWERBOARD

Page 2 of 18

IMPORTANT

THIS IS A 2-CYCLE ENGINE

IT REQUIRES A MIXTURE OF GAS AND 2-STROKE

ENGINE OIL

1. You must always use a gas oil mixture. FAILURE TO DO SO

WILL VOID YOUR WARRANTY!

2. Use 50:1 Gas:Oil Mixture. 2.6 oz of oil for every gallon of High-

Octane Gasoline.

3. Tanaka Perfect Mix, or similar quality 2-Cycle Engine Oil

recommended. Oil can be purchased from your local Bladez

Dealer, Outdoor Power Equipment Dealer, Power Sports Dealer or

on www.ebladez.com.

4. High-Octane Fuel Recommended. (90 octane or higher)

Failure to follow these INSTRUCTIONS will

VOID YOUR WARRANTY!

This PRODUCT IS NOT INTENDED FOR EXTREME or

OFF-ROAD Use! Please take care of your POWERBOARD!

DO NOT JUMP or ABUSE THIS PRODUCT!

DO NOT RIDE IN WET/ICY CONDITIONS!

Failure to follow these instruction or abuse will

VOID YOUR WARRANTY!

If you have any questions, please contact Bladez customer service

(866) 325-2339 or visit us on the web at www.ebladez.com

Page 3 of 18

IMPORTANT

PLEASE READ THIS BEFORE USING THIS PRODUCT

READ THIS FIRST!

WARNING

This product does not conform to Federal Motor Vehicle Standards and is not

intended for operation on public streets, roads or highways. Serious injury can

result from the unsafe operations of this product. Operator can minimize these

risks by using certain safety equipment such as: safety helmet, goggles,

gloves, elbow and kneepads and appropriate footwear.

DO NOT operate this product in traffic, on wet, frozen oily or unpaved

surfaces or under the influence of drugs and/or alcohol. Avoid uneven

surfaces, potholes, surface cracks and obstacles.

DO NOT use a water hose to clean this product. See Product Handbook for

more information.

This product is recommended for riders 16 YEARS OF AGE and older.

SAFETY

This product should not be used by persons without excellent vision,

balance, coordination, reflex, muscle and bone strength and good

decision-making capabilities.

This product should not be used by minors without adult supervision.

This product should not be used by persons unwilling or unable to take

responsibility for their own actions.

•The user of this product assumes ALL risks associated with its use. To

minimize these RISKS, the user must wear safety helmet, goggles, gloves,

elbow and knee pads and appropriate footwear.

Never start the engine inside a closed room or building. Breathing exhaust

fumes can be fatal.

Page 4 of 18

IF YOU HAVE ANY QUESTIONS OR NEED

ASSISTANCE,

PLEASE CALL BLADEZ, TOLL FREE AT:

(866) EBLADEZ

(866) 325-2339

MONDAY thru FRIDAY, 8am to 5pm PST

or visit us on the web at:

www.ebladez.com

GROWING NETWORK OF SERVICING DEALERS

FOR ALL YOUR POWERBOARD NEEDS

DO NOT TAKE YOUR

BLADEZ POWERBOARD BACK

TO THE STORE!

Page 5 of 18

Fuel Safety

Mix and pour fuel outdoors away from sparks or flames.

Only use a container approved for fuel.

Do not smoke or allow smoking near the Power Board while working on the

engine, or while the engine is running.

Wipe up and clean all fuel spills before starting the engine.

Move at least 10 feet away from where you fueled before starting engine.

Stop engine before removing the fuel cap.

It is recommended that you empty the fuel tank prior to shipping or storage to

prevent fuel leaks.

Do not store your Power Board near open flames, furnaces, electric motors or

switches.

Maintenance

Maintain your Power Board as recommended in this Product Handbook.

Disconnect the spark plug cap before performing any engine maintenance,

except for carburetor adjustments.

Keep others away while making carburetor adjustments.

Use only quality replacement parts as recommended by the manufacturer.

Transportation and Storage

Carry your Power Board by the handle bar tube with the engine off and the

muffler away from your body.

Allow the engine to cool, empty the fuel tank and fold the Power Board before

carrying or storage.

It is recommended that you empty the fuel tank prior to shipping or storage to

prevent fuel leaks.

Clean the Power Board carefully and store in a cool, dry place.

Product Safety

Keep hands and feet away from moving parts.

Inspect the entire product prior to each use. Replace damaged parts. Check

for fuel leaks and make sure all fasteners are in place and securely fastened.

Replace all parts that are cracked, chipped or damaged before use.

Use only parts and accessories that are recommended by the manufacturer.

If a situation arises that is not covered in the manual,

proceed with caution and use good judgement.

Contact your dealer or Bladez (www.ebladez.com)

if you need further assistance

QUICK REFERENCE

SAFETY GUIDE

Page 6 of 18

TABLE OF CONTENTS

TABLE OF CONTENTS...............................................................................................6

GETTING TO KNOW YOUR BLADEZ POWER BOARD...........................................7

PACKAGE CONTENTS...............................................................................................8

GETTING STARTED ...................................................................................................8

FOLDING AND STORAGE .......................................................................................10

OPERATING PROCEDURES ...................................................................................11

MAINTENANCE.........................................................................................................12

RECOMMENDED TOOLS .................................................................................................... 12

CARBURETOR ADJUSTMENT............................................................................................ 12

BRAKING SYSTEM .............................................................................................................. 13

TIRES AND WHEELS ........................................................................................................... 14

ADJUSTING THE HEAD UNIT ............................................................................................. 14

ADJUSTING THE BELTS ..................................................................................................... 15

MAINTENANCE SCHEDULE....................................................................................16

OTHER QUESTIONS.................................................................................................16

Page 7 of 18

GETTING TO KNOW YOUR BLADEZ POWER BOARD

Before operating your BLADEZ Power Board, please get acquainted with all of the features.

Power Board Features

1. Throttle Lever

2. Brake Lever

3. Disc Brake

4. 2-Stroke Engine

5. Folding Handle

6. Kickstand

7. Head Unit

8. Deck

9. Brake Calliper

10. Rear Friction Foot Brake

11. Kill Switch

12. Belt Pulley

13. Belt Cover

14. Handle Bar Tube

Motor Features

1. Recoil Starter

2. Gas Tank

3. Gas Cap

4. Choke Lever

5. Carburetor

6. Carburetor Cover

7. Muffler

8. Muffler Cover

9. Spark Plug

Page 8 of 18

PACKAGE CONTENTS

Your Bladez MOBY comes with the following items in the box. Please locate all of

the following:

1. The Bladez MOBY Power Board

2. Allen Wrench

3. Spark Plug wrench

4. Product Handbook

GETTING STARTED

Please read and understand these instruction and the OPERATING

PROCEDURES section, prior to starting or riding your Power Board

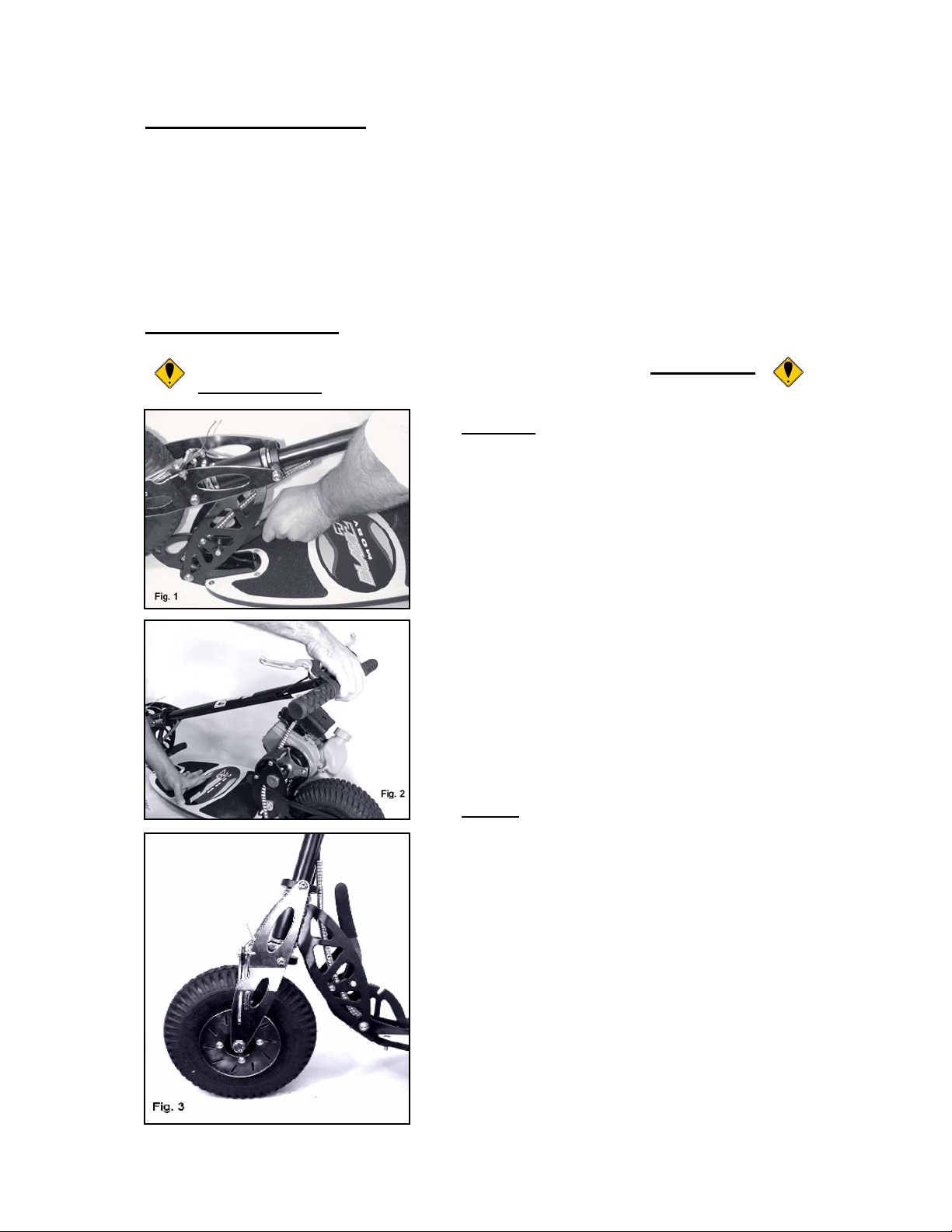

Unfolding

1. Carefully remove the MOBY from the

box.

2. To unfold the MOBY, begin by pressing

down on the FOLDING HANDLE with

one hand (Fig. 1), while gently pulling up

on the handlebars with the other (Fig. 2).

3. Fully extend the handlebars to their

upright position until you feel the

mechanism lock into place (Fig. 3).

4. When you first take the MOBY out of the

box, the BRAKE LEVER and Throttle

LEVER are in the down position for

shipping. Using the provided Allen

Wrench, loosen the tension bolt, and

adjust the levers to a comfortable

position (Fig. 4). * BE CAREFUL NOT

TO PULL ON THE CABLES!

Fueling

This is a two-stroke engine.

Only run the engine using a mixture of

gasoline and 2-cycle engine oil.

PLEASE READ OPERATING

PROCEDURES BEFORE FUELING!

5. Mix fuel (minimum 90 octane) and 2-

cycle engine oil in separate container.

Use Tanaka Perfect Mix or a quality 50:1

2-cycle oil. Make sure the fuel is well

mixed by shaking the container.

6. Make sure that the engine is off!

Page 9 of 18

7. Slowly open the GAS CAP, so that

possible over-pressure disappears.

8. Clean the tank cap area to make sure

that it is free from excess dirt and debris.

* Make sure that no dirt falls into the gas

tank.

9. Pour pre-mixed Gas/Oil mixture into the

GAS TANK. * Do not overfill.

10.After fueling, replace the GAS CAP and

tighten.

Starting

Move at least 10 feet away from where

you filled up the gas.

11.Set the CHOKE LEVER to the CHOKED

(UP) position. (Fig. 5)

12.Pull the RECOIL STARTER briskly,

making sure to hold the handle in your

grasp. (Fig. 6) * Note: Do not allow it to

snap back, let it back slowly. You may

want to give it a little throttle by gently

squeezing the GAS LEVER.

13.It may be necessary to repeat step 12

several times until the motor starts

When starting the MOBY for the first

time, it may be necessary to pull the

starter handle multiple times until it

starts.

*This is because the gas needs to be drawn

into the carburetor.

14.Once the engine has started, quickly

move the CHOKE LEVER into the RUN

(DOWN) position. (Fig. 5)

15.After engine is started, let it warm up for

2-3 minutes before riding.

IF THE MOTOR KEEPS STAHLING AT

IDLE SPEED, IT MAY BE NECSSARY TO

ADJUST THE IDLE SPEED ON THE

CARBURETOR.

Please refer to Carburetor Adjustment in the

Maintenance section on page 12 for

instructions on how to adjust idle speed.

Page 10 of 18

Riding

16.Makes sure that all of the exposed bolts

and screws are tightened.

17.Raise the kickstand to its upright

position.

18.Make sure the engine is running.

19.Put one foot on the deck of the MOBY.

While pushing off with the other foot,

gently depress the THROTTLE LEVER,

on the right side of the handlebars. The

MOBY will begin to move on its own

power.

20.Control your speed by pressing and

releasing the accelerator lever. The

harder you squeeze, the faster you will

go.

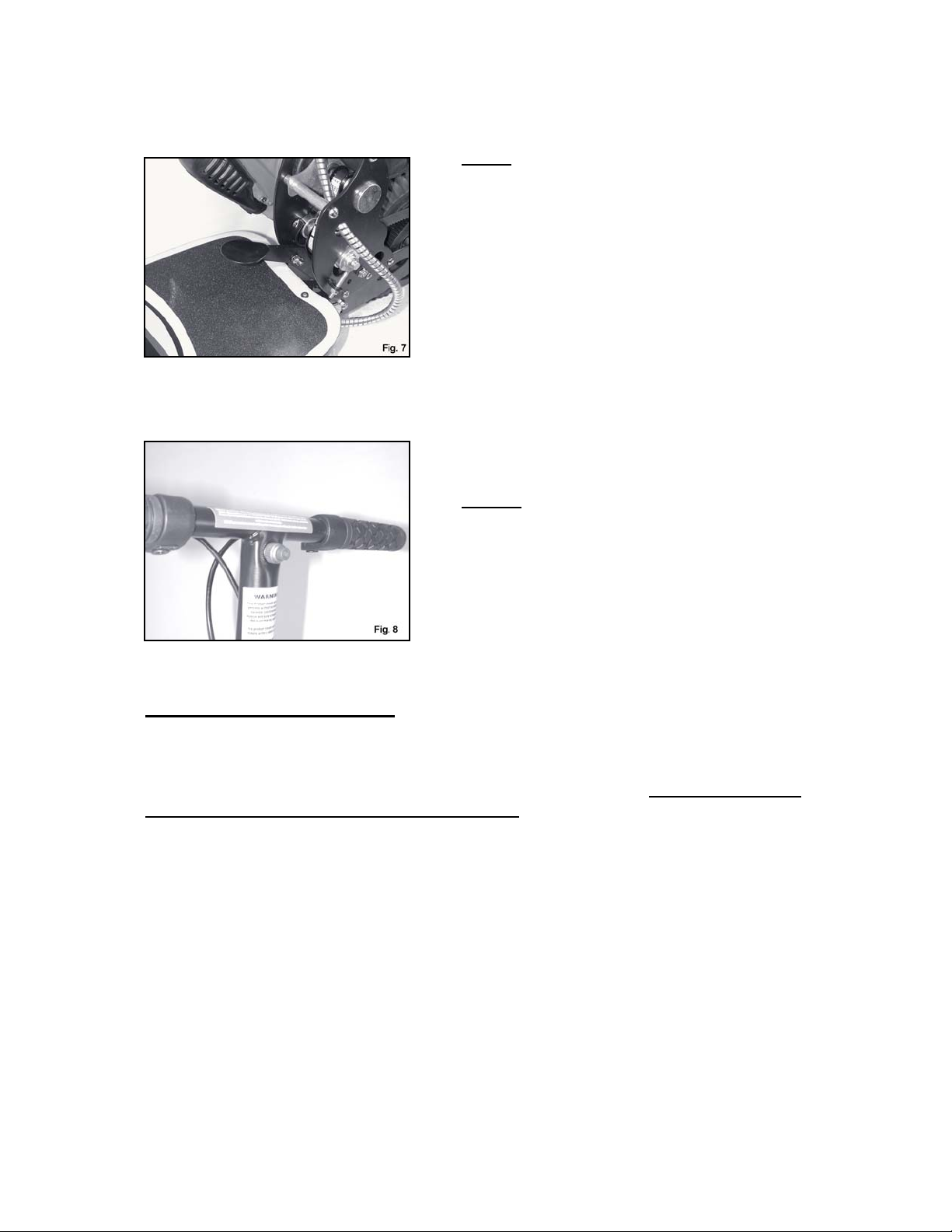

Braking

21.To brake, release the THROTTLE

LEVER and depress the BRAKE LEVER

(on the left side of the handlebars). You

can also use the rear foot brake. (Fig. 7)

22.Gradually decrease the engine speed to

idle and press the kill switch button on

the handlebar tube. (Fig. 8) This will turn

the engine OFF.

FOLDING AND STORAGE

When you are done riding the MOBY you can fold it down for compact storage,

carrying and transportation. To fold down the MOBY, use one hand to push down on

the folding handle while gently pushing down on the handlebars. BE CAREFUL NOT

TO HIT YOUR HEAD WITH THE HANDLEBAR. Push down until you feel the

mechanism lock into down position.

* NOTE: If the lever is pulled aggressively, the locking spring may become

stretched and then the steering will not lock into position, it is also advisable

to ensure scooter locks firmly, prior to riding.

You can now carry the MOBY by the handlebar tube.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Scooter de BLADEZ

BLADEZ

BLADEZ Travel Mate DKS280 Manual de usuario

BLADEZ

BLADEZ XTR-COMP IIPB-SM 818 Manual de usuario

BLADEZ

BLADEZ PB-SM1816 Manual de usuario

BLADEZ

BLADEZ MOBY X Manual de usuario

BLADEZ

BLADEZ Sport DKS200 Manual de usuario

BLADEZ

BLADEZ ION 450 Manual de usuario

BLADEZ

BLADEZ ION 150 Manual

BLADEZ

BLADEZ Travel Mate DKS280 Manual de usuario

BLADEZ

BLADEZ ION 150 Manual de usuario

BLADEZ

BLADEZ PB-SM804SA Manual de usuario

BLADEZ

BLADEZ XTR Street PB-SM1806 Manual de usuario

BLADEZ

BLADEZ E-LITE 250 Manual de usuario

BLADEZ

BLADEZ DKS500 AMBASSADOR Manual de usuario

BLADEZ

BLADEZ PRESIDENT Manual de usuario

BLADEZ

BLADEZ PB-SM 817 Manual de usuario

BLADEZ

BLADEZ XTR-HD Manual de usuario

BLADEZ

BLADEZ DKS320 EXECUTIVE Manual de usuario

BLADEZ

BLADEZ MOBY XS PB-SE830PF Manual de usuario

Manuales populares de Scooter de otras marcas

TEKTRO

TEKTRO CHEETAH Manual de usuario

Douglas

Douglas Vespa Sprint Guía de instalación

PLAYTIVE

PLAYTIVE AS-2448 Manual de usuario

Ebinger

Ebinger DONKEY XL Manual de usuario

Flyer

Flyer Mountain Guía del usuario

BackCountry eBikes

BackCountry eBikes Storm Manual de usuario

equipmed

equipmed FreeRoam II Manual de usuario

Yoto

Yoto Lion Manual de usuario

WESTHILL BIKES

WESTHILL BIKES LINK Manual de usuario

BAnff

BAnff eProdigy series Manual de usuario

Winther

Winther 475 Manual de usuario

Jetson

Jetson JBZL17 Manual de usuario

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manual de usuario

Carrera

Carrera impel Manual de usuario

Afikim

Afikim Superlight SL-3 Manual de usuario

CareCo

CareCo ZOOM Manual de usuario

Douglas

Douglas Vespa G.S. Manual de usuario

Gazelle

Gazelle with BOSCH System Manual de usuario
