S↔P (Serial↔Parallel) Converter (128K)

SERIAL

↔

PARALLEL CONVERTER II

FEBRUARY 1998

PI035A

PI035AE

FEDERAL COMMUNICATIONS COMMISSION

AND

CANADIAN DEPARTMENT OF COMMUNICATIONS

RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio frequency

energy and if not installed and used properly, that is, in strict

accordance with the manufacturer’s instructions, may cause

interference to radio communication. It has been tested and

found to comply with the limits for a Class A computing device

in accordance with the specifications in Subpart J of Part 15 of

FCC rules, which are designed to provide reasonable protection

against such interference when the equipment is operated in a

commercial environment. Operation of this equipment in a

residential area is likely to cause interference, in which case the

user at his own expense will be required to take whatever

measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to

operate the equipment.

This digital apparatus does not exceed the Class A limits for radio

noise emission from digital apparatus set out in the Radio

Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de

classe A prescrites dans le Règlement sur le brouillage

radioélectrique publié par le ministère des Communications du

Canada.

TRADEMARKS USED IN THIS MANUAL

IBM and AT are registered trademarks of International Business

Machines Corporation. PC/XT is a trademark of International

Business Machines Corporation.

Centronics is a registered trademark of Centronics Corporation.

HP and LaserJet are registered trademarks of Hewlett-Packard.

Contents

Chapter Page

1.0 Specifications ........................................................................................ 1

2.0 Introduction ......................................................................................... 2

3.0 Installation ............................................................................................ 3

3.1 What You’ll Need .......................................................................... 3

3.2 Installation Procedures .................................................................. 8

4.0 Operation ........................................................................................... 13

5.0 Troubleshooting ................................................................................. 14

5.1 Common Concerns ...................................................................... 14

5.2 Calling Us ..................................................................................... 19

5.3 Shipping and Packaging .............................................................. 19

Appendix: Connector Pinouts ................................................................. 20

S↔P (SERIAL↔PARALLEL) CONVERTER (128K)

CHAPTER 1: Specifications

Interface —

Parallel: DB25 IBM style, Centronics®compatible;

Serial: EIA RS-232 asynchronous, DTE or DCE

(user-selectable)

Data Format —

Parallel: 8 data bits; Serial: 7 data bits (even or

odd parity) or 8 data bits (no parity), user-

selectable

Flow Control —

Parallel: Hardware handshaking;

Serial: Hardware or software (X-ON/X-OFF),

user-selectable

Speed —

600, 1200, 2400, 4800, 9600, 19,200, 38,400, or

76,800 bps (user-selectable)

Conversion Direction —

Serial to parallel or parallel to serial (user-

selectable)

Memory —

128K RAM

User Controls —

(3) External: (1) Reset pushbutton, (1) DTE/DCE

slide switch, (1) 8-position DIP switch for baud

rate, data bits, self-testing, flow control,

conversion direction

Indicator —

(1) Power LED

Diagnostic —

Diagnostic self-test transmitted from output port

Connectors —

Parallel: (1) DB25 female; Serial: (1) RJ-45 female

Power —

9 VDC @ 0.5 A from wallmount power supply:

115-VAC, 60-Hz type (product code PS036) or

230-VAC, 50-Hz type (product code PS015E), as

specified

Size —

1"H x 4"W x 3"D (2.5 x 10.2 x 7.6 cm)

Weight —

1.5 lb. (0.7 kg)

1.0 Specifications

S↔P (SERIAL↔PARALLEL) CONVERTER (128K)

The S

↔

P (Serial

↔

Parallel) Converter (128K) is a serial-to-parallel or

parallel-to-serial converter (conversion direction is user-selectable). It

operates at speeds ranging from 600 bps all the way up to 76.8 Kbps and

has 128K of buffer memory, which is ideal for most ordinary print jobs and

other types of file transfers.

The Converter supports a wide variety of baud rates, three types of data

formats, and either hardware or software (X-ON/X-OFF) flow control, so it

works with many kinds of equipment and applications. You can quickly

and easily choose the settings you want with an external DIP switch. This

switch also has positions that allow you to select the conversion direction

and a self-testing mode. You can choose whether the Converter functions

as DTE or as DCE by moving an external slide switch. And by pushing an

external, recessed pushbutton, you can reset the Converter if anything goes

wrong.

The S

↔

P Converter’s parallel port has a DB25 female connector. Its

serial port has an RJ-45 female connector, so from there to your serial

device you can run unshielded twisted-pair cable with RJ-45 male

connectors. Modular adapters are available to complete the UTP

connection to your serial device if its serial port isn’t RJ-45.

The Converter has its own power supply, so it won’t draw power from the

devices it connects. All the energy in the communication lines goes toward

sustaining communications.

Using the Converter’s self-test mode, you can verify that your Converter

is working properly and that its cable links to your devices are intact before

any operation.

You can use two S

↔

P Converters in series as parallel distance extenders

by setting the first for parallel-to-serial conversion and the second for serial-

to-parallel. This will increase maximum one-way parallel transmission

distance from 20 feet (6.1 m) to as much as 540 feet (164.6 m).

2.0 Introduction

CHAPTER 3: Installation

3.1 What You’ll Need

Before you attach any cables or turn anything on, make sure you have

everything necessary to set up your S

↔

P Converter (128K) system.

Each S

↔

P Converter comes with its own power supply and a 6-foot

(1.8-m) flat satin cable with RJ-45 male connectors. This cable can connect

the Converter to an RJ-45 serial port—or to a modular adapter attached to

a different type of serial port—on a nearby device.

What other equipment is necessary depends on whether you’re using a

single Converter

for parallel-to-serial conversion or serial-to-parallel

conversion (see the list in

Section 3.1.1

)ora

pair of Converters

as parallel

distance extenders (see the list in

Section 3.1.2

3.1.1 A

DDITIONAL

QUIPMENT

ECESSARY TO A

INGLE

-C

ONVERTER

YSTEM

One parallel cable

For

parallel-to-serial conversion:

Cable running from the Converter to a

PC’s parallel port should be fully pinned straight-through DB25-male-to-

DB25-male extension cable, up to 20 feet (6.1 m) long, that does

not

have

Pin 1 tied to the shield. Our product code for this cable is ECN25C.

For

serial-to-parallel conversion:

Cable running to a printer’s parallel

port should be standard IBM®parallel printer adapter cable. Our product

code for this cable is EYN600.

B. If the Converter is within 6 feet (1.8 m) of the serial port you need to

connect, you can use the flat satin cable that came with your unit.

Otherwise, you’ll need

one serial cable

Cable running from the Converter to the serial port of a device that’s

between 6 feet (1.8 m) and 50 feet (15.2 m) away should be RJ-45-male-to-

RJ-45-male unshielded twisted-pair (

not

flat satin!). Our product code for

this cable is EYN730MS-MM. If you need to connect a serial port further

away than 50 feet (15.2 m), contact us for extended distance data cable

(“EDDC”), one or more modular adapters, and the maximum cable length

you can run (this will depend on the speed of your serial device).

3.0 Installation

S↔P (SERIAL↔PARALLEL) CONVERTER (128K)

Pinning

DB25 to RJ-45

2 -------------------------------------------------------------- 5

3 -------------------------------------------------------------- 6

5, 6, 8 ------------------------------------------------------- 3

7 -------------------------------------------------------------- 4

9 -------------------------------------------------------------- 8

20 ------------------------------------------------------------ 7

(For more detail, see the Appendix)

Figure 3-1. DB25 Male and Female Adapters and

Required Pinning.

FA080-R2 (Male)

FA081-R2 (Female)

CHAPTER 3: Installation

C. If the serial port you need to connect is not an RJ-45 female, you will

also need

one modular adapter

For

parallel-to-serial

conversion: To connect RJ-45 UTP to a printer’s

serial port, use an RJ-45-female-to-DB25-male adapter pinned as in

Figure 3-1. Our product code for this adapter is FA080-R2. Refer to

Figure 3-3 for a typical system setup using this adapter.

For

serial-to-parallel

conversion: To connect RJ-45 UTP to an IBM

PC/XT™ type computer’s serial port, use an RJ-45-female-to-DB25-female

adapter pinned as in Figure 3-1. Our product code for this adapter is

FA081-R2. To connect RJ-45 UTP to an IBM AT®type computer’s serial

port, use an RJ-45-female-to-DB9-female adapter pinned as in Figure 3-2.

Our product code for this adapter is FA082-R2. Refer to Figure 3-3 for

typical system setups using these adapters.

Pinning

DB9 to RJ-45

1, 6, 8 ------------------------------------------------------- 3

2 -------------------------------------------------------------- 6

3 -------------------------------------------------------------- 5

4 -------------------------------------------------------------- 7

5 -------------------------------------------------------------- 4

(For more detail, see the Appendix)

FA082-R2

Figure 3-2. DB9 Female Adapter and Required Pinning.

S↔P (SERIAL↔PARALLEL) CONVERTER (128K)

Up To 20 Ft.

(ECN25C) Up To 50 Ft.

(EYN730MS-MM)

FROM

PARALLEL

PORT SERIAL↔PARALLEL

CONVERTER (128K)

(PI035A*)

POWER SUPPLY

(PS035A)

SERIAL PRINTER

RJ-45 TO DB25

MALE ADAPTER

(FA080)

SIGNAL DIRECTION

Up To 20 Ft.

(EYN600)

Up To 50 Ft.

(EYN730MS-MM)

SERIAL

↔

PARALLEL

CONVERTER (128K)

(PI035A*)

POWER SUPPLY

(PS035A)

PARALLEL PRINTER

RJ-45 TO DB25

MALE ADAPTER

(FA081)

FROM SERIAL PORT

SIGNAL DIRECTION

Up To 20 Ft.

(EYN600)

Up To 50 Ft.

(EYN730MS-MM)

SERIAL

↔

PARALLEL

CONVERTER (128K)

(PI035A*)

POWER SUPPLY

(PS035A)

PARALLEL PRINTER

RJ-45 TO DB9

FEMALE ADAPTER

(FA082)

FROM SERIAL PORT

SIGNAL DIRECTION

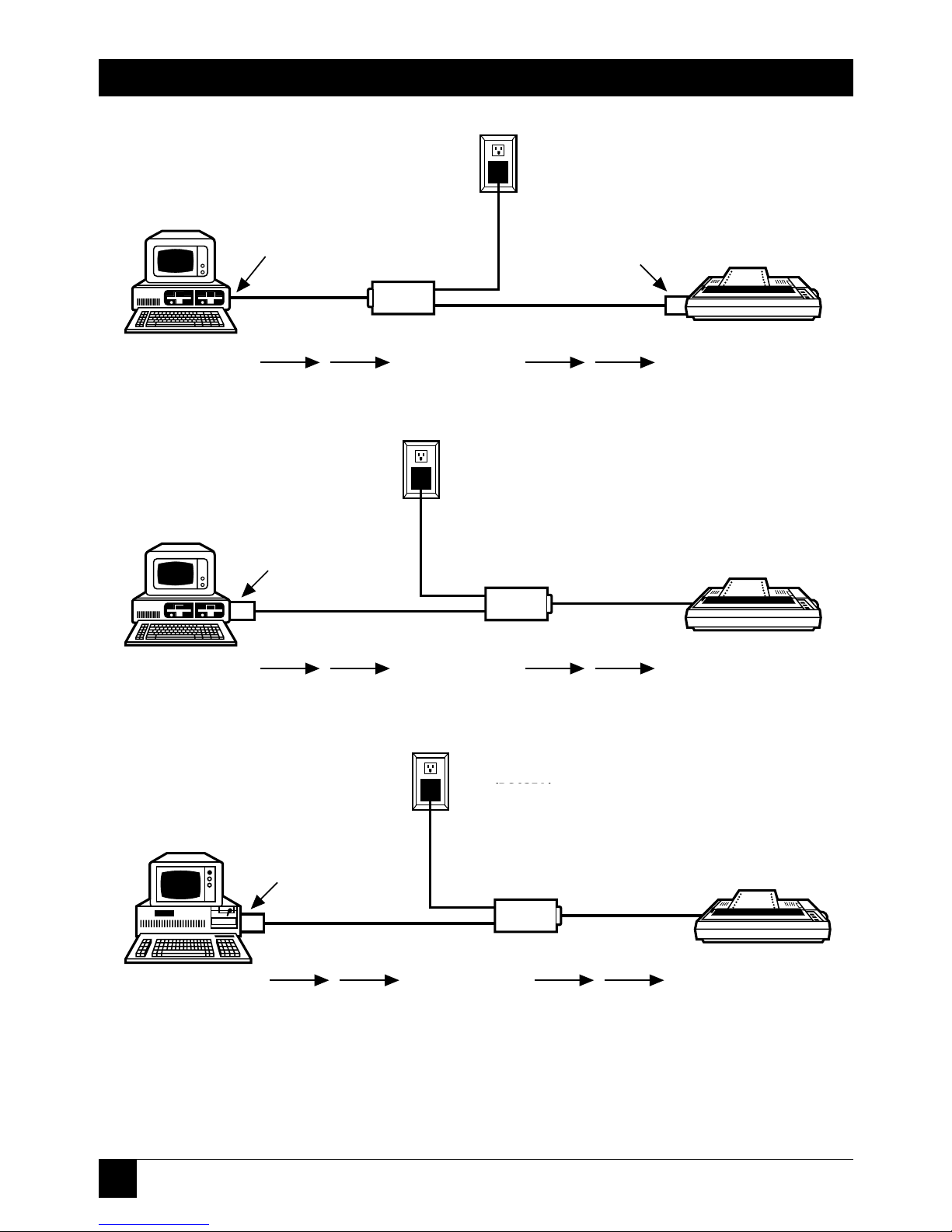

Figure 3-3. Typical Setups for Each of the Three Adapters.

*NOTE: 230-VAC version is product code PI035AE. 230-VAC power supply is PS015E.

(FA080-R2)

(FA081-R2)

FROM SERIAL PORT

Up to 20 ft. (6.1 m)

(ECN25C)

Up to 20 ft. (6.1 m)

(EYN600)

Up to 20 ft. (6.1 m)

(EYN600)

Up to 50 ft. (15.2 m)

(EYN730MS-MM)

Up to 50 ft. (15.2 m)

(EYN730MS-MM)

Up to 50 ft. (15.2 m)

(EYN730MS-MM)

(FA082-R2)

FROM SERIAL PORT

(PS036*)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Black Box

Black Box

Black Box AC551A Manual de usuario

Black Box

Black Box AC154A-2 Manual de usuario

Black Box

Black Box ICD110A Manual de usuario

Black Box

Black Box RGB/EGA/CGA/MDA to DVI(/VGA) Converter Manual de usuario

Black Box

Black Box LHC201A Manual de usuario

Black Box

Black Box LPM600A Manual de usuario

Black Box

Black Box LGC320A-NPS Manual de usuario

Black Box

Black Box LBH100A-H-SC Manual de usuario

Black Box

Black Box LPS1000A Manual de usuario

Black Box

Black Box LPS500A-MM-LC-R3 Manual de usuario

Black Box

Black Box AC135A Manual de usuario

Black Box

Black Box USB Director RS-232 Manual de usuario

Black Box

Black Box AVSC-HDMI-VGA Manual de usuario

Black Box

Black Box twister 7000 Manual de operación

Black Box

Black Box LGC5600A Manual de usuario

Black Box

Black Box AC1031A-2 Manual de usuario

Black Box

Black Box Radian VWP-2090 Manual de usuario

Black Box

Black Box IC152A Manual de usuario

Black Box

Black Box LE1345A-R3 Manual de operación

Black Box

Black Box LMC5233A Manual de usuario

Black Box

Black Box AC138A Manual de usuario

Black Box

Black Box LBMC300-MMST Manual de usuario

Black Box

Black Box IEEE 1284 Manual de usuario

Black Box

Black Box LMC543C Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
