USER MANUAL

LGC5600A, LGC5700A

GIGABIT ENET

POE++ MEDIA

CONVERTER

TABLE OF CONTENTS

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

1. 8 7 7. 8 7 7. 2 26 9 BLACKBOX.COM

CONTENTS

1. SPECIFICATIONS........................................................................................................................................................................... 3

1.1 IEEE ............................................................................................................................................................................................... 3

1.2 LGC5600A MEDIA CONVERTER ................................................................................................................................................. 3

1.3 LGC5700A INDUSTRIAL MEDIA CONVERTER .......................................................................................................................... 4

2. OVERVIEW...................................................................................................................................................................................... 5

2.1 INTRODUCTION........................................................................................................................................................................... 5

2.2 INSTALLATION PROCEDURE OVERVIEW ................................................................................................................................. 6

3. INSTALLATION .............................................................................................................................................................................. 7

Step 1: Configure DIP Switches ....................................................................................................................................................................7

Step 2: Apply Power .....................................................................................................................................................................................10

Step 3: Connect Cables................................................................................................................................................................................12

Step 4: Verify Operation ...............................................................................................................................................................................12

A.1 FCC STATEMENT ...................................................................................................................................................................... 14

A.2 NOM STATEMENT.................................................................................................................................................................... 15

B.1 DISCLAIMER.............................................................................................................................................................................. 16

B.2 TRADEMARKS USED IN THIS MANUAL.................................................................................................................................. 16

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 1: SPECIFICATIONS

Description LGC5600A

Gigabit Media Converter with 802.3bt 60W, AC power, Commercial temperature range

Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max),

IEEE 802.3bt (60 watts max)

PoE++ Supported Modes IEEE Alternate A (Alt A) and 4-Pair

Regulatory Compliances UL, CE, FCC Class A, RoHS, WEEE, REACH

Frame Size Up to 10,240 bytes

AC Power Requirements 100 to 240 VAC/50 to 60 Hz

0.62 A at 120 VAC (typical)

Dimensions 1.0" H x 4.5" W x 6.0" D (2.5 x 11.4 x 15.2 cm)

Weight Module Only: 1.1 lb. (0.5 kg)

Module w/Adapter: 2.8 lb. (1.3 kg)

Operating Temperature Commercial: 32 to 122° F (0 to 50° C)

Storage: -40 to +176° F (-40 to +80° C)

Humidity 5 to 95% (non-condensing)

Altitude -328 to +13,123 ft. (-100 to +4,000 m)

MTBF (hours) Module Only: 474,000

AC Adapter: 100,000

1. SPECIFICATIONS

1.1 IEEE

1.2 LGC5600A MEDIA CONVERTER

IEEE SPECIFICATION

Description 802.3af PoE 802.3at PoE+ 802.3.bt PoE++ Type 3

Power available at PD 12.95 watts 25.5 watts 51 watts

Max power delivered by PSE 15.4 watts 30.0 watts 60 watts

Voltage range at PSE 44.0 to 57.0 VDC 50.0 to 57.0 VDC 50.0 to 57.0 VDC

Voltage range at PD 37.0 to 57.0 VDC 42.5 to 57.0 VDC 42.5 to 57.0 VDC

41. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 1: SPECIFICATIONS

1.3 LGC5700A INDUSTRIAL MEDIA CONVERTER

Description LGC5700A

Gigabit Media Converter with 802.3bt 60W, DC power, Industrial temperature range

Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max),

IEEE 802.3bt (60 watts max)

PoE++ Supported Modes IEEE Alternate A (Alt A) and 4 Pair

Regulatory Compliances UL, CE, FCC Class A, RoHS, WEEE, REACH

Frame Size Up to 10,240 bytes

DC Power Requirements

±44 to ±57 VDC;

1.16 A at 56 VDC

3-pin terminal (isolated)

Dimensions 1.0" H x 4.5" W x 6.0" D (2.5 x 11.4 x 15.2 cm)

Weight 1.1 lb. (0.5 kg)

Operating Temperature Industrial: -40 to +167° F (-40 to +75° C)

Storage: -40 to +176° F (-40 to +80° C)

Humidity 5 to 95% (non-condensing)

Altitude -328 to +13,123 ft. (-100 to +4,000 m)

MTBF (hours) 474,000

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 2: OVERVIEW

2. OVERVIEW

2.1 INTRODUCTION

This User Manual describes the functions of the Gigabit 802.3bt PoE++ and the Gigabit Industrial 802.3bt PoE++ media converters.

The LGC5600A and LGC5700A are media converters that convert 10/100/1000BASE-T RJ-45 to 1000BASE-X or 100BASE-X ber and

support Power-over-Ethernet (60 W PoE++).

GIGABIT 802.3BT POE++ MEDIA CONVERTER

Equipment that provides DC power over twisted-pair cable is called Power Sourcing Equipment (PSE). Equipment that is powered over

twisted-pair cable is called a Powered Device (PD).

The LGC5600A and LGC5700A are PSE equipment supporting IEEE 802.3af PoE, IEEE 802.3at PoE+, and IEEE 802.3bt PoE++ 60 W

on the RJ-45 port.

MEDIA CONVERTER DESCRIPTIONS

Model Number Description

LGC5600A

Gigabit Media Converter with (1) SFP and (1) 10/100/1000 RJ-45,

External AC Adapter, 100-240 VAC, with U.S. Power Cord,

Commercial Temperature: 32 to 122° F (0 to 50°C)

LGC5700A

Gigabit Media Converter with (1) SFP and (1) 10/100/1000 RJ-45,

Direct DC input, with 3-pin DC Terminal Connector,

Industrial Temperature -40 to 167° F (-40 to 75°C)

61. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 2: OVERVIEW

COMPATIBLE FIBER SFPS

PART NUMBER DESCRIPTION DISTANCE

100-MBPS CONNECTIONS

LFP401 SFP, 155-Mbps, Extreme Temperature, 850 nm Multimode Fiber, 2 km, LC 2 km

LFP402 SFP, 155-Mbps, Extreme Temperature, 1310 nm Multimode Fiber, 2 km, LC 2 km

LFP403 SFP, 155-Mbps, Extreme Temperature, 1310 nm Singlemode Fiber, 30 km, LC 30 km

1000-MBPS CONNECTIONS

LFP411 SFP, 1.25-Gbps, Extreme Temperature, 850 nm Multimode Fiber, 550 m, LC 550 m

LPF412 SFP, 1.25-Gbps, Extreme Temperature, 1310 nm Multimode Fiber, 2 km, LC 2 km

LFP413 SFP, 1.25-Gbps, Extreme Temperature, 1310 nm Singlemode Fiber, 10 km, LC 10 km

LFP414 SFP, 1.25-Gbps, Extreme Temperature, 1310 nm Singlemode Fiber, 40 km, LC 40 km

LFP420 SFP, 1.25-Gbps, Extreme Temperature, 1550/1310 nm Singlemode Simplex Fiber, 10 km, LC 10 km

LFP421 SFP, 1.25-Gbps, Extreme Temperature, 1310/1550 nm Singlemode Simplex Fiber, 10 km, LC 10 km

LFP441 SFP, 1.25-Gbps, 850nm Multimode Fiber, 550 m, LC 550 m

LFP442 SFP, 1.25-Gbps, 1310nm Singlemode Fiber, 20 km, LC 20 km

NOTES:

1. All Black Box SFPs feature Extended Diagnostics (excluding LFP441 and LFP442).

2. Black Box Media Converters also support generic SFPs.

2.2 INSTALLATION PROCEDURE OVERVIEW

1. Congure DIP switches

2. Apply Power

3. Connect Cables

4. Verify Operation

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 3: INSTALLATION

3. INSTALLATION

STEP 1: CONFIGURE DIP SWITCHES

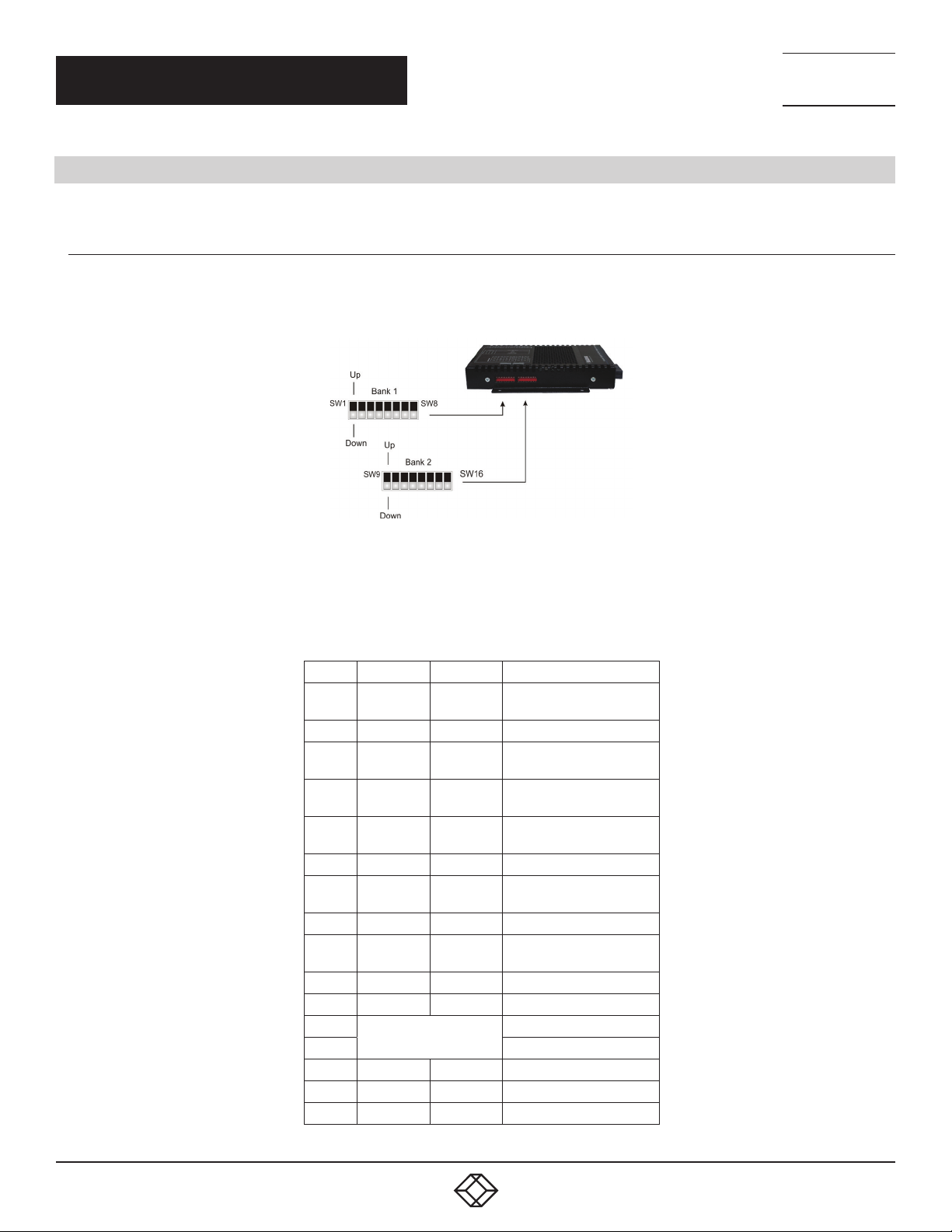

DIP switches are located on the side of the module. The DIP switches are used to congure ports, link modes, and PoE++/PSE options.

DIP SWITCH BANK LOCATIONS

The table below provides a description of each DIP switch position and function.

DIP SWITCH DEFINITIONS

Switch DOWN UP Function

1Auto 100 SFP Port

Fiber Speed

2 N/A N/A N/A

3 AN MAN RJ-45 Port

Auto/Manual

4 100 10 RJ-45 Port Speed

(Only in MAN mode)

5FDX HDX RJ-45 Port Duplex

(Only in MAN mode)

6 Off On Pause Capability

7 On Off RJ-45 Port

PSE Power

8 N/A N/A N/A

9 Norm Force RJ-45 Port

PSE Power Override

10 N/A N/A N/A

11 N/A N/A N/A

12 See DIP switch

Description

Link Mode Selection

13 Link Mode Selection

14 Off P1 Lk Loss PSE Reset

15 N/A N/A N/A

16 N/A N/A N/A

81. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 3: INSTALLATION

SW1 - Fiber Speed: Auto/100

This DIP switch congures the speed of the transceiver installed in the SFP receptacle. If this DIP switch is in the DOWN “Auto”

(default) position, the port will automatically detect the data rate of the transceiver installed and operate at 100 Mbps or 1000 Mbps

accordingly.

If the automatic detection fails to detect the speed of the installed SFP, then the speed will be set to 1000 Mbps.

If this DIP switch is in the UP “100” position, a 100 Mbps capable transceiver must be installed in the SFP receptacle.

When an RJ-45 transceiver is installed in a SFP receptacle, setting this DIP switch to UP “100” position enables the port to operate

at 100 Mbps.

SW2 - Reserved

This DIP switch must be left in the DOWN (default) position.

SW3, SW4 and SW5 - RJ-45 Conguration

RJ-45 PORT CONFIGURATION MATRIX

SW3

RJ-45

AN/Man

SW4

RJ-45

100/10

SW5

RJ-45

FDX/HDX

RJ-45 Mode of Operation

(DOWN)

10 or 100

(N/A)

FDX or HDX

(N/A)

The RJ-45 port is set to auto-negotiation with the following modes advertised:

1000FDX, 1000HDX, 100FDX, 100HDX, 10FDX, 10HDX

MAN

(UP)

100

(DOWN)

FDX

(DOWN) The RJ-45 port is set to manual negotiation and is forced to 100FDX

MAN

(UP)

100

(DOWN)

HDX

(UP) The RJ-45 port is set to manual negotiation and is forced to 100HDX

MAN

(UP)

FDX

(DOWN) The RJ-45 port is set to manual negotiation and is forced to 10FDX

MAN

(UP)

HDX

(UP) The RJ-45 port is set to manual negotiation and is forced to 10HDX

SW6 - Pause: Off/On

In auto-negotiation mode, setting this DIP switch to the UP “On” position allows the module to advertise Symmetrical and

Asymmetrical Pause capability. In auto-negotiation mode, setting the DIP switch to the DOWN “Off” (default) position allows the

module to advertise no Pause capability. In the manual mode, this DIP switch determines the Pause behavior.

SW7 - Power Sourcing Function: On/Off

The RJ-45 port automatically detects the attached PD and provides the PD with the necessary power.

This DIP switch controls the power sourcing function for the RJ-45 port. When this DIP switch in the DOWN “On” (default) position,

the power sourcing function is enabled. When the DIP switch is in the UP “Off” position, the power sourcing function is disabled.

SW8 - Reserved

This DIP switch must be left in the DOWN (default) position.

1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 3: INSTALLATION

SW9 - PSE Power Override: Norm/Force

This DIP switch allows the PoE++ power to be forced ON when connected to a PD with non-standard detection characteristics.

When this DIP switch is in the DOWN “Norm” (default) position, the RJ-45 port will automatically perform the detection, classication,

and powering functions for the attached PD. When this DIP switch is in the UP “Force” position, a maximum of 60 watts of power will be

available to the PD.

SW10 and SW11 - Reserved

These DIP switches must be left in the DOWN (default) position.

SW12 and SW13 - Link Modes

The LGC5600A and LGC5700A feature Link Segment and Asymmetrical Link Propagate fault detection modes.

Link Segment

In Link Segment mode, all ports operate independently. A loss of a receive link signal will only affect the port detecting the loss

of signal. The other port will continue to generate a link signal. A loss of link on the RJ-45 port will only affect the RJ-45 port,

and the ber port will remain unaffected.

Asymmetrical Link Propagate

In Asymmetrical Link Propagate mode, faults are propagated based on the port notation. Port 1 (ber) to Port 2 (RJ-45) notation

indicates the direction the loss of link signal will propagate. A loss of receive link on the Fiber Port 1 causes the RJ-45 Port 2

to drop its link due to the propagated state (Port 1 to Port 2). The loss of link on the RJ-45 Port 2 does not cause the loss of link

to propagate. The loss only propagates in the Port 1 to Port 2 direction.

NOTE: A loss of link or loss of signal is when the optical receiver on the media converter can no longer detect the presence

of an optic signal.

LINK MODES

SW12 SW13 Function

DOWN DOWN Link Segment (LS)

UP DOWN Asymmetrical Link Propagate Port 1 (ber) to Port 2 (RJ-45)

DOWN UP Asymmetrical Link Propagate Port 2 (RJ-45) to Port 1 (ber)

UP UP Invalid Conguration

SW14 - PSE Reset: Off/P1 Lk Loss

The module can be congured to reset the PoE++ output power for 2 seconds after a loss of receive link on the ber port. This feature

is typically used to allow a PD to re-initialize after a failure on the incoming ber.

When this DIP switch is in the UP “P1 Lk Loss” position, the module will disable PoE++ output power for 2 seconds following a loss

of receive link on the ber port. When this DIP switch is in the DOWN “Off” (default) position, PoE++ output power does not reset

on a ber loss.

SW15 and SW16 - Reserved

This DIP switch must be left in the DOWN (default) position.

10 1. 8 7 7. 8 7 7. 2 2 6 9 BLACKBOX.COM

NEED HELP?

LEAVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.87 7.877. 2269

CHAPTER 3: INSTALLATION

STEP 2: APPLY POWER

AC Power for LGC5600A

To power the module using the AC/DC adapter, connect the DC plug at the end of the wire on the AC/DC adapter to the DC connector

on the module. Then connect the AC/DC adapter to the AC outlet. Conrm that the module has powered up properly by checking

the Power LED located on the front of the module.

Installation of the equipment should be such that the air ow in the front, back, side and top vents of the chassis are not compromised

or restricted.

Secure the grounding wire to the ground screw. See the gure below for the location of the grounding screw.

REAR VIEW OF THE LGC5600A WITH AC POWER CONNECTOR

NEVER ATTEMPT TO OPEN THE CHASSIS OR

SERVICE THE POWER SUPPLY. OPENING THE

CHASSIS MAY CAUSE SERIOUS INJURYOR DEATH.

THERE ARE NO USER REPLACEABLE OR

SERVICEABLE PARTS IN THIS UNIT.

WARNING!!!

DC Power for LGC5700A

A power source should be available within 5 ft. (1.5-m) of the module. The over-current protection for connection with centralized

DC shall be provided in the building installation, and shall be a UL listed circuit breaker rated 20 Amps, and installed per the National

Electrical Code, ANSI/NFPA-70.

The LGC5700A requires 50 to 57 VDC @ 1.16 Amp max rated power (see specication table). Appropriate overloading protection

should be provided on the DC power source outlets used.

WARNING: OnlyaDC power source that complies with

safety extra low voltage (SELV) requirements can be

connected to the DC-input power supply.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Black Box

Black Box

Black Box LHC001A-R4 Manual de usuario

Black Box

Black Box LGC320A-NPS Manual de usuario

Black Box

Black Box LE1502A-R3 Manual de usuario

Black Box

Black Box IC720A Manual de usuario

Black Box

Black Box IC832A Manual de usuario

Black Box

Black Box PI049A Manual de usuario

Black Box

Black Box H.264 Manual de usuario

Black Box

Black Box AVSC-VIDEO-HDMI Guía de inicio rápido

Black Box

Black Box LGC5500A Instrucciones de uso

Black Box

Black Box LGC215A-R2 Manual de usuario

Black Box

Black Box AC328A-R2 Manual de usuario

Black Box

Black Box LBMC300-MMST Manual de usuario

Black Box

Black Box LPD401A Manual de usuario

Black Box

Black Box AC215A Manual de usuario

Black Box

Black Box AC150A-4 Manual de usuario

Black Box

Black Box LRA1200A-1PS Manual de usuario

Black Box

Black Box LPS1000A Manual de usuario

Black Box

Black Box AVSP-HDMI1X2 Manual de usuario

Black Box

Black Box AC216A-R2 Manual de usuario

Black Box

Black Box VS-2002-ENC Manual de usuario

Black Box

Black Box MultiPower Miniature Series Manual de usuario

Black Box

Black Box LHC5128A Manual de usuario

Black Box

Black Box AC095A Manual de usuario

Black Box

Black Box LPS500A-MM-SC Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
