VOE101

Micro-Analog Telephone Adapter

Quick Start Guide

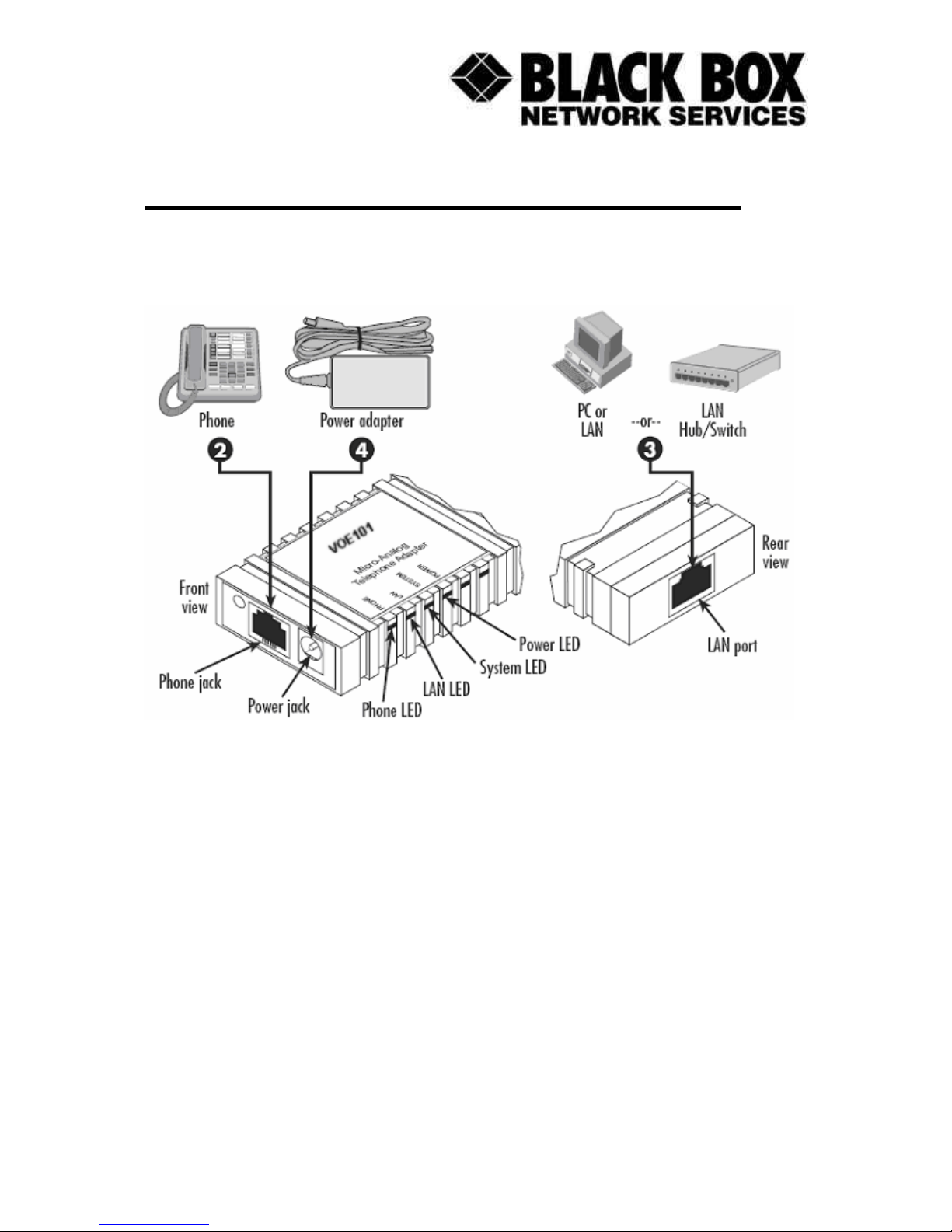

Figure 1. VOE101 installation diagram

• The VOE101 contains no user serviceable parts. The

equipment shall be returned to Black Box for repairs,

or repaired by qualified service personnel.

• The external power adapter shall be a listed Limited Power

Source. Ensure that the power cable used with this devise

meets all applicable standards for the country in which it is to

be installed, and that it is connected to a wall outlet which

has earth ground. The mains outlet that is utilized to power

the devise shall be within 10 feet (3 meters) of the device,

shall be easily accessible, and protected by a circuit breaker.

• Do not work on the system or connect or disconnect cables

during periods of lightning activity.

1.0 VOE101 Quick Start Guide

The interconnecting cables shall be acceptable for external use

and shall be rated for the proper application with respect to

voltage, current, anticipated temperature, flammability, and

mechanical serviceability.

The unit should be installed in a dry environment with at least 2 inches (5 cm)

of clearance at the sides and front of the unit to allow air circulation for cooling.

Plug in the telephone (see figure 1 on page 1).

Plug in the PC or LAN, or a LAN hub/switch.

Plug the power adapter into the power jack on the VOE101 (see figure 1 on

page 1). Connect the other end of the power cord to an appropriate AC power

outlet.

Wait 30 seconds after powering the VOE101 on, then verify that the green

Power LED is lit (see figure 1 on page 1).

By default, the VOE101 will automatically request IP network settings from the

LAN using DHCP. To determine the IP address of the VOE101, lift the handset

off the attached analog phone and dial * * * * .

Dial 1 0 0 # , listen to and record the IP address of the VOE101. (To manually

set the IP address, see appendixB.2 “Existing voice prompt configuration” on

page 4 for details).

Use a web browser to connect to the VOE101. The URL will be http://<ip

address>. For example, if the VOE101 IP address was 10.10.10.2 , the URL

would be http://10.10.10.2.

The default password is “root”.

Follow the directions of your service provider to set up voice

services.

A.0 Compliance Information

A.1 Compliance

EMC: Safety:

FCC Part 15, Class B EN 60950-1

EN55022, Class B

EN55024

A.2 Radio and TV Interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and

used properly—that is, in strict accordance with the manufacturer's instructions—may

cause interference to radio and television reception. This equipment has been tested

and found to comply with the limits for a Class B computing device in accordance

with the specifications in Subpart B of Part 15 of FCC rules, which are designed to

provide reasonable protection from such interference in a commercial installation.

However, there is no guarantee that interference will not occur in a particular

installation. If the equipment causes interference to radio or television reception,

which can be determined by disconnecting the cables, try to correct the interference

by one or more of the following measures: moving the computing equipment away

from the receiver, re-orienting the receiving antenna, and/or plugging the receiving

equipment into a different AC outlet (such that the computing equipment and receiver

are on different branches).

A.3 CE Notice (Declaration of Conformity)

We certify that the apparatus identified in this document conforms to the

requirements of Council Directive 1999/5/EC on the approximation of the laws of the

member states relating to Radio and Telecommunication Terminal Equipment and

the mutual recognition of their conformity. The safety advice in the documentation

accompanying this product shall be obeyed. The conformity to the above directive is

indicated by the CE sign on the device.

B.0 Voice prompt configuration

The VOE101 provides the ability to review and set the network configuration

parameters using the handset of an attached analog telephone handset. By default

from the factory, DHCP is enabled and an IP address is not configured.

The VOE101 must be power cycled or reloaded after changing any of the network

settings. Menu selection item Network Status will not reflect setting changes until

after VOE101 is reloaded or power cycled.

Note: Configuration of these settings can result in loss of connectivity to the VOE101

on the local LAN.

B.1Accessing the voice prompt

Dial **** from the analog handset to reach the main menu.

B.2Existing voice prompt configuration

On hook the analog phone.

Access

Code Main Menu

Selection Announcement/Function Voice Prompt User input

**** Main Menu Plays main menu

selections VOE101

Configuration

Main Menu

Enter selection code

100# Network

status Plays DHCP setting, IP

address, gateway IP

address and IP network

mask setting

100# Network

status None

110# DHCP setting Enables or Disables

DHCP 110# DHCP

Settings 1# to enable DHCP

2# to disable DHCP or “#”

to return to the main

120# IP address

setting Sets IP address of the

VOE101

120# Set IP

Address Use “*” to instead of .“.”,

and “#” to end.

Ex: 172*16*230*227# or

“#” to

return to the main menu

130# Gateway

setting Sets the gateway router

IP address 130# Set gateway router IP

address

Use “*” to instant of “.”,

and “#” to end or “#” to

return to the main menu

140# Net mask

setting Set the IP network mask 140# Set IP

network mask Use “*” to instant of “.”,

and “#” to end or “#” to

return to the main menu

150# Reload Immediately reloads the

VOE101 None None

The information in this document is subject to change without notice. Black Box

assumes no liability for errors that may appear in this document.

Warranty, Trademark & Compliance Information

For warranty, trademark and compliance information, refer to the VOE101Getting

Started Guide available online at www.blackbox.com

In accordance with the requirements of ouncil directive

2002/96/EC on Waste of Electrical and Electronic Equipment

(WEEE), ensure that at end-of-life you separate this product

from other waste and scrap and deliver to the WEEE collection

system in your country for recycling.
