Black & Decker TOD1775G Manual de usuario

DIGITAL 4-SLICE AIR FRY

TOASTER OVEN

HORNO TOSTADOR DIGITAL

DE 4 REBANADAS CON

FREIDORA DE AIRE

use and care manual

TOD1775G

TOD1795G

Should you have any questions or concerns with your new product,

please call our Customer Service Line at 1-800-465-6070 (US and

Canada). Please do not return to the store.

Si usted tiene alguna inquietud o pregunta con su producto, por

favor llame a nuestra línea de servicio al cliente una atención

inmediata 1-800-465-6070 (EE.UU/Canadá) 01-800-714-2503

(México). No devuela a la tienda.

Thank you for your purchase!

Gracias por su compra!

www.prodprotect.com/blackanddecker

www.BlackAndDeckerAppliances.com

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS.

When using electrical appliances, basic safety precautions should always be fol-

lowed to reduce the risk of fire, electric shock, and/or injury, including the following:

• READ ALL INSTRUCTIONS

BEFORE USING.

• Do not touch hot surfaces. Use

handles or knobs.

• To protect against electrical

shock, do not immerse cord,

plug, or appliance in water or

other liquid.

• Close supervision is necessary

when any appliance is used by or

near children.

• Unplug from outlet when not in

use and before cleaning. Allow

time to cool before putting on or

taking off parts.

• Do not operate any appliance

with a damaged cord or plug,

or if the appliance malfunctions

or has been damaged in any

manner. Contact consumer

support at the toll-free number

listed in the warranty section.

• The use of accessory

attachments not recommended

by the appliance manufacturer

may cause injuries.

• Do not use outdoors.

• Do not let cord hang over edge

of table or counter, or touch

hot surfaces.

• Do not place on or near a hot

gas or electric burner, or in a

heated oven.

• Extreme caution must

be used when moving an

appliance containing hot oil or

other hot liquids.

• To disconnect, press Start/Stop

button until the Indicator Light

is ﬂashing for Bake, Broil, Air Fry

or Toast. Then unplug from wall

outlet.

• Do not use appliance for other

than intended use.

• Use caution when removing tray

or disposing of hot grease.

• Do not clean oven with metal

scouring pads. Pieces can break off

the pad and touch electrical parts,

causing risk of electric shock.

• Do not attempt to clean the

heating elements.

• Oversized foods or metal utensils

must not be inserted in a toaster

oven, as they may create ﬁre or

risk of electric shock.

• A ﬁre may occur if the toaster

oven is covered or touching

ﬂammable materials including

curtains, draperies, walls, and the

like, when in operation. Do not

store any item on top of the unit

while in operation.

• Extreme caution should be

exercised when using containers

constructed of other than metal

or glass.

• Do not store any material,

other than manufacturer’s

recommended accessories, in

this oven when not in use.

• Do not place any of the following

materials in the oven: paper,

cardboard, plastic, and other

items not constructed of oven

safe metal and glass pans.

• Do not cover crumb tray or any

part of this oven with metal foil.

This will cause overheating in

the oven.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only

ﬁt into a three-prong outlet. Do not attempt to defeat this safety feature. Improper

connection of the grounding conductor may result in the risk of electric shock. Consult

a qualiﬁed electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent

removal of the outer cover. To reduce the risk of ﬁre or electric shock, do not attempt

to remove the outer cover. There are no user-serviceable parts inside. Repair should

be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord is provided to reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

b) Extension cords are available and may be used if care is exercised in their use.

c) If an extension cord is used:

1) The marked electrical rating of the extension cord should be at least as great as

the electrical rating of the appliance;

2) If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord; and

3) The cord should be arranged so that it will not drape over the counter top or

tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, please contact the warranty department listed

in these instructions.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

• This appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and

knowledge, unless they have

been given supervision or

instructions concerning use

of the appliance by a person

responsible for their safety.

• Children should be supervised to

ensure that they do not play with

the appliance.

• The appliance is not intended

to be operated by means of

an external timer or separate

remote-control system.

• Do not leave unattended while

in operation. Food ignition may

occur. If this happens, unplug the

unit, but DO NOT open door. To

reduce the risk of ﬁre, keep oven

interior completely clean and free

of food residues, oil, grease and

other combustible materials.

CAUTION

THIS OVEN GETS HOT.

WHEN IN USE, ALWAYS USE OVEN MITTS OR

POT HOLDERS WHEN TOUCHING ANY OUTER

OR INNER SURFACE OF THE OVEN.

























Product may vary slightly from what is illustrated.

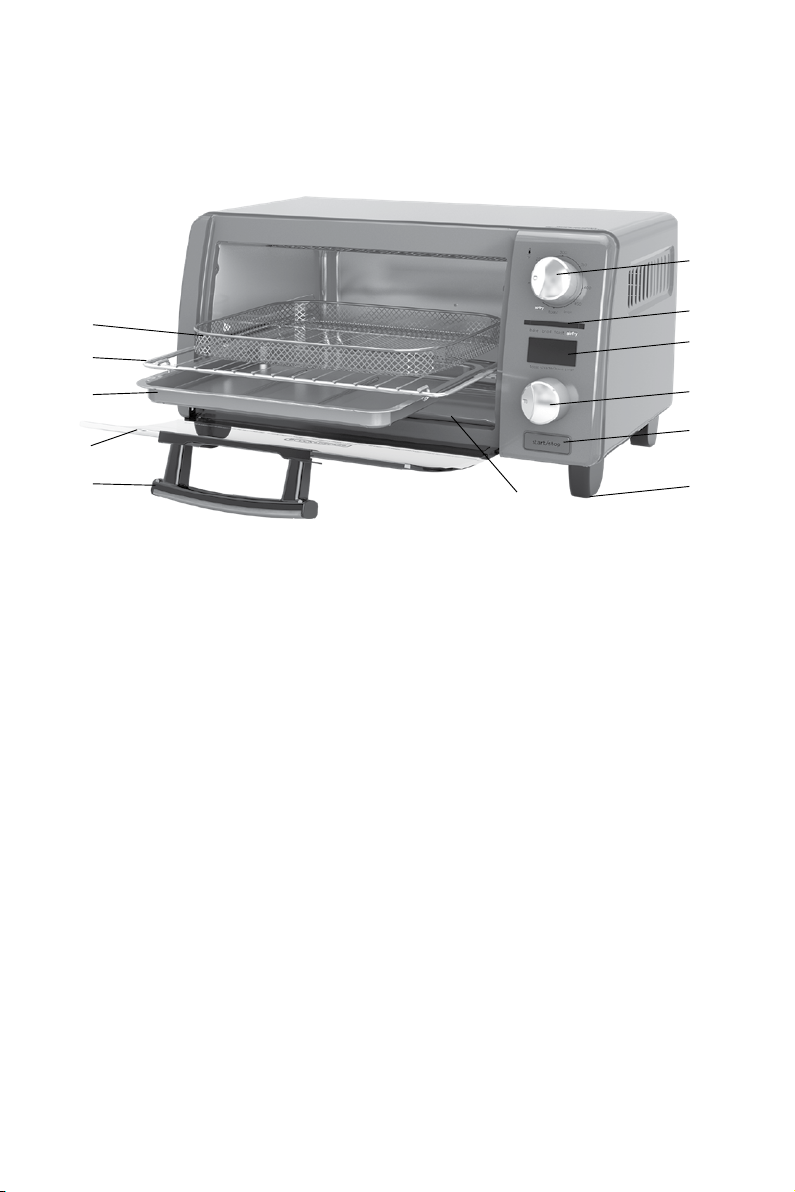

GETTING TO KNOW YOUR

AIR FRY TOASTER OVEN

1. Air Fry mesh tray

(Part# TOD1775-01)

2. Wire rack

(Part# TO1745-06)

3. Baking pan

(Part# TO1745-05)

4. Easy view glass door

5. Door handle

6. Function/Temperature knob

7. Indicator Lights:

Bake, Broil, Toast, Air Fry

8. Digital display

9. Time knob

10. Start/Stop button

(Turns unit ON or OFF)

11. Rubber foot pads, 4pcs

(Part # TOD1770-01)

12. Slide out crumb tray

(Part# TO1745-04)

GETTING STARTED

This appliance is intended for household use only.

• Remove all packing material, any stickers, and the plastic band around the

power plug.

• Remove and save literature.

• Please go to www.prodprotect.com/blackanddecker to register your

warranty.

• Wash all removable parts as instructed in Care and Cleaning Section.

• Select a location where this unit is to be used, allowing enough space from

the back of the unit and wall to allow heat to ﬂow without damage to

cabinets and walls.

• Ensure crumb tray is in place before use.

Important information about using your oven

1. This oven gets hot. When in use, always use oven mitts or potholders when

touching any outer or inner surface of the oven.

2. When using the oven for the first time, you may notice smoke or a slight odor

during the first few minutes. This is normal.

3. Be sure food or baking pan does not come within 1 1/2 inches (3.8 cm) of the top

heating elements.

4. Food should not extend beyond the edges of the baking pan to avoid

drippings from falling onto the heating elements.

5. Many factors influence cook times such as altitude, humidity and variations in

electrical grids. For best results, monitor the end of the cook cycle.

Cooking Containers: Metal, ovenproof glass or ceramic bakeware can be used

in your oven. Follow the manufacturer’s instructions. Be sure the top edge of the

container is at least 1 1/2 inches (3.81cm) away from the upper heating elements.

TOAST

It is not necessary to preheat the oven for toasting.

1. Open oven door and insert wire rack.

2. Place items to be toasted directly on wire rack and close the

door.

NOTE: for optimal toast, bread should be of uniform

thickness and placed in one of the locations shown.

3. Set Function/Temperature selector knob to Toast position. The Toast indicator

light and digital display will blink, indicating the oven is on standby.

4. Use the Time knob to select desired toast shade on digital display, with 1 being

the lightest and 7 being the darkest.

5. Press the Start/Stop button to begin toasting. The light will turn solid while toasting.

6. There will be 2 audible beeps once the cooking cycle is complete. After 60

seconds the unit will turn off.

7. Open the oven door. Using oven mitts or pot holders, slide the rack out to

remove the toast.

8. Unplug appliance when not in use.

STAY ON

The STAY ON function is available for BAKE, AIRFRY, BROIL, and KEEP WARM.

To set the oven to STAY ON, turn the TIME knob counterclockwise past 01 (or

clockwise past 60) until you see “on” in the display panel. Press the Start/Stop

button. The oven will stay on until the Start/Stop knob is pressed again. To turn

off, press the Start/Stop button; 00 will show in the display.

BAKE

Note: For best results, when baking or cooking, preheat the oven for at least

10 minutes at the desired temperature setting.

Note: During Bake mode, the convection fan cycles on and off to circulate air

and create optimal heat distribution.

Note: This oven has been designed to cook faster. Please inspect your items

earlier than the prescribed cook time for a conventional oven to ensure that

they do not get overcooked.

1. Place items to be baked directly on wire rack or place pan on wire rack.

2. Set Temp selector knob to desired temperature. The Bake indicator light and

digital display will blink, indicating the oven is on stand by.

3. Turn the Time knob to set cook time on digital display.

4. Press the Start/Stop button to begin baking. The digital display will count

down while cooking, showing the time remaining.

5. There will be 2 audible beeps once the cooking cycle is complete. After 60

seconds the unit will turn off.

6. Open the oven door. Using oven mitts or pot holders, slide the rack out to

remove the food.

7. Unplug appliance when not in use.

AIR FRY

Air Fry technology uses high intensity hot air to bake, brown, and crisp your

favorite foods with little to no oil.

Air Fry mode operates the oven at 425°F. Use the cook times listed in the

recipe book or follow the food package recommendations for baking. Adjust

the cook time as needed to achieve your preferred crispiness.

NOTE: It is not necessary to preheat the oven for air frying.

NOTE: Arrange your food in a single layer on the mesh tray for optimal air

frying results.

1. Place food on Air Fry mesh tray

2. Open oven door and insert tray on top of wire rack. Close door.

3. Set Temp selector knob to Air Fry position. The Air Fry indicator light and

digital display will blink, indicating the oven is on stand by.

4. Turn the Time knob to set Air Fry time on digital display.

5. Press the Start/Stop button to begin cooking. The digital display will count

down while cooking, showing the time remaining.

6. There will be 2 audible beeps once the cooking cycle is complete. The digital

display will read “00” and the Air Fry indicator light will blink to indicate

standby mode. After 60 seconds the unit will turn off.

7. Open the oven door. Using oven mitts or pot holders, slide the tray out to

remove the food.

8. To turn off the oven during a cooking cycle, press the Start/Stop button.

Note: Clean out the crumb tray frequently when using the air fry setting.

9. Unplug the appliance when not in use.

BROIL

Note: It is not necessary to preheat the oven for broiling.

1. If the items are going to be placed directly on the wire rack, slide the baking

pan into the guide under the wire rack to catch drippings during broiling.

2. Place items to be broiled directly on wire rack, or in the baking pan on top of

the wire rack.

3. Set Temp selector knob to Broil position. The Broil indicator light and digital

display will blink, indicating the oven is on stand by.

4. Turn the Time knob to set Broil time on digital display.

5. Press the Start/Stop button to begin broiling. The digital display will count

down while cooking, showing the time remaining.

Note: For best results when broiling meat, turn over the meat half-way

through broiling.

6. There will be 2 audible beeps once the cooking cycle is complete. After 60

seconds the unit will turn off.

7. Open the oven door. Using oven mitts or pot holders, slide the rack out to

remove the food.

8. Unplug the appliance when not in use.

WARM

1. Set Temp selector knob to Warm position. The Bake indicator light and digital

display will blink, indicating the oven is on stand by.

2. Turn the Time knob to set cook time on digital display.

3. Place food on rack or in pan. Press the Start/Stop button to begin cooking.

The digital display will count down while cooking, showing the time remaining.

4. There will be 2 audible beeps once the cooking cycle is complete. After 60

seconds the unit will turn off.

5. Open the oven door. Using oven mitts or pot holders, slide the rack out to

remove the food.

6. Unplug appliance when not in use.

CARE AND CLEANING

This product contains no user serviceable parts. Refer to service qualiﬁed

service personnel.

Cleaning

Important: Before cleaning any part, be sure the oven is off, unplugged, and cool.

Note: Do not allow food debris to accumulate in oven cavity. Do not use

aerosol or spray oven cleaners.

1. Clean the glass door with a sponge, soft cloth, or nylon pad and dish soap and

warm water. Do not use a spray cleaner.

2. Remove the wire rack, air fry mesh tray, and bake pan and wash them in hot

water with dish soap. To remove stubborn spots, use a polyester or nylon pad.

3. Pull out crumb tray and dispose of crumbs. Wipe tray with a

damp cloth and dry thoroughly before placing back into the oven.

Note: The rack and air fry mesh tray, are dishwasher safe. We recommend

washing the bake pan and crumb tray by hand in hot water with dish soap.

4. Wipe the outside of the oven with a damp cloth or sponge. Dry thoroughly.

5. Do not attempt to clean the heating elements. Any food that comes into

contact with the elements will burn off on its own.

10 11

*Default settings apply only after the unit has been unplugged and plugged

back in (Bake Function is Default). Once a setting has been used, the last

function, time and temperature selections will be saved.

FUNCTION CHART

FUNCTION TEMPERATURE TIME TEMPERATURE MAXIMUM TIME

Toast -Shade 4 - 1–7 Shades

Bake 200°F–450°F

93°C–230°C

15 min 200°F–450°F

93°C–230°C

60 min

Stay-on Available

Air Fry 425°F

218°C

15 min 425°F

218°C

60 min

Stay-on Available

Broil 475°F

245°C

15 min 475°F

245°C

60 min

Stay-on Available

Keep Warm 150°F

65°C

15 min 150°F

65°C

60 min

Stay-on Available

Default Settings* Function Ranges

Tabla de contenidos

Otros manuales de Horno de Black & Decker

Black & Decker

Black & Decker BXTO1901IN Manual de usuario

Black & Decker

Black & Decker Crisp n Bake TOD6020BC Manual de usuario

Black & Decker

Black & Decker Infrawave Infrawave Speed Cooking Instrucciones de instalación

Black & Decker

Black & Decker TO1160C Manual de usuario

Black & Decker

Black & Decker TO1950SBD Manual de usuario

Black & Decker

Black & Decker TO1491S Instrucciones de instalación

Black & Decker

Black & Decker Toast-R-Oven TRO651 Instrucciones de instalación

Black & Decker

Black & Decker TOASTER-R-OVEN CTO649 Instrucciones de instalación

Black & Decker

Black & Decker TOD3300SSD Manual de usuario

Black & Decker

Black & Decker TO670 Manual de usuario

Black & Decker

Black & Decker TO1747SSG Manual de usuario

Black & Decker

Black & Decker spacemaker tros1000d Manual de usuario

Black & Decker

Black & Decker Toast-R-Oven Classic TRO201 Instrucciones de instalación

Black & Decker

Black & Decker TO1430S Instrucciones de instalación

Black & Decker

Black & Decker Toast-R-Oven Classic TRO964 Instrucciones de instalación

Black & Decker

Black & Decker TRO480SS Instrucciones de instalación

Black & Decker

Black & Decker CRISP and BAKE TOD6020B Manual de usuario

Black & Decker

Black & Decker TO1420BC Manual de usuario

Black & Decker

Black & Decker Toast-R-Oven TRO700W Instrucciones de instalación

Black & Decker

Black & Decker Toast-R-Oven TRO390B Instrucciones de instalación

Black & Decker

Black & Decker Toast-R-Oven TR0800 series Instrucciones de instalación

Black & Decker

Black & Decker INFRAWAVE FC100 Series Manual del propietario

Black & Decker

Black & Decker Perfect Broil CTO4300B Instrucciones de instalación

Black & Decker

Black & Decker TO3000 Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
