Black & Decker FS1600R Manual de usuario

FS1600R

www.blackanddecker.ae

ENGLISH

22 23

21 976

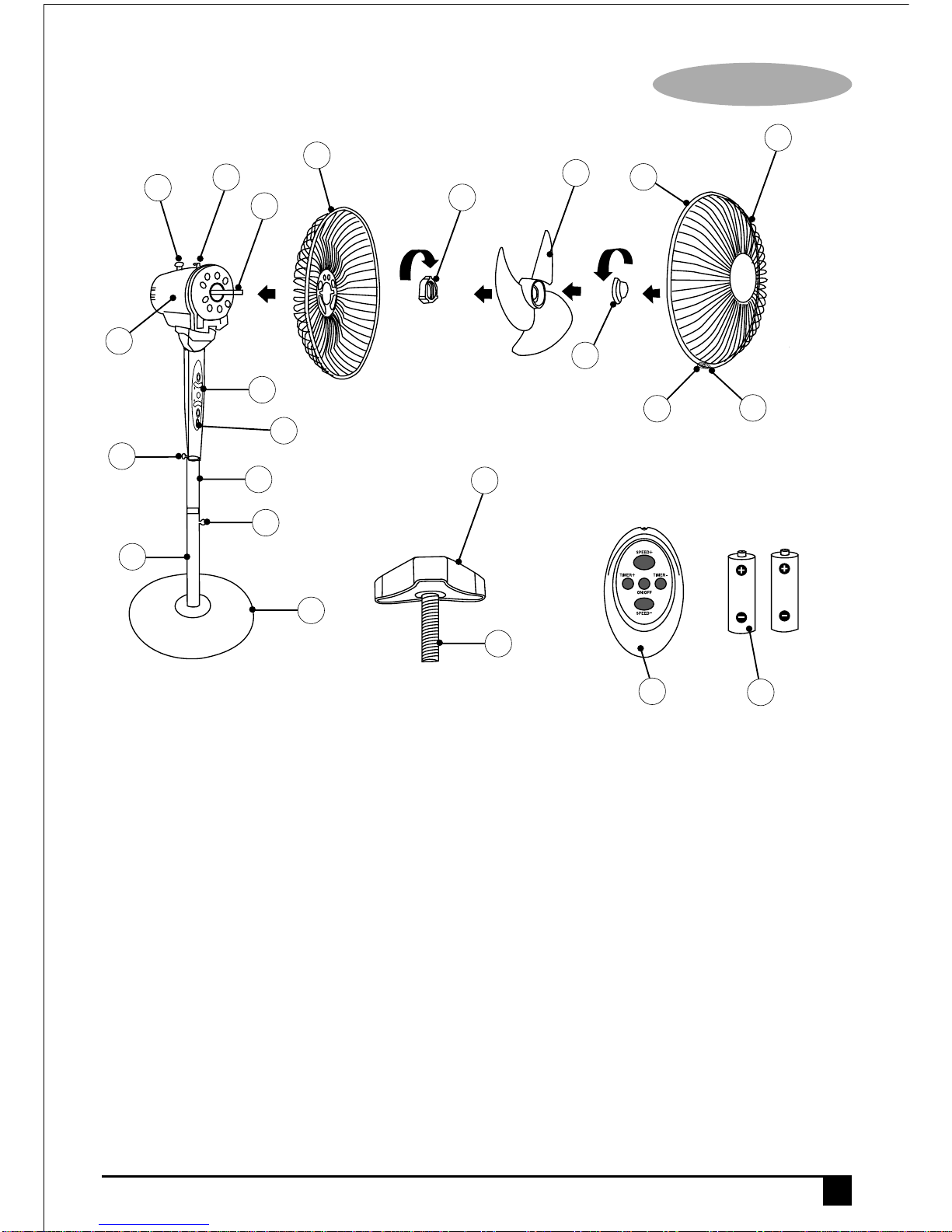

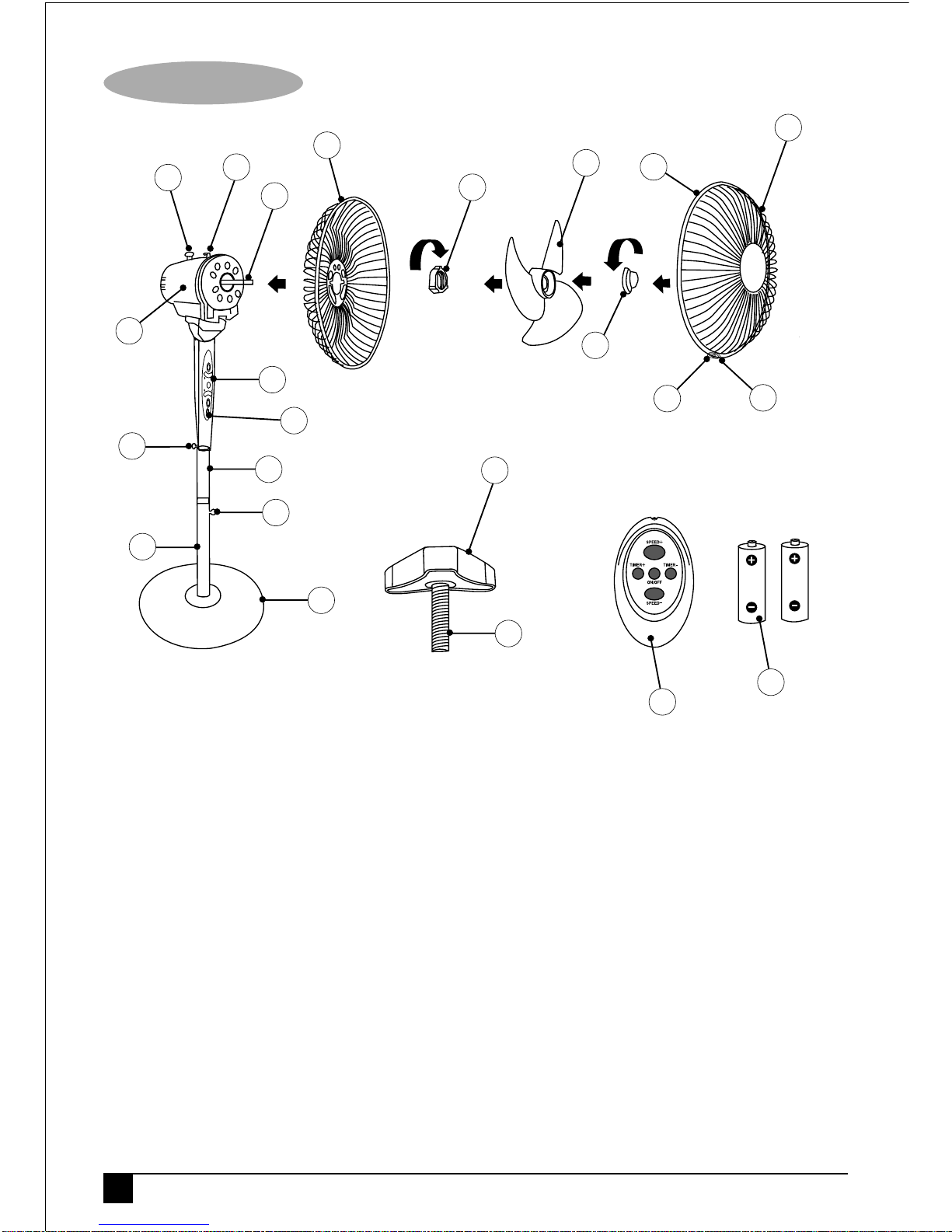

Parts Identification

1. Front guard

2. Locking screw

3. Guard securing clip

4. Guard ring

5. Blade cap

6. Fan blade

7. Guard lock nut

8. Rear guard

9. Motor shaft

10. Main unit

11. Oscillation control knob

12. Control panel

13. Securing screw

14. Switch housing

15. Adjusting tube

16. Tighten/ loosen screw

17. Support tube

18. Base plate

19 Screw

20. Base plate screw

21. Handle

22. Remote control

23. TwoAAAsizeAlkaline batteries

Intended use

Your Black & Decker fan has been designed for

indoor household use only. Remove all the parts

from the packaging material and keep them

aside . Ensure that you have all the parts as

identified in the part identification list else get in

touch with your nearest Black & Decker service

agent assistance.

Read this entire manual carefully

before using the appliance.

Safety instructions

•Warning! When using mains-powered

appliances, basic safety precautions,

including the following, should always be

followed to reduce the risk of fire, electric

shock and personal injury.

•The intended use is described in this manual.

The use of any accessory or attachment or

the performance of any operation with this

appliance other than those recommended in

this instruction manual may present a risk of

personal injury.

•Retain this manual for future reference.

Using your appliance

•Always take care when using the appliance.

•Do not use the appliance outdoors.

•Do not operate the appliance if your hands

are wet. Do not operate the appliance if you

are barefoot.

•Guide the power supply cord neatly so it

does not hang over the edge of a worktop

and cannot be caught accidentally or tripped

over.

•Never pull the power supply cord to

disconnect the plug from the socket. Keep the

power supply cord away from heat, oil and

sharp edges.

•If the power supply cord is damaged during

use, disconnect the appliance from the power

supply immediately. Do not touch the power

supply cord before disconnecting from the

power supply.

•Disconnect the appliance from the power

supply when not in use and before cleaning.

Safety of others

•This appliance is not intended for use by

persons (including children) with reduced

physical sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or

instruction concerning use of the appliance by

a person responsible for their safety.

•Children should be supervised to ensure that

they do not play with the appliance.

After use

•Switch off, remove the plug from the socket

and let the appliance cool down before

leaving it unattended and before changing,

cleaning or inspecting any parts of the

appliance.

•When not in use, the appliance should be

stored in a dry place. Children should not

have access to stored appliances.

ENGLISH

Inspection and repairs

•Switch off the appliance before cleaning,

changing accessories or approaching parts

which move in use

•Before use, check the appliance for

damaged or defective parts. Check for

breakage of parts, damage to switches and

any other conditions that may affect its

operation.

•Do not use the appliance if any part is

damaged or defective.

•Have any damaged or defective parts

repaired or replaced by an authorised repair

agent.

•Before use, check the power supply cord for

signs of damage, ageing and wear.

•Do not use the appliance if the power supply

cord or mains plug is damaged or defective.

•If the power supply cord or mains plug is

damaged or defective it must be repaired by

an authorised repair agent in order to avoid a

hazard. Do not cut the power supply cord

and do not attempt to repair it yourself.

•Never attempt to remove or replace any

parts other than those specified in this

manual.

Electrical safety

Before use, check that the mains voltage

corresponds to the voltage on the rating plate.

This appliance is double insulated in

accordance with EN 60335-2-14;

therefore no earth wire is required.

•To avoid the risk of electric shock, do not

immerse the cord, plug or motor unit in water

or other liquid.

•Check that the supply voltage shown on the

rating plate of the appliance matches that of

your electrical system.Any connection error

will invalidate the guarantee.

Mains Plug Replacement

If a new mains plug needs to be fitted:

•Safely dispose of the old plug.

•Connect the brown lead to the live terminal of

the new plug.

•Connect the blue lead to the neutral terminal.

•If the product is class l (earthed), connect the

green / yellow lead to the earth terminal.

Warning! If your product is class ll double

insulated (only 2 wires in the cord set), no

connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good

quality plugs

Any replacement fuse must be of the same rating

as the original fuse supplied with the product.

•If the supply cord is damaged, it must be

replaced by the manufacturer or an

authorised Black & Decker Service Centre in

order to avoid a hazard.

•Allow the appliance to cool before fitting or

removing any parts and before cleaning.

•Do not immerse the appliance in liquid.

Fitting andAssembling

Make sure your fan is switched off before

connecting to or disconnecting from power

supply. Ensure that the voltage rating on the

base plate corresponds to the main voltage at

your home.

ENGLISH

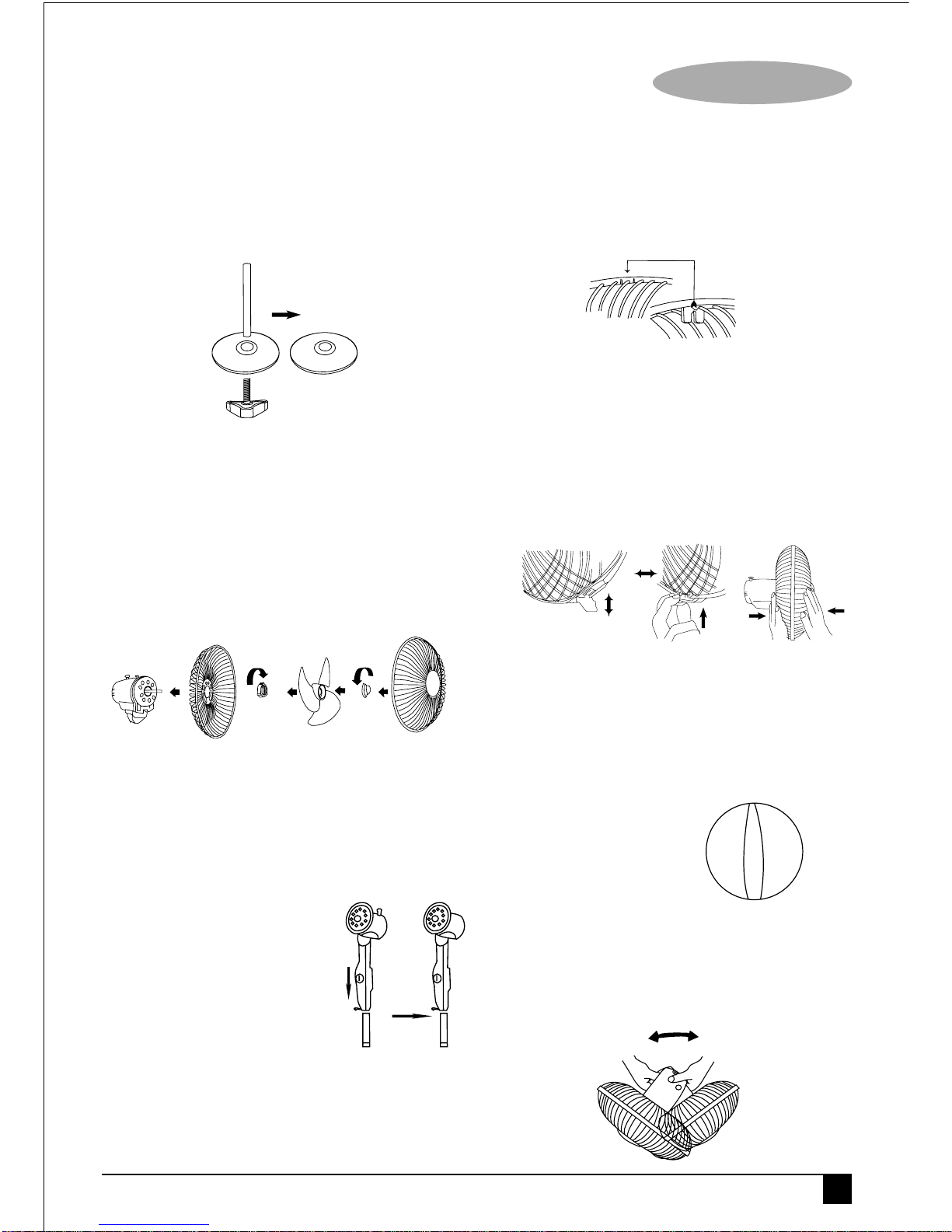

Assembling of base and stand

1. Rotate the screw in the anti-clockwise

direction and remove it from the support

tube.

2. Place the support tube onto the base and

then tighten the screw in the clockwise

direction.

3. To assemble the main unit, release a few

inches of the adjustable tube by operating

the screw.

4. Fit the main unit on the adjustable tube and

secure it in place by tightening the screw.

Assembly of the fan

1. To install the rear guard,

remove the blade cap and

guard nut from the motor

shaft. Then attach the rear

guard by positioning it on

the location pins on the

main unit. Secure the guard on to the motor

body by fastening the guard nut, turning it

clockwise until the guard is locked into

position.

2. Mount the fan blade onto the motor shaft.

Fasten the blade cap by rotating it in the

anti-clockwise direction until the blade is

fixed firmly into place.

3. Open the securing clip at the bottom of the

front guard and loosen the clip screw.

Position the top clip on the uppermost part of

the rear guard. Push the top clip down and

press rim of the front guard onto the rear

guard. Close the bottom clip and tighten the

screw.

Operations

Your Fan has three speed control to keep the

desired air flow through your room

0 - Off

1 - Low

2 - Medium

3 - High

You can press the oscillating control knob down

to make the fan oscillate to position the fan in

specific direction pull the knob up.

Motor Rear guard Fan blade Front guard

Finish

ENGLISH

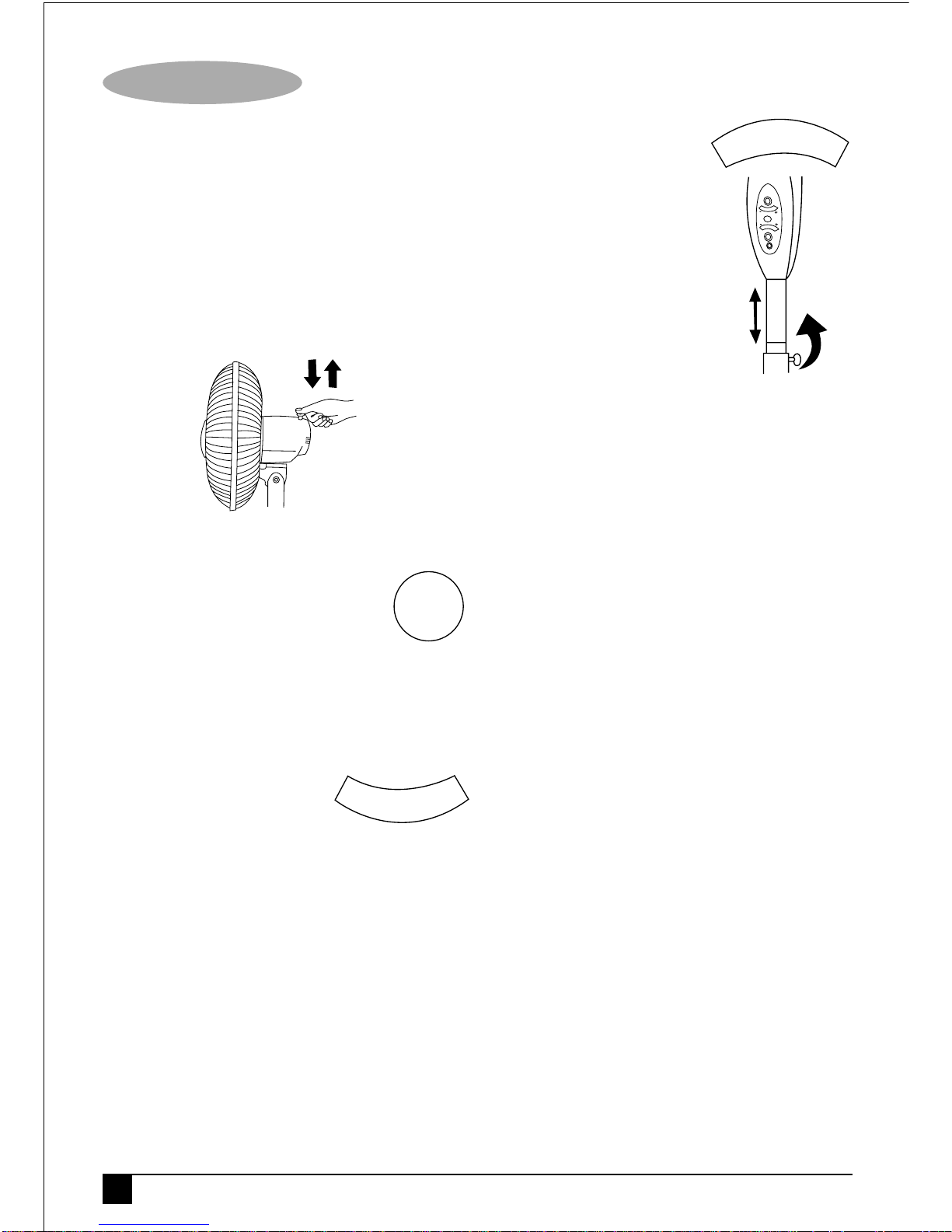

The Fan guard can also be positioned vertically

depending upon the direction of flow desired.

For this switch OFF the fan first, let the fan

come to halt, then with one hand hold the stand

and with the other hand, move the guard

assembly up or down depending upon the

desired angle required. To make the fan

oscillate pin down. To make it stop oscillation,

pull it up.

ON/OFF button

Your fan can be controlled by pushing

the buttons, which can be set on the

Control panel or on the Remote

Control.

Press the On/Off button once to operate the fan

and once again to make the fan stop running.

Speed button

Your Fan has a speed control

button to keep the desired air

flow through your room. The

speed of the fan can be adjusted by pressing

the button. The speed will be displayed on the

LCD. To increase the speed press the ” + “

button continually until it reaches the maximum

of 4.To decrease the speed press the “ _ ”

button continually until the running speed

reaches the minimum of 1. The can be operated

by remote control as well fan.

Timer

The timer can be used to set the running time of

the fan, which can vary from 1 to 8 hrs. The

number of times the timer button is pressed will

set the running time which

will be displayed on the LCD.

For example: If the timer is

pressed once, the operating

time will be set at 1hr and if

the timer is pressed 4 times,

the operating time will be set

at 4 hours. The can be

operated by remote control

as well fan.

The Fan guard can also be positioned vertically

depending upon the direction of flow desired.

For this switch OFF the fan first, let the fan come

to a halt, then with one hand hold the stand and

with the other hand, move the guard assembly

up or down depending upon the desired angle

required.

To make the fan oscillate, press the oscillation

pin down. To make it stop oscillation, pull it up.

Remote control

Please inset 2’AAA’size batteries into the

remote as per making in the remote cavity.

Always face the LED on your remote towards

the fan when you are operating the fan with

remote.

To increase the speed, press the increase speed

button once with every press of button the speed

increases by onestep.Your fan is a four speed

fan.To run the fan at maxmimum speed , press

the “speed+” button four times. In similar

fashion, to reduce speed press the “speed_”

button.

Your remote also has timer control functions.As

explained under “Times” functioning, the “time+”

& ”time_” buttons can be operated to set the

running time of fan.

The On/Off button operates and switches off the

fan from your remote.

ON/OFF

+TIMER

+SPEED

ENGLISH

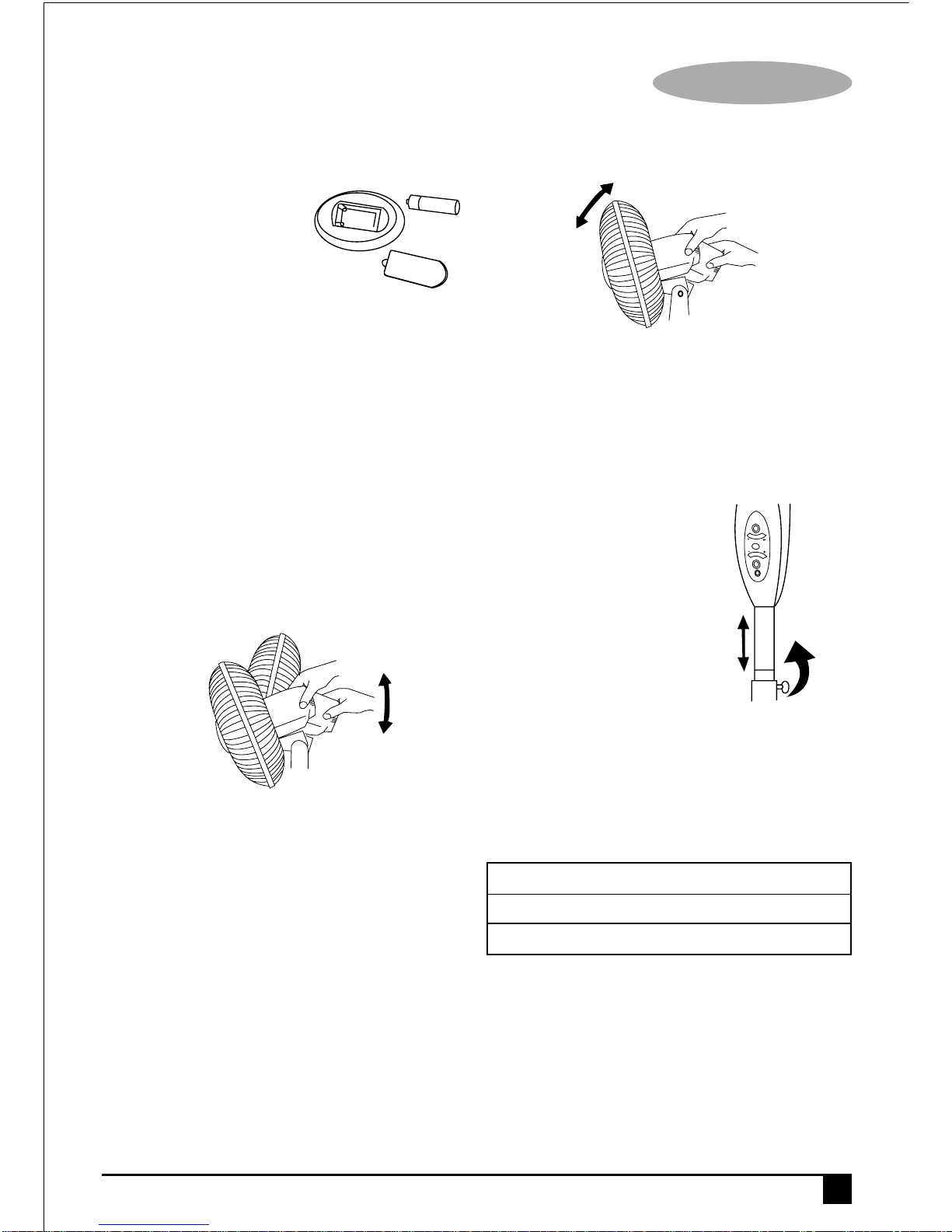

Replacing battery

With normal use, the

batteries should last for

about six months, when the

remote no longer operates

the fan, replace the

batteries with new ones.

Always check your batteries inside the remote

periodically to check for corrosion or leakage.

Warning !

•Never use the fan without the guard in place

or if the guard is damaged.

•Do not touch moving parts

•Always allow motor to stop before

approaching the blades or changing an

accessory.

•Keep your fingers, long hair, loose clothes

and supply cord away from moving parts.

•Never pull the power cord to disconnect the

plug from the socket.

•Keep the power supply cord away from

heat, oil and sharp edges.

•Do not place the appliance on or near heat

source or in a heated oven

•Do not use the appliance outdoors.Always

protect the motor unit from water or

excessive humidity

•Operate the appliance only with dry hands.

•If the power supply cord is damaged during

use, disconnect the appliance from the

power supply immediately . Do not touch the

power supply cord before disconnecting

from the power supply.

•When not in use, the

appliance should be

stored in a dry place.

Children should not

have access to stored

appliance.

•Do not cover the rear

housing of the fan with

any cloth or curtain.

•Do not operate this unit in tropical climate or

in areas where the temperature exceeds

40ºC.

Technical Data

Voltage 220 – 240V ~ 50Hz

Power input 60W

Weight 8.75kg

Guarantee

Black & Decker is confident of the quality of its

products and offers an outstanding guarantee.

This guarantee statement is in addition to and in

no way prejudices your statutory rights.

The guarantee is valid within the territories of the

Member States of the European Union and the

European Free TradeArea.

If a Black & Decker product becomes defective

due to faulty materials, workmanship or lack of

conformity, within 24 months from the date of

purchase, Black & Decker guarantees to replace

defective parts, repair products subjected to fair

wear and tear or replace such products to ensure

minimum inconvenience to the customer unless:

The product has been used for trade,

professional or hire purposes;

The product has been subjected to misuse

or neglect;

The product has sustained damage

through foreign objects, substances or

accidents;

Repairs have been attempted by persons

other than authorised repair agents or

Black & Decker service staff.

To claim on the guarantee, you will need to

submit proof of purchase to the seller or an

authorised repair agent. You can check the

location of your nearest authorised repair agent

by contacting your local Black & Decker office at

the address indicated in this manual.

Alternatively, a list of authorised Black & Decker

repair agents and full details of our after-sales

service and contacts are available on the Internet

at: www.2helpU.com.

Protecting the environment

Separate collection. This product must not

be disposed of with normal household

waste.

Should you find one day that your Black &

Decker product needs replacement, or if it is of

no further use to you, do not dispose of it with

other household waste. Make this product

available for separate collection.

•Black & Decker provides a facility for

recycling Black & Decker products once they

have reached the end of their working life.

This service is provided free of charge. To

take advantage of this service please return

your product to any authorised repair agent

who will collect them on our behalf.

•You can check the location of your nearest

authorised repair agent by contacting your

local Black & Decker office at the address

indicated in this manual.Alternatively, a list of

authorized Black & Decker repair agents and

full details of our after-sales service and

contact are available on the Internet at:

www.2helpU.com.

ENGLISH

ARABIC

22 23

976

AGõLC’ÉH ∞jô©àdG

á«eÉeC’G á«bGƒdG áµÑ°ûdG .1

∫ÉØbE’G »ZôH .2

á«bGƒdG áµÑ°ûdG ¿ÉeCG ∂Ñ°ûe .3

á«bGƒdG áµÑ°ûdG á≤∏M .4

áMhôŸG ¢ûjQ AÉ£Z .5

áMhôŸG ¢ûjQ .6

á«bGƒdG áµÑ°ûdG â«ÑãJ ádƒeÉ°U .7

á«Ø∏ÿG á«bGƒdG áµÑ°ûdG .8

∑ôëŸG OƒªY .9

á«°ù«FôdG IóMƒdG .10

ácô◊G ‘ ºµëàdG ´GQP .11

ºµëàdG áMƒd .12

¿ÉeC’G »ZôH .13

ìÉàØŸG â«Ñe .14

§Ñ°†dG ´GQP .15

∂ØdG /§HôdG »ZôH .16

ºYódG ´GQP .17

IóYÉ≤dG áMƒd .18

»ZôH .19

IóYÉ≤dG áMƒd »ZôH .20

¢†Ñ≤e .21

ó©H øY ºµëàdG RÉ¡L .22

AAA ¢SÉ≤e ¿ÉàaÉL ¿ÉàjQÉ£H .23

ARABIC

ΩGóîà°S’G ¢VôZ

ºb .§≤a ‹õæŸG ΩGóîà°SÓd ôµjO ófBG ∑ÓH áMhôe âªª o

°U

.kÉÑfÉL É¡©°Vh ∞«∏¨àdG OGƒe øe AGõLC’G ™«ªL êGôNEÉH

áªFÉb ‘ IOóëŸG AGõLC’G ™«ªL OƒLh øe ócCÉJh

ôµjO ófBG ∑ÓÑd ™HÉJ áeóN π«ch ÜôbCÉH ∫É°üJ’G

.IóYÉ°ùŸG ≈∏Y ∫ƒ°üë∏d

.áMhôŸG

QÉ«àdG Qó°üÃ á∏°üàŸG Iõ¡LC’G ΩGóîà°SG óæY !ôjò– •

√ÉfOCG IQƒcòŸG äÉWÉ«àM’G ∂dP ‘ ÉÃ á«°SÉ°SC’G

.á«°üî°T äÉHÉ°UE’Gh á«FÉHô¡c

áMhôŸG √òg ΩGóîà°SG øe ¢Vô¨dG π«dódG Gòg Oóëj

•

á≤aôe äGóMh hCG äÉ≤ë∏e ájCG ΩGóîà°SG ¿CG IÉYGôe ™e

∂∏J ÒZ áMhôŸG √òg ΩGóîà°SÉH á«∏ªY ájCG ò«ØæJ hCG

IQƒ£N ≈∏Y …ƒ£æJ ób π«dódG Gòg ‘ É¡H ≈°UƒŸG

.kÓÑ≤à°ùe ¬«dEG ´ƒLô∏d π«dódG Gò¡H ®ÉØàM’G ≈Lôj

•

áMhôŸG ΩGóîà°SG

.áMhôŸG ΩGóîà°SG óæY kÉªFGO Qò◊G ñƒJ •

.∫õæŸG êQÉN áMhôŸG Ωóîà°ùJ ’ •

¿ƒµJ ÉeóæY ’h ,Úà∏àÑe ∑Gójh áMhôŸG π¨°ûJ ’ •

.Úeó≤dG ‘ÉM

•

π°üØd »FÉHô¡µdG QÉ«àdG ∂∏°S ó°T kÉ≤∏£e ∫hÉ– ’

•

»FÉHô¡µdG QÉ«àdG ∂∏°ùH ßØàMG .¢ùÑ≤ŸG øY ¢ùHÉ≤dG

,ΩGóîà°S’G AÉæKCG »FÉHô¡µdG QÉ«àdG ∂∏°S ∞∏J ádÉM ‘

•

.»FÉHô¡µdG QÉ«àdG Qó°üe øY QƒØdG ≈∏Y áMhôŸG π°üaG

¬∏°üa πÑb »FÉHô¡µdG QÉ«àdG ∂∏°S ¢ùŸ ÖæŒ »¨Ñæjh

.»FÉHô¡µdG QÉ«àdG Qó°üe øY

ΩóY AÉæKCG »FÉHô¡µdG QÉ«àdG Qó°üe øY RÉ¡÷G π°üaG

•

.∞«¶æàdG πÑbh ΩGóîà°S’G

øjôNB’G áeÓ°S

hhP ¢UÉî°TC’G É¡eóîà°ù«d áªª°üe ÒZ áMhôŸG √òg •

øY ∫hDƒ°ùŸG ¢üî°ûdG πÑb øe áMhôŸG ΩGóîà°SÉH

.º¡àeÓ°S

º¡ãÑY ΩóY ¿Éª°†d ∫ÉØWC’G ≈∏Y ±GöTE’G Ωõ∏j

•

.áMhôŸÉH

ΩGóîà°S’G ó©H

¢ùÑ≤ŸG øe ¢ùHÉ≤dG ´õfGh áMhôŸG π«¨°ûJ ±É≤jEÉH ºb •

πÑbh áÑbGôe ¿hO É¡côJ πÑb OÈJ ≈àM áMhôŸG ∑ôJGh

.É¡°üëa hCG É¡Ø«¶æJ hCG É¡FGõLCG øe …CG Ò«¨J

‘ É¡æjõîJ Öéj ,áMhôŸG ΩGóîà°SG ΩóY ádÉM ‘ •

¤EG ∫ƒ°UƒdÉH ∫ÉØWCÓd ìÉª°ùdG ΩóY Öéjh .±ÉL ¿Éµe

.áfõîŸG Iõ¡LC’G

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Admirador de Black & Decker

Black & Decker

Black & Decker BXEFD30E Manual de usuario

Black & Decker

Black & Decker Typhoon BDDF1200 Series Instrucciones de instalación

Black & Decker

Black & Decker Fleetforce BDHV2000 Instrucciones de instalación

Black & Decker

Black & Decker BFTU107 Manual de usuario

Black & Decker

Black & Decker BDHV-1010 Manual de usuario

Black & Decker

Black & Decker BXEFD41E Manual de usuario

Black & Decker

Black & Decker BFF16B Manual de usuario

Black & Decker

Black & Decker BXMF75E Manual de usuario

Black & Decker

Black & Decker BXFP51006GB Manual de usuario

Black & Decker

Black & Decker BXFD52002GB Manual de usuario

Black & Decker

Black & Decker FB1620 Manual de usuario

Black & Decker

Black & Decker BFTR36B Manual de usuario

Black & Decker

Black & Decker BFTR48W Manual de usuario

Black & Decker

Black & Decker BDHV-5018 Manual de usuario

Black & Decker

Black & Decker BFB09W Manual de usuario

Black & Decker

Black & Decker BDBF-520 Manual de usuario

Black & Decker

Black & Decker BDHS-6120 Manual de usuario

Black & Decker

Black & Decker Typhoon BDSF1600 series Instrucciones de instalación

Black & Decker

Black & Decker Typhoon BDSF1600 Series Instrucciones de instalación

Black & Decker

Black & Decker Typhoon BDTF1012W Instrucciones de instalación

Black & Decker

Black & Decker BDHV2002 Instrucciones de instalación

Black & Decker

Black & Decker BFTU107 Manual de usuario

Black & Decker

Black & Decker BXEFP50E Manual de usuario

Black & Decker

Black & Decker BDWF7700 Series Instrucciones de instalación

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
