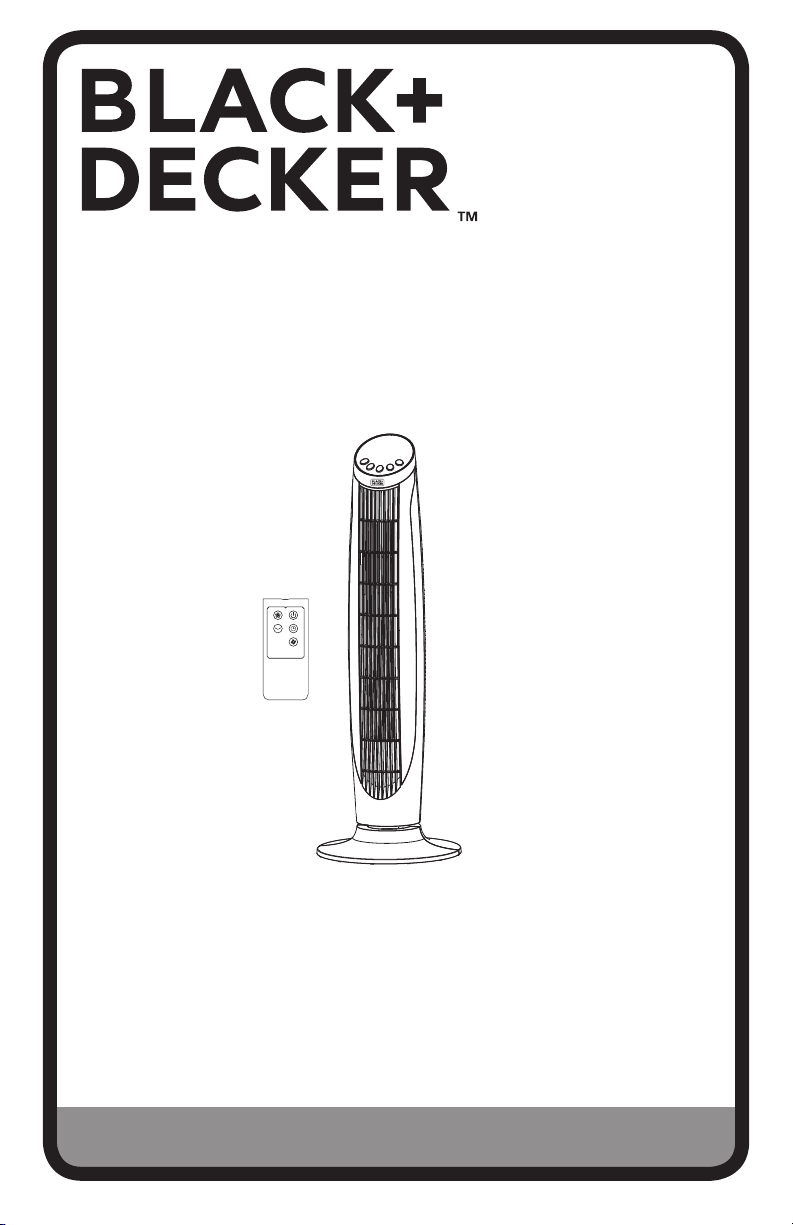

Black & Decker BFTR36B Manual de usuario

INSTRUCTION MANUAL

36"DIGITAL TOWER FAN

Thank you for choosing BLACK+DECKER!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR

ANY REASON.

If you have a question or experience a problem with your BLACK+DECKER

purchase, go to www.blackanddecker.com/instantanswers

If you can’t find the answer or do not have access to the Internet, call

844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an

agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CATALOG NUMBER

BFTR36B

Page 2

Thank you for purchasing our

BLACK+DECKER product. This

easy-to-use manual will guide you

in getting the best use of your fan.

Remember to record the model and

serial numbers. They are on a label

on the rear.

Staple your receipt to your manual.

You will need it to obtain warranty service.

Model number

Serial number

Date of purchase

PRODUCT REGISTRATION

CONTENTS

SAFETY INFORMATION

Important Safety Instructions......................................................................................................................................... 4-6

Electrical Requirements....................................................................................................................................................... 5

SET UP & USE

Parts & Features........................................................................................................................................................................ 7

Operation & Use ..................................................................................................................................................8-11

Replacing the Fuse................................................................................................................................................12

CLEANING & CARE...............................................................................................................................................12

TROUBLE SHOOTING & WARRANTY

Before You Call For Service ...............................................................................................................................13

Customer Service...................................................................................................................................................13

Troubleshooting......................................................................................................................................................13

Limited Warranty ................................................................................................................................................................... 14

Page 3

Page 4

SAFETY INFORMATION

IMPORTANT SAFETY INSTRUCTIONS

1. READ ALL INSTRUCTIONS BEFORE USE

2. Never insert ﬁngers, pencils, or any other object through the grill

when fan is running

3. Disconnect fan when moving from one location to another.

4. Disconnect fan when not in use and before cleaning.

5. To protect against risk of electrical shock, do not immerse fan in

water or any other liquid.

6. Do not let cord hang over edge of table or counter.

7. Be sure fan is on a stable surface when operating to avoid

overturning.

8. Do not use fan in window. Rain may create electrical hazard.

9. Close supervision is necessary when any appliance is used by or near

children.

10. This product employs overload protection (fuse). A blown fuse

indicates an overload or short-circuit situation. If the fuse blows,

unplug the product from the outlet. Replace the fuse as per the user

manual (follow product marking for proper fuse rating) and check

the product. If the replacement fuse blows, a short-circuit may be

present and the product should be discarded or returned to an

authorized service facility for examination and/or repair.

11. Do not operate any fan with a damaged cord or plug. Discard fan or

return to an authorized service facility for examination and/or repair.

12. Do not run cord under carpeting. Do not cover cord with throw rugs,

runners, or similar coverings. Do not route cord under furniture or

appliances. Arrange cord away from trac area and where it will not

be tripped over.

WARNING

WARNING - Hazards or unsafe

practices which COULD result in

severe personal injury or death

DANGER

DANGER - Immediate hazards

which WILL result in severe

personal injury or death

CAUTION

CAUTION - Hazards or unsafe

practices which COULD result in

minor personal injury

WARNING

When using electrical appliances, basic safety precautions

should be followed, including the following

Page 5

SAFETY INFORMATION

13. To reduce the risk of ﬁre or electric shock, DO NOT use this fan with

any solid state speed control devices.

14. Do not use outdoors.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

ELECTRICAL REQUIREMENTS

This appliance has a polarized plug (one blade is wider than the other). To reduce the

risk of electric shock, this plug is intended to ﬁt into a polarized outlet only one way.

If the plug does not ﬁt into the outlet, reverse the plug. If it still does not ﬁt, contact a

qualiﬁed electrician. Do not attempt to modify the plug in any way.

POWER SUPPLY CORD

1. If the power supply cord is too short, do not use an extension cord. Have a qualiﬁed

electrician or serviceman to install an outlet near the appliance.

2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme

care must be exercised.

a) The marked electrical rating of the cord set or extension cord must equal to or

be greater than the electrical rating of the appliance. The longer cord should be

arranged so that it will not drape over the counter top or table top where it can be

pulled on by children or tripped over unintentionally.

NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage

to the product or personal injury resulting from failure to observe the

electrical connection procedures.

Page 6

SAFETY INFORMATION

HANDLING ALKALINE BATTERIES

1. Should ﬂuid from the battery accidentally get into your eyes, there is a threat

of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap

water and then consult a physician immediately.

2. Do not put the battery in a ﬁre, expose it to heat, dismantle or modify it. If the

insulation or safety valve is damaged, the battery may leak ﬂuid, overheat or

explode.

3. Do not insert the battery with the poles reversed. Doing so may cause some

abnormality or a short and the battery may leak ﬂuid, overheat or explode.

4. Keep the battery out of the reach of children. If the battery is swallowed, contact a

physician immediately.

5. If the alkali ﬂuid gets in your mouth, rinse your mouth with water and contact a

physician immediately.

6. If the alkali ﬂuid gets on your skin or clothes, it may burn your skin, thoroughly

rinse the aected area with tap water.

7. Do not mix new and old batteries or other makes of batteries. The dierent

attributes may cause the battery to leak ﬂuid, overheat or explode.

8. This battery was not made to be recharged. Recharging this battery may damage

the insulation or internal structure and may cause the battery to leak ﬂuid,

overheat or explode.

9. Do not damage or remove the label on the exterior of the battery. Doing so may

cause the battery to short, leak ﬂuid, overheat or explode.

10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause

the battery to leak ﬂuid, overheat or explode.

11. Do not alter the shape of the battery. If the insulation or safety valve is damaged,

the battery may leak ﬂuid, overheat or explode.

12. Immediately remove batteries when they have lost all power. Leaving the batteries

in the unit for a long time may cause the batteries to leak ﬂuid, overheat or

explode due to gas that is generated by the batteries.

Contact your local government for disposal practices in your area.

WARNING

When handling alkaline batteries, basic safety precautions

should be followed, including the following

Page 7

PARTS & FEATURES

SET UP & USE

Control Panel / Display

Body

Power Cord

Rear Base

Front Base

Plastic Nut

Page 8

SET UP & USE

ASSEMBLY INSTRUCTIONS

1. Take out the fan body and the spare parts from the box. Slide the front base on to

the rear base and join them together. (see Fig. 1)

2. Pass the power cord through the hole in the center of the base, then insert the fan

body into the base. (see Fig. 3)

3. Fix the fan body on the base with the plastic nut. (see Fig. 2)

The outlet trough

Fig. 1

Fig. 2 Fig. 3

Page 9

SET UP & USE

OPERATION INSTRUCTIONS

REMOTE CONTROL

1. ON/OFF KEY - The “ON” key is for switching on the fan .The fan will be started at

the lowest speed. Press the “OFF” key if the fan needs to switch o.

2. SPEED KEY - “Once the fan has started, press the key repeatedly to go through

a sequence order of 1 (low), 2 (medium), 3 (high).

3. WIND MODE KEY - Press this key to select wind mode. The sequence of choices

is NORMAL-NATURAL-SLEEP when the key is touched repeatedly or held down.

The lights will conﬁrm the wind mode setting.

NOTE: If the LED indicator light above the wind mode icon is lit, the fan is in the

“normal wind” mode. If the LED indicator light between the wind mode icon and

the half moon/sleep icon is on, the fan is in “natural wind” mode. If no LED indicator

is lit, the fan is in the “sleep wind” mode. (See page 11)

4. OSCILLATION KEY - After the fan has started, press this key to select

oscillation mode. The lights will conﬁrm the oscillation mode setting.

5. TIMER KEY - Press this timer key repeatedly to set the time in one-hour

increments from one to eight hours. Increase in increments up to “1-2-3-4-5-6-7-8”

hours.

BATTERY INSTRUCTIONS (not included)

1. Press down on the battery compartment cover and slide it out.

2. Insert the batteries, making sure that the positive terminals are facing the proper

way.

3. Replace the cover.

BATTERY WARNINGS

1. Do not dispose of batteries in ﬁre, batteries may explode or leak.

2. Do not mix old and new batteries.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium)

batteries.

NOTE: Use size “AAA” alkaline batteries. Do not use rechargeable batteries.

SET UP & USE

Remote Control

Battery Battery Cover
