BIXOLON SRP-330III Manual de instrucciones

Network Connection Manual

SRP-330/332III

Ver. 1.00

http://www.bixolon.com

Network Connection Manual

Ver. 1.00

- 2 -

Table of Contents

Copyright .................................................................................................................... 3

1. Manual Information .............................................................................................. 4

2. Specifications.......................................................................................................... 4

3. How to Connect ...................................................................................................... 5

3-1 Connecting Printer......................................................................................................5

3-2 Checking Network Setting..........................................................................................6

3-3 LAN Setting Values......................................................................................................7

4. Ethernet Test by using Windows Test Page......................................................... 8

5. Factory Reset ........................................................................................................ 15

5-1 Initializing LAN Setting ............................................................................................ 15

5-2 Factory Reset Values ................................................................................................ 15

6. Troubleshooting................................................................................................... 16

Network Connection Manual

Ver. 1.00

- 3 -

This user manual and all property of the product are protected under copyright law.

It is strictly prohibited to copy, store, and transmit the whole or any part of the manual

and any property of the product without the prior written approval of BIXOLON Co.,

Ltd.

The information contained herein is designed only for use with this BIXOLON product.

BIXOLON is not responsible for any direct or indirect damages, arising from or

related to use of this information.

• The BIXOLON logo is the registered trademark of BIXOLON Co., Ltd.

•All other brand or product names are trademarks of their respective companies or

organizations.

BIXOLON maintains ongoing efforts to enhance and upgrade the functions and quality

of all our products.

In the following, product specifications and/or user manual content may be changed

without prior notice.

Caution

Electronics, such as printers, are prone to damage by static electricity. Therefore, to

protect the printer from static electricity, be sure to turn off the printer before

connecting or disconnecting the cable to the rear of the printer. If the printer is

damaged by static electricity, contact your local dealer.

Network Connection Manual

Ver. 1.00

- 4 -

1. Manual Information

To change the printer settings, establish a connection by configuring its LAN and the

network settings of the host e.g., PC, PDA.

2. Specifications

CATEGORIES

FEATURE

IMPLEMENTATION

LAN

Specification

Interface

10/100 Base-T All in one(Auto detection)

Protocol

DHCP Client, HTTP, ARP, ICMP, IPv4, TCP, UDP

Network Connection Manual

Ver. 1.00

- 5 -

3. How to Connect

To change the printer settings, establish a connection by configuring its LAN and the

network settings of the host e.g., PC, PDA.

3-1 Connecting Printer

• Connect the LAN cable to the printer.

Establish a connection with the hub or host using a LAN cable.

For LAN configuration, use “Net configuration tool”.

Network Connection Manual

Ver. 1.00

- 6 -

3-2 Checking Network Setting

• After the printer has finished booting, open the printer cover and press and hold the

FEED Button for 5 seconds. This will cause the interface setting confirmation mode.

Then add the paper, close the cover, and check that the following message is printed.

If the above message is printed, select Mode 1, and you will see the following WLAN

data. (To select Mode 1, press the Feed button once quickly/ once long.)

Checking Interface Setting

0: Exit

1: WLAN Information Print

2: WLAN Factory Reset and Reboot Printer

3 or more: None

Select Modes by Feed button control

as below.

Step 1. Short-press as many times as

The mode number to choose.

Step 2. Long-press over 1 second.

*e.g. To choose Mode 2, press Feed

Button 3 times(short-short-long)

LAN SETTING

MAC ADDRESS : 00:15:94:C2:6B:A8

IP ADDRESS : 192.168.0.48

SUBNET MASK : 255.255.255.0

GATEWAY : 192.168.0.1

PORT : 9100

INACT. TIME : 0

Network Connection Manual

Ver. 1.00

- 7 -

3-3 LAN Setting Values

Classification

Item

Description

Input Range

Network

Inactivity Time

TCP connection hold time

0~3600 integer

IP Assignment

Method

IP Assignment Method DHCP/Manual

IP Address

Printer IP

IP Address

Subnet Mask

Subnet mask

IP Address

Gateway

Default Gateway

IP Address

For changing network setting values using Net configuration tool,

Refer to ‘Net configuration tool manual’.

Network Connection Manual

Ver. 1.00

- 8 -

4. Ethernet Test by using Windows Test Page

You can use the Windows printer driver as shown below when there is no test

program. Operating systems that allow you to use the Windows printer driver are

Windows, XP, Server 2003, VISTA, 2008 Server, 7, 8, 10.

You can download the latest version of Windows driver from our home

page. (www.bixolon.com)

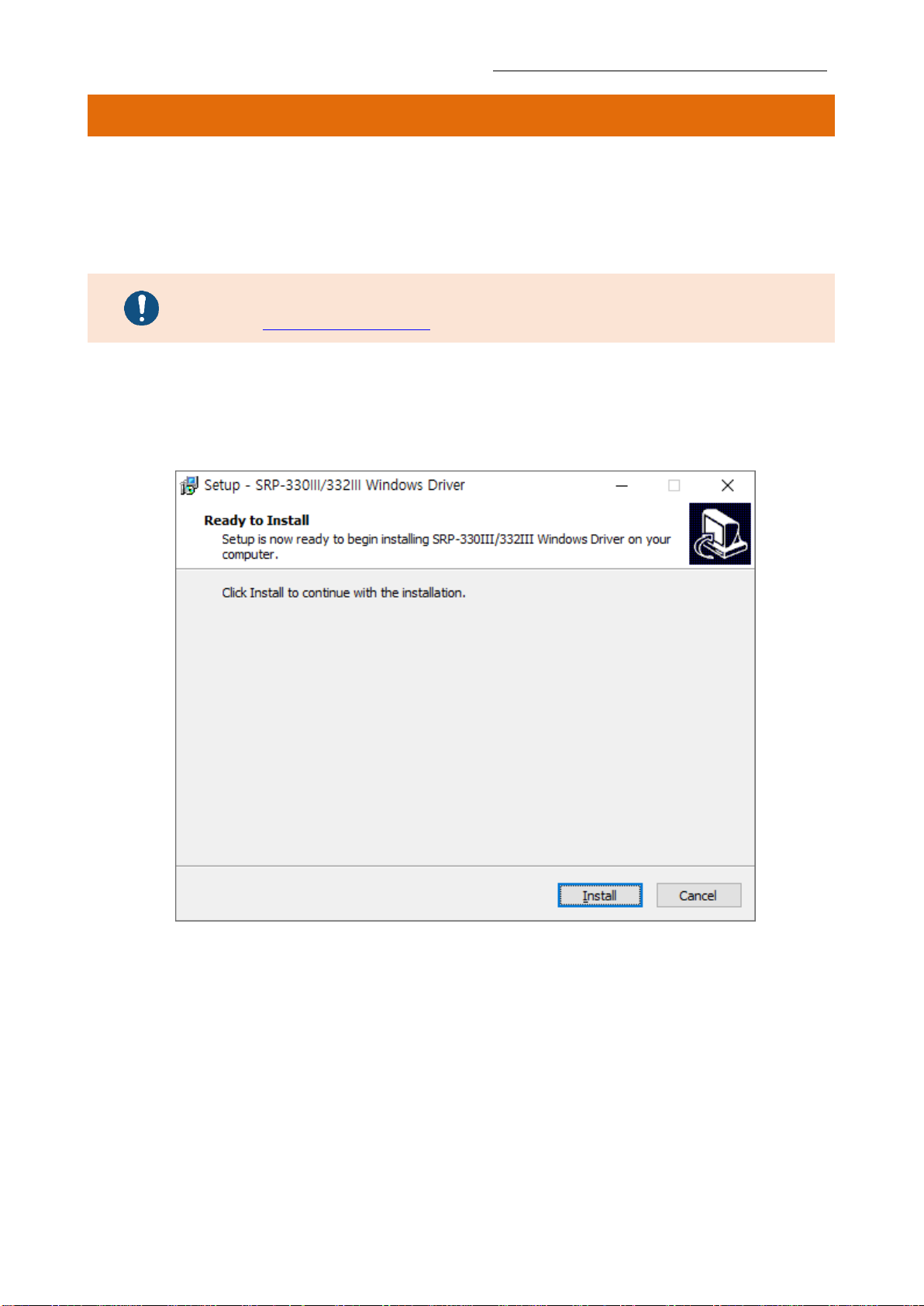

1) Double-click the Windows Driver installation file.

2) Click Install.

Network Connection Manual

Ver. 1.00

- 9 -

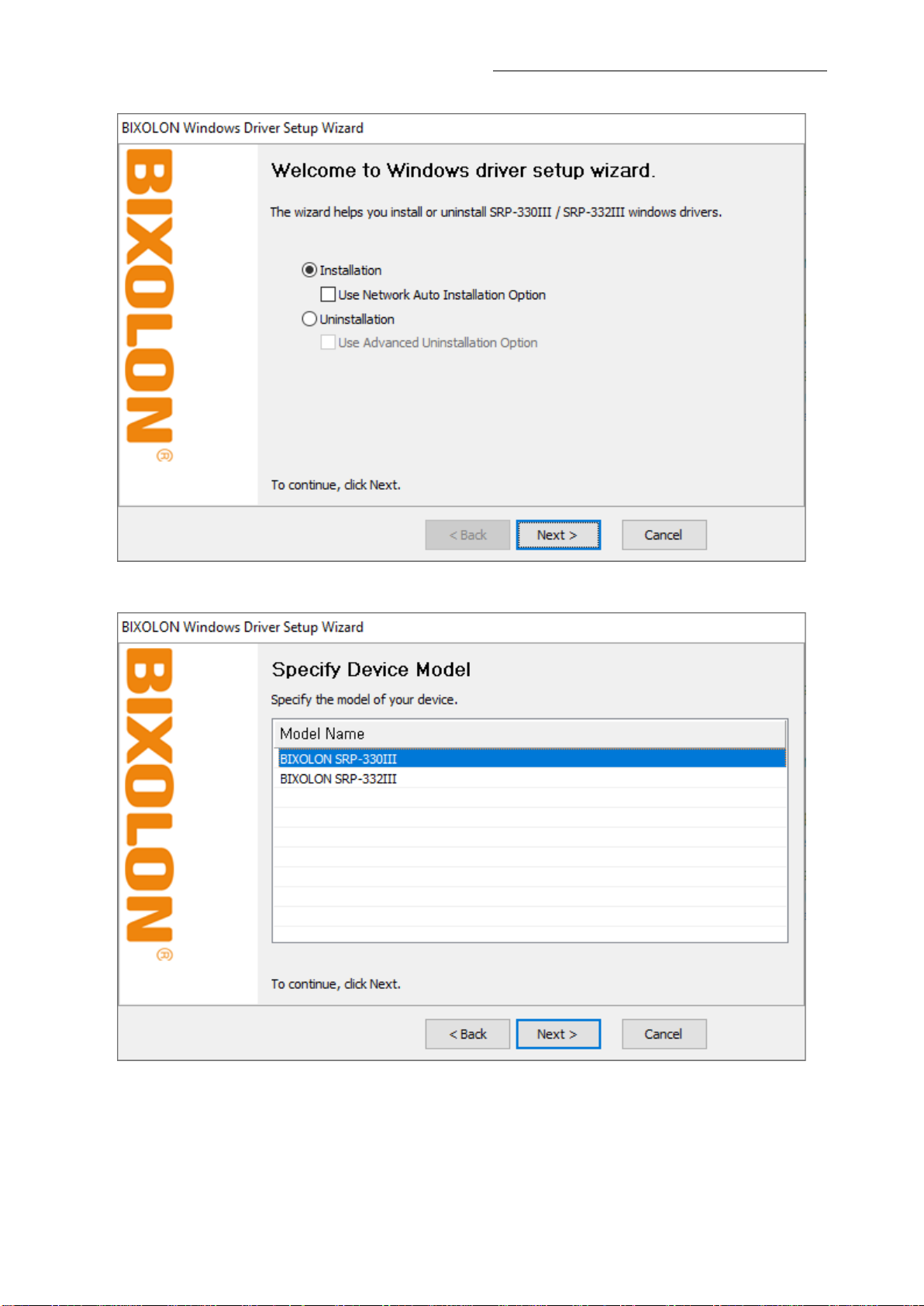

3) Select Installation and click Next.

4) Select Model Name and click Next.

Network Connection Manual

Ver. 1.00

- 10 -

5) Select Ethernet and click Add TCP/IP Port.

6) Enter the IP address and port number, and then click Next.
