BIXOLON DX420 Manual de usuario

Scker Printer 101

Scope:

Unit Descripon:

This document is used to help diagnose and troubleshoot a Bixolon DX420

Printer Parts Front Printer Parts Back Printer Parts Internal

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

How to Install a Scker Roll:

This document is used to help diagnose and troubleshoot a Bixolon DX420

1. Open the Paper Cover 2. Spread the Paper Holder

and insert the paper roll

2. Pull the paper so that it extends out of the front of the printer*.

Push the paper under both of the paper guides.

* Whether the paper label is wound inwards or outwards, its printing

surface must face up.

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

Basic Troubleshoong:

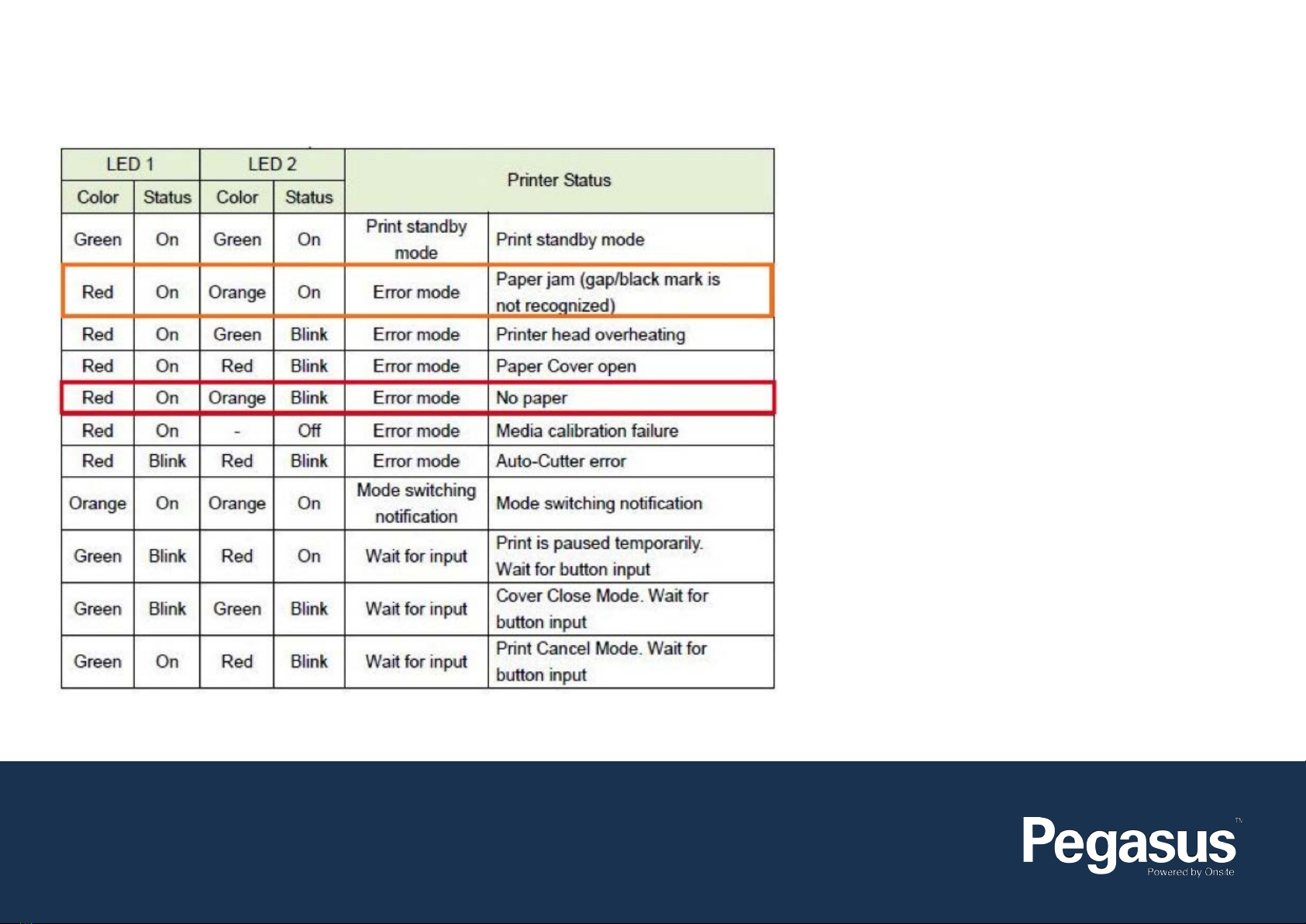

Error Lights: If the printer isn’t behaving as expected, use this table to determine what the issue may be. (Red = Most likely, Orange = Less likely)

NOTE: This information will come in handy when talking to an Onsite Support Technician during remote support process

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

If the printer is displaying the more common errors highlighted above, you are free to attemot to rectify it by wither replacing the sticker roll or cleaning the

machine (see Cleaning Instructions).

The self-test function checks whether the printer has any problems.

- Firmware version, printer conguration information, printing quality

checking pattern, and peripheral conguration information, etc.

Users cannot perform this procedure if using the printer’s label peel-off

option.

If the printer does not function properly, contact an authorised dealer.

The self-test checks the following:

1. Make sure that the paper roll has been installed properly

2. To begin the self-test turn on the power while pressing the feed button.

(Hold the button until the printer starts self-test printing).

If you are unable to resolve the issue or the problem persists, please call the Onsite Support Team on 1300 131 194 or email them on

support@onsitetrackeasy.com.au

Once you have spoken to an Onsite Support Technician complete the following steps:

Self Test:

Factory Reset:

This function is udes to reset the printer settings to factor defult settings.

How to reset the printer:

1. Press the Pause button for two seconds during Print Standby Mode.

2. Both LEDs will become an orange colour and the printer will be set to Stand-Alone Conguration Mode.

3. Press the Feed button at the third LED sequence (Status LED is green and LED 2 is blinking redfour times) to reset the printer to factory settings, and

Smart Media Detection funstion will be executed.

If neither the Self Test nor the Factory Reset resolve the issue, the Onsite Technician will advise you of the next steps.

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

General Informaon:

Cleaning the Unit:

Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer.

When dirty, clean the print head as follows:

*CAUTION

- Make sure to turn the printer off prior to cleaning.

- As the print head gets very hot during printing, if intending to clean the print head, turn the printer power off and wait approximately 2-3 minutes before

commencement.

- When cleaning the print head, take care not to touch the heated portion of the print head.

- The printer head is susceptible to damage from static electricity, etc.

- Take care not to allow the print head to become scratched and/or damaged in any way.

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

e: support@onsitetrackeasy.com.au

p: 1300 131 194

w: pegasus.net.au

Cleaning Instrucons:

1. Open the paper cover and then remove the paper.

2. Remove any dust or foreign substance using a dry cloth or cotton

swab.

3. Soak the cloth or cotton swab in alcohol for medical use and use it

to remove adhesive foreign substances or other pollution materials.

4. After cleaning the parts, do not use the printer until the alcohol has

evaporated completely (1-2 minutes) and the printer has completely

dried.

Note: Clean the parts when there is a degradation of performance the

in printing quality or paper detection.
