Biostar TF7025-M2 Guía del usuario

TF7050-M2 / TF7025-M2 BIOS Manual

BIOS Setup.................................................................................................1

1 Main Menu...............................................................................................3

2 Standard CMOS Features......................................................................7

3 Advanced BIOS Features .......................................................................9

4 Advanced Chipset Features..................................................................16

5 Integrated Peripherals..........................................................................18

6 Power Management Setup....................................................................24

7 PnP/PCI Configurations.......................................................................27

8 PC Health Status...................................................................................29

9 OverClock Navigator Engine...............................................................31

10 CMOS Reload Program (C.R.P.) .......................................................39

TF7050-M2 / TF7025-M2 BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the Phoenix-Award™

BIOS Setup program on this motherboard. The Setup program allows users to

modify the basic system configuration and save these settings to CMOS RAM.

The power of CMOS RAM is supplied by a battery so that it retains the Setup

inform ation when the power is turned off.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and

output devices such as keyboard, mouse, serial ports and disk drives. BIOS

activates at the first stage o f the booting process, loading and executing the

operating system. Some additional features, such as virus and password

protection or chipset fine-tuning options are also included in BIOS.

The rest of this manual will to guide you through the options and settings in

BIOS Setup.

Plug and Pla y Support

This PHOENIX-AWARD BIOS supports the Plug and Play Version 1.0A

speci fication and ESCD (Extended System Configuration Data) write.

EPA Green PC Support

This PHOENIX-AWARD BIOS supports Version 1.03 of the EPA Green PC

speci fication.

APM Support

This PHOENIX-AWARD BIOS supports Version 1.1&1.2 of the Advanced

Power Management (APM) speci fication. Power management features are

implemented via the System Management Interrupt (SMI). Sleep and Suspend

power management modes are supported. Power to the hard disk drives and

video monitors can also be managed by this PHOENIX-AWARD BIOS.

TF7050-M2 / TF7025-M2 BIOS Manual

ACPI Support

Phoenix-Award ACPI BIOS support Version 1.0b of Advan ced Configuration

and Power interface speci fi cation (ACPI). It provides ASL code for power

management and devi ce configuration capabilities as defined in the ACPI

speci fication, developed by Microsoft, Intel and Toshiba.

PCI Bus S upport

This PHOENIX-AWARD BIOS also supports Version 3.0 of the Int el PCI

(Peripheral Component Interconnect) local bus specification.

DRAM S upport

DDR SDRAM (Double Data Rate Synchronous DRAM) is supported.

Supported CP Us

This PHOENIX-AWARD BIOS supports the AMD CPU.

Using Setup

Use the arrow keys to highlight items in most of the place, press <Enter> to

select, use the <PgUp> and <PgDn> keys to change entries, press <F1> for help

and press <Esc> to quit. The following table provides more detail about how to

navigate in the Setup program by using the keyboard.

Keystroke Function

Up arr ow M ove to pr e vio us it em

Down arrow Move to next item

Left ar ro w M ove to th e i te m on th e l eft ( me nu b ar )

Ri g ht ar r ow M ove to th e i te m on th e r ig ht ( me nu bar )

Move E nter Move to the item you desired

Pg U p ke y Incr eas e t he nu meri c val ue or ma ke c ha ng es

Pg D n ke y Decr ease th e n umer ic valu e or ma ke ch ang es

+ Ke y Incr eas e t he nu meri c val ue or ma ke c ha ng es

- Ke y Decr ease th e n umer ic valu e or ma ke ch ang es

Esc ke y Main Menu – Quit and not s ave c hanges into CMOS

Stat us P ag e S etu p M en u an d Op tion Pag e Set up M en u – E xi t

Current p age a nd r eturn to M ain Me nu

F1 key General helpon Setup navigation keys

F5 ke y Loa d pr e vious valu es fro m C MOS

F7 ke y Loa d t he opti mize d d efa ults

F10 ke y Sa ve al l th e C MOS c ha ng es a nd e xit

TF7050-M2 / TF7025-M2 BIOS Manual

1 Main Menu

Once you enter Phoenix-Award BIOS™ CMOS Setup Utility, the Main Menu

will appear on the screen. The Main Menu allows you to select from several

setup functions. Use the arrow keys to select among the items and press <Enter>

to accept and enter the sub-menu.

Figure 1: Main Menu

Standard CMOS Features

This submenu contains industry standard configurable options.

Advanced BIOS Features

This submenu allows you to configure advanced features of the BIOS.

!! WARNING !

For better system performance, the BIOS firmware is being

continuously updated. The BIOS information described in

this manual (Fi g u re 1, 2, 3, 4, 5, 6, 7, 8, 9 ) is for your

referen ce only. The actual BIOS information and settings on

board may be slightly different from this manual.

TF7050-M2 / TF7025-M2 BIOS Manual

Advanced Chipset Features

This submenu allows you to configure special chipset features.

Integrated Peripherals

This submenu allows you to configure cert ain IDE hard drive options and

Programmed Input/ Output features.

Power Management Setup

This submenu allows you to configure the power managem ent features.

PnP/PCI Configurations

This submenu allows you to configure cert ain “ Plug and Play” and PCI options.

PC Health Status

This submenu allows you to monitor the hardware of your system.

OverClock Navigator Engine

This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock.

(However, we suggest you to use the default setting. Changing the voltage and

clock improperly may damage the CPU or M/B!)

CMOS Reload Program

The CMOS Reload Program (CRP) allows you to save different CMOS settings

into BIOS-ROM.

Load Optimized Defaults

This selection allows you to reload the BIOS when problem occurs during

system booting sequence. These configurations are factory settings optimized

for this system. A confirmation message will be displayed before defaults are

set.

TF7050-M2 / TF7025-M2 BIOS Manual

Set Supervisor Password

Setting the supervisor password will prohibit everyone except the supervisor

from making changes using the CMOS Setup Utility. You will be prompted with

to enter a password.

Set User Password

If the Supervisor Password is not set, then the User Password will function in

the same way as the Supervisor Password. If the Supervisor Password is set and

the User Password is set, the “User” will only be able to view configurations but

will not be able to change them.

Save & Exit Setup

Save all configuration changes to CMOS (memory) and exit setup. Confirmation

message will be displayed before proceeding.

Exit Without Sa ving

Abandon all changes made during the current session and exit setup.

Confirmation message will be displayed before proceeding.

TF7050-M2 / TF7025-M2 BIOS Manual

Integrate Flashing Program

This is a very safe way to upgrade BIOS.

By pressing “ Enter” key for three times, and the upgrading process will be

completed easily.

TF7050-M2 / TF7025-M2 BIOS Manual

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categori es.

Each category includes no, one or more than one setup items. Use the arrow

keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the

value you want in each item.

Figure 2: Standard CMOS Setup

Main Menu Selections

This table shows the items and the available options on the Main Menu.

Item Options Description

Date mm : dd : yy

Set the system date. Note

that the ‘Day ’ automatically

changes when you set the

date.

Time hh : mm : ss Set the system internal

clock.

IDE Channel 0 Master Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options

IDE Channel 0 Slav e Options are in its sub

menu.

Press <Enter> to enter the

sub menu of detailed

options.

TF7050-M2 / TF7025-M2 BIOS Manual

Item Options Description

Drive A

360K, 5.25 in

1.2M, 5.25 in

720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

None

Select the ty pe of f loppy

disk drive installed in your

sy stem.

Video

EGA/VGA

CGA 40

CGA 80

MONO

Select the default v ideo

dev ice.

Halt On

All Errors

No Errors

All, but Key board

All, but Diskette

All, but Disk/ Key

Select the situation in which

y ou want the BIOS to stop

the POST process and

notify y ou.

Base Memory N/A

Displays the amount of

conv entional memory

detected during boot up.

Extended Memory N/A

Displays the amount of

extended memory detected

during boot up.

Total Mem ory N/ A Displays the total memory

av ailable in the system.

TF7050-M2 / TF7025-M2 BIOS Manual

3 Advanced BIOS Features

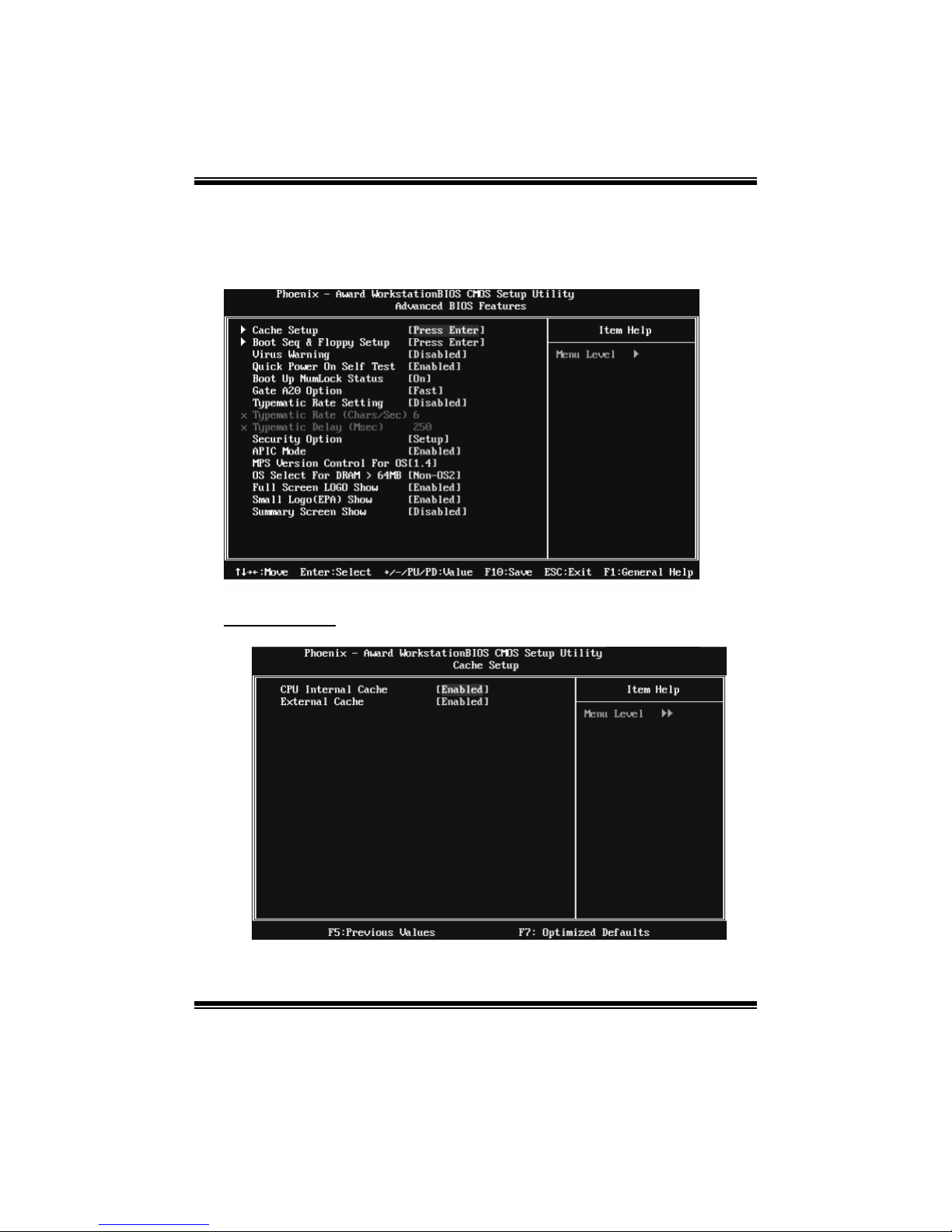

Figure 3: Advanced BIOS Setup

Cache Setup
