TA780G M2+/TA780G M2+ HP BIOS Manual

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to CMOS RAM. The power of CMOS

RAM is supplied by a battery so that it retains the Setup information when the power

is tu rned o ff.

Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and output

devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the

first stage of the booting process, loading and executing the operating system. Some

additional features, such as virus and password protection or chipset fine-tuning

options are also inc luded in BIOS.

The rest of this manual will to guide you thro ugh the options and settings in BIOS

Setup.

Plug and Play Support

This AMI BIOS supports the Plug and Play Version 1.0A specification.

EPA Green PC Support

This AMI BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AMI BIOS supports Vers ion 1.1&1.2 of the Advanced Power Management

(APM) specification. Power management features are implemented via the System

Management Interrupt (SMI). Sleep and Suspend power management modes are

supported. Power to the hard disk drives and video monitors can also be managed by

this AMI BIOS.

ACPI Support

AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power

interface specification (ACPI). It provides ASL code for power management and

device configuration capabilities as defined in the ACPI specification, developed by

Microsoft, Intel and Toshiba.

TA780G M2+/TA780G M2+ HP BIOS Manual

PCI Bus Support

This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component

Interc onnect) local bus spec ific ation.

DRAM Support

DDR2 SDRAM (Double Data Rate II Synchronous DRAM) is supported.

Supported CPUs

This AMI BIOS supports the AMD CPU.

Using Setup

When starting up the co mputer, press

<Del> during the Power-On Self-Test

(POST) to enter the BIOS setup utility.

In the BIOS setup utility, you will see

General Help description at the top right

corner, and this is providing a brief

description of the selected item.

Navigation Keys for that particular menu

are at the bottom right corner, and you can

use thes e keys to select item and change

the settings.

Notice

zThe default BIOS settings apply for most conditions to ensure optimum performance

of the motherboard. If the system becomes unstable after changing any settings,

please load the default settings to ensure system’s compatibility and stability. Use

Load Setup Default under the Exit Menu.

zFor better system perfo rmance, the BIOS firmware is being continuous ly upd ated.

The BIOS information described in this manual is for your reference only. The actual

BIOS information and settings on board may be slightly different from this manual.

zThe content of this manual is subject to be changed without notice. We will not be

responsib le for any mistakes found in this user’s manual and any system damage that

may b e c aused by wrong-settings.

General Help

Navigation Keys

TA780G M2+/TA780G M2+ HP BIOS Manual

1 Main Menu

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen

providing an overview of the basic system information.

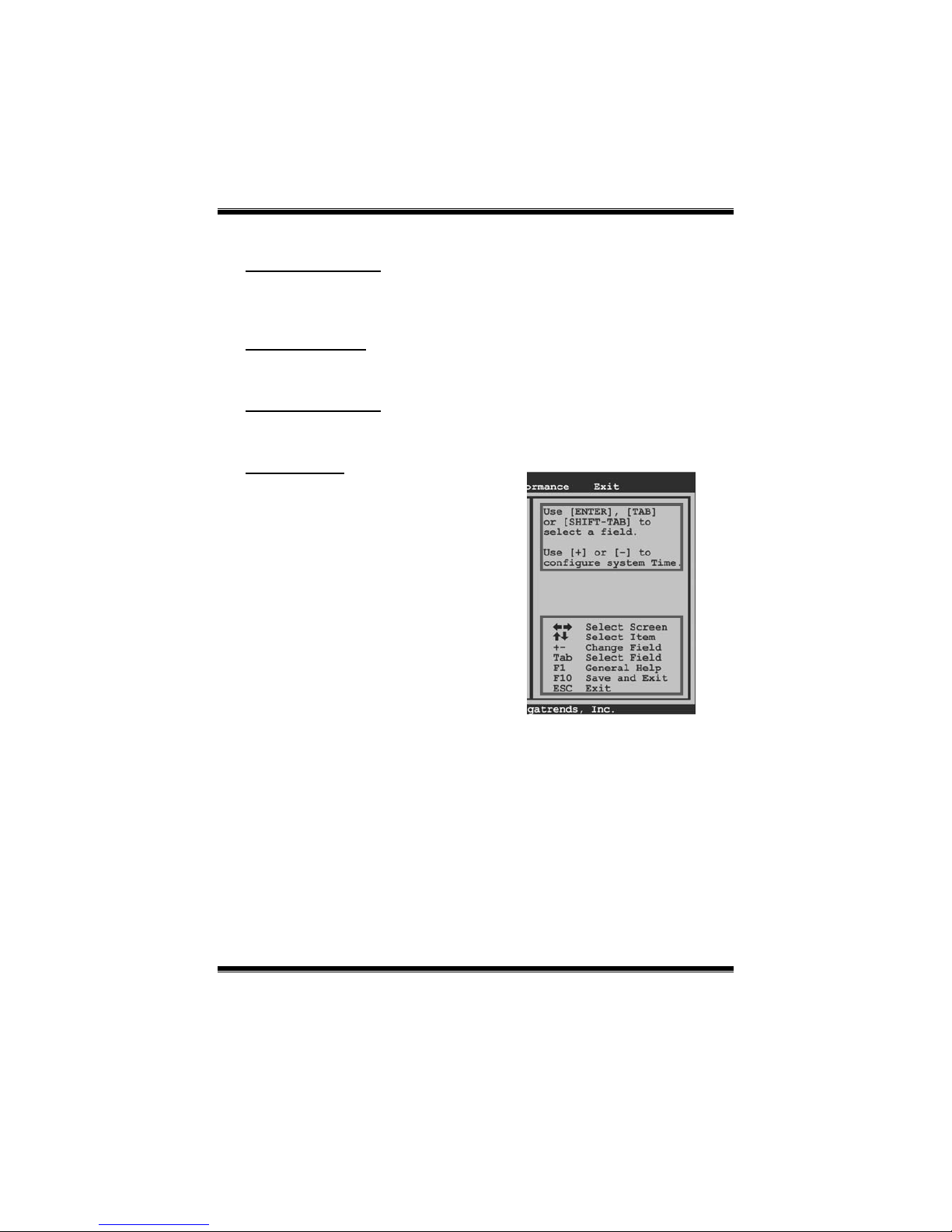

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset T-Series

Select Screen

Select Item

Change Field

Select Field

General Help

Save and Exit

Exit

Tab

F10

ESC

Use [ENTER], [TAB]

or [SHIFT-TAB] to

select a field.

Use [+] or [-] to

configure system Time.

System Overview

AMI BIOS

[ :00:00]

System Date [Tue 01/01/2008]

Floppy A

> IDE Configuration

Version :01.01.01

Build Date:01/01/08

System Time 00

Exit

AMI BIOS

Shows system information including BIOS version and built date.

System Time

Set the system internal c loc k.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

Floppy A

Select the type of floppy disk drive installed in your s ystem.

Optio ns: 360K, 5. 25 in / 1. 2M, 5. 25 in / 720K, 3.5 in / 1. 44M, 3.5 in /

2.88M, 3.5 in / None

TA780G M2+/TA780G M2+ HP BIOS Manual

IDE Configuration

The BIOS will automatically detect the presence of IDE/SATA devices. There is a

sub-menu for each IDE/SATA device. Select a device and press <Enter> to enter

the sub-menu of detailed options.

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

While entering setup,

BIOS auto detects the

presence of IDE

devices. This displays

the status of auto

detection of IDE

devices.

IDE Confuguration

> Primary IDE Slave

> SATA 1 Device

Hard Disk Write Protect [Disabled]

IDE Detect Time Out (Sec) [35]

> SATA 2 Device

> SATA 3 Device

> SATA 4 Device

> SATA 5 Device

> SATA 6 Device

> Primary IDE Master

Primary IDE Master/Slave ; SAT A 1/2/3/4/5/6 Device

BIOS SETUP UTILITY

Main

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Select the type

of device connected

to the system.

Primary IDE Master

LBA/Large Mode [Auto]

Block (Multi-Sector Transfer)[Auto]

PIO Mode [Auto]

DMA Mode [Auto]

S.M.A.R.T [Auto]

32Bit Data Transfer [Enabled]

Device :

Type [Auto]

The BIOS detects the information and values of respective devices, and these

information and values are s hown below to the name of the sub-menu.

TA780G M2+/TA780G M2+ HP BIOS Manual

Type

Select the type of the IDE/SATA drive.

Options: Auto (Default) / CDROM / ARMD / Not Installed

LBA/Large Mode

Enable or disable the LBA mode.

Options: Auto (Default) / Disabled

Block (Multi-Sector Transfer)

Enable or disable multi-sector transfer.

Options: Auto (Default) / Disabled

PIO Mode

Select the PIO mode.

Options: Auto (Default) / 0 / 1 / 2 / 3 / 4

DMA Mode

Select the DMA mode.

Options: Auto (Default) / Disabled

S.M.A.R.T

Set the Smart Monitoring, Analysis, and Reporting Technology.

Options: Auto (Default) / Disabled / Enabled

32Bit Data Transfer

Enable or disable 32-bit data transfer.

Options: Enabled (Default) / Disabled

Hard Disk Write Protect

Disable or enable device write protection. This will be effective only if the device

is accessed through BIOS.

Options: Disabled (Default) / Enabled

IDE Detect Time Out (Sec)

Select the time out value for detecting IDE/SATA devices.

Options: 35 (Default) / 30 / 25 / 20 / 15 / 10 / 5 / 0

TA780G M2+/TA780G M2+ HP BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

zBeware of that setting inappropriate values in items of this menu may cause

system to malfunction.

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Chipset T-Series

Select Screen

Select Item

Go to Sub Screen

General Help

Save and Exit

Exit

Enter

F10

ESC

Configure CPU.Advanced Settings

WARNING: Setting wrong values in below sections

may cause system to malfunction.

> SuperIO Configuration

> Smart Fan Configuration

> Hardware Health Configuration

> ACPI Configuration

> USB Configuration

MPS Revision [1.4]

> CPU Configuration

Exit

CPU Configuration

This item shows the CPU information that the BIOS automatically detects.

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Enable/Disable

Secure Virtual Machine

Mode (SVM)

CPU Configuration

Module Version:

AGESA Version:

Physical Count:

Logical Count:

AMD CPU

Revision:

Cache L1:

Cache L2:

Cache L3:

Speed :

Current FSB Multiplier:

Maximum FSB Multiplier:

Able to Change Freq :

uCode Patch Level :

Secure Virtual Machine Mode [Enabled]

PowerNow [Enabled]

ACPI SRAT Table [Enabled]

TA780G M2+/TA780G M2+ HP BIOS Manual

Secure Virtual Machine Mode

Virtualization Techno lo gy c an virtually separate your system resourc e into several

parts, thus enhance the performance when running virtual machines or multi

interface systems.

Options: Enabled (Default) / Disabled

PowerNow

This item allows you to enable or disable the PowerNow power saving technology.

Options: Enabled (Default) / Disabled

ACPI SRAT Table

The operating s ystem sc ans the ACPI SRAT at boot time and uses the information to

better allocate memory and sc hedule software threads for maximu m p erfo rmance.

This item controls whether the SRAT is made available to the operating system at

boot up, or not.

Options: Enabled (Default) / Disabled

SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

Allows BIOS to Enable

or Disable Floppy

Controller

Configure ITE8718 Super IO Chipset

Onboard Floppy Controller [Enabled]

Serial Port1 Address [3F8/IRQ4]

Parallel Port Address [378]

Parallel Port Mode [Normal]

Parallel Port IRQ [IRQ7]

Keyboard PowerOn [Disabled]

Mouse PowerOn [Disabled]

Onboard Floppy Controller

Select enabled if your system has a floppy disk controller (FDC) installed on the

system board and you wish to use it. If you installed another FDC or the system uses

no floppy drive, select disabled in this field.

Options: Enabled (Default) / Disabled

TA780G M2+/TA780G M2+ HP BIOS Manual

Serial Port1 Address

Select an address and corresponding interrupt for the first and second serial ports.

Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3 / Auto / Disabled

Parallel Port Address

This item allows you to determine access onboard parallel port controller with which

I/O Address.

Options: 378 (Default) / 278 / 3BC / Dis abled

Parallel Port Mode

This item allows you to determine how the parallel port should function.

Options: Normal (Default) Using Parallel port as Standard Printer Port.

EPP Using Parallel Port as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

Parallel Port IRQ

This item allows you to select the IRQ for the onboard parallel port.

Options: IRQ7 (Default) / IRQ5 / Disabled

Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Enabled

Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

TA780G M2+/TA780G M2+ HP BIOS Manual

Smart Fan Configuration

BIOS SETUP UTILITY

Advanced

Select Screen

Select Item

Change Option

General Help

Save and Exit

Exit

F10

ESC

When you choice [Auto]

,[3Pin] or [4Pin],

please run the

calibration to define

the Fan parameters for

Smart Fan control

Smart Fan Configuration

CPU Smart Fan [Disabled]

Smart Fan Calibration

Control Mode

Fan Ctrl OFF( C)

Fan Ctrl On( C)

Fan Ctrl Start value

Fan Ctrl Sensitive

CPU Smart Fan

This item allows you to control the CPU Smart Fan function.

Options: Disabled (default) / Auto / 4-pin / 3-pin

Smart Fan Calibration

Choose this item and then the BIOS will auto test and detect the CPU/System fan

functions and show CPU/System fan speed.

Control Mode

This item provides several operation modes of the fan.

Options: Quiet / Performance / Manual

Fan Ctrl OFF(℃)

If the CPU/System Temperature is lower than the s et value, FAN will turn off.

Optio ns: 0~127 (℃)

Fan Ctrl On(℃)

CPU/System fan starts to work under smart fan function when arrive this set value.

Optio ns: 0~127 (℃)

Tabla de contenidos

Otros manuales de Placa madre de Biostar

Biostar

Biostar Hi-Fi B85S2G Guía del usuario

Biostar

Biostar TA880GXE - BIOS Guía del usuario

Biostar

Biostar P4SDP Manual de usuario

Biostar

Biostar P4M900 Micro 775 Manual de usuario

Biostar

Biostar T41-A7 - BIOS Guía del usuario

Biostar

Biostar H310MHP 3.0 Manual de usuario

Biostar

Biostar P31B-A7 - BIOS Manual de usuario

Biostar

Biostar GF7050V-M7 Guía del usuario

Biostar

Biostar P4M900 Micro 775 Guía del usuario

Biostar

Biostar M6TZA Manual de usuario

Biostar

Biostar M7VKF Manual de usuario

Biostar

Biostar TP45EXE Guía del usuario

Biostar

Biostar Hi-Fi K1-I Guía del usuario

Biostar

Biostar TH55XE - BIOS Guía del usuario

Biostar

Biostar H61MHV3 Manual de usuario

Biostar

Biostar IDEQ 220K Guía del usuario

Biostar

Biostar BIB75-M2T Manual de usuario

Biostar

Biostar P4TDK Instrucciones de funcionamiento e instalación

Biostar

Biostar I945G-M7 Manual de usuario

Biostar

Biostar K8NBP Manual de usuario

Biostar

Biostar A740G3L - BIOS Guía del usuario

Biostar

Biostar M7 VKG Manual de usuario

Biostar

Biostar TA75M Guía del usuario

Biostar

Biostar A870U3 Guía del usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
