Biostar TA75 Manual de usuario

TA75 UEFI BIOS Manual

UEFI BIOS Setup...................................................................................... 1

1 Main Menu ............................................................................................. 3

2 Advanced Menu...................................................................................... 4

3 Chipset Menu ....................................................................................... 17

4 Boot Menu............................................................................................. 25

5 Security Menu ...................................................................................... 27

6 Performance Menu .............................................................................. 28

7 Exit Menu ............................................................................................. 36

TA75 UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a

disk. This system controls most of the input and outp ut devic es such as keyboard,

mouse, serial ports and disk drives. BIOS activates at the firs t stage o f the booting

process, lo ading and executing the operating sys tem. Some add itional features, s uch

as virus and password pro tection or chipset fine-tuning op tions are also includ ed in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plug and Play Support

This AMI UEF I BIOS suppo rts the Plug and Play Version 1. 0A spec ific ation.

EPA Green PC Support

This AMI UEFI BIOS suppo rts Vers ion 1. 03 of the EPA Green PC specification.

ACPI Support

AMI ACP I UEFI BIOS s upport Version 1.0/2.0 of Advanc ed Configuration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also supports Vers ion 2.3 of the Intel PCI (P eripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TA75 UEFI BIOS Manual

Supported CPUs

This AMI UEFI BIOS supports AMD CPU.

Using Setup

When starting up the computer, press <Del> during

the Power-On Self-Test (POST) to enter the UEFI

BIOS setup utility.

In the UEF I BIOS setup utility, you will see

General Help description at the top right corner,

and this is providing a brief description of the

selected item. Navigation Keys for that particular

menu are at the bottom right corner, and you c an

use thes e keys to selec t item and change the

settings.

Notice

The default UEFI BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after

changing any settings, please load the default settings to ensure system’s

compatibility and stability. Use Load Setup Default under the Exit Menu.

For b etter system performanc e, the UEFI BIOS firmware is b eing continuously

updated. The UEFI BIOS information described in this manual is for your

reference only. The actual UEFI BIOS information and settings on board may

be slightly different from this manual.

The content of this manual is subject to be changed without notice. We will

not be responsible for any mistakes found in this user’s manual and any system

damage that may be caused by wrong-settings.

TA75 UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS Information

Shows system information including UEFI BIOS version, Project Code, Model

Name, Build Date, etc.

Total Memor y

Shows system memory size, VGA s hard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the system internal cloc k.

TA75 UEFI BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

Beware of that setting inappropriate values in items of this menu may cause system

to malfunction.

PCI Su bs ystem Settings

TA75 UEFI BIOS Manual

PCI ROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Option ROM to launc h

Options: Legacy ROM (Default) / EFI Compatible ROM

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks

/ 128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224 PCI Bus

Clocks / 248 PCI Bus C locks

VGA Palette Snoop

This item enables or disables VGA Palette Registers Snooping.

Options: Disabled (Default) / Enabled

PERR# Generation

This item enables or disables PCI Device to Generate PERR#.

Options: Disabled (Default) / Enabled

SERR# Generation

This item enables or disables PCI Device to Generate SERR#.

Options: Disabled (Default) / Enabled

TA75 UEFI BIOS Manual

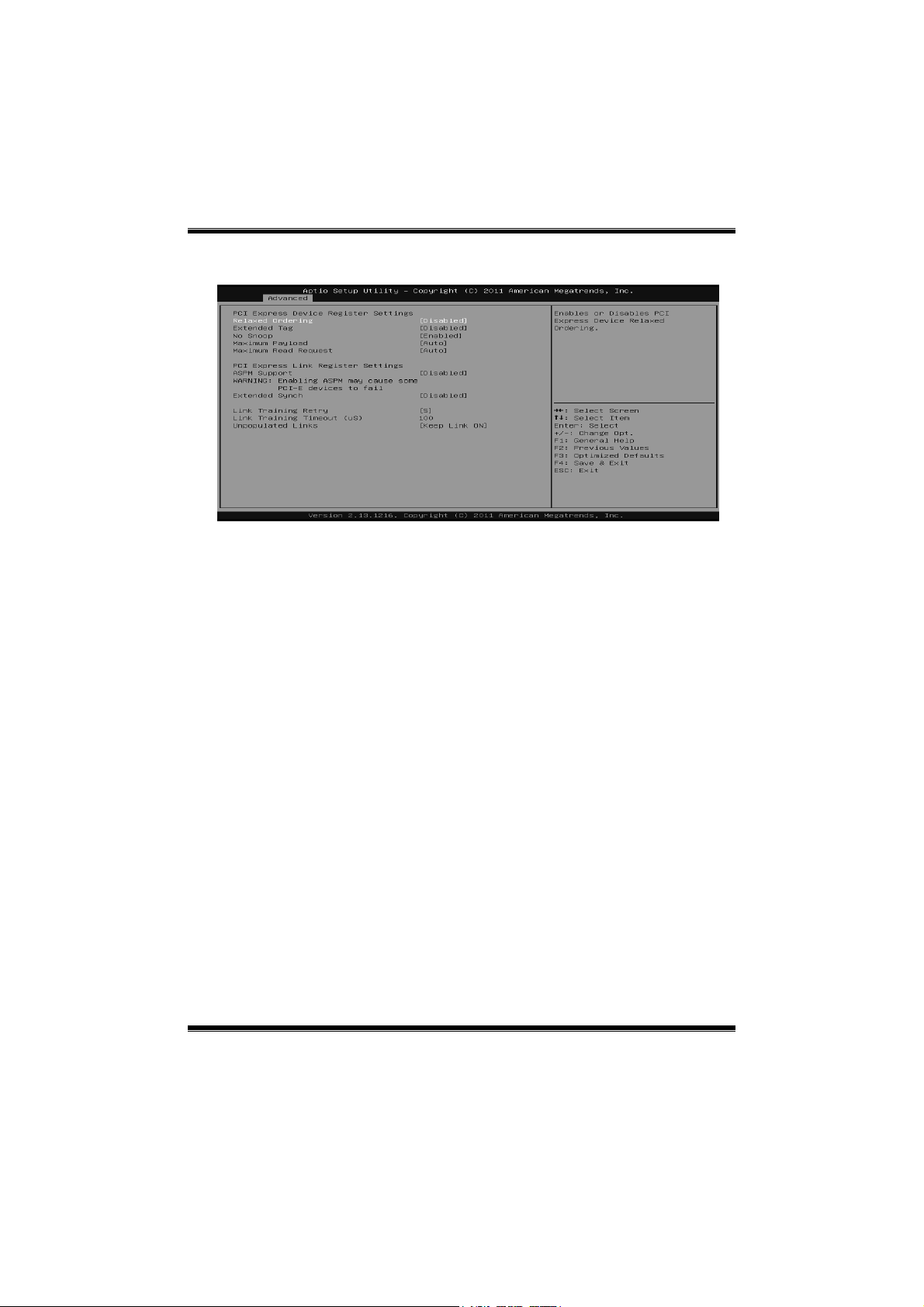

PCI Express Settings

Relaxed Ordering

This item enables or disables PCI Express Device Relaxed Ordering.

Options: Disabled (Default) / Enabled

Extended Tag

If ENABLED allows Device to use 8-bit Tag field as a requester.

Options: Disabled (Default) / Enabled

No Sn oop

This item enables or disables PCI Express Device No Snoop option.

Options: Enabled (Default) / Dis abled

Maximum Payload

This item sets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOS to s elec t the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

TA75 UEFI BIOS Manual

ASPM Support

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto co nfigures; Disab led – Dis ables ASPM.

Options: Disabled (Default) / Auto / Force L0s

Extended Synch

If ENABLED allows generation of Extended Synchronization patterns

Options: Disabled (Default) / Enabled

Link Training Retry

Defines number of Retry Attempts software will take to retrain the link if previous

training attempt was unsuccessful.

Options: Disabled (Default) / 2 / 3/ 5

Link Training Timeout (uS)

Defines number of Microseconds software will wait before polling “Link Training’

bit in Link Status register. Value range from 10 to 1000 uS.

Options: 100 to 1000 uS

Unpopulated Links

In order to save power, the software will disabled unpopulated PCI Express links, if

this option set to ‘Disabled Link’.

Options: Keep Link ON (Default) / Disabled

ACPI Settings

TA75 UEFI BIOS Manual

ACPI Sleep State

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S3 (Suspend to RAM) (Default) / Suspend Disabled

EuP Control

When EuP is enabled, the system will meet EuP requirement.

Options: Disabled (Default) / Enabled

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. When this item

is enabled, the system will wake on the hr::min::sec specified.

Options: Disabled (Default) / Enabled

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choos e the system boot up time, inp ut ho ur, minute and seco nd to sp ecify.

USB Device Wakeup from S3/S4

This item allo ws you to enable o r disabled the USB res ume from S3/S4 function.

Options: Disabled (Default) / Enabled

PME Wake up from S5

The item enables the s ystem to wake from S5 using PME event.

Options: Disabled (Default) / Enabled

Ring-In Wake up from S5

This item enables the system to wake from S5 using Ring-In event.

Options: Disabled (Default) / Enabled

TA75 UEFI BIOS Manual

PS2 Keyboard PowerOn

This item allows you to control the keyboard power on function.

Options: Disabled (Default) / Any Key / Stroke Key / Specific Key

Stroke Keys Selected

This item will s how only when Keyboard PowerOn is set “Stroke Key.”

Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /

Ctrl +F4 / Ctrl+F5 / Ctrl+F6

Specific Key Enter

This item will show only when Keyboard PowerOn is set “Specific Key.” Press

Enter to set Specific key.

PS2 Mouse PowerOn

This item allows you to control the mouse power on function.

Options: Disabled (Default) / Enabled

CPU Configuration

This item shows CPU Information
