Biostar I945G-M7 Manual de usuario

945G-M7 / 945P-M7

FCC Information and Copyright

This equipment has been testedand found to comply with the limits of a Class

B digital device,pursuant toPart15 oftheFCC Rules.These limitsare designed

to provide reasonable protection against harmful interference in a residential

installation.This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions,may

cause harmful interferenceto radio communications.Thereis no guarantee

that interference will not occur in a particular ins tallation.

The vendor makes no representations or warranties with respect to the

contents here andspecially disclaims any implied warrantiesofmerchantability

or fitness for any purpose. Further the vendor reserves the right to revise this

publication and to make changes to the contents here without obligation to

notify any party beforehand.

Duplication of this publication, in part or in whole, is not allowed without first

obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and

we will not be responsible for any mistakes found in this user’s manual.All the

brand and product names are trademarks of their respective companies.

Table of Contents

Chapter 1: Introduction..................................................................1

1.1 Motherboard Features..................................................... 1

1.2 Package Checklist........................................................... 4

1.3 Layoutand Components..................................................5

Chapter 2: Hardware Installation.................................................6

2.1 Installing Central Processing Unit (CPU)...........................6

2.2 FAN Headers..................................................................8

2.3 Installing System Memory................................................ 9

2.4 Connectorsand Slots..................................................... 10

Chapter 3: Headers & Jumpers Setup......................................12

3.1 How to Setup Jumpers...................................................12

3.2 Detail Settings...............................................................12

Chapter 4: Useful Help.................................................................18

4.1 Award BIOS Beep Code................................................18

4.2 Extra Information...........................................................18

4.3 Troubleshooting.............................................................20

Chapter 5: WarpSpeeder™..........................................................21

5.1 Introduction...................................................................21

5.2 System Requirement..................................................... 21

5.3 Installation....................................................................22

5.4 [WarpSpeeder™]includes1 tray icon and 5 panels......... 23

945G-M7 / 945P-M7

CHAPTER 1: INTRODUCTION

1.1 MOTHERBOARD FEATURES

CPU

SupportsLGA775.

SupportsIntel Pentium 4 processor up to3.8GHz.

SupportsIntel Pentium Dprocessor.

Front Side Busat the followingfrequency ranges:

 533MHz (133MHz Core Clock)

 800MHz (200MHz Core Clock)

 1066MHz (266MHz CoreClock)

SupportsHyper-ThreadingTechnology. (HT)

SupportsExecute DisableBitTechnology(XD).

SupportsEnhancedIntel SpeedStep®Technology (EIST).

SupportsIntel ExtendedMemory 64 Technology(Intel EM64T).

WARNING!

Warrantywill be voidifthe pin protectioncapis notinplacetoprotect thesocket pin

when sending this mai nboard for ser vice.

Chipset

North Bridge: Intel 945G (945G-M7)/Intel 945P (945P-M7).

South Bridge:Intel ICH7.

Dimensions

Micro ATX Form Factor: 24.45cm (W) x 24.4cm (L)

Operating System Supporting

SupportsWindows2000,and WindowsXP.

Super I/O

Chip: ITE8712F.

Low PinCount Interface.

Providesthemost commonly usedlegacySuper I/O

functionality.

Environment Control initiatives,

 H/W Monitor

 FanSpeed Controller

 ITE's"Smart Guardian" function

945G-M7 / 945P-M7

System Memory

Supports Dual Channel DDR2.

Supports DDR2 533 (266MHz) / 667 (333MHz) for a theoretical

maximum bandwidth of10.7 GB/s.

Supports256-Mb, 512-Mb,or 1G-Mb technologiesfor x8

and x16 devices.

Supportsnon-ECC DIMMs.

Maximum DRAM space isup to4GB.

DIMM Socket

Location DDR Module Total MemorySize

DDR2_A1 256MB/512MB/1GB *1

DDR2_A2 256MB/512MB/1GB *1

DDR2_B1 256MB/512MB/1GB *1

DDR2_B2 256MB/512MB/1GB *1

Max is 4GB.

On Board IDE

Oneon-boardconnector supports2 devices.

SupportsPIOMode 0~4.

SupportsUltra DMA33/66/100 BusMasterMode.

On BoardAC’97 Sound CODEC

Chip: REALTEKALC655.

Support6 channels.

SupportsS/PDIF-Out andS/PDIF-In (optional)functions.

Compliant withAC’97 Version 2.3 specification.

ExpansionSlots

Two 32bit PCI bus master slots.

OnePCI-Expressx16 slot.

OnePCI-Expressx1 slot.

10/100 LAN (optional)

PHY: RTL8100C.

Supports10Mb/sand100 Mb/sauto-negotiation.

Half/Full duplex capability.

SupportsACPI power management.

945G-M7 / 945P-M7

Gigabit LAN (optional)

Chip: RTL8110S.

Half/Full duplex capability.

Supports10Mb/s, 100 Mb/sand 1Gb/sauto-negotiation.

SupportsACPI power management.

Serial ATA II

Controllerintegratedin ICH7.

Supports4 Serial ATAII(SATAII) devices.

-Serial ATA 2.0 specification compliant.

-Data transfer rate up to 3Gb/s.

InternalOn-boardI/O Connectors and Headers

1 IDE connector supports2 hard diskdevices.

1 front panel header supportsfrontpanel facilities.

1 CD-in connector supports1 CD-ROM audio-in device.

1 front audioheader supportsfrontpanel audio-outfunction.

1 S/PDIF-out connector supportsdigital audio-outfunction.

1 S/PDIF-inconnectorsupportsdigital audio-in function.

(optional)

1 chassisopen header supportsPC case-opened warning

function.

1 Floppy port supports2 FDD with360K, 720K, 1.2M, 1.44M

and2.88Mbytes.

2 USBheaders support4 USB2.0 ports.

4 Serial ATAconnectorssupport 4 SATAdevices.

945G-M7 / 945P-M7

Back Panel I/O Connectors

1 Serial port.

1 Printer port.

1 PS/2Mouse port.

1 PS/2Keyboardport.

1 VGAport.(only for 945G-M7)

1 RJ-45LANjack/ Giga LANjack. (optional)

4 USB2.0 ports.

1 vertical audio portincluding1line-in connector, 1line-out

connector,and1 MIC-in connector.

COM1

VGA1

(only for 945G-M7)

Printerport

USB x2

Gi ga LAN / LAN

USB x2

Line In/

Surround

Line Out

MicIn1/

Bass/Center

PS/2

Keyboard

PS/2

Mouse

1.2 PACKAGE CHECKLIST

FDDCable X1

HDD Cable X 1

User’s Manual X 1

Serial ATACable X1

Fully Setup Driver CD X 1

Rear I/OPanel forATXCase X 1

USB 2.0 Cable X1 (optional)

S/PDIF Cable X1 (optional)

Serial ATAPower SwitchCable X 1 (optional)

945G-M7 / 945P-M7

1.3 LAYOUT AND COMPONENTS

DDR2_A1

DDR2_A2

DDR2_B1

DDR2_B2

FDD1

PC I- EX 1_1

PCI-EX16

PCI1

PCI2

J PAN EL1

JAT XPWR 1

JCFAN1

JATXPWR2

JCI1

JCMOS1

SATA1

SATA 3

SATA2

SATA4

COD EC

JCDIN1

JSFAN1

Giga LAN/

LAN

BAT1

BIOS

Intel

ICH7

LGA775

CPU1

945G

945P

JAUDIO2

Super

I/O

JKBMS1

JRJ45USB1

COM1

JAUDIO1

JPRNT1

JS PD I F _ OU T1 JSP DIF_IN1

(optional)

IDE1

JDJ1

(optional)

J_CIR1

(optional)

JC O M 1 JV G A1

(onlyfor 945G-M7)

Note: ■representsthe 1st pin.

945G-M7 / 945P-M7

Pin Ca

CHAPTER 2: HARDWARE INSTALLATION

2.1 INSTALLING CENTRALPROCESSINGUNIT (CPU)

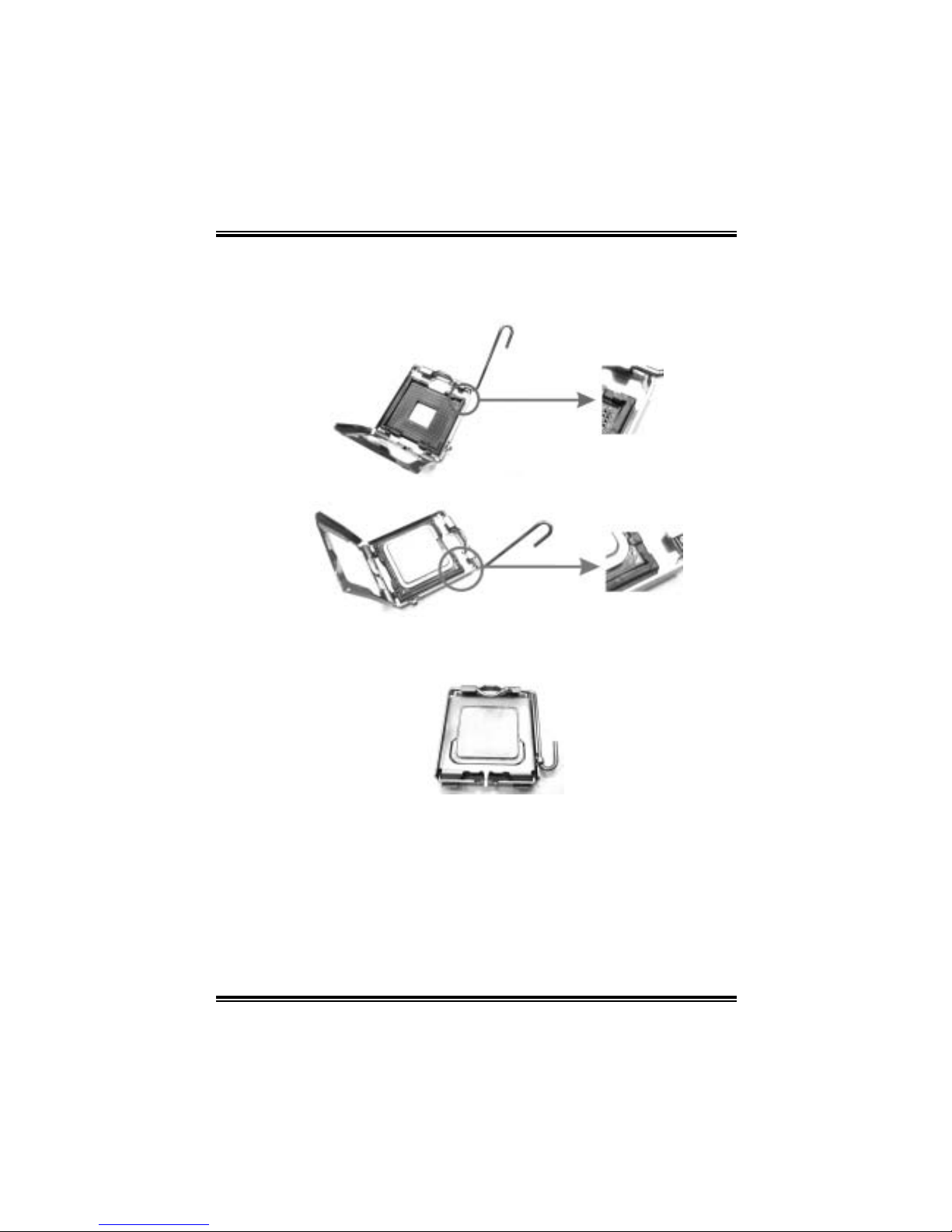

Step 1: Pull the socket lockingleverout from the socket andthen raise

theleverup to a 90-degree angle.

Special Notice:

Remove Pin Cap before installation, and make

goodpreservation for future use. When the CPU

is removed, cover the Pin Cap on the empty

socket to ensure

in le

s won’t be dama

ed.

945G-M7 / 945P-M7

Step 2: Lookfor the triangular cut edge on socket, and thegolden dot on

CPU should pointforwardsthistriangular cutedge.The CPU will

fitonlyin the correct orientation.

Step 2-1:

Step 2-2:

Step 3: Holdthe CPUdownfirmly, andthen lowerthelever tolocked

position to complete the installation.

Step 4:Put the CPU Fanandheatsinkassemblyon the CPUandbuckleit

on the retention frame.Connectthe CPU FAN power cableinto

the JCFAN1.Thiscompletesthe installation.

945G-M7 / 945P-M7

2.2 FAN HEADERS

These fan headerssupport cooling-fansbuiltinthecomputer.The fan

cableand connectormaybedifferent accordingto the fanmanufacturer.

Connect thefancable to the connector whilematchingthe blackwireto

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 Power

3 FAN RPMrate

sense

JCFAN1

4 Smart Fan

Control

JSFAN1: System Fan Header

Assignment

1 Ground

2 +12V

JSFAN1

3 FAN RPMrate

sense

Note:

TheJCFAN1and JSFAN1reservesystem cooling fan withSmart Fan Control utility. It

supports 4-pin and 3-pin head connector. When connecting with wires onto connectors,

please note that the red wire is the positive and should be connected to pin#2, and the

black wire is Ground and s hould be connected to GND.
