Biostar H61IL Manual de usuario

H61IL UEFI BIOS Manual

UEFI BIOS Setup...................................................................................... 1

1 Main Menu ............................................................................................. 3

2 Advanced Menu...................................................................................... 4

3 Chipset Menu ....................................................................................... 12

4 Boot Menu............................................................................................. 19

5 Security Menu ...................................................................................... 21

6 Performance Menu .............................................................................. 22

7 Exit Menu ............................................................................................. 27

H61IL UEFI BIOS Manual

UEFI BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup

program on this motherboard. The Setup program allows users to modify the basic

system configuration and save these settings to NVRAM.

UEFI BIOS determines what a computer can do without accessing programs from a

disk. This system controls most of the input and output devic es such as keybo ard,

mouse, s erial ports and dis k drives. BIOS activates at the firs t stage o f the booting

process, lo ading and executing the operating s ys tem. Some additional features, such

as virus and password pro tection or chips et fine-tuning options are also inc lud ed in

UEFI BIOS.

The rest of this manual will to guide you through the options and settings in UEFI

BIOS Setup.

Plug and Play Support

This AMI UEF I BIOS suppo rts the Plug and Play Vers ion 1. 0A spec ific ation.

EPA Green PC Support

This AMI UEFI BIOS supports Vers ion 1.03 of the EPA Green PC spec ification.

ACPI Support

AMI ACP I UEFI BIOS support Vers ion 1. 0/2. 0 of Advanc ed Co nfiguration and

Power interface specification (ACPI). It provides ASL code for power

management and device configuration capabilities as defined in the ACPI

specification, developed by Microsoft, Intel and Toshiba.

PCI Bus Support

This AMI UEFI BIOS also s upports Vers ion 2.3 of the Intel PCI (P eripheral

Component Interconnect) local bus specification.

DRAM Support

DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

H61IL UEFI BIOS Manual

Supported CPUs

This AMI UEF I BIOS s uppo rts the Intel CPU.

Using Setup

When starting up the computer, press <Del>

during the Power-On Self-Test (POST) to

enter the UEFI BIOS setup utility.

In the UEFI BIOS setup utility, yo u will see

General Help description at the top right

corner, and this is providing a brief description

of the selected item. Navigation Keys for

that particular menu are at the bottom right

corner, and you can us e these keys to select

item and change the settings.

Notice

The default UEFI BIOS settings apply for most conditions to ensure optimum

performance of the motherboard. If the system becomes unstable after

changing any s ettings, pleas e lo ad the d efault settings to ensure s ystem’s

compatibility and stability. Use Load Setup Default under the Exit Menu.

For b etter s ystem performanc e, the UEF I BIOS firmware is being continuo usly

updated. The UEFI BIOS information described in this manual is for your

reference only. The actual UEFI BIOS information and settings on board may

be slightly different from this manual.

The content of this manual is subject to be changed without notice. We will

not be responsible for any mistakes found in this user’s manual and any system

damage that may be caused by wrong-settings.

H61IL UEFI BIOS Manual

1 Main Menu

Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the

screen providing an overview of the basic system information.

BIOS Information

Shows system information including UEFI BIOS version, model name, marketing

name, built date, etc.

Total Memor y

Shows system memory size, VGA shard memory will be excluded.

System Date

Set the system date. Note that the ‘Day’ automatically changes when you set the

date.

System Time

Set the system internal clock.

Access Level

Shows the access level of current user.

H61IL UEFI BIOS Manual

2 Advanced Menu

The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power

Management, and other system devices.

Notice

Beware of that setting inappropriate values in items of this menu may cause

system to malfunction.

PCI Subs ystem Settings

H61IL UEFI BIOS Manual

PCI ROM Priority

In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies

what PCI Option ROM to launch

Options: Legacy ROM (Default) / EFI Compatible ROM

PCI Latency Timer

This item sets the value to be programmed into PCI Latency Timer Register.

Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks /

128 PCI Bus Cloc ks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224 PCI Bus

Clocks / 248 PCI Bus Clocks

No Snoop

This item enables or disables PCI Express Device No Snoop option.

Options: Enabled (Default) / Disabled

Maximum Payload

This item sets Maximum Payload of PCI Express Device or allows System BIOS to

select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

Maximum Read Request

This item sets Maximum Read Request Size of PCI Express Device or allows

System BIOS to select the value.

Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048

Bytes / 4096 Bytes

ASPM

This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –

BIOS auto configures; Disab led – Dis ab les ASPM.

Options: Dis abled (Default) / Auto / Force LOs

H61IL UEFI BIOS Manual

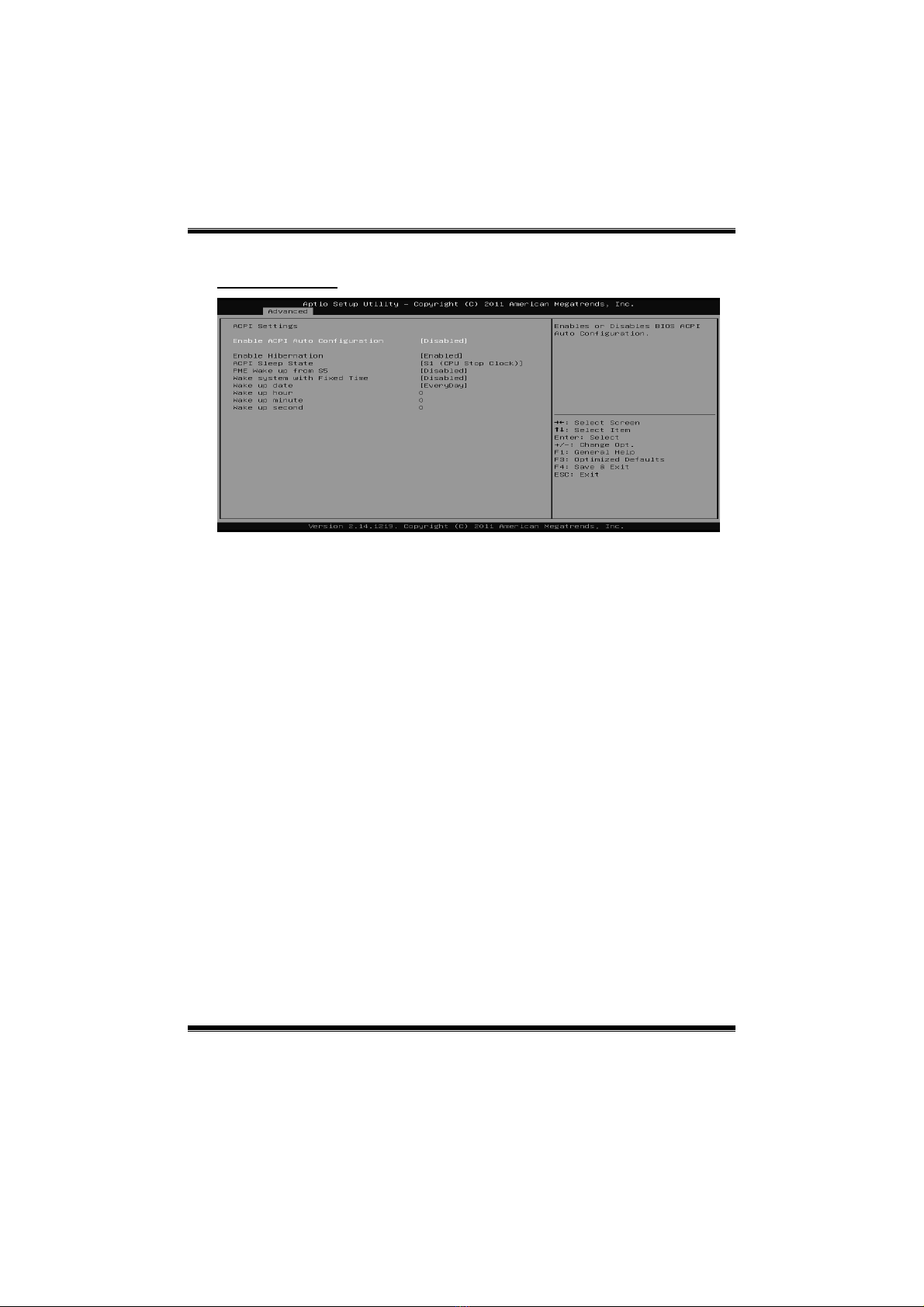

ACPI Settings

Enable ACPI Auto Configuration

This item enables o r disables BIOS ACPI auto co nfiguration functio n.

Options: Dis abled (Default) / Enabled

Enable Hibernation

This item enables or disables s ystem ability to hibernate (0S/S4 sleep state). This

option may be not effective with some OS.

Options: Enabled (Default) / Disabled

ACPI Sleep State

This item selects the highest ACPI sleep state the system will enter when the

SUSPEND button is pressed.

Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled

PME Wake up from S5

The item enab les the system to wake from S5 using PME event.

Options: Dis abled (Default) / Enabled

H61IL UEFI BIOS Manual

Wake system with Fixed Time

This item enables or disables the system to wake on by alarm event. When this item

is enabled, the system will wake on the hr::min::sec specified.

Options: Dis abled (Default) / Enabled

Wake up date

You can choose which date the system will boot up.

Wake up hour / Wake up minute / Wake up second

You can choos e the system boot up time, input ho ur, minute and seco nd to specify.

CPU Configuration

Hyper-threading

This item enables for Windows XP and Linux (OS optimized for Hyper-Threading

Technology) and dis ables for other OS(OS not optimized for Hyper-Threading

Technology). When disabled only on thread per enabled core is enabled.

Options: Enabled (Default) / Disabled

Active Processor Cores

This item sets number of cores to enable in each processor package.

Options: All (Default) / 1 / 2 / 3

H61IL UEFI BIOS Manual

Limit CP UID Max imum

When the computer is booted up, the operating system executes the CPUID

instruction to identify the processor and its capabilities. Before it can do so, it must

first query the processor to find out the highest input value CPUID recognizes. This

determines the kind of basic information CPUID can provide the operating system.

Options: Dis abled (Default) / Enabled

Execute-Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined

with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux

9.2, Red Hat Enterp rise 3 Update 3.).

Options: Enabled (Default) / Disabled

Intel Virtualization Technology

Virtualization Techno logy c an virtually separate your system reso urce into several

parts, thus enhance the performance when running virtual machines or multi

interface s ystems.

Options: Dis abled (Default) / Enabled

Hardware Prefetcher

The processor has a hardware prefetcher that automatically analyzes its requirements

and prefetc hes data and instructio ns from the memory into the Level 2 cache that are

likely to be required in the near future. This reduces the latency associated with

memory reads.

Options: Enabled (Default) / Disabled

Adjacent Cache Line Prefetch

The processor has a hard ware adjacent c ache line prefetch mechanis m that

automatically fetches an extra 64-byte cache line whenever the processor requests for

a 64-byte cache line. This reduces cac he latency by making the next cac he line

immediately available if the processor requires it as well.

Options: Enabled (Default) / Disabled

CPU C3 Report

This item allows you to enable or disabled CPU C3 (ACPI C2) report to OS.

Options: Enabled (Default) / Disabled

H61IL UEFI BIOS Manual

CPU C6 Report

This item allows you to enable or disabled CPU C6 (ACPI C3) report to OS.

Options: Enabled (Default) / Disabled

SATA Configuration

SATA Controller(s)

This item enables/disables Serial ATA Device.

Options: Enabled (Default) / Disabled

SATA Mode Selection

This item determines how SATA controller(s) operate.

Options: IDE (Default) / AHCI

SMART Self Test

This item allows you run SMART self test on all HDDs during POST.

Options: Dis abled (Default) / Enabled
