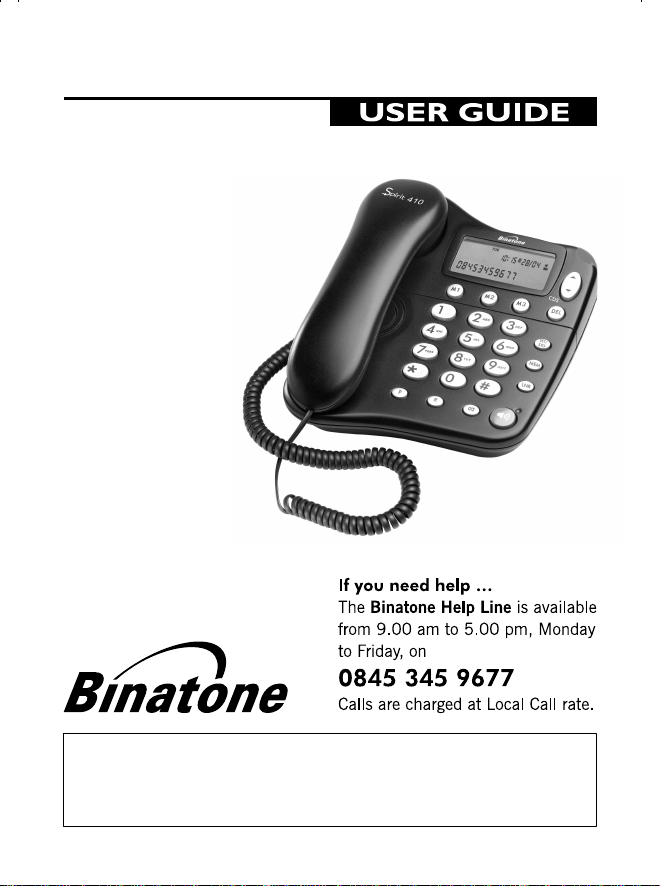

Spirit 410 Corded Telephone
Unpackingyourphone
In the box you will find:
• Base Unit
• Handset
• Coiled Handset cord
• Telephone line cord
for Base unit
• User manual
Keep thepacking
materials ina safe
place in case you later
need to transport
Keep your sales (till)
receipt, which is your
guarantee.
Important note---backup batteries
The Spirit 410 requires 2 x1.5V AAAsizeAlkaline batteries installed
intothebatterycompartment beforeuse.
Warning: The caller display will not work without batteries installed.
the unit.
2
1. LCD Screen
2. One-Touch Memory buttons
3. Scroll Up & Down buttons
4. Delete button
5. Set/Store button
6. Memory button
7. LNR(Last Number Redial) button
8. Speakerphone button
9. Mute button
10.R(Recall) button
11.Pause button
1. Where to find it
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
1
9
10
2
3
4
5
6
7
8
11
3
1.Locating the Base unit
The Base unit should be placed on a level surface, in a position where:
the telephone line cable will reach your telephone line socket or
extension socket.
it is not close to a sink, bath or shower, or anywhere else where it
might get wet.
it is not close to other electrical equipment - fridges, washing
machines, microwave ovens, TVs, fluorescent lights, etc.
2. Plug the coiled handset
cord into the Handset.
Plug the other end into
the jack on the left
side of the Base unit.
3. Place the Handset in
the Base unit.
4.Plug the telephone line cord free end
into a modular wall jack.
Press the cable into the groove so that
the Base unit stands level.
5.Lift the Handset and check for Dial tone
in the earpiece.
Always use the
telephone line
cord supplied
with your
Spirit 410 phone.
Other telephone
line cords may
not work.
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
2. Installation
Make sure the plugs
click into place.
to Modular
Wall jack
H L
4
Installing (or Replacing) the Battery
IMPORTANT
- Before removing the battery compartment cover,always
make sure the base unit is disconnected from the telephone line.
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
Install 2 pcs of Alkaline AAA batteries into the battery compartment and
place back the cover before use.
Note: 1) Please do NOT use Rechargeable batteries in this phone.
SIZE AAA
SIZE AAA
SIZE AAASIZE AAA
,-8806: 27 458 24.39/0/ 810 9428
?GDL QGD A@QQDOT HP JMS<
CHPNJ@T PBODDL= > TMR CM LMQ ODNJ@BD QGD A@QQDOHDP< QGDT SHJJ ADBMKD
QMQ@JJT CHPBG@OFDC @LC TMRO CHPNJ@T PBODDL SHJJ LMQ SMOI=
2)
will show up of the
5
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
3. Desk/Wall mount installation
To place the Spirit 410 on a desk, connect
the stand to the bottom of the phone in the
slots near the rear of the base as shown below.
Desk Mount
Insert the rigid clips of the stand into the slots
on the bottom of the phone (near the rear of
the base). Press down firmly until the flexible
clips clicks into place.
To remove the stand, (1) pinch the flexible
clips, (2) pull back the stand, and then (3)
slide up and forward (3) as shown below.
To place the Spirit 410 on a wall, connect
the stand to the bottom of the phone in the
slots near the front of the base cover as shown below.
Wall Mount
6
Desk/Wall mounting continue...
Insert the rigid clips of the stand into the slots
on the bottom of the phone (near the front of
the base). Press down firmly until the flexible
clips clicks into place.
To remove the stand, (1) pinch the flexible
clips, (2) pull back the stand, and then (3)
slide up and forward as shown below.
Mark two points on the wall that are 120 mm
apart to lay the fixing centers as shown below.
BE CAREFUL to check that there are no
electrical wires hidden in the wall.
Fix two screws (supplied with the unit) at the
marked locations, leaving approximately 7mm
between the wall and the the screw head.
Hang the cradle unit on the screws using the
wall mount slots. You may need to remove the
telephone from the wall and tighten the
screws so that the cradle is securely fixed and
does not wobble. Place the Handset on the
cradle with the parking hook on the cradle
arranged to fit in the parking recess under the
earpiece on the Handset.
7
Set Time/Date
1In standby mode, press SET/STO button.
ÖThe display shows ' SET 1 DATE '.
2Press SET/STO button to confirm.
ÖThe 'year' icon will be blinking.
3Press UP or DOWN button to set the year.
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
4. Setting up your phone
Press the SET/STO button to enter the menu and
then use UP or DOWN buttons to cycle through
the following options:
SET 1 DATE
SET 2 LCD
SET 3 FLASH
Note: The system will time out if you leave more
than 8 seconds between key presses.
You will need to set the correct time and date
so they can be displayed correctly on the display.
If you subscribe to a Caller Display service, the
time and date will be set automatically on receipt
of your first incoming call.
4 Press SET/STO button to confirm.
ÖThe 'month' icon will be blinking.
5Press UP or DOWN button to set the month.
6Press SET/STO button to confirm.
ÖThe 'date' icon will be blinking.
7Press UP or DOWN button to set the date.
8Press SET/STO button to confirm.
ÖThe 'hour' icon will be blinking.
9Press UP or DOWN button to set the hour.
ÖWhen setting the 'hour', the 'AM' or 'PM' icon
will automatically turn on to correspond the
hour time.
8
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
10 Press SET/STO button to confirm.
ÖThe 'minute' icon will be blinking.
Press UP or DOWN button to set the minute.
Press SET/STO button to confirm the setting.
ÖThe display shows ' SET 2 LCD ' , you can
11
12
continue with programming, or press DELETE
button to return to standby mode.
Set LCD 1In standby mode, press SET/STO button.
ÖThe display shows ' SET 1 DATE '.
2Press UP or DOWN button until the display
3Press SET/STO to confirm.
4Press UP or DOWN button to select your
5Press SET/STO button to confirm the setting.
ÖThe display shows ' SET 2 LCD ' , you can
continue with programming, or press DELETE
button to return to standby mode.
Contrast
shows 'SET 2 LCD'.
comfortable display viewing level (1~8).
The default setting is 3.
Set Flash
1In standby mode, press SET/STO button.
ÖThe display shows ' SET 1 DATE '.
2Press UP or DOWN button until the display
3Press SET/STO to confirm.
4Press UP or DOWN button to select 100 (default),
Time
shows 'SET 3 FLASH'.
300, 600, or 1000.
This telephone gives you the possibility to
use the special services of your network provider.
When pressing the RECALL button, the phone
generates a line interruption and the length
depends on your Flash Time setting.
9
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
Making a 1Lift the Handset, listen for a dial tone.
ÖThe display shows ' 00-00 '.
2Dial the telephone number you wish to call.
3To end the call, return the Handset to the Base
call
5Press SET/STO button to confirm the setting.
ÖThe display shows ' SET 1 DATE ' , you can
continue with programming, or press DELETE
button to return to standby mode.
5. Telephone Operations
ÖThe display shows the number as you dial
(maximum of 14 digits will be shown).
unit.
Receiving a 1When the phone rings, the ringer indictor flashes
2Pick up the Handset to answer the call.
3To end the call, return the Handset to the Base
call
ÖThe call timer starts about 7 seconds after
going on line.
unit cradle.
and the incoming phone number will be shown
on the display.
Last Number 1Lift the Handset.
2Press LNR button.
Redial
ÖThe phone automatically dials the last
number you called (maximum of 32 digits).
Binatone Help Line - 0845 345 9677
Calls are charged at Local Call rate.
Mute 1During a call press MUTE button.
Function ÖWhen the mouthpiece is muted, the person
at the other end of the call cannot hear you
but you can hear his side.
2
To get back to the call, press MUTE
button again to release.
Inserting a
Pressing PAUSE button immediately after the
Pause in
For some switchboard system, an access number
must be dialed (usually an 8 or 9) to get another
dial tone and an outside line.
the dialing
sequence
access number, a pause of about 3.6 seconds
will be entered, and the desired number can be
dialed immediately.
Press PAUSE button to insert a pause when
dialing or storing Long Distance Access Codes.
Use on PBX
Press R (RECALL) button on your Spirit 410 phone.
If you are using your Spirit 410 phone on a PBX,
and the PBX user guide tells you to press RECALL;
Making a call
1In waiting mode, press CHECK button.
from the
ÖThe most recent outgoing call number and
duration will be displayed.
2Press CHECK repeatedly to find the record you
wish to call.
The telephone remembers the last 5 outgoing calls.
outgoing call
records
3
Press BACK button to auto-redial.
CHECK
CHECK
BACK
10
