In his space lab on planet Hex, Alien Inventor Binary has been busy creating exciting programmable objects
that help young inventors learn coding and learn about the Internet of Things and STEM.
Follow these instructions to build Dimm, your very own Robot.
For example videos on assembling Dimm, visit: www.binarybots.tech/videos
Check you have
everything you need Assemble Dimm Make Dimm your own
with stickers
Connect the micro:bit
to your computer
Start coding Dimm to do
amazing things!
Step 1 Step 2 Step 3 Step 4 Step 5
Main Body (1)
Step 1 - Check you have everything you need
Legs (2) Arms (3)
Feet (4) Head (5) Stickers (6)
4
* You may need to push out any remaining pieces of card using the
images above as a guide
Temperature Sensor (7) Light Sensor (8) Motion Sensor (9) Crocodile Clip Hands (10)
Buzzer (11) BBC micro:bit (12)
5
Micro USB to USB Cable
(13)
AAA Battery Pack (14)
(Requires 2xAAA Batteries)
*Wire colours may vary
Step 2 - Assemble Dimm - Dimm’s Body
6
Take Dimm’s main body (1) out of
the box & unfold it.
Fold in one side of the main body,
lining the edge of the cardboard
with the middle of the body.
7
Fold the other side of the main
body using the previous step as a
guide.
Fold up the ‘tab’ located between
the legs and secure in place.
tab
Step 2 - Assemble Dimm - Dimm’s Legs and Feet
8
Find Dimm’s legs (2) and
partially fold along all the
creases.
Fold the strips of cardboard over
and secure in place with the fold
lock. Repeat for the second leg.
9
Locate Dimm’s feet (4), fold
in the sides, starting with
the right section and then
the top section.
Fold the left flap so it meets the
other side and then fold the
bottom section over both flaps
to hold the whole foot in place.
Repeat this page for Dimm’s
other foot.
right
top
left
bottom
Step 2 - Assemble Dimm - Put the Feet on the Legs
10
Get one of the assembled feet
and turn it over.
Push the two flaps of cardboard
down into the foot and hold in
place, then slot the foot over
the top of one of the assembled
legs and move it down until it is
locked in place like a shoe.
If the foot gets stuck as you are
moving it down, it is usually due
to the locking tab on the leg - it
may need a bit of a wiggle.
Repeat this page for the second
foot.

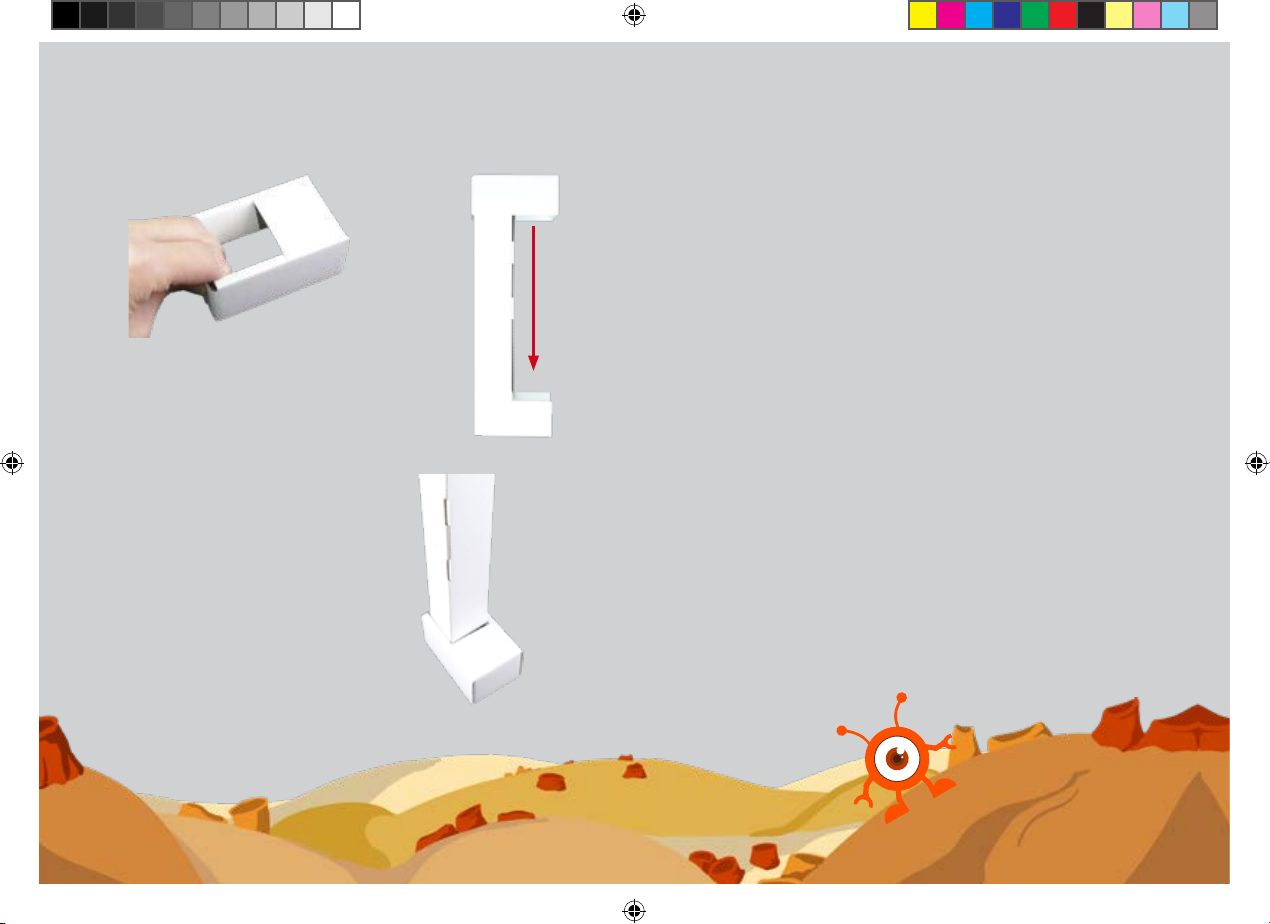

Slide the foot
down from
the top of the
leg
Complete Leg
ready for body
Turn the foot over, and
push down the two
strips of cardboard in
the top.
