White Paper

HomePlug AV 200Mbps Ethernet Bridge Series

BiPAC 2071/BiPAC 2072

- Extend Your Home Networking through Power Lines

Table of Contents

1. Overview – Power Line Communication (PLC)

2. Introduction of HomePlug AV

3. What’s Unique about Billion’s PLC

3.1. Power Saving feature

3.2. Extra Power Outlet with Noise Filter - AC Pass-Through

4. Application of HomePlug AV

5. Summary

1. Overview – Power Line Communication (PLC)

In recent years, Power Line Communication has emerged as a new generation of networking and it has

become increasingly popular among residential and small sized office settings. The use of twisted pair cable

or optic fiber as transmission media in Ethernet not only costs a fortune in setting up a complicated cabling

system, it may also cause some renovation issue. In addition, the use of wireless networking in data

transmission has certain restrictions that may reduce the quality of multimedia content.

Power line networking however uses the existing electrical wiring system of a home or an office to transfer

digital data. This technology can therefore solve the problems mentioned earlier. With the improving

technology of power line networking, apart from transmitting the traditional data signal, we have expanded its

capacity to deliver high quality digital multimedia content, such as music and video.

The manufacturer will either provide 3C products that support PLC power line networking or through

high-speed transmission and multimedia communication protocol to integrate Wireless / HomePNA / DLNA.

2. Introduction of HomePlug AV

HomePlug Powerline Alliance is the power line networking alliance and it is also the organization that sets

the HomePlug standard. There are currently 50 members in this organization comprised mainly of

networking and information technology professionals from some of the renowned companies like

Cisco/Linksys, GE, LG, Motorola, Samsung, Sharp, TI, Intel and Conexant.

First generation of the HomePlug 1.0 device can only support a maximum transmission rate up to 14Mbps,

but its successor HomePlug AV has been upgraded to handle a high-speed transmission rate of 200Mbps,

which is much greater than 100Mbps. Moreover, the use of the traditional Ethernet networking can cause all

the Ethernet cables laid around to congest all the space in your house or office, if there are a lot of computers

present.

Thus, HomePlug AV has become a great advantage by utilizing the already present electrical wiring system

as a path to transfer digital data. It is because there are already a lot of power outlets present in a house and

many of the power outlets are located in areas where your home entertainment center or networking system

are located as well. This can certainly make your networking setup and connection a lot more convenient

and efficient.

Below is the table that shows the specification differences between HomePlug 1.0 and HomePlug AV.

HomePlug 1.0

(INT5200)

HomePlug 1.0 w/ Turbo

(INT5500)

HomePlug AV

(INT6xxx)

PHY Rate 14 Mbps 85 Mbps 200 Mbps

Peak Throughput 8 Mbps 35 Mbps 105 Mbps

Typical Power Line

Throughput

4-6 Mbps 8-12 Mbps 40-45 Mbps

Typical Coax Throughput 7-8 Mbps 28-32 Mbps 80-90 Mbps

Bandwidth 4-21 MHz 4-21 MHz 2-30 MHz

Host Interfaces MII, USB,

Ethernet

MII, Ethernet MII, Ethernet, PCI

Channel Access (QoS) CSMA/CA (4) CSMA/CA (4) CSMA/CA (8)

Max Modulation DQPSK 256-QAM 1024-QAM

Currently, there are three major manufacturers whose Powerline chip solutions are popular on the market -

DS2, Panasonic and HomePlug AV. Although each of these manufacturers has its own popularity, the chip

solution of Intellon provides a noise filter feature that enhances the quality and stability of multimedia

streaming for IPTV, making the Intellon chip solution better than the other two manufacturers.

The table below presents the pros and cons of the Powerline devices of each manufacturer.

HomePlug AV Panasonic DS2

Medium Powerline, Coax, Twisted pair Powerline Powerline

PHY Rate 200 Mbps 190 Mbps 200 Mbps

Ubiquity Whole-house Noise-limited Noise-limited

Stream HD Multi-stream Not reliable,

Noise-impaired

Not reliable,

Noise-impaired

Ease of Use No software needed.

Plug-n-play Pushbutton

Plug-n-play

Pushbutton

Plug-n-play

Pushbutton

Open Standard Global

HomePlug Powerline Alliance

Proprietary

(CEPCA)

Proprietary

(OPERA, UPA)

Noise Immunity Good Poor Poor

Access Protocols CSMA/CA, Parameterized QoS CSMA/CATDMA TDMA

Billion BiPAC 2071/2072 uses the Intellon INT6300 HomePlug AV solution that bridges Powerline networking

and Ethernet networking. It also incorporates the Orthogonal Frequency Division Multiplexing (OFDM)

modulation technique and a noise filter feature that provides an excellent transmission rate as well as high

quality and stable transmission.

BiPAC 2071/2072 product specifications and features:

 Network standard：HomePlug AV，200Mbps transmission rate

 Modulation technique：OFDM，support QAM 1024/256/64/16, DQPSK, DBPSK and ROBO

 Bandwidth：2MHz~30MHz

 Network range：up to 300m

 Encryption：128bit AES encryption

 Power Saving：Auto detect ETH signal, save about 62% ~ 87% power on power saving mode

 QoS：Auto modulate the transmission priority，Multicast and MOD are set to have the highest priority

by default, will not affect IPTV and VoIP transmission

 Hardware Specification：Auto MDI/MDIX with 10/100Mbps Ethernet port

A built-in power outlet：100-240VAC、50/60Hz (BiPAC2072 has an AC outlet)

 LED：power LED, PLC LED, Ethernet LED, HomePlug 1.0 Detect LED (when this LED is lit, HomePlug

AV has detected the presence of HomePlug 1.0 device in the network environment, but communication

cannot be established between the two).

 Button feature：Sync button & Reset button

 Power safety Mark：CE, FCC

3. What’s Unique about Billion’s PLC

3.1. Power Saving feature

When the PC is off or during its standby mode, Billion PLC will automatically switch from its regular “working”

power mode to power saving mode. With this feature, Billion PLC can help save up to 60% of power

consumption - this feature also applies under 264V circumstance.

AC Power Power consumption

(Working mode)

Power consumption

(Power saving mode)

Power saving

percentage

AC 90V/60HZ 3.4W 0.45W 87%

AC 110V/60HZ 3.49W 0.57W 84%

AC 230V/50HZ 4.66W 1.57W 66%

AC 264V/50HZ 5.18W 1.99W 62%

Comparison Chart of Power Consumption

AC90V/60HZ AC110V/60HZ AC 230V/50HZ AC 264V/50HZ

(AC Power)

(W) Power consumption

(Working mode)

Billion's BiPAC 2071/

BiPAC 2072 (Power saving mode)

Saves the power

consumption by

at least 60%

87% 84%

66% 62%

3.2. Extra Power Outlet with Noise Filter - AC Pass-Through

BiPAC 2072 comes with a built-in AC Pass-Through adapter and noise filter feature. The AC Pass-Through

Adapter is an extra set of power outlet that can be used by other electrical appliances such as table lamp,

hair dryer or power charger. However, some of these electrical appliances may generate some noise that

may cause interference during data transfer. Therefore, the noise filter will eliminate the interference

generated and enhance the quality of data transfer.

※Four scenarios below were developed in an 87 square-meter apartment with different types of electrical

appliances in use to evaluate the effectiveness of BiPAC 2072.

 Baseline test – used the AC Pass-Through adapter to evaluate communications coverage in the

house, but did not use its built-in AC Pass-Through outlet or any other filtering.

 Pass-through only – used BiPAC 2072 AC Pass-Through adapter and the built-in power outlet

to isolate the appliances associated with the outlet under test without using the noise filter feature.

 Filter on severe noise sources – same as Pass-through only, but now the halogen lamp and

both phone chargers were isolated from the power line network using the Noise Filter feature.

 Filter on both severe and moderate noise sources – same as filter on noise sources above,

but with the addition of the moderate noise sources as listed in Table 2.

Table 1: listing of all the appliances used and their respective locations

Table 2: noise tests categorized as - Severe / Moderate / Minor

Table 1: Equipment List for the Apartment (APT1)

Communication Site Equipment list Location (room)

Jensen TV

Polaroid DVD player

Generic PC

HP printer

Fluorescent lamp

Living room

2 NA Dinning room

3 AFCI breaker in power panel Kitchen

4 NA Master bedroom

Table 2: Noise Sources in the Apartment (APT1)

Description Type Location (room)

AC cell phone charger Severe / Moderate / Minor Kitchen

Fluorescent lamp Severe / Moderate / Minor Living room by PC

Fluorescent lamp Severe / Moderate / Minor Living room

Fluorescent lamp Severe / Moderate / Minor Master bedroom

The actual tests have shown that under the Pass-through only situation, noise resistant capability is 18%

higher than the Baseline test. Overall, there is an approximated 24% improvement when all appliances are

being evaluated together under an actual circumstance.

※Data obtained from Intellon’s self evaluation. Test results will change in accordance to each test scenario.

4. Application of HomePlug AV

The application of home digital multimedia has become increasingly wider, such as IPTV, VOD, VoIP and

online games. More and more consumers now watch movies, music or sports channels through an

interactive network platform. With the high transfer rate of 200Mbps and the HomePlug AV technology, Billion

BiPAC 2071/2072 can be easily integrated into a normal home setting.

BiPAC 2071/2072 also includes a Quality of Service (QoS) feature that guarantees the transmission quality

by automatically prioritizing data that ensures optimal transmission quality for streaming applications such as

IPTV, MOD, VoIP and Multicast that demand a stable bandwidth stream. The device provides an efficient

noise filtering feature during data transmission. Thus, you will not experience any interruption or image

freezes during real-time data streaming, particularly when you share multimedia content or video with others

in a different room.

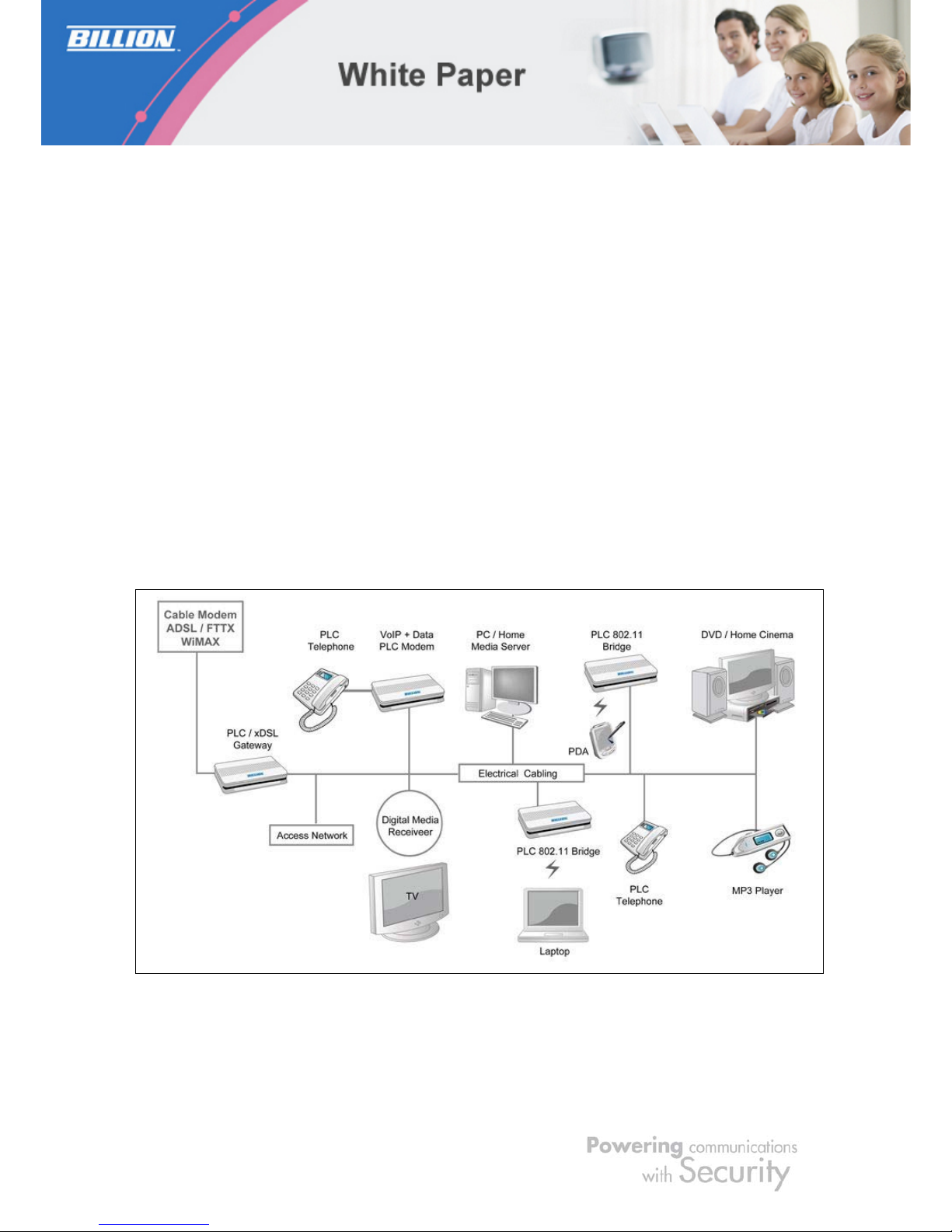

Generally, television and other household appliances are in different rooms or places within the house (as

illustrated below). BiPAC 2071/2072 does not require the time and money needed to install Ethernet cables

throughout your house. The device supports high-speed transmission rates for IPTV and MOD services via

the existing power line network - just install the bridge utility, which is simple and easy and without extra

configuration. If there are two or more BiPAC 2071/2072 devices, connect one of the devices to Billion ADSL

router, so the other device(s) is allowed to transfer data (both audio and video) to Billion ADSL router via the

electrical wiring and then access ISP's network programs or Internet through your Internet connection.

It makes home network multimedia applications become easy and exciting!
