BIGSTONE C200-LCD Manual de usuario

C200-LCD Instructions

CONTENT

ABOUT THE USER MANUAL.............................................................................................................2

OUTLOOK AND SIZE...........................................................................................................................2

MATERIAL AND COLOR ..................................................................................................................2

BUTTON DEFINITION .........................................................................................................................3

FUNCTION SUMMARY .......................................................................................................................3

FUNCTION SUMMARY .....................................................................................................................3

FULL VIEW AREA ..............................................................................................................................5

NORMAL VIEW AREA.......................................................................................................................5

NORMAL OPERATION........................................................................................................................5

1、ON/OFF .........................................................................................................................................5

2、SPEED DISPLAY .........................................................................................................................6

3、BACKLIGHT INDICATOR ...........................................................................................................6

4、PAS LEVELSELECTION..............................................................................................................6

5、ERROE CODE INDICAYOR.........................................................................................................6

6、SET OPEARATION .......................................................................................................................7

7、DISTANCE INDICATOR ..............................................................................................................8

8、BATTERY INDICATOR................................................................................................................9

9、CABLE DEFINITION ....................................................................................................................9

10、AUTO SLEEP AFTER 5MINUTES ..........................................................................................10

INSTALLATION INSTRUCTION .....................................................................................................10

COMMON PROBLEM & SOLUTIONS............................................................................................11

QUALITY & WARRANTY .................................................................................................................11

QUALITY &WARRANTY：.........................................................................................................11

OTHER ITEMS：.............................................................................................................................12

ERROR CODE TABLE........................................................................................................................12

ABOUT THE USER MANUAL

Dear users,

To ensure better performance of your e-bicycle, please read through the

C290 product introduction carefully before using it. We will inform you

all the details concisely（including hardware installation, setting and

normal use of the display）when using our display. Meanwhile, the

introduction will also help you solve possible confusion and malfunction.

OUTLOOK AND SIZE

MATERIAL AND COLOR

C290 products are made of black ABS material the buckle is made of

nylon material. Under the temperature of -20 to 60, the shell material

can ensure normal usage and good mechanical performance of the

products.

Dimension figure (unit: mm).

BUTTON DEFINITION

C200 has two buttons including UP and DOWN.

FUNCTION SUMMARY

C290 provides a wide range of functions and indicators to fit the users’

needs. The indicated contents are as below.

1. ON/OFF

2. Speed display

3. Backlight indicator

4. PAS level selection

5. Error code indicator

6. SET operation

7. Distance indicator

7.1 Total distance (ODO)

7.2 Trip distance

8. Battery indicator

9. Cable definition

10. Auto sleep after 5 minutes

FULL VIEW AREA

NORMAL VIEW AREA

NORMAL OPERATION

1ON/OFF

Press UP and start the display. The display will provide power for the

controller. With display on, press UP for 3 seconds to turn off the power.

With the display off, there is no battery consumption. The leakage current

is no more than 2 µA. Hold UP for 2 seconds can open the backlight.

※The panel will go to sleep when speed is 0 km/h for 5 minutes.

2 SPEED DISPLAY

It displays the current riding speed of e-bike. The speed display is as

below.

3BACKLIGHT INDICATOR

With the power on, click the UP and turn on the backlight. Click it again

and turn off the backlight.

4PAS LEVEL SELECTION

Click UP or DOWN to change the stages and output power ratio, the

output power range from level 1 to level 6 for the default (the levels can

be customized by user) , the default value is level 1.

5ERROE CODE INDICAYOR

If there is something wrong with the electronic control system, the

display will flash at 1 HZ and show the error code automatically.

Different error code is corresponding with different fault information,

please see the last page Error code table for details.

 Display return to normal only after problem being fixed and bike

will not run before fixing the problem.

6SET OPEARATION

If there is no operation after you enter the set interface, it will auto exit.

6.1 Reset trip distance

Hold UP and DOWN for 2 seconds to clear trip distance. It will be auto

cleared when the trip distance exceeds 2550 km.

6.2 Reset ODO

Hold DOWN for 20 seconds to clear the total riding distance. It will be

auto cleared when the total riding distance exceeds 9999 km.

※This function only for OEMs and distributors use.

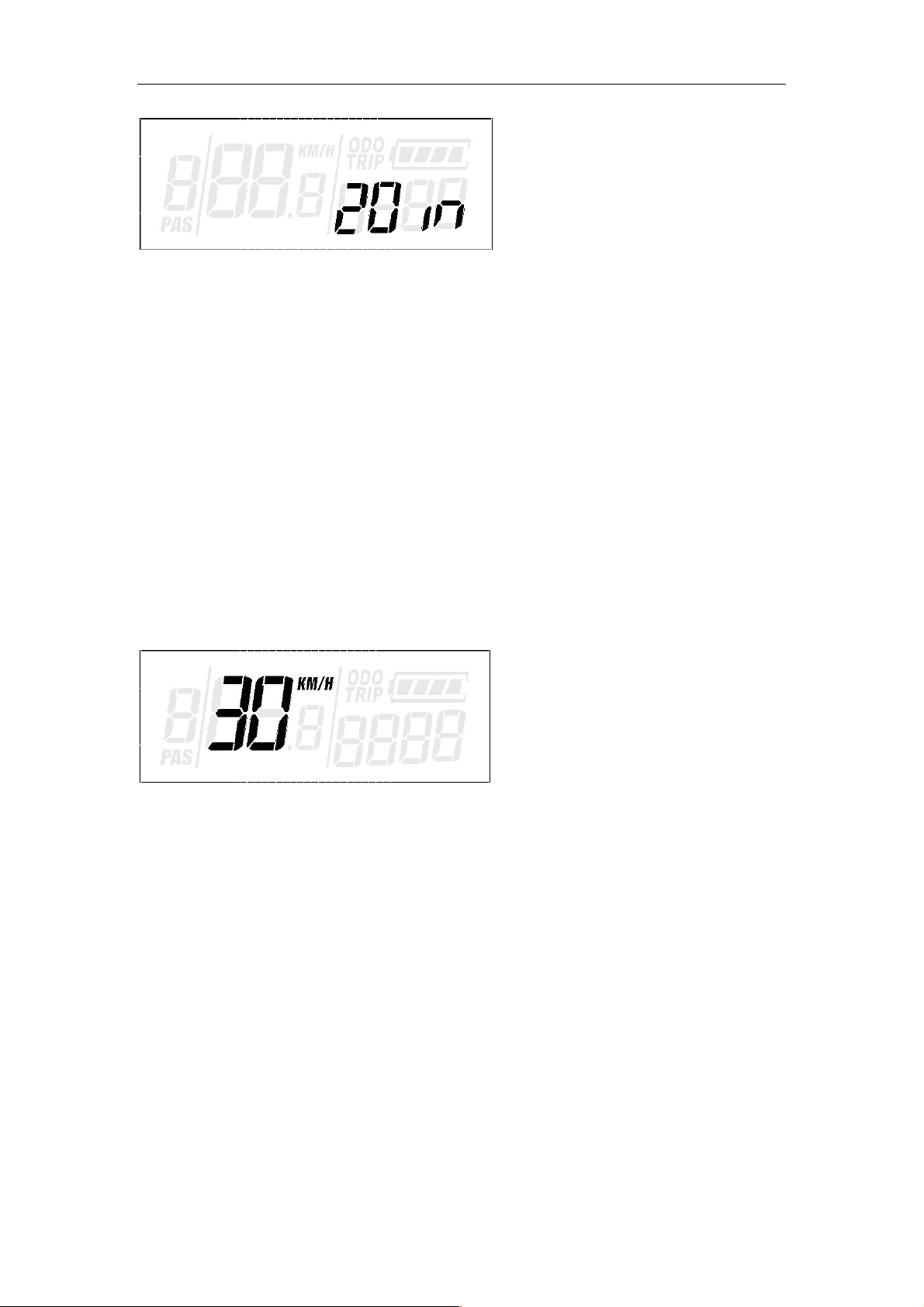

6.3 Wheel diameter setting

Hold UP and DOWN for 10 seconds to enter into wheel diameter setting.

Select the accurate wheel diameter value to ensure the accuracy of

display about speed and mileage.

※Click UP or DOWN to set the wheel diameter.

6.4 Max speed setting

Hold UP and DOWN for 5 seconds to enter into the speed-limit setting

interface.

The max speed is 45 km/h for the default. User can modify the value of

max speed, when the riding speed exceeds the setting value, the controller

will stop supplying power to the e-bike, in order to ensure the safety of

rider. The max speed ranges from 20 km/h to 45 km/h.

※Click UP or DOWN to select the limited speed. When set max speed

45 km/h, there is no limit for riding speed.

7DISTANCE INDICATOR

With the display on, press UP or DOWN to switch the display

information.

7.1 ODO

The ODO records the driving mileage from using.

7.2 Trip distance

Trip distance records the driving mileage, it displays as below.

8BATTERY INDICATOR

When the battery capacity is high, the four battery segments are all

light. When the battery is low, the battery frame will flash. It indicates

that the battery is severely low in voltage condition and needs to be

recharged immediately.

flash

9CABLE DEFINITION

Red: Battery +

Blue: Lock
