PR-W3PI
INTELLIGENT WALL MOUNT
POWER DISTRIBUTION UNIT
3
2
Introduction
Thank you for purchasing the PR-W3PI. Your
new Power Distribution Unit (PDU) by Big
Dog Power provides ltered AC power to
your equipment. 3 individually controlled
outlets provide up to 2380 Joules of surge
Protection. Wi-Fi and Wired LAN connections
allow for exibility with placement and
network connectivity. The built in Self-Healing
functions of the PR-W3PI will keep your
network connected equipment going by
automatically rebooting and maintaining the
equipment. The PR-W3PI is designed to be
used in an ITE Computer room or within an
equipment rack. It can be surface mounted
in many orientations such as to the inside of
a rack, the underside of a rack shelf that has
slots or drilled holes or onto the wall in an IT
or server room.
INTELLIGENT
POWER
PR-W3PI
We’ve combined multiple features into
one unique power distribution unit that
fits behind your wall mounted TV. This
3-outlet smart power controller delivers
surge protection, remote control, smart
home integration and more. The 3
individually controllable outlets give you
self-healing, automatic reboot and
power metering for total power
management. The intuitive MAVbase app
provides a simple user experience for easy
management of your connected devices.
Specifications:
OPERATING TEMPERATURE: 14˚F - 104˚F (-10˚C - 40˚C)
SURGE PROTECTION: 2380 Joule
EXTERNAL ANTENNA: Yes
OUTLETS (TOTAL): 3 outlets
SWITCHED OUTLETS: 3
AC INPUT OUTLET: IEC C14, 15A circuit, product UL rating 12A
CIRCUIT BREAKER (COP): Yes (rear)
CORD LENGTH: 6ft
SAFETY CERTIFICATIONS:
UL/CUL, FCC. UL 62368-1+UL 498+1449 with CSA 269.3+UL 1283, FCC
Part15B+ICES-003, FCC ID/ISED (wireless de vice FCC)
WARRANTY: 5 Year Limited
INTELLIGENT WALL MOUNT
POWER DISTRIBUTION UNIT
MetraAV
BigDogPower.com
APP: MAVbase.com
386-255-0234
SMART OUTLETS REPLACEABLE M.O.V.
SURGE MODULE
POWER METERING
INDIVIDUAL OUTLETS
MAVBASE APP
MANAGEMENT
SELF HEALING
AUTO REBOOT
FLEXIBLE MOUNTING
OPTIONS
3
CONNECTED EQUIPMENT
GUARANTEE
WIRED/WIRELESS
CONNECTIVITY SET MULTIPLE
SCHEDULES
3
3
Features
• 3 individually controlled outlets
• Wall/Surface Mountable
• Self-Healing functions for network
connected equipment
• 2380 Joule Surge Protection (L-N Protection)
• Web and Mobile app for remote
management and notication
• IP automation integration
• 120V/12A Rating
4
FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING
FROM ANY PRODUCT FAILURE, ANY
BREACH OF WARRANTY OR CONDITION,
OR UNDER ANY OTHER LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOSS OF
USE; LOSS OF REVENUE; LOSS OF ACTUAL
OR ANTICIPATED PROFITS (INCLUDING
LOSS OF PROFITS ON CONTRACTS);
LOSS OF THE USE OF MONEY; LOSS
OF ANTICIPATED SAVINGS; LOSS OF
BUSINESS; LOSS OF OPPORTUNITY; LOSS
OF GOODWILL; LOSS OF REPUTATION;
LOSS OF, DAMAGE TO, COMPROMISE OR
CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE
Valid in the United States and Canada
THIS WARRANTY DEFINES ETHEREAL
HOME THEATRE. LLC’S LIABILITY FOR ANY
AND ALL DAMAGES RESULTING FROM
THE OPERATION OR FAILURE OF THE
PRODUCT. THE WARRANTY PROVIDED
IS IN LIEU OF ANY AND ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. TO
THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, METRA DISCLAIMS ANY
AND ALL OTHER WARRANTIES WHETHER
EXPRESS OR IMPLIED. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW,
ETHEREAL HOME THEATRE. LLC HEREBY
DISCLAIMS ANY AND ALL LIABILITY
Big Dog Power™
by Metra Home Theatre, LLC Limited Product Warranty
and Connected Equipment Limited Warranty
5
HOWSOEVER CAUSED INCLUDING THE
REPLACEMENT OF EQUIPMENT AND
PROPERTY, ANY COSTS OF RECOVERING,
PROGRAMMING, OR REPRODUCING ANY
PROGRAM OR DATA STORED IN OR USED
WITH THE PRODUCT. FURTHER, TO THE
MAXIMUM EXTENT ALLOWED BY
APPLICABLE LAW, Ethereal Home Theatre,
LLC HEREBY EXPLICITLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
THESE LIMITATIONS SHALL NOT APPLY
TO ANY DEATH OR PERSONAL INJURY
CLAIMS, OR ANY LIABILITY FOR
INTENTIONAL ACTS OR ACTS OF GROSS
NEGLIGENCE
Limited Product Warranty:
Ethereal Home Theatre, LLC warrants this
product to be free of material defects for
a period of: (1) 5 years for the PR-R13PI,
PR-V7PI and PR-W3PI products, (2) 3 years
for the PR-S1PI product, (3) PR-RMS1 and
PR-RMS2, replaceable surge modules carry a
90 Day warranty from manufacturing defects
and (4) 3 years for any other product subject
to this Warranty (referred to as the applicable
“warranty period”). If the product fails during
the warranty period, Ethereal Home Theatre,
LLC will, at its option: (1) Repair the product
in a reasonable time period, (2) Replace the
product with the same model (or a successor
model with the same or substantially similar
features), or (3) Refund the purchase price.
This Warranty applies only to an original
purchaser of the product who provides proof
of purchase at the time a claim is made.
6
Conditions and Limitations:
Proof of purchase is required.
Damage caused by accidents, abuse, misuse
or modication of the surge suppressor will
render this warranty null and void.
Transient Voltage Surge Suppression devices
using MOV (Metal Oxide Varistor) technology
are designed to sacrice themselves to
protect the connected equipment. The proper
functioning of this surge suppressor during a
catastrophic surge event like lightning may
result in the depletion of the unit’s protection
capabilities. This is not a defect in design,
material, or workmanship.
Excluded Items:
This warranty does not apply to: (1)
consumable items, such as a replaceable
surge protection module, (2) cosmetic
damage such as scratches, dents, broken
plastic parts, and discoloration (unless same
is the result of a defect in materials or
workmanship), (3) damage resulting from
the failure of another product, (4) damage
caused by misuse or abuse, or (5) damage
caused by unauthorized service of the
product.
7
Connected Equipment Limited Warranty:
This is a limited warranty, subject to the conditions,
limitations and exclusions identied herein.
Ethereal Home Theatre, LLC warrants to the original
purchaser of this surge suppressor that it will at its
option, pay the fair market value of, repair, or replace,
any home entertainment equipment which is damaged
by a transient surge while properly connected through
the Ethereal Home Theatre, LLC surge suppressor to
a properly wired and grounded AC power line. The
Ethereal Home Theatre, LLC surge suppressor must
have been designed for the particular application.
For additional warranty information including
Connected Equipment coverage and process visit us at
metraav.com
PR-W3PI
8

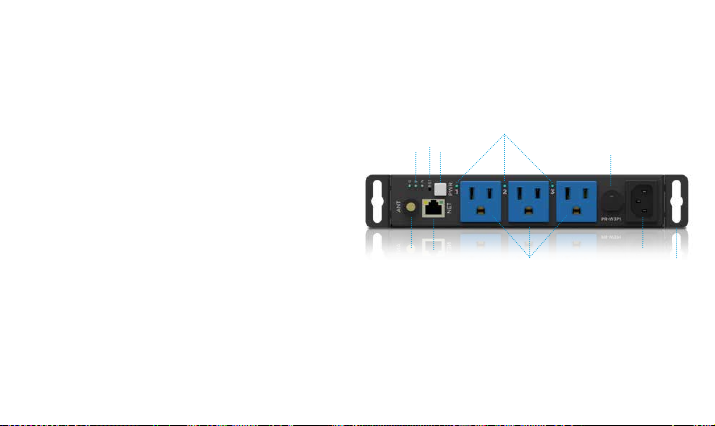

Anatomy
A. At a glance status LEDs
See LED functions for more information
B. Recessed Reset button
Hold button for 10 seconds to perform factory restore
C. Configurable Power Button
D. Outlet Status LEDs
See LED functions for more information
E. 15-amp Circuit Breaker
F. Wi-Fi Antenna
G. Ethernet Port
H. Individually controlled outlets
I. IEC Power Input 120V
J. Surface mount ear attachment locations
G
A
FHIJ
D
BCE
9
LED Indicators
“G” or Ground ON: PDU is grounded properly
OFF: PDU is not grounded
“P” or Power BLUE: Good / Protected and Clean power
RED: Bad / No Protection
“N” or Network BLINKING RED: No Network Connection
SOLID BLUE: Good Network Connection
RAPID BLINKING RED: PDU failure requires reboot or reset
Outlet Status ON: Outlet is On
OFF: Outlet is Off
10

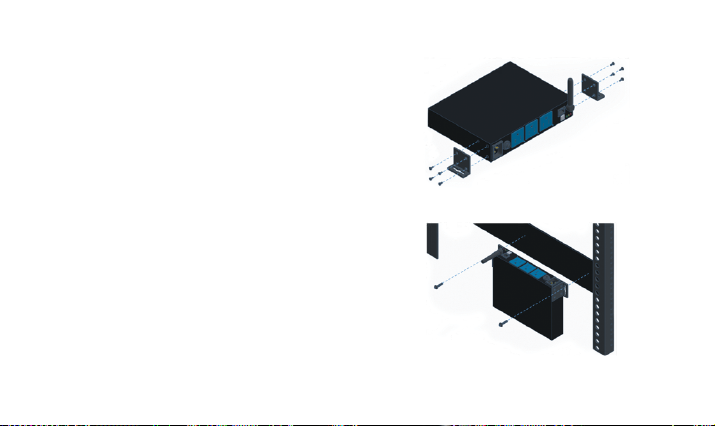

Installation
Surface Mount
1. Use the included screws to attach surface mount ears to PDU
Surface mount ears may be attached at 0°, 90°, 180°, and
270° to accommodate desired mounting orientation
2. Install appropriate surface mount screws (not included)
through the surface mount ears into the desired surface Step 1
Step 2
