Bibby Sterilin Stuart SF1 Manual de usuario

Version 2.0

Flask shaker

SF1

Instructions for use

Manuel d'utilisation

Istruzioni per l’uso

Instrucciones de funcionamiento

Bedienungsanweisung

flask shaker SF1

English

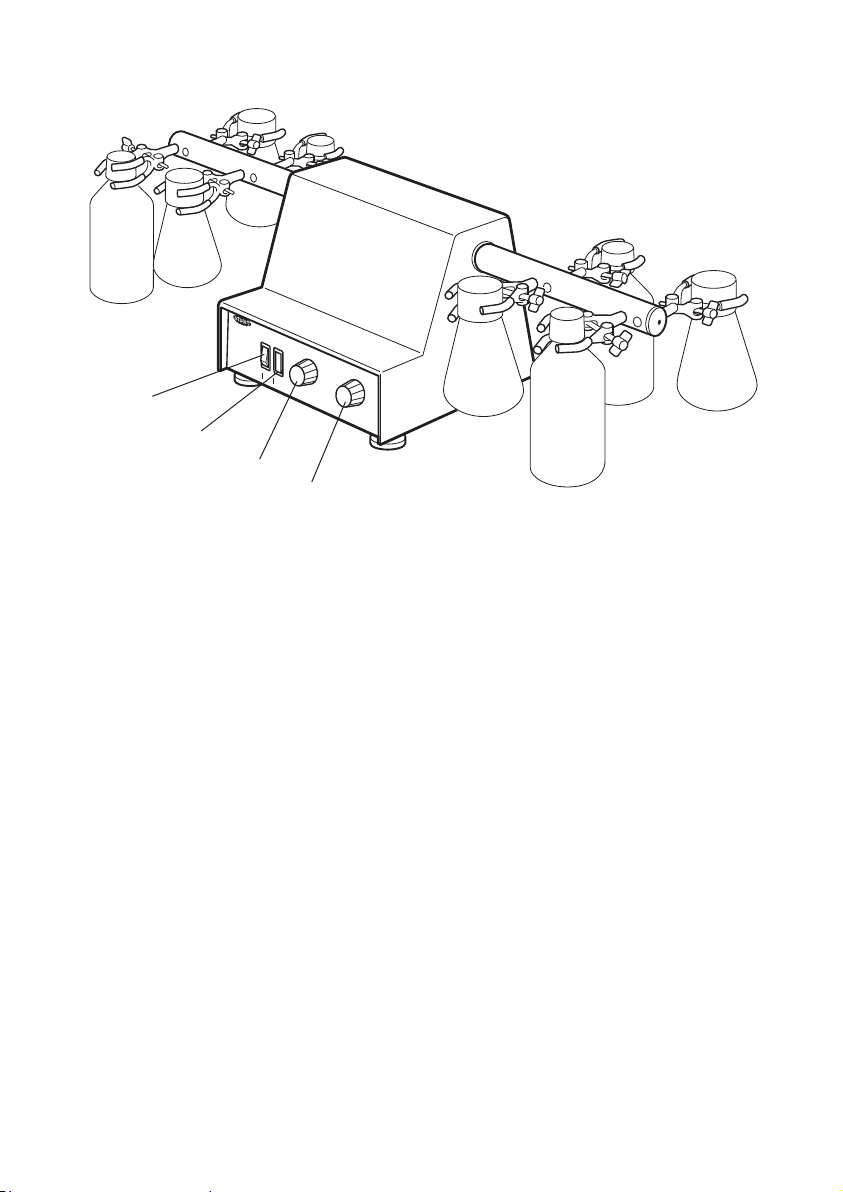

flask shaker SF1

Speed controller

Timer

Mains On/Off

Indicator light

Flask shaker

SF1

Instructions for use

Introduction

Thank you for purchasing this piece of Stuart

equipment. To get the best performance from the

equipment and for your own safety, please read

these instructions carefully before use. Before

discarding the packaging check that all parts are

present and correct.

This equipment is designed to operate under the

following conditions:

For indoor use only

Use in a well ventilated area

Ambient temperature range +5ºC to +40ºC

Altitude to 2000m

Relative humidity not exceeding 80%

Mains supply fluctuation not exceeding 10%

Over-voltage category II IEC60364-4-443

Pollution degree 2

If the equipment is not used in the manner

described in this manual and with accessories

other than those recommended by Stuart, the

protection provided may be impaired.

Electrical Installation

THIS EQUIPMENT MUST BE EARTHED

Before connection please ensure that the

line supply corresponds to that shown on

the rating plate.

Model Supply requirements Power

SF1 230V, 50Hz 50W

All models are supplied with two mains leads

fitted with IEC plugs for connection to the

instrument. One has a U.K. 3 pin plug and the

other has a 2 pin “Shuko” plug for connection

to the mains. Choose the lead appropriate for

your electrical installation and discard the other.

Should neither lead be suitable, take the lead

with the U.K. plug and replace the plug with a

suitable alternative. This involves cutting off the

moulded plug, preparing the cable and

connecting to the re-wireable plug in accordance

with its instructions.

THIS OPERATION SHOULD ONLY BE

UNDERTAKEN BY A QUALIFIED ELECTRICIAN

NOTE: Refer to the equipment’s rating plate to

ensure that the plug and fusing are suitable for

the voltage and wattage stated.

The wires in the mains cable are coloured as

follows:

BROWN - LIVE

BLUE - NEUTRAL

GREEN/YELLOW - EARTH

The instruments are fitted with an IEC socket at

the rear of the instrument for connection of the

mains lead. The appropriate mains lead should

be connected BEFORE connection to the mains

supply.

Should the mains lead need replacement, a cable

of 1mm2of harmonised code H05W-F connected

to an IEC320 plug should be used.

IF IN DOUBT CONSULT A QUALIFIED

ELECTRICIAN

Safety Advice Before Use

The unit should be carried with both hands,

with fingers under each side of the frame.

Never move or carry the unit while it is in use

or connected to the mains supply.

There is a danger of liquid spillage and

splashing if containers are over-filled and

shaken at high speed. Always build the

shaking speed up slowly and never shake

more rapidly than necessary.

Ensure the load is balanced.

General Description

The SF1 flask shaker comprises two side arms

each with four clamps capable of holding bottles

or flasks up to 500ml capacity. The vigorous

mixing action simulates hand shaking and this

motion is controllable between 80 and 800

oscillations per minute. The speed is controlled

by a soft start feedback controller to avoid

splashing on start up and give constant speed,

irrespective of load.

There is a built-in analogue timer that can be set

from 10 to 60 minutes, which automatically

turns the unit off once it has counted down.

There is also a manual control position for

continuous operation.

Accessory side arms are available to increase the

capacity to twelve bottles or flasks.

Controls

Refer to Figure 1 to identify the controls.

flask shaker SF1

Figure 1: SF1 controls.

Mains On/Off

Indicator

Light

Speed

Controller

Timer

Maintenance & Servicing

WARNING: Ensure the unit is

disconnected from the mains electricity

supply before attempting maintenance

or servicing.

Periodically clean the instrument using a damp

cloth and mild detergent solution. Do not use

harsh or abrasive cleaning agents.

Any repairs or replacement of parts MUST

be undertaken by suitably qualified

personnel.

For a comprehensive list of parts required by

service engineers conducting internal repairs,

please contact the Service Department, quoting

both the model number and serial number:

E-mail: [email protected]

Tel: +44 (0)1785 810475

Fax: +44 (0)1785 810471

Only spare parts supplied or specified by Stuart

or its agents should be used. Fitting of

non-approved parts may affect the performance

of the safety features designed into the

instrument. If in any doubt, please contact the

Service Department of Bibby Scientific Ltd. or the

point of sale.

For any other technical enquiries, please contact

the Technical Support Department:

E-mail: [email protected]

Tel: +44 (0)1785 810433.

Spares and Accessories

Description Catalogue Number

Spare clamp SF1/1

Accessory side

arms x 2 with 4 clamps SF1/2

Allen key N10016

Fuse 3.15AL ESF1C11(S)

Mains On/Off: This is a rocker-type switch.

Presing the top switches the unit on and pressing

the bottom switches the unit off. The switch is

illuminated when the unit is on.

Indicator light: An amber LED illuminates when

the unit is in operation.

Speed controller: This knob controls the speed

of shaking. Turning it to the right switches the

motor on and increases the shaking speed.

Turning it to the left decreases the shaking speed

and switches the motor off. A scale is printed

around the knob as a speed guide.

Timer: Turning this knob to the right starts the

timer. A scale in minutes is printed around the

knob as a guide. Turning to the left engages

continuous operation.

Assembly

1. Fit the shaker arms into the drive shafts and

tighten the grub screws with the Allen key

provided.

2. Position each clamp into place ensuring they

are horizontal and tighten the securing

screws.

Operation

1. Position the apparatus on a firm, level

surface ensuring the shaker arms are free to

move.

2. Fit the flasks to be shaken into the jaws of

the clamps and tighten the grip.

3. Ensure the speed controller and timer knobs

are fully to the left and turn the mains switch

ON. The indicator light should be lit.

4. Turn the timer knob to the required shaking

time. Then turn the speed controller to the

right until the desired shaking speed is

observed.

Technical Specification

SF1

Speed range 80-800 oscillations/min

Amplitude 1.5mm

Maximum load 3kg

Dimensions (w x d x h) 780 x 270 x 240mm

Net weight 8.3kg

Electrical supply 230V, 50Hz, 50W

Warranty

Stuart warrants this equipment to be free from

defects in material and workmanship, when used

under normal laboratory conditions, for a period

of three (3) years. In the event of a justified

claim, Stuart will replace any defective

component or replace the unit free of charge.

This warranty does NOT apply if damage is

caused by fire, accident, misuse, neglect,

incorrect adjustment or repair, damage caused by

installation, adaptation, modification, fitting of

non-approved parts or repair by unauthorised

personnel.

Bibby Scientific Ltd.

Beacon Road,

Stone, Staffordshire

ST15 0SA

United Kingdom

Tel: +44 (0)1785 812121

Fax: +44 (0)1785 813748

E-mail: [email protected]

www.stuart-equipment.com

INSPECTION REPORT

MODEL SF1

ELECTRICAL SAFETY

1. Earth continuity ❏

2. Insulation ❏

3. Flash test ❏

FUNCTIONAL

1. Indicators ❏

2. Speed/Timer control ❏

3. Visual acceptance ❏

QUALITY CONTROL INSPECTOR

✓

Bibby Scientific Ltd

Beacon Road Stone

Staffordshire ST15 0SA

United Kingdom

Tel: +44 (0)1785 812121

Fax: +44 (0)1785 810405

e-mail: [email protected]

www.bibby-scientific.com

Bibby Scientific France SAS

ZI du Rocher Vert - BP 79

77793 Nemours Cedex

France

Tel: +33 1 64 45 13 13

Fax: +33 1 64 45 13 00

e-mail: [email protected]

www.bibby-scientific.com

Bibby Scientific Italia Srl

Via Alcide de Gasperi 56

20077 Riozzo di Cerro al Lambro

Milano Italia

Tel: +39 (0)2 98230679

Fax: +39 (0)2 98230211

e-mail: [email protected]

www.bibby-scientific.it

Bibby Scientific US Ltd

3 Terri Lane Suite 10

Burlington NJ 08016

USA

Tel: 800-225-9243

Fax: 609-589-2571

www.bibby-scientific.com

Bibby Scientific (Asia) Ltd

Room 607 Yen Sheng Centre

64 Hoi Yuen Road Kwun Tong

Kowloon Hong Kong

Tel: +852 3583 1581

Fax: +852 3583 1580

e-mail [email protected]

www.bibby-scientificasia.com
