BH FITNESS C8 Manual de usuario

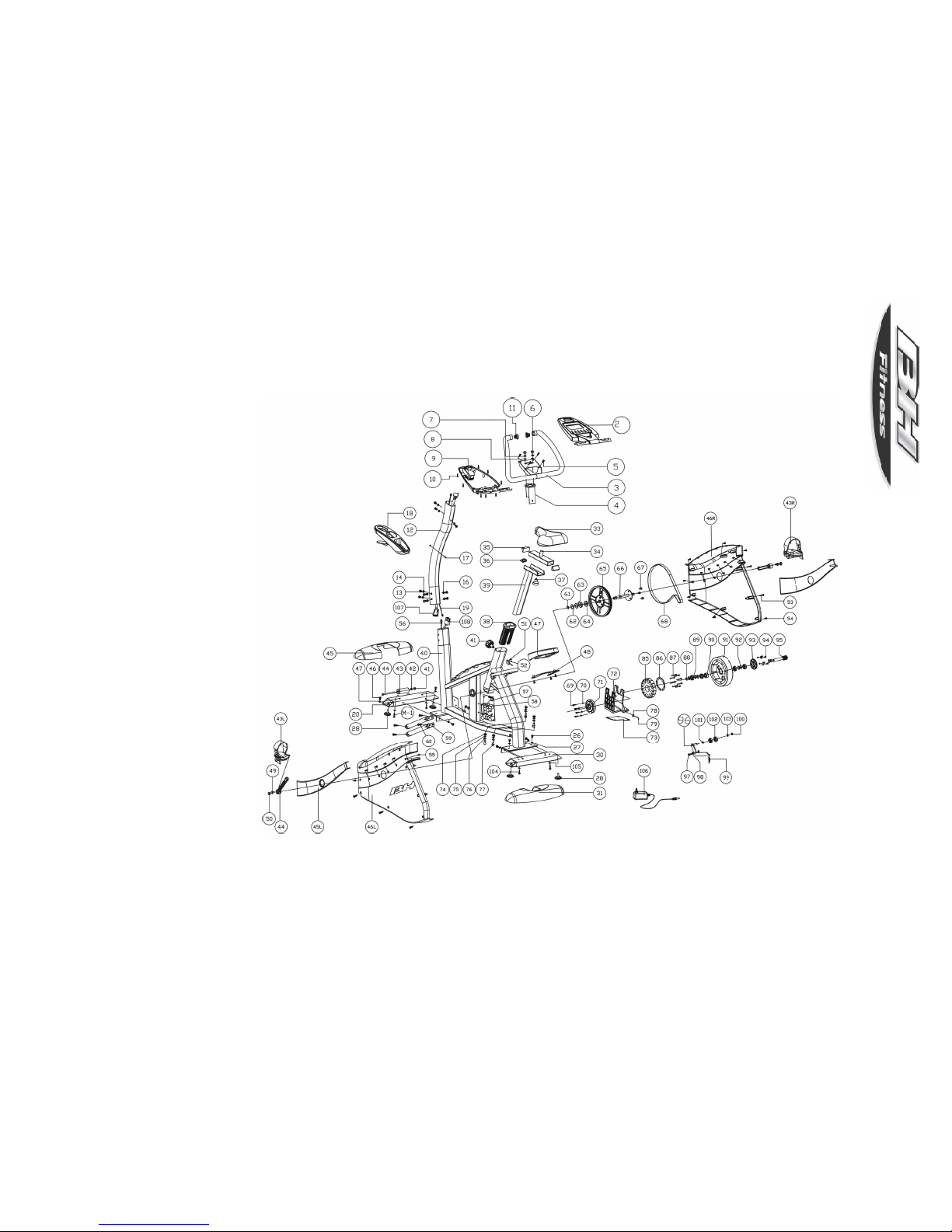

C8 Bike (H872)

C8 (H-872)

Nr. Item name Specifications

1 Handlebar kit

2Computer cover Grey

3 Handlebar

5 Cone cross tapping screw M4x12L

6Cone hex. Screw M8xP1.25x20L

7 Spring washer φ8

8Flat washer φ8xφ16x2t

9 Computer cover(back) 432C grey

10 Round head cross tapping screw M3x12L

11 End cap φ1"(STR)

12 Handlebar post 50x100x1.5x650L

13 Cone hex. Screw M8xP1.25x16L(6m/m)30#

14 Flat washer φ8xφ19x2t

16 Semicircular washer φ8xφ19x2t

17 Cone cross screw M5xP0.8x14L(黑)30#

18 Bottle holder

19 DC wire 850L

20 Front stabilizer 40x80x1.5tx400L(220W)

21 Nylon nut M8

22 Flat washer φ8xφ16x1t

23 Transportation wheel Black

24 Screw clamp M8x115L

25 End cap of front stabilizer BD-1357

26 Cone hex. Screw M8xP1.25x20L

27 Flat washer φ8xφ19x2t

28 Adjustable end cap Black

29 Rear stabilizer kit 40x80x1.5tx400L

31 End cap of rear stabilizer Black

32 Seat post kit

33 Saddle LS-A12

34 Slider Chrome

35 cap

36 Slider screw Zinc

37 Knob Black

38 Sleeve ABS

39 Seat post

40 Main frame

41 Spring knob 707A M16xP1.5x27L

43 Pedal FP-J008 E16(9/16")

44 Crank (9/16")6.5"

45 Cover of chain cover Carbon

46 Chain cover Grey

47 Cover holder upper Carbon

48 Cover holder lower Carbon

49 Nylok screw M8xP1.0x20L

51 Sensor lower 350mmL

52 Screw M3x8L 35#

53 Cone cross tapping screw M4x50L 35#

54 Cone cross screw 3/16"(#10)x3/4" 35#

55 Cone cross tapping screw M4x14L

56 DC cable 1500L

circuit board

H872 PART LIST

58 Cone cross screw M5x14L

Load resistance φ28*248L (225W 20Ω)

60 Hex. Screw M6xP1.0x20L

61 C ring φ17 65Mn

62 Flat washer φ17.5xφ25x0.3t

63 Wave washer φ17.5xφ25x0.3t

64 Bearing 6203 (RS)

65 Pulley φ289*6J(φ20)

66 Axle φ17

67 Hex. Screw M8xP1.25x12Lx3t

68 Belt J6 1126m/m

69 Hex. Screw M5xP0.8x20L

70 Cone cross screw φ5x1.5t 65Mn

71 Cap φ102xφ35x38W

72 Flywheel holder

Insulation spacer 130x127x3T

Insulation washer φ10*φ20*4T

75 Flat washer φ10xφ18x1t

76 Spring washer φ10x3t 65Mn

77 Round head hex. Screw M10xP1.25x20L

78 Hex. Nut M6

79 Spring M6

Stator winding φ145*φ50*56T*3.5Ω

Flange φ102*φ80*3W Q235

Cone cross screw M5xP0.8x40L

C ring φ17 65Mn

Bearing 6003RS

One way brake *(KR-6003)

Flywheel φ220*55W(5.8kg)

Black lead washer φ17*φ25*0.5t

93 Cap φ78xφ35x12.5W

94 Round head hex. Screw M5*P0.8*10L

95 Pulley φ28*φ17*27W

Idlar set

97 Hex. Screw

M8xP1.25x2tx25L

98 Flat washer

φ8xφ19x2t

99 Idlar spring

ODφ16xφ2.0x45T

100 Nylon nut

M8 30#

101 Flat washer

φ10xφ18x1t Q235

102 Idlar bearing

6300 2Z

103 Bushing

φ10xφ14x3mmL

104 Cone cross tapping screw M4x14L

105 Flat washer φ5xφ16x1t

106 Adaptor 220V 50HZ,9VDC 1A

107 Cable upper 850L

108 Cable lower 1200L

109 WATTER HOLDER

120 SCREW M8xP1.25x20L(6m/m)

121 DC CABLE 200L
