Rigel 6 QRG
Quick reference guides are not a replacement for the supplied instructions, they are
supplementary.
Read and understand the installer warnings in the main instruction document first.
Always apply good safe, state of the art engineering and electrical installation principles.
Safety of the completed installation is the ultimate responsibility of the installer.
This product is not suitable for DIY use and should only be installed and maintained by a
trained, skilled, professional installer.
What's New
ØMulti coloured cable connections in line with current control
panels.
ØBuilt in 7 day time clock.
Ø4 Chanel radio receiver.
ØFacility to remove individual transmitters.
ØMagnetic lock powered constantly during closing cycle.
ØU Link.
Ø6 safe inputs, Safe 1&2 8K2.
ØReset-able low voltage fuse.
ØAuto-set for both Hydraulic & Electro-mechanical motors.
ØObstacle Detection (electro-mechanical motors ONLY).
ØGate open/close buttons on control board.
ØError messages on cover lid and on control panel (30 errors)
Terminal Layout
Rigel 5 to Rigel 6 (terminal numbers)
Motor Connections
Old Rigel 5 New Rigel 6
Motor 1, 10,11,12, opens first followed by Motor 2,
14,15,16, Motor 2 closes first followed by Motor 1
Capacitor is connected across motor winding M1=10 &12
M2=14 &16
Rigel 6 common connections
!
50#
51#
52#
70#
71#
72#
1#
2#
3#
5#
20#
21#
11#
12#
14#
15#
16#
10#
22#
23#
24#
25#
26#
27#
28#
29#
60#
61#
62#
63#
64#
65#
73#
74#
75#
76#
77#
78#
78#
M2#
M1#
Capacitor!
Capacitor!
8K2#resistive,#70-72#or#70-74,#Logic#8#
51#
50#
4#
1#
2#
51#
52#
Desme##
75#L#SAFE#3#=#004#
Photo#cells,#active#closing#only#
Ic#Inputs#1,2,3,4,#
Mag#Lock#or#
CISA#
#
Menu System
= Quick Menu X 2 Rapidly = Traditional Menu
To enter the traditional Menu press the OK button twice rapidly, Halt > OK
> Follow user guide OK > Para >Logic>Radio>Default
Quick Menu Layout
This will provide a working system
Method (2 motor application)
• Motor 1 opens first followed by motor 2, motor 2 closes first followed by motor
• Capacitor is connected across 10 & 12 M1, 14 & 16 M2
• Single leaf applications use Motor 1 output 10,11,12.
• Set the motors in place on the gate with the correct geometry
• Install any gate stops to be used(mandatory for hydraulics-except Lux FC)
• Manual release and set limit switch positions (Igea only)
• Connect up the motor supply cables to the Blue connectors 10,11,12 & 14,15,16
•Do NOT connect any accessories at this stage and leave all factory links fitted
• Position gates in the closed position, Sub Lux P Series, Kustos Igea. Eli 250 leave
in the factory set position
• Navigate to the Autoset menu and launch the Autoset ( see following page)
• Autoset can also be launched from the traditional menu (OK button twice)
Autoset from

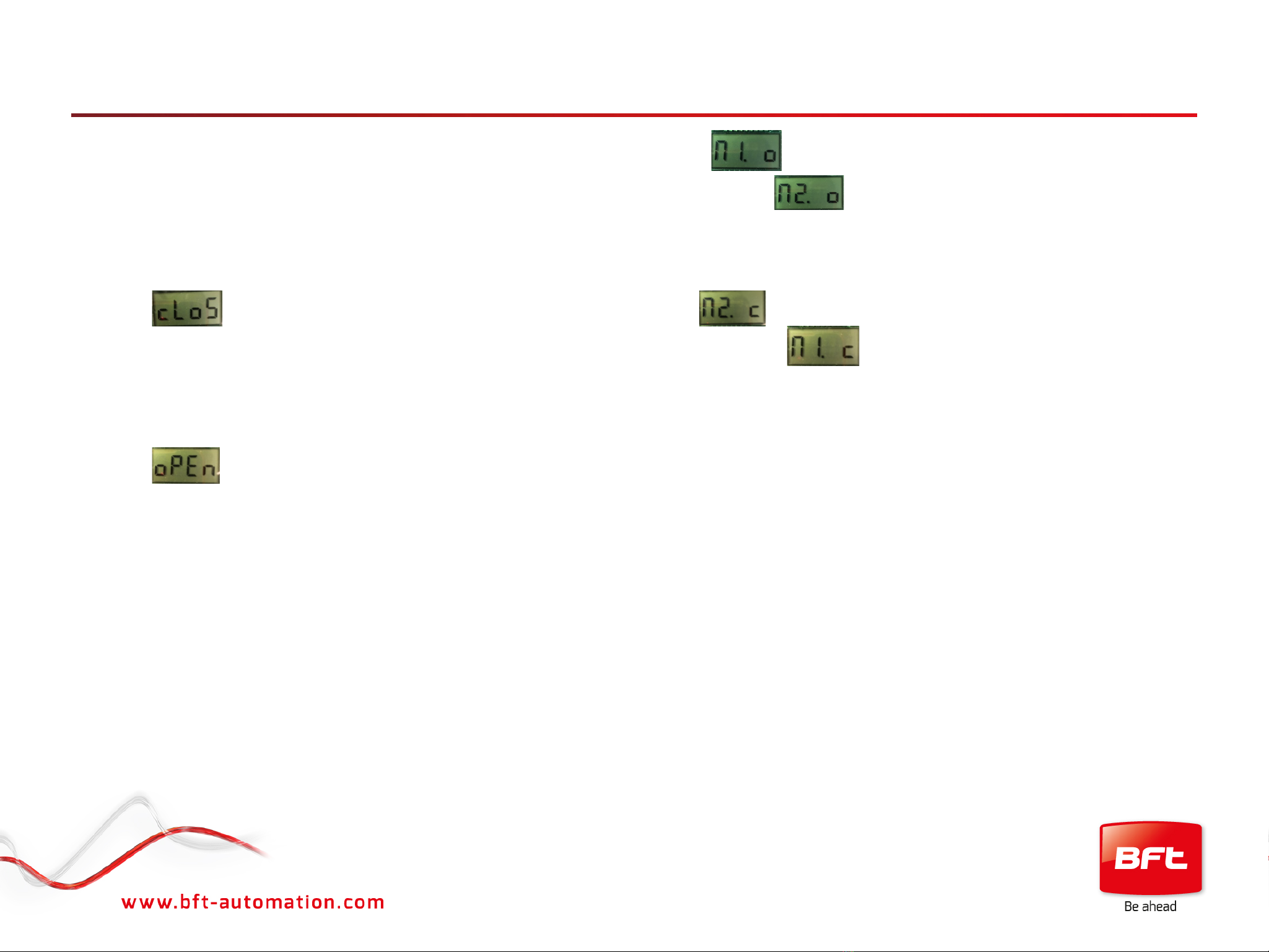

Program panel to Autoset and press OK, 3,2,1. motor 1 will open, when the
open position is reached press the OK button 3.2.1. motor 2 will open, when
the open position is reached press the OK button.
With showing press the OK button 3.2.1, motor 2 will close, when the
closed position is reached press the OK button 3.2.1. motor 1 will close,
when the closed position is reached press the OK button.
With showing press the OK button 3.2.1. motor 1 will open followed by motor
2, from the open position motor 2 will close first followed by motor 1, upon
completion OK will be displayed.
If the motors try to close at the launch of the Autoset then the motor cables must be
swapped 10&12, 14&16. When a gate system is powered for the first time or after a
power cut, the gates must move to the open position when a command is given.
Increase the working time in the Parameter menu under work t if required
