BFT RIGEL 5 Manual de usuario

Rigel 5 v1.7 QRG

Quick reference guides are not a replacement for the supplied instructions, they are supplementary

Read and understand the installer warnings in the main instruction document first

Always apply good, safe, state of the art engineering and electrical installation principles

Safety of the completed installation is the ultimate responsibility of the installer

This product is not suitable for DIY use and should only be installed and maintained by a trained, skilled, professional installer

www.metalines.com

[email protected]

Menu System

www.metalines.com

[email protected]

Parameters;

Adjustable numeric settings (formerly on pots)

Logic;

Function ON/OFF settings (formerly on dip switches)

Radio;

Transmitter storage

Language;

Panel language selection

Default;

Restore panel Parameter and Logic settings to factory

default

Menu Layout

www.metalines.com

[email protected]

Essential Parameters

No. of down

button presses

For more options and detail see main instructions

www.metalines.com

[email protected]

Essential Logics

No. of down

button presses

For more options and detail see main instructions

The 12v dc lock output can

accommodate 1 x 0.5A magnetic

lock or 1 x 2A impulse lock

www.metalines.com

[email protected]

Essential Radio and Language

“Hidden Button”

www.metalines.com

[email protected]

•Set the motors in place on the correct geometry

(plumb with top hinge for under ground or A = B for rams)

•Install any gate stops to be used (mandatory for hydraulics-except Lux FC)

•Manual release and set limit switch positions (Igea only)

•Set the gates at 45° (half open/shut) and close the manual releases

•Connect up the motor and supply cables

(Single motor systems use only motor 2 connections)

•Do not connect any accessories at this stage and leave all jumpers in place

•Run the Quick menu – press OK once

•Run the motors (1 sec. link 30/31) – check that both are opening and not closing

•Swap terminals 5&6 or 8&9 if either gate moves in the close direction

•Close both gates on manual & close the manual releases

•Run the gates through several cycles and check settings

•run the traditional menu to make adjustments – press OK twice rapidly

•Add accessories one at a time and test each one before moving on

Method

www.metalines.com

[email protected]

Typical

Wiring

Example

www.metalines.com

[email protected]

Wiring Connections

www.metalines.com

[email protected]

Machine Directive Compliance

Hydraulic & Electromechanical;

1. Adjust parameter to enable M1 to close 600mm before M2

Hydraulic;

2. Adjust the force at the leading edge with the CLOSE pressure screw to give

under 400N in the last 500mm of closing (utilise hydraulic slow down if available)

Electromechanical;

2. Adjust parameter to give 600mm of slow space

3. Adjust parameter to give under 400N during slow down

Hydraulic & Electromechanical;

Fit a safe edge to the leading edge of M2

Run a full set of tests and address all other risks as appropriate

Set Logics

www.metalines.com

[email protected]

Otros manuales para RIGEL 5

Tabla de contenidos

Otros manuales de Panel de control de BFT

BFT

BFT LEO-D-MA Manual de usuario

BFT

BFT A-CT BOARD SW Manual de usuario

BFT

BFT HYDRA-R Manual de usuario

BFT

BFT HYDRA-N Manual de usuario

BFT

BFT ALCOR N Manual de usuario

BFT

BFT ZARA BTL2 Manual de usuario

BFT

BFT LEO B CBB 3 230 L01 Manual de usuario

BFT

BFT LIBRA-C-MA Manual de usuario

BFT

BFT ALENA ACL2 Manual de usuario

BFT

BFT LIBRA Manual de usuario

BFT

BFT ALENA SW2 CPEM Manual de usuario

BFT

BFT PERSEO CBD 230.P SD Manual de usuario

BFT

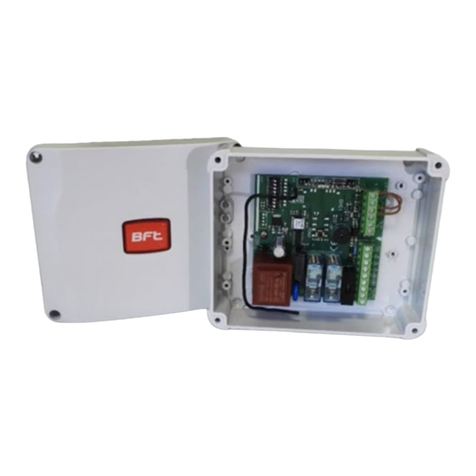

BFT LUNA AC B Manual de usuario
