BFT Maxima Ultra 36 Manual de usuario

Maxima Ultra 36 QRG

Quick referance guides are not replacements for the supplied Instructions, they are

supplementary.

Read and understand the Installer warnings in the main Instruction document first.

Always apply good, safe, state of the art engineering and electrical Installation priciples.

Safety of the completed Installation is the ultimate responisiblity of the Installer.

This product is not suitable for DIY use and should only be Installed and maintained by a

Trained, Skilled, Professional Installer.

Cabinet/Boom Selection

One boom to cover from 2m up to 6m openings

Boom PS: boom with GOM rubber & Top Perspex cover

Boom PS: as above with ADJ-Foot (swinging leg)

Boom PS: BTM-SKIRT & Top Perspex cover

Boom PS: BTM-SKIRT+ADJ-FOOT & Top Perspex cover

Hyphen PS: to be used with XL Version

RG LED lights can be fitted to all Boom lengths

XL Version

Two cabinet bodies are available: MU36 & MU36XL

See chart below for configuration of both MU36 & MU36XL

Standard

Version

Barrier Dimensions & Handing

Left Hand

Right Hand

Installing The Cabinet

Omega Boom Flange and Boom Holder

1

2 3

4

5

6

7

8

9

10

Step 1 Boom Flange (omega)

Fit the boom flange to the output shaft on the chosen side of the cabinet

using the components 1, 2, 3 & 4. Don’t forget to remove the plug in the

output shaft for the LED lighting kit cable if being fitted.

The output shaft will be in the open

position from factory.

Ensure Roll

Pin is fitted

3

M14 = 22mm Socket

Wrench

Step 2 Spring Position

The spring arm has 3 positions to suite the boom length. From the factory

the fixing hole 2 is used on the MU36 and fixing hole 3 on the MU36XL so

repositioning maybe required depending on the boom length. Example

below shows a Boom PS at 5.5m long, hole 3.

This procedure is carried out with the spring out of compression and is

accessed via the back of the cabinet.

19mm

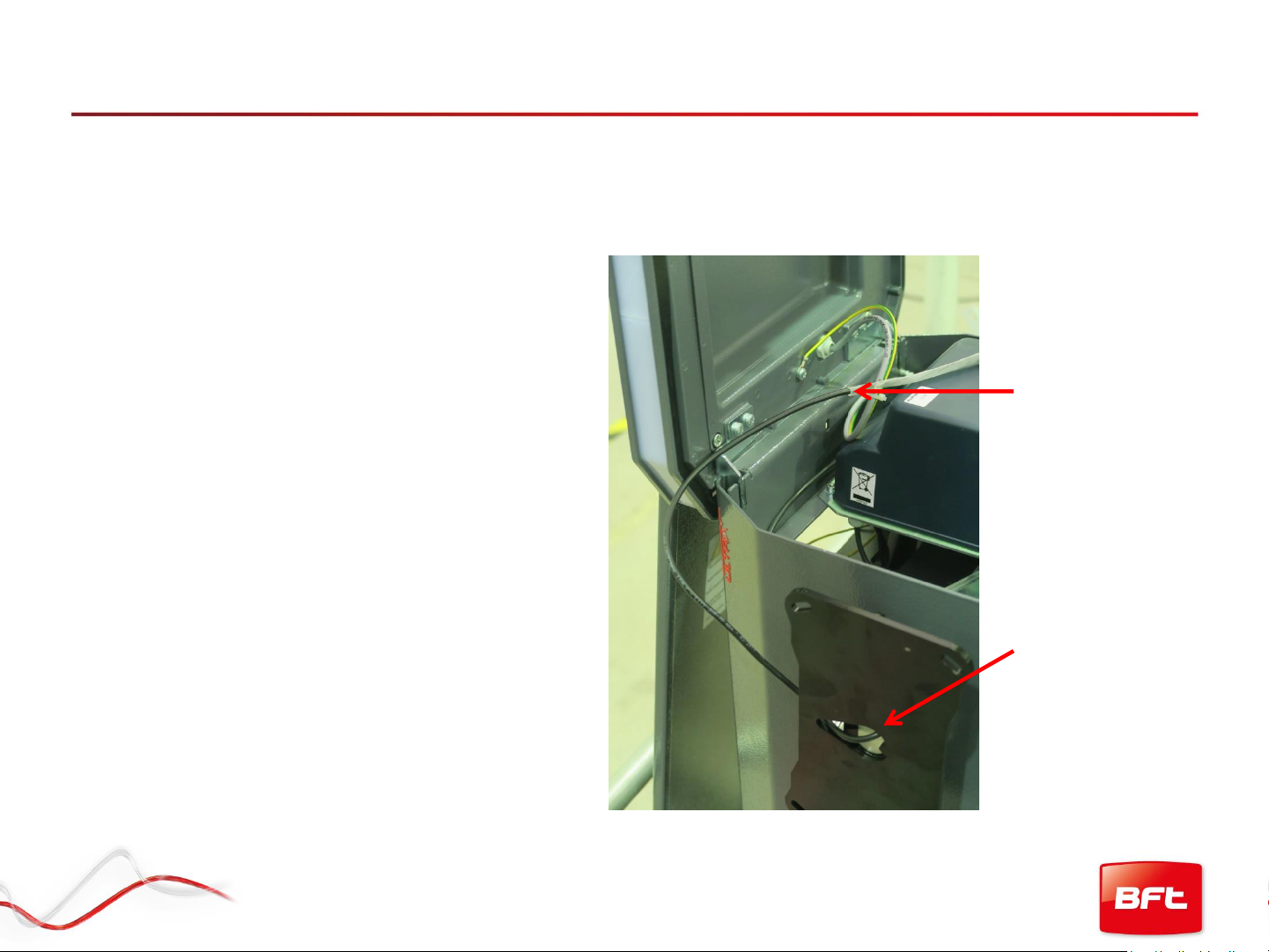

Step 3 Boom Lights

Once the boom flange is in position feed the black 3 core cable on the LED

strip through from the back of the flange and through the groove in the output

shaft into the cabinet.

The cable from point A to point B

= 420mm

A

B

Step 4 Boom Fitting

Remove the GOM rubber profile & Top LED Lens cover from the boom.

Fit the boom arm holder 5onto the end of the boom and bring the boom to the flange

and fit 1 nut and bolt 6as shown in fig 2.

Once the nut & bolt shown has been fitted lift the boom to the vertical position and fit

the remaining 3 nuts & bolts 6. Longer boom lengths may require two people to lift the

boom to the vertical position. Do not over tighten the 4 nuts & bolts at this stage.

If working on the XL model then don’t forget to insert the HYPHEN reinforcement

before attaching the boom to the flange.
