User Manual

12"Two Way Full Range

Passive Speaker

THUNDER Series Pro Loudspeaker System

版本第2页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

10.

Read the instruction first before using this product.

Pay attention to all warnings.

Obey all operating instructions.

Do not expose this product to rain or moisture.

Do not block any ventilation openings. Install according to instructions .

Do not install this product near any heat source, such as , heater, burner, or any other equipment with heat radiation .

Only use spare parts by manufacturer.

Pay attention to the safety symbol on the of the cover.

manual

Please keep this manual for future reference

Clean this equipment with a dry cloth.

manufacturer's

supplied the

outside

SAFETY INSTRUCTIONS

PLEASE READ THIS MANUAL FIRST

Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual

for future reference.

WARNING:

This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with

the product, please ensure they comply with the local safety codes.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important

operating and servicing instructions.

ATTENTION: Don't refit the system or spare parts without being authorized as this will .void the warranty

WARNING: Don't (such as candles) the equipment.place naked flames close to

T12

版本第3页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

CONTENT

THUNDER Series Pro Loudspeaker System

Features

Description

Applications

Frequency Response and Impedance Curve

CONNECTION

NL4 Connection

INSTALLATION

Mounting Accessories

Installation Reference

INTRODUCTION

System Connection Reference

Technical Sheet

2D Dimension

TECHNICAL SPECIFICATION

2×NL4

Product information is subject to change without

prior notification. Please visit www.elderaudio.com

for latest updates.

T12

版本第4页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

THUNDER Series Pro Loudspeaker System

Features

INTRODUCTION

Applications

Multifunctional hall

Auditorium

Church

Conference room

Middle performance

12" Two Way Full Range Passive Speaker

Description

Compact lightweight design with unique appearance.

Heavy duty powered coated steel grill.

35mm SMART pole mount for vertical and 5°downward ti lt.

Integrated feet for stage monitor applications.

M8 rigging points for convenient installation.

T12 Thunder series is designed for portable and installed

applications. The integrated polymer PVC cabinet design

ensures durability and full natural high performance sound.

T12 is a full range with a high powered 12" woofer

delivering powerful low frequency and the 1.7" Titanium

compression driver delivering high definition mid/high

frequencies.

Rigging points and SMART pole mount makes for easy

installation or portable use.

β3

版本第5页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

T12

LOW

HIGH

CHA

BRI DGE IN

CHB

SIGN AL GND

SIGN AL +

SIGN AL -

BRID GE

PARAL LEL

STER EO ON

OFF

50HZ

25H Z

OFF

CHB O UTPUT

CHA O UTPUT

POW ER

CAB LE

FUS E

5HZ

CAUTION

BRI DGE

OUT PUT ASSI GNMEN T:

BRI DGE MON O OUTPU T:

CHA :

PIN1 + : SIGN AL GND

CHA:

PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHA SIG NAL

CHA GN D

CHB SI GNAL

CHB GN D

CHB: PIN 1+ :

PIN 1 - :

PIN 2+ :

PIN 2 - :

CHB SI GNAL

CHB GN D

PIN2 + :

Ser ial no:

Special design for big power！

RISK OF ELECTRIC SHOCK

DO NOT OPEN

MOD E LF FILT ER GRO UND

CLI PLIM ITE R

INP UT

PIN1 :

PIN2 :

PIN3 :

T12 T12

2×NL4：

CONNECTION

NL4 Connection

System Connection Reference

Two NL4 connectors are located on the rear panel for power amplifier connection and parallel connection to another speaker.

Attention: The impedance of connected speaker must match the impedance of amplifier output.

Attention: Make sure the polarity of speaker and amplifier . are correct

1. Connect 2. Disconnect

Crossover

THUNDER Series Pro Loudspeaker System

版本第6页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

T12

THUNDER Series Pro Loudspeaker System

5. Speaker stand application

INSTALLATION

Installation Accessories(Optional) Installation Reference

1. Speaker stand

Warning: Make sure the mounting accessories safety

factor not less than 5:1 or meet the local standard during

installation .

1.Reference A

2.Reference B

3.Reference C

4.Reference D

2. U-Bracket

Sensitivity (dB)

100

110

120

Frequency (Hz)

Impedance (Ohms)

50 100 200 500 2k 5k 10k 20k

版本第7页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

T12

Frequency response curve & Impedance curve

45Hz-20kHz

95dB

250W

500W

1000W

(RMS)

(MUSIC)

(PEAK)

8 Ohms

NL4×2

Max. SPL(1m): 115dB/121dB(PEAK)

Sensitivity(1W@1m):

Power:

System:

Frequency response(-10dB):

Rated impedance:

Cabinet:

Connector:

Cabinet dimension:

(W D H)× ×

Package dimension:

(W D H)× ×

Technical Specification

Mounting accessories:

Painting:

Net weight:

Gross weight:

Speaker Testing Method

1. Frequency Response

Use Pink noise to test the speaker in the anechoic chamber,

adjust the level to make the speaker work at its rated impedance

and set the output at 1W, then test the frequency response power

1m away from the speaker.

2. Sensitivity

Use full range Pink noise which has been modified using

an EQ speaker in the anechoic chamber, curve to test the

increasing the work at its rated signal to make the speaker

impedance and set the the power output at 1W, then test

sensitivity 1m away from the speaker.

3. MAX.SPL

Use full range Pink noise which has been modified using

an EQ speaker in the anechoic chamber , curve to test the

i n c r ea se th e wo r k at it s s i g n a l to m a k e t h e s p e a k e r

maximum power output level, then test the SPL1m away

from the speaker.

4. Rated Power

Use Pink noise to the IEC#268-5 standard to test the speaker,

increase the signal for a continuous period of100 hours,

the rated power is the power when the speaker will show

no visible or measurable damage.

1×1.7 HF"1×12 LF,"

System components:

Frequency response curve

Impedance curve

THUNDER Series Pro Loudspeaker System TECHNICAL SPECIFICATION

12"Two Way Full Range

Passive Speaker

Dispersion(H×V ):

Powered coated grill

8×M8 hanging point,

SMART pole mount system

Polypropylene injection moulding

50Hz-19kHz

Frequency response(-3dB):

°°

90 ×60

Optional accessory: U-Bracket

22.0kg(48.4 lb.)

20.0kg(44.0 lb.)

420×410×720mm

(16.5×16.1×28.3in)

368×349×630mm

(14.5×13.7×24.8in)

Handle: One side, one rear

368mm

[14.5in]

630mm

[24.8in]

版本第8页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

T12

349mm

[13.7in]

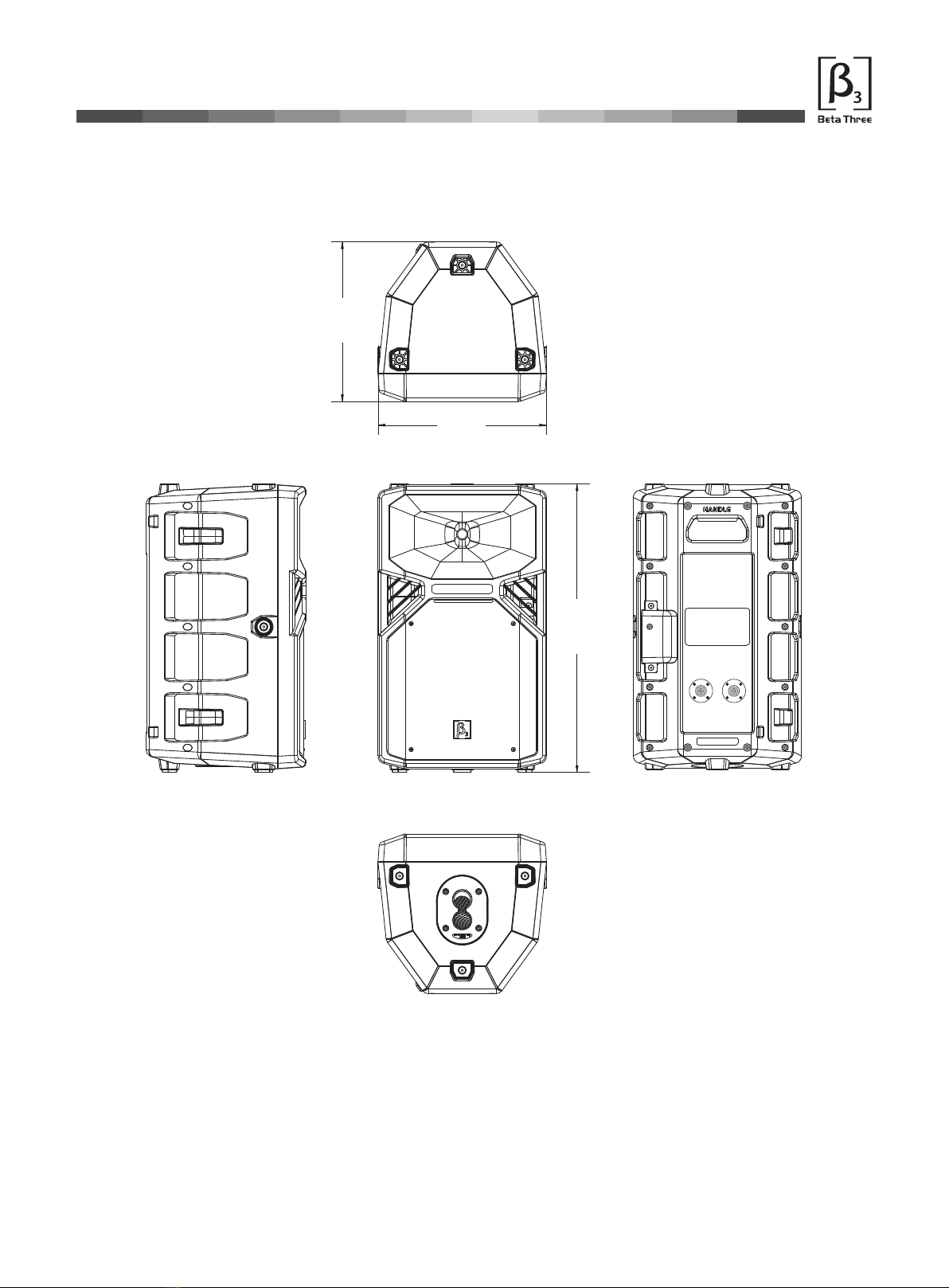

THUNDER Series Pro Loudspeaker System

Top view

Front view

Side view Back view

Bottom view

2D Dimension

TECHNICAL SPECIFICATION

Notes:

版本第9页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

版本第10页共10页

文件（图）号

三基音响科技有限公司

商品劳务号

物品规格

物品类别

物品名称

（图名）英文说明书

塑胶音箱

三基/β3/T12

101.05.0009.00352

www.beta3pro.com
