Best-Rite Storage Wheasel Manual de usuario

Storage Wheasel

Markerboard

Hardware List

AScrew M6 X 46mm 8 EA

A1 Screw M6 X 20mm 4 EA

BFlat Washer 22mm 4 EA

C Interior Threaded Post 4 EA

E 2” Locking Caster 4 EA

F Allen Wrench 2 EA

G Caster Wrench 1 EA

P1 Board 1 EA

P2 Leg 2 EA

P3 Nylon Shelf 1 EA

P4 Crossbrace 4 EA

P5 Wire Rack 1 EA

P6 Storage Tub 4 EA

Parts List

M6 X 18mm

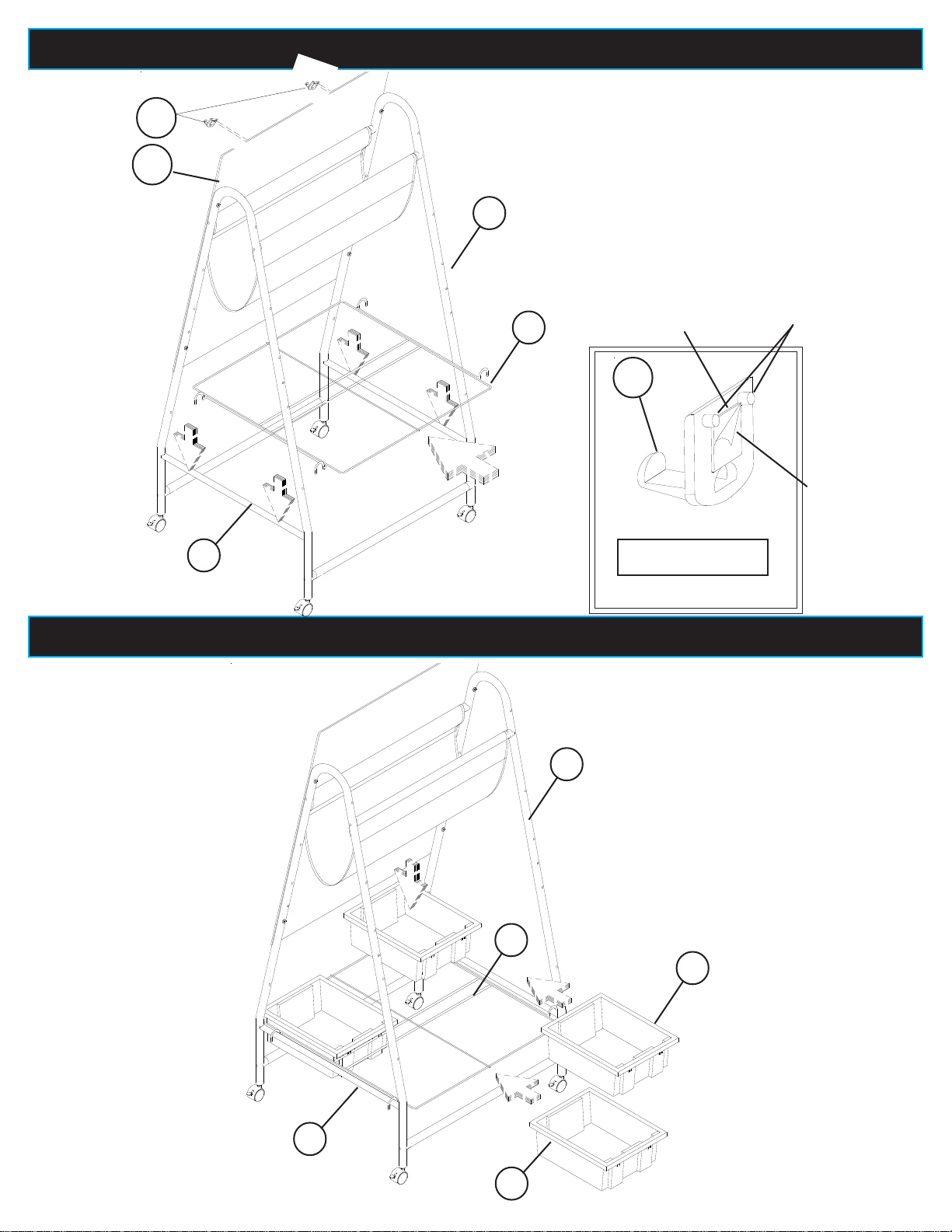

1Insert 2 Crossbraces (P4) Through Nylon

Shelf(P3) as shown

H Chart Hooks 2 EA

2Attach 4 Crossbraces (P4) to the Leg Assemblies (P2)

using eight Screws (A).

SEE DETAIL A-1

3Use Allen Wrench (F) to tighten Screws.

4Install 4 Locking Casters(E)).

Use Caster Wrench (G) to tighten casters. 5Attach Markerboard (P1).

Tighten screws using Allen Wrench (F).

DETAIL A-1

6Attach Wire Rack (P5).

7Insert 4 StorageTubs (P6).

HInsert the 2 pins on the backside of the

Chart Support (H) in the holes in the

markerboard (P-1), as shown in Illus-

tration # 6 and # 6-A.

Firmly press the Plastic Chart Support

(H) to the Writting Surface.

Illustration # 6-A

Peel the paper off from the back of adhe-

sive pad on Plastic Chart Support (H).

6A.

Adhesive

Pad

Paper

Pins

P-1

28½

59½

66½

Writing Surface

29 X 41

Storage Wheasel

Mobile Easel with Storage Tubs

2½

14½

54½

Storage Wheasel

w/markerboard in

upper position.

Storage Wheasel

w/markerboard in

lower position.

762_04-25-16
