X13 Exploded Views May 2007

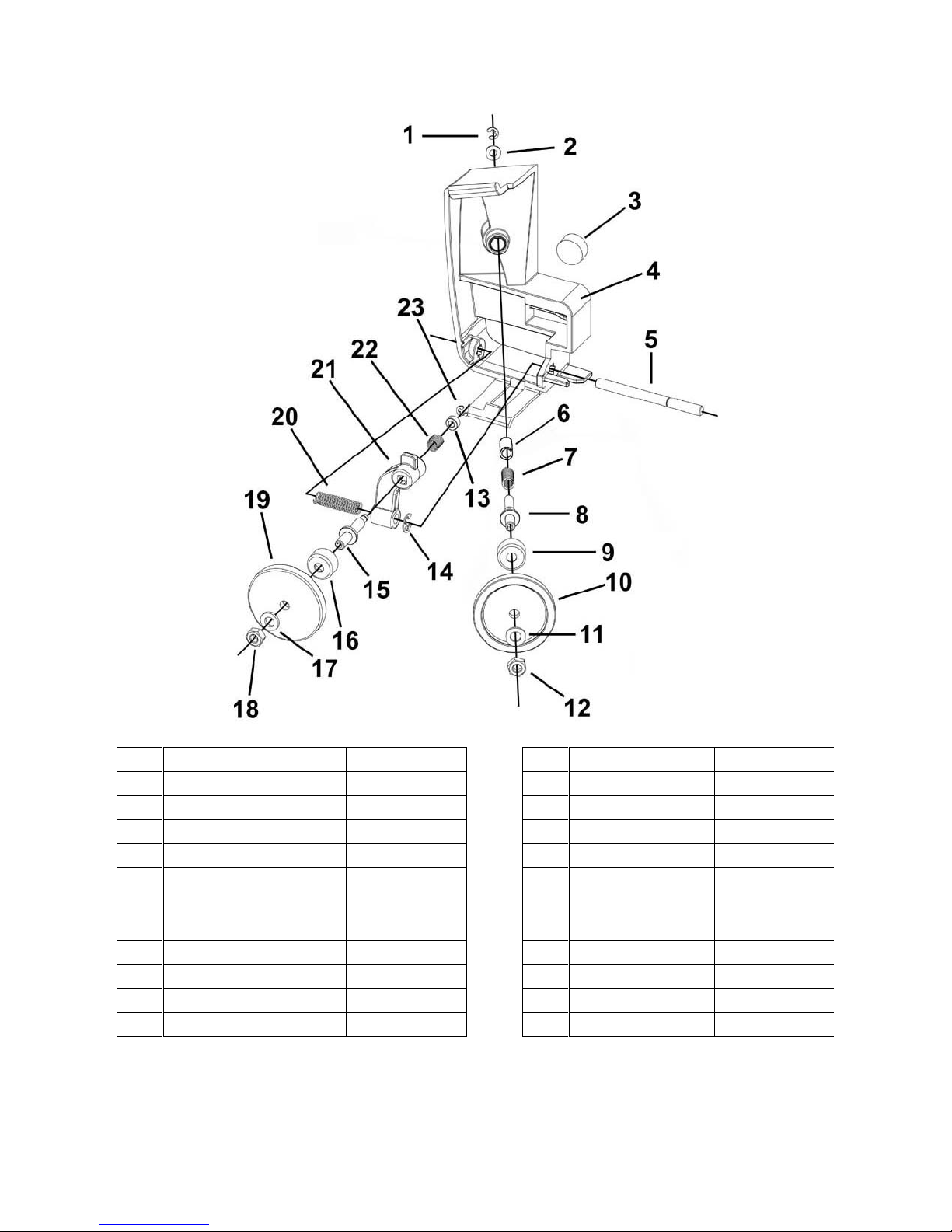

1) SHARPENER
Sharpener, Comp 4675-01133 12 Nut 2175-00388
1 E-Clip 2275-00594 13 Bushing 2275-00595
2 Washer 2275-00441 14 E-Clip 2275-00583
3 Magnet 2775-00733 15 Shaft 3375-01380
4 Frame, Sharpener 3875-00231 16 Skirt 3875-00232
5 Shaft 3375-01381 17 Washer 2275-00587
6 Bushing 2275-00596 18 Nut 2175-00388
7 Spring 3275-00230 19 Stone, Deburr. 3675-00281
8 Shaft 3375-01379 20 Spring 3275-00232
9 Skirt 3875-00232 21 Frame, Deburr. 3875-00230
10 Stone, Sharpening 3675-00283 22 Spring 3275-00231
11 Washer 2275-00587 23 E-Clip 2275-00594
X13 Exploded Views May 2007
2) PRODUCT TABLE
Complete Table 4675-01134 6 Screw 2175-00509
Complete Table 4675-01152 JM 7 Knob 2275-00063
1 Pusher 3875-00177 8 Sleeve 3375-01386
2 Arm, Pusher 4375-00236 9 Screw 2175-00505
2A Arm, Pusher 3775-00500 JM 10 Handle 3875-00175
3 Handle, Pusher 4875-01032 10A Sleeve 3375-01398 JM
3A Shaft, Pusher 3375-01400 JM 11 Screw 2175-02949
3B Knob 2275-00042 JM 11A Bolt 2175-03277 JM
4 Guide Rail 3375-01387 12 Product Table 4975-00476
Arm Kit (Items 2, 4) 4975-00471 12A Product Table 3875-00254 JM
5 Product Fence 4675-01135
JM = Jersey Mike
X13 Exploded Views May 2007
3) RING GUARD & CENTER PLATE
1 Post Stud 3375-01391 8 Ring Guard 3775-00497
2 Flat Head Screw 2175-00529 Knife Bolt 2175-00468
3 Retaining Ring 2275-00608 9Knife Washer 2275-00524
4 Knob 3375-01392 Foot 3875-00239
Center Plate 3775-00499 10 Foot, Suction 3875-00249
Center Plate Assy 4675-01144 11 Washer 2275-005865 Center Plate Kit 4975-00472 12 Screw (Ring Guard) 2175-02867
6 Shoulder Stud 3375-01388 13 Knife 3675-00277
Shim 1.0mm 3275-00237
7Shim 0.5mm 3275-00238
X13 Exploded Views May 2007

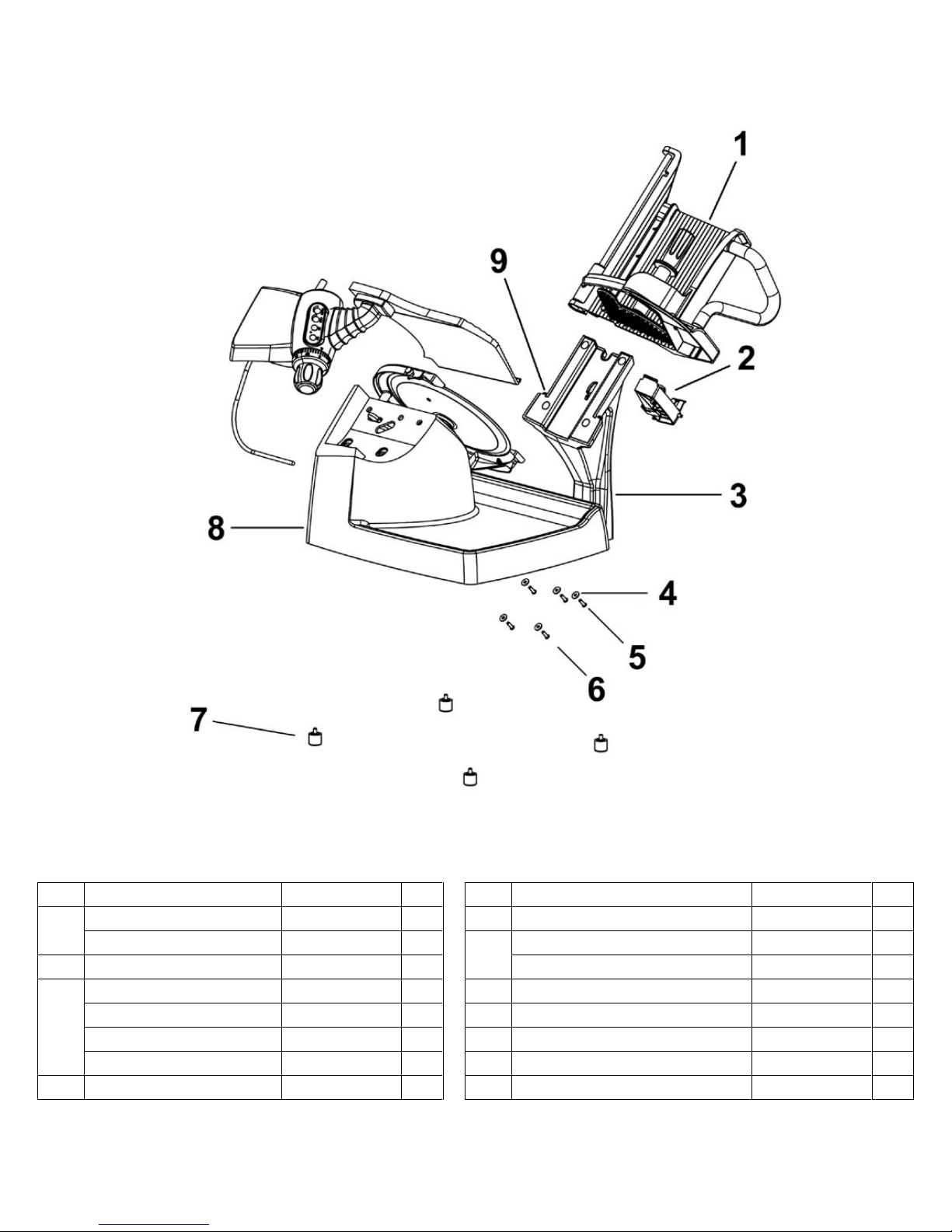

4) TOP VIEW
NS Thread lock 10ml 1875-00108 5 Screw (Clam Shell) 2175-02744
Table Assy 4675-01134 6 Screw Long (Clam Shell) 2175-02749
1Table Assy 4675-01152 JM Foot 3875-00239
2 Sharpener 4675-01133 7Foot, Suction 3875-00249
Arm Assy, Manual 4675-01141 8 Base 3875-00171
Arm Assy, Manual, E 4675-01149 9 Screw, Table Adjust. 2175-00524
Arm Assy, Auto, A 4675-01142 NS Pin, Return Spring 3375-01399 JM
3
Arm Assy, Auto, AE 4675-01150 NS Spring, Return 3275-00240 JM
4 Washer 2275-00586 NS Hook, Foot Post 3275-00059 JM
JM = Jersey Mike
X13 Exploded Views May 2007
5) BOTTOM VIEW
1 Square Rail 3375-01278 14 Screw 2175-02854
2 Bolt 2175-00503 Slide Bar Guide 3875-00183
3 Washer 2275-00588 Screw for Switch 2175-00518 A
4 Screw 2175-02861 15 Switch (see Autodrive Assy) A
5 Bumper 3275-00233 16 Screw 2175-02866
6 Round Rail 3375-01306 17 Screw 2175-02743
7 Bottom cover 3875-00238 A 18 Slide Bar 3375-01275
Power Cord 4175-00719 19 Extension Spring 3275-00234
8Bushing, Strain Relief 2675-00562 20 Shoulder Bolt 2175-00525
PCB Assy, Manual 4875-00047 21 Bracket Assy 4375-00234
9PCB Assy, Auto 4875-00046 A 22 Kick Stand Assy 4675-01139
10 Grommet 3875-00234 23 Leg Assembly 4375-00235
11 Clevis 2375-00184 Bolt, Manual 2175-02869
12 Clamp 3375-01286 24 Bolt, Auto 2175-00527 A
13 Screw 2175-02934
A = X13A
X13 Exploded Views May 2007
6) KNIFE, MOTOR & BEARING ASSEMBLY
1 Knife 3675-00277 8 Mount 3475-00963
2 Bolt 2175-00468 9 Belt 2375-00176
3 Washer 2275-00524 10 Screw 2175-02746
4 Knife Bearing Assy 4675-01140 11 O-Ring 2275-00554
5 Nut 2175-00469 12 O-Ring 2275-00530
6 Screw 2175-02744 13 Mount 3375-01269
7 Motor 4175-00686
X13 Exploded Views May 2007
7) AUTODRIVE ASSEMBLY
1 Screw 2175-02868 A 11 Guide Assy, Flex Cable 4675-01151 A
2 Nut 2175-00522 A 12 J9 Cable 4175-00716 A
3 Screw 2175-02831 A 13 Motor Assy 4175-00725 A
J4 Cable 4175-00717 A 14 Housing 3775-00495 A
4J4 Cable 4175-00732 AE 15 Plate 3575-00426 A
5 Washer 2275-00587 A 16 Transmission 4375-00225 A
6 Screw 2175-02866 A 17 Nylon Washer 2275-00603 A
7 Tensioner Assy 4375-00224 A 18 Screw 2175-02868 A
8 Screw 2175-00527 A 19 Belt 2375-00172 A
9 Flex Cable Assy 4175-00714 A NS Wire, Timer Reset 4175-00730
10 Belt 2375-00171 A
A = X13A / AE = X13AE
X13 Exploded Views May 2007
8) GAUGE PLATE ASSEMBLY
1 Upper Mount 3875-00237 15 Cam Assy (Items 11-16) 4375-00232
2 Screw 2175-00528 16 Cam (not sold separately)
Overlay, Manual 3175-00945 17 Screw 2175-00500
3Overlay, Auto 3175-00941 A 18 Cylindrical Nut 3375-01276
4 Screw 2175-02756 19 Adjustment Block 3275-00219
5 Screw 2175-00517 20 Boot 3875-00236
6 Clamp 3375-01286 Cable 2375-00175
Gauge Plate 3775-00458 Grommet 2275-00609 E
7Gauge Plate 3775-00501 JM 21 Stop Pin, Index Knob 3375-01393 E
8 Lower Housing 3875-00207 22 Cap 2275-00414
Screw (Upper/Lower Housing) 2175-02744 23 Nut 2175-00504
Screw, Short (Housing to Base) 2175-02744 Index Knob 3875-00173
Screw, Long (Housing to Base) 2175-02749 24 Index Knob 3875-00255 CB
9
Washer (Clam Shell to Base) 2275-00586 Nut 2175-00077
10 Screw 2175-02779 25 Lock washer 3275-00013
11 Dowel Pin 2275-00581 26 Upper Wire Harness 4175-00715
12 Flange Bushing 2275-00526 Upper PCB, Manual 2675-00921
13 Slider Arm 3875-00182 27 Upper PCB, Auto 2675-00918 A
14 Shoulder Bolt 2175-00501 28 Upper Housing 3875-00208
JM = Jersey Mike / CB = Cracker Barrel / A = X13A / E = X13E
X13 Exploded Views May 2007
9) ARM ASSEMBLY – TOP VIEW
Top Plate Assy (Interlock) 4675-01127 9 Washer 2275-00589
Top Plate Assy 3875-00250 E 10 Arm with Bushings 4375-002261 Top Plate Assy (E Conv.) 4975-00474 E 11 PCB Assembly 2675-00920 A
2 Screw 2175-02862 A 12 Screw 2175-02831 A
3 Cam 3475-01021 A 13 Clip Assembly 4575-01033 A
4 Shaft 3375-01376 A 14 Plate 3475-01023 A
5 Disc Spring 2275-00592 A 15 Screw 2175-02923 A
6 Knob 2275-00580 A 16 Screw 2175-02864
7 Rod 3375-01373 A 17 Plug 3875-00235
8 Screw 2175-00520 18 Screw, Table Adjust 2175-00524
A = X13A / E = X13E
X13 Exploded Views May 2007
10) ARM ASSEMBLY – BOTTOM VIEW
1 Rod 3375-01373 A 12 Bushing 2275-00521
2 Screw 2175-02862 A 13 Spacer 3375-01378
3 Clevis 2375-00184 A 14 Bolt 2175-00502
4 Crank 3475-01022 A 15 Roller 2375-00167
5 Shoulder 3875-00499 NE 16 Mount 3375-01280
6 Spring 3275-00236 NE 17 Screw 2175-02746
7 Cup 3875-00498 NE 18 Screw 2175-00510
8 Clevis 2375-00184 NE 19 Cable 2375-00168 NE
9 Slider 3875-00195 NE 20 Clamp 3375-01286 NE
10 Washer 2275-00587 21 Screw 2175-02934 NE
11 Screw 2175-02745 22 Knob 2275-00580 A
A = X13A / NE = Not on X13E
