Bentone ST 146 KS Especificaciones técnicas

Providing sustainable energy solutions worldwide

178 124 19-6 CR00664 2023-05-15

Installation- and maintenance instruction

ST 146 KS

LMO14.113C2E

AS 47 CK

Translation of the original instructions.

2Bentone

example Beispielexempel

352011030141

Designation

Type

Model

Serial no.

Motor supply

Main supply

MADE IN SWEDEN BY

LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar

BF 1 KS 76-24

BF 1

BF 1 KS 76-24

1234567

1~230V 1,0A 50Hz IP 20

Man.Year 2019

Cap. Min-Max

-sv

1. Manualer på övriga språk

2. www.bentone.com\

nedladdning eller scanna

QR-koden.

3. Skriv in brännarens

artikelnummer som  nns på

din typskylt (se bild) och välj

ditt språk.

Detaljerad ecodesign

information kan laddas ner

på: www.bentone.com/

ecodesign.

-en

1. Manuals in other languages

2. www.bentone.com\

download or scan QR-code.

3. Enter the burner`s article

number on your data plate

(see picture) and select

language.

Detailed ecodesign

information can be

downloaded at:

www.bentone.com/

ecodesign.

-da

1. Manualer på andre sprog

2. www.bentone.com\

download eller scan

QR-koden.

3. Indtast brænderens

artikelnummer, der  ndes

på typeskiltet (se billede), og

vælg dit sprog.

Detaljerede oplysninger om

ecodesign kan downloades

på: www.bentone.com/

ecodesign.

-fr

1. Manuels dans d’autres

langues

2. www.bentone.com\

download ou scannez le

code QR.

3. Saisir le numéro d’article

du brûleur sur votre plaque

signalétique (consultez

l’illustration) et sélectionnez

la langue.

Des informations détaillées

sur l’écodesign peuvent être

téléchargées à l’adresse:

www.bentone.com/

ecodesign.

-de

1. Gebrauchsanweisungen in

anderen Sprachen

2. www.bentone.com\

download oder scannen Sie

den QR-Code.

3. Geben Sie die

Artikelnummer des Brenners

auf Ihrem Typenschild ein,

(siehe Bild) und wählen Sie

die Sprache aus.

Detaillierte Informationen

zum Ecodesign können unter

www.bentone.com/ecodesign

heruntergeladen werden.

3Bentone

Table of contents

1. General Information............................................................4

1.1 Delivery inspection........................................................................ 4

1.2 Safety ............................................................................................... 4

2. Technical data.......................................................................6

2.1 Dimensions ST 146 KS.................................................................. 6

2.2 Workingeld.................................................................................. 7

2.3 Basic settings - Fuel oil................................................................. 8

2.4 Basic settings - HVO/XTL ............................................................. 8

2.5 Technicalspecication ................................................................. 9

2.6 Settingofignitionelectrodesand

brake plate...................................................................................... 9

2.7 Nozzleandpumppressure....................................................... 10

2.8 Nozzle table.................................................................................. 10

2.9 Components................................................................................. 11

3. Electric equipment.............................................................12

3.1 Safety system .............................................................................. 12

3.2 Wiringdiagram............................................................................ 12

3.3 Function ........................................................................................ 13

3.4 Colourcodes................................................................................ 14

3.5 Faultcodes ................................................................................... 14

4. Installation..........................................................................15

4.1 General instructions................................................................... 15

4.2 Inspectionandmaintenance.................................................... 15

4.3 Start-up ......................................................................................... 15

4.4 Preparing for installation........................................................... 15

4.5 Oildistribution............................................................................. 15

4.6 Electrical connection .................................................................. 16

4.7 Mounting ...................................................................................... 17

5. Settings ...............................................................................18

5.1 Example of basic setting............................................................ 18

6. Pump ..................................................................................20

6.1 SUNTEC AS .................................................................................. 20

7. Service .................................................................................26

7.1 BurnerServiceSchedule,Oil .................................................... 26

7.2 Component replacement intervals.......................................... 26

7.3 Combustiondevice ..................................................................... 27

7.4 Replacing the preheater............................................................ 28

7.5 Replacing the oil pump.............................................................. 29

7.6 Replacingthefanmotorandfanwheel................................. 30

7.7 Airintakeandintakecone......................................................... 31

7.8 Replacing the entire electrical package ................................. 31

7.9 Replacingindividualelectricalpackagecomponents ......... 32

8. Fault Location.....................................................................33

8.1 Burnerwillnotstart.................................................................... 33

8.2 Burnerwillnotstartafternormaluse .................................... 33

8.3 Delayedignition .......................................................................... 34

8.4 Noise in pump ............................................................................. 34

8.5 Pump pressure ............................................................................ 35

9. Logofuegasanalysis.....................................................36

4Bentone

165 105 01-2 2021-12-07

1. General Information

The burner may only be used for its intended purpose in accordance with the

product’s technical data.

We reserve the right to make design changes and cannot be held liable for any

misprints or typographical errors.

Modifying the design or using accessories or components that have not been

approved by Enertech in writing is strictly prohibited.

This Installation and Maintenance manual:

• is to be regarded as part of the burner and must always be kept near

the installation site.

• must be read prior to installation.

• is intended for use by authorised personnel.

1.1 Delivery inspection

• Make sure everything is delivered and the goods have not been

damaged during transit.

Transport damage must be reported to the shipping company.

• If something is wrong with a delivery, report it to the supplier.

1.2 Safety

- before installation:

• Installation and work on the burner and associated system

components may only be carried out by persons who have undergone

relevant training.

• The product is packaged to prevent damage from occurring when

handled – Handle the product with care! Lifting equipment must be

used to lift larger packages.

• The products must be transported/stored on a level surface in a dry

environment, max. 80% relative humidity, no condensation.

Temperature -20 to +60 °C.

- installation:

• The burner must be installed in accordance with local regulations for

 re safety, electrical safety, and fuel distribution.

• The premises must comply with local regulations pertaining to use of

the burner, and must have adequate air supply.

• The installation site must be free of chemicals.

• Fire extinguisher with Class BE recommended.

• Make sure when installing the burner that there is enough space to

service the burner.

• The electrical installation must be professionally carried out in

accordance with current mains electricity regulations and in a

professional manner.

• Make sure that the burner is suitable for the application (see Technical

Data).

• All components must be installed without being bent, twisted or

subjected to mechanical or thermal forces that affect components.

5Bentone

• Care must be taken by the installer to ensure that no electrical cables

or fuel lines are pinched or otherwise damaged during installation or

service.

• Flame tubes, fan wheels and air dampers, for example, may contain

sharp edges.

- before  rst start:

• The burner must not be put into operation without proper safety and

protection devices.

• Permitted ambient temperature during operation -10 to +60 °C. Max.

80% relative humidity, no condensation.

• The surface temperature of the burner’s components may exceed

60 °C.

• Handle with caution – the burner has moving parts, and there is risk

of crushing injuries.

• Seal inspections must be performed during installation and servicing

to prevent leakage.

•  tting and installation work has been completed and approved.

• electrical installation has been correctly performed.

•  ue gas ducts and combustion air ducts are not blocked.

• all actuators and control and safety devices are in working order and

correctly set.

• If the boiler is equipped with an access hatch, this must be equipped

with a hatch opening switch connected to the burner’s safety system.

• When in operation, the burner’s noise level can exceed 85 dBA – use

hearing protection!

- Operation:

• Carry out all stipulated settings, service and inspection work within

the set time.

• If the oil burner control has a solid red light, contact your installer.

6Bentone

165 205 34-4

2. Technical data

The burner is intended for:

• Operation in installations according to EN 303 and EN 267.

When operating with a hot air boiler, the LMO24.255 or LMO44.255 control unit must be used.

Fuels:

• HVO/XTL according to EN 15940.

• Fuel oil according to DIN 51603-1.

• Fuel oil A Bio 10 according to DIN 51603-6.

2.1 Dimensions ST 146 KS

* Min. recommended distance to  oor.

øB

Length of

ﬂ ame tube

Measurement A

Flange 1 Flange 2

94 78.5 62.5

147 131.5 115.5

224 208.5 192.5

Ø B C D E F G H *I

109 237 202 54 258 158 295 200

7Bentone

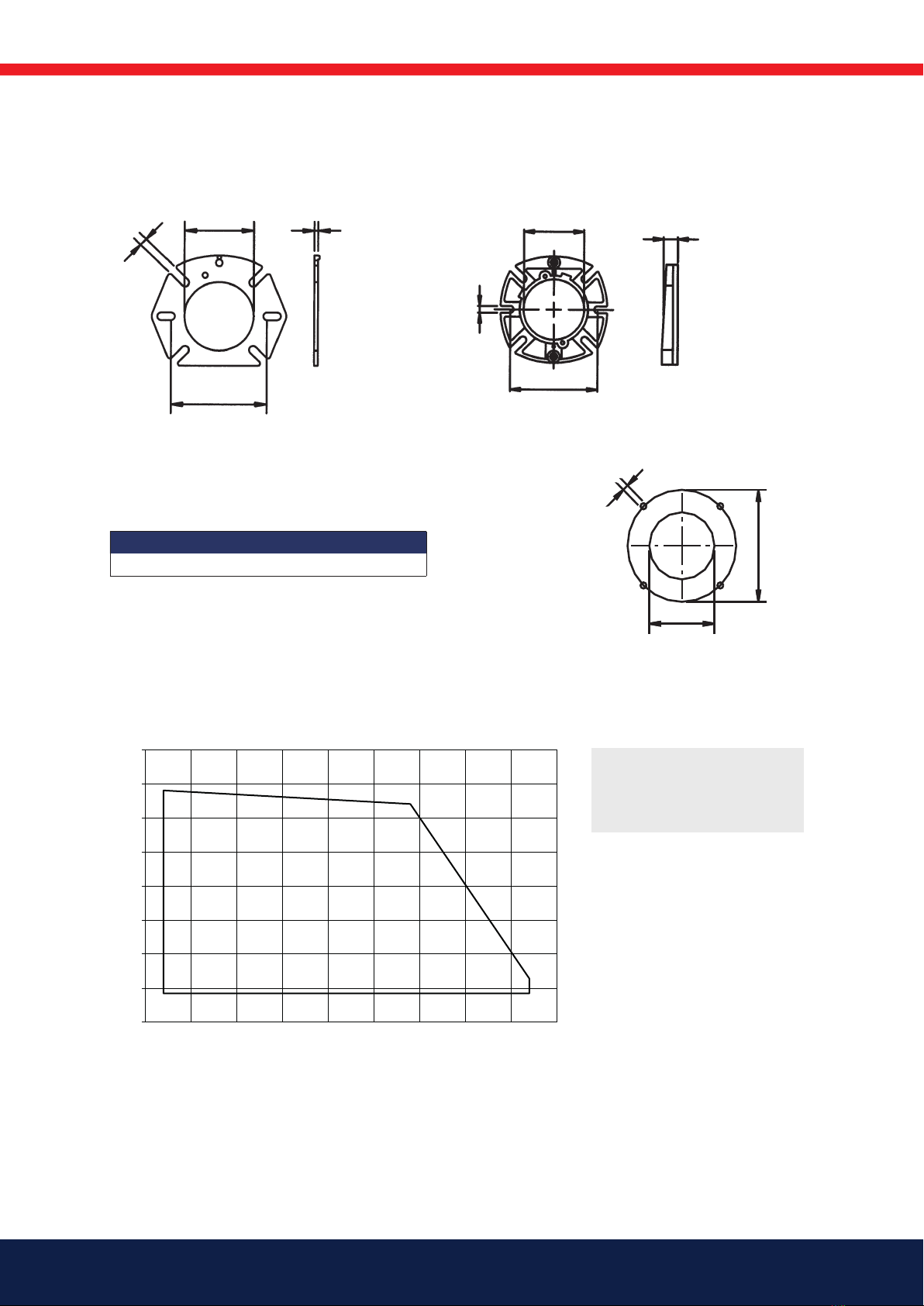

2.1.1 Dimensions, anges

2.1.2 Hole patten

Check that the hole pattern on the boiler is suitable for the xing ange.

2.2 Working eld

d1 d2 d3

ø 90 10 ø 125-150

!Do not exceed the

working area.

Flange 2

10,3

130-150

ø89,7

125-150

10,3

ø90 5

Flange 1

-0,5

0,0

0,5

1,0

1,5

2,0

2,5

3,0

3,5

35 45 55 65 75 85 95 105 115 125

mbar

3.3-10.0 kg/h

39-119 kW

160302-673-2

8Bentone

2.4 Basic settings - HVO/XTL

2.3 Basic settings - Fuel oil

35 45 55 65 75 85 95 105 115 125

160302-744-3

Air settings

Nozzle assembly

Scale

Burner output

35 45 55 65 75 85 95 105 115 125

160303-737

Air settings

Nozzle assembly

Scale

Burner output

Flame signal

When operating at high power or low air excess and HVO/XTL is used as fuel,

the ame signal may deteriorate (blue ame), the signal lamp in the reset

button ashes green.

By lowering the air velocity or changing the ame detector to QRC1 A1, the

ame signal can be improved.

9Bentone

!*NB It is important

that the spark does not

strike against the brake

plate or nozzle

2.6 Setting of ignition electrodes and

brake plate

ST 146 KS

Main supply 1) 230V, 1~, 1.2/1.3A, 50/60Hz, IP20

Max fuse rating 6.3A

Elmin preheater excluded 0.74A, 165W

Elmax preheater excluded 0.81A, 190W

PSB 0

NOX-class 4

NOX (GCV) preheater excluded 110mg/kWh

Noise level 78dBA

1) Max operating current, see data plate.

a b c

10.0 ±0.5 2.7 ±0.4 1.0 ±0.5

2.5 Technical specication

Measurements according to EN 15036-1:2006

Alt.1 The noise level of the burner can be reduced by equipping the burner

with silencer. Installation must be done so it does not prevent air supply

to the burner.

Alt.2 The burner’s noise level can be reduced by connecting the burner’s air

intake to the air duct that opens into an appropriate location. Installation

must be done so it does not prevent air supply to the burner.

10 Bentone

2.7 Nozzle and pump pressure

Due to different furnace geometries and capacities, it is not possible to

recommend a nozzle model.

Nozzle 60° Solid/Hollow cone

80° Solid/Hollow conel

Pump pressure 10 bar (8–14 bar) Fuel oil 1

10 bar (7–12 bar) Kerosene

2.8 Nozzle table

Pump pressure, bar

Gph 89 10 11 12 13 14 15

kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW

0,40 1,33 16 1,41 17 1,49 18 1,56 18 1,63 19 1,70 20 1,76 21 1,82 21

0,50 1,66 20 1,76 21 1,86 22 1,95 23 2,04 24 2,12 25 2,20 26 2,28 27

0,60 2,00 24 2,12 25 2,23 26 2,34 28 2,45 29 2,55 30 2,64 31 2,73 32

0,65 2,16 26 2,29 27 2,42 29 2,54 30 2,65 31 2,75 33 2,86 34 2,96 35

0,75 2,49 29 2,65 31 2,79 33 2,93 35 3,08 36 3,18 38 3,30 39 3,42 40

0,85 2,83 33 3,00 36 3,16 37 3,32 39 3,47 41 3,61 43 3,74 44 3,87 46

1,00 3,33 39 3,53 42 3,72 44 3,90 46 4,08 48 4,24 50 4,40 52 4,56 54

1,10 3,66 43 3,88 46 4,09 48 4,29 51 4,48 53 4,67 55 4,84 57 5,01 59

1,20 3,99 47 4,24 50 4,47 53 4,68 55 4,89 58 5,09 60 5,29 63 5,47 65

1,25 4,16 49 4,40 52 4,65 55 4,88 58 5,10 60 5,30 63 5,51 65 5,70 68

1,35 4,49 53 4,76 56 5,02 59 5,27 62 5,50 65 5,73 68 5,95 70 6,15 73

1,50 4,98 59 5,29 63 5,58 66 5,85 69 6,11 72 6,36 75 6,60 78 6,83 81

1,65 5,49 65 5,82 69 6,14 73 6,44 76 6,73 80 7,00 83 7,27 86 7,52 89

1,75 5,82 69 6,18 73 6,51 77 6,83 81 7,14 85 7,42 88 7,71 91 7,97 94

2,00 6,65 79 7,06 84 7,45 88 7,81 93 8,18 97 8,49 101 8,81 104 9,12 108

2,25 7,49 89 7,94 94 8,38 99 8,78 104 9,18 109 9,55 113 9,91 117 10,26 122

The table applies to oils with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3.

2.8.1 Burner with preheater

Allow for a reduction in oil quantity of 5–20% with preheating owing to:

• Temperature increases at the nozzle.

• Nozzle design.

• Capacity (the higher the capacity the lower the difference).

Otros manuales para ST 146 KS

Tabla de contenidos

Otros manuales de Quemador de Bentone

Bentone

Bentone BG 550i M Especificaciones técnicas

Bentone

Bentone BG 450-2 Especificaciones técnicas

Bentone

Bentone 45 A2.2 Especificaciones técnicas

Bentone

Bentone B 40 A2.2 Especificaciones técnicas

Bentone

Bentone RSA 60 Especificaciones técnicas

Bentone

Bentone B 30A Especificaciones técnicas

Bentone

Bentone STG 146i/2 J Especificaciones técnicas

Bentone

Bentone B45-2 RME Especificaciones técnicas

Bentone

Bentone B 45 A2.2 RME Especificaciones técnicas

Bentone

Bentone BG400M Manual de usuario

Bentone

Bentone BG 300 M-J/K-IP40 Especificaciones técnicas

Bentone

Bentone Biogas STG Especificaciones técnicas

Bentone

Bentone B 30 A2.2 Especificaciones técnicas

Bentone

Bentone BF 1 K10K Super Especificaciones técnicas

Bentone

Bentone B 40 A2.2 RME Especificaciones técnicas

Bentone

Bentone STG 120/2 Especificaciones técnicas

Bentone

Bentone BFG 1 H1 Especificaciones técnicas

Bentone

Bentone BG 700i M Especificaciones técnicas

Bentone

Bentone BG 700-2 Biogas Especificaciones técnicas

Bentone

Bentone BG650 Series Especificaciones técnicas

Bentone

Bentone BG 550-2 LME22 Especificaciones técnicas

Bentone

Bentone BG 950 M Especificaciones técnicas

Bentone

Bentone B 45 A2.2H Especificaciones técnicas

Bentone

Bentone STG 146/1 Especificaciones técnicas

Manuales populares de Quemador de otras marcas

Riello

Riello RS 28/M Guía de inicio rápido

True Induction

True Induction TI4B Manual de usuario

Weishaupt

Weishaupt WG20 Series Manual de usuario

Carolina Cooker

Carolina Cooker M116672 Manual de usuario

Riello

Riello RX 500 S/PV Manual de instrucciones

Unigas

Unigas HTP2000 Manual de usuario

baltur

baltur BT 250 DSG 4T Manual de usuario

muenkel design

muenkel design round burner Manual de usuario

Ecoflam

Ecoflam Multicalor 170.1 Manual de usuario

baltur

baltur BT 14 DSGW Manual de usuario

artisan

artisan Art-SB1 Guía

Riello

Riello P 140 T/G Guía de inicio rápido

AESYS

AESYS TurboFire II Manual de usuario

Riello

Riello RG1RKD Guía de inicio rápido

IKEA

IKEA GRILLSKÄR Manual de usuario

RUSTA

RUSTA SAREK Manual de usuario

PROPOINT

PROPOINT 8933657 Manual de usuario

baltur

baltur TBL 1000 ME Manual de referencia
