BenQ TH670 Manual de usuario

Digital Projector

TH670

Table of contents2

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view.........................10

Controls and functions ..........................11

Positioning your

projector ..................... 16

Choosing a location................................16

Obtaining a preferred projected image

size..............................................................17

Connection ................. 19

Connecting a computer.........................20

Connecting Video source devices.......21

Operation ................... 24

Starting up the projector ......................24

Adjusting the projected image .............25

Using the menus......................................28

Securing the projector...........................31

Switching input signal .............................33

Selecting the aspect ratio ......................34

Optimizing the image .............................36

Advanced picture quality controls ......39

Hiding the image......................................42

Operating in a high altitude

environment.............................................42

Adjusting the sound................................43

Locking control keys ..............................43

Personalizing the projector menu

display ........................................................44

Select the lamp saver mode..................44

Shutting down the projector................45

Menu operation ...................................... 46

Maintenance ............... 60

Care of the projector............................ 60

Lamp information ................................... 61

Troubleshooting......... 69

Specifications.............. 70

Dimensions .............................................. 71

Ceiling mount installation ..................... 71

Timing chart............................................. 72

Warranty and Copyright

information................. 76

Ta b l e o f c o n t e n t s

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of

information technology equipment. However, to ensure safe use of this product, it is

important that you follow the instructions mentioned in this manual and marked on

the product.

Safety Instructions

1. Please read this manual before

you operate your projector.

Save it for future reference.

2. Do not look straight at the

projector lens during

operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter

or remove the lens cap when

the projector lamp is on.

5. In some countries, the line voltage

is NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power

cuts or surges of ±10 volts occur.

In areas where the mains

voltage may fluctuate or cut

out, it is recommended that

you connect your projector

through a power stabilizer,

surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens

with any objects when the

projector is under operation as this

could cause the objects to become

heated and deformed or even cause

a fire.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for

approximately 45 minutes prior

to removing the lamp assembly

for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive

operation of lamps beyond the

rated life could cause them to

break on rare occasions.

9. Never replace the lamp assembly

or any electronic components

unless the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining

serious damage.

11. Do not attempt to disassemble

this projector. There are

dangerous high voltages inside

which may cause death if you

should come into contact with

live parts.

Under no circumstances should

you ever undo or remove any

other covers. Refer servicing only

to suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows

rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span

and darkening the image.

- Locations near fire alarms

- Locations with an ambient

temperature above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a

level, horizontal surface during

operation.

- Do not use if tilted at an angle of

more than 10 degrees left to right,

nor at angle of more than 15

degrees front to back. Using the

projector when it is not fully

horizontal may cause a malfunction

of, or damage to, the lamp.

3000 m

(10000

feet)

0 m

(0 feet)

Important safety instructions6

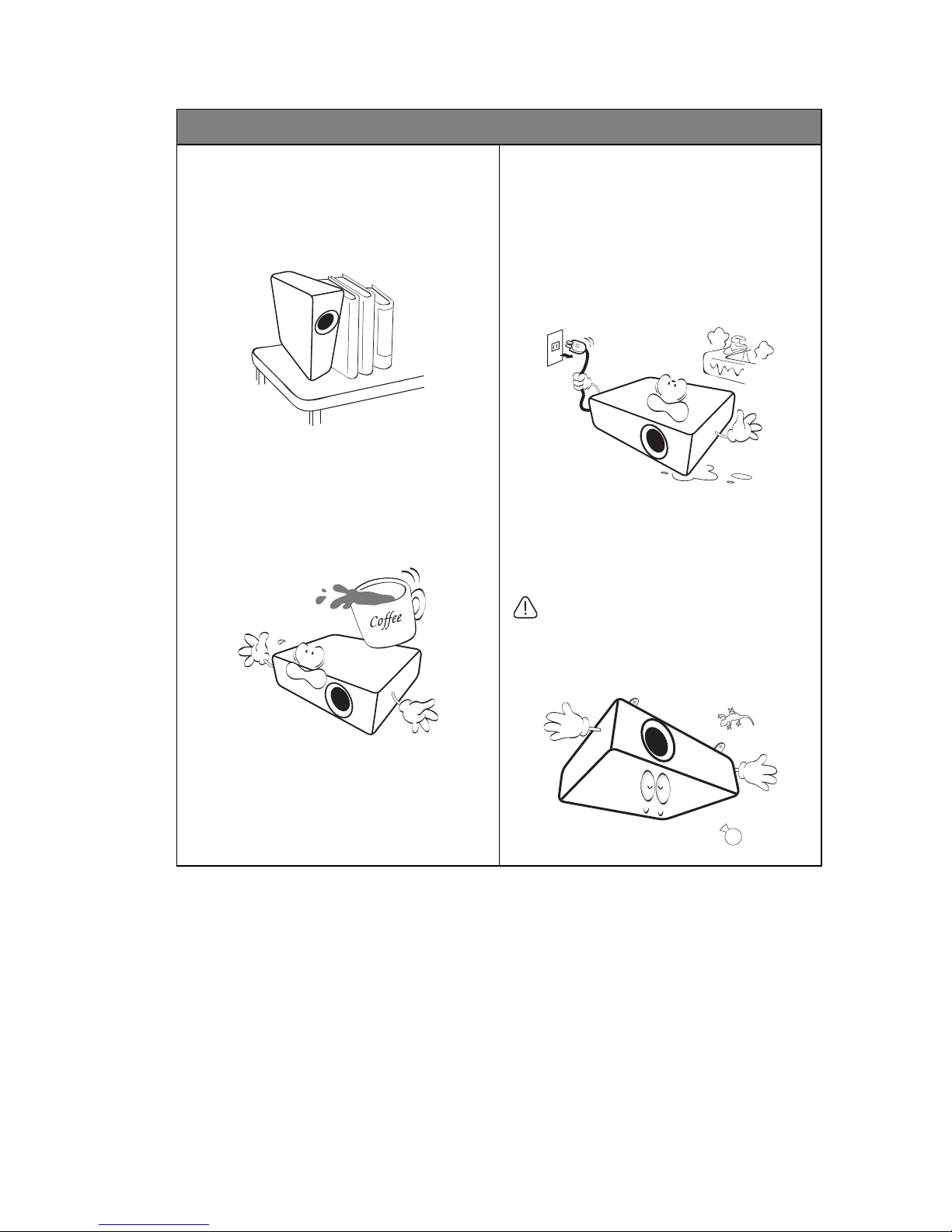

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury

or resulting in damage to the

projector.

17. Do not step on the projector or

place any objects upon it. Besides

probable physical damage to the

projector, doing so may result in

accidents and possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power

supply's wall socket and call BenQ

to have the projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling

Mount Kit for mounting the

projector and ensure it is

securely installed.

Introduction 7

Introduction

Projector features

This model is one of the best projectors available in the world. You can enjoy the best

video quality across various devices such as PC, laptop, DVD and VCR even document

camera to bring all possibility to life.

The projector offers the following features.

• Basic and Advanced menu types for your selection.

• USB A supports USB charging (can't support USB reader)

• Wall color correction allowing projection on surfaces of several

predefined colors

• Auto source speeding up the signal detecting process

• Color management allowing color adjusents to your liking

• Selectable quick cooling function makes the projector cool in a shorter

time

• One-key auto-adjustment to display the best picture quality

• Component HDTV compatibility (YPbPr)

• Less than 0.5 W power consumption in standby mode

• The apparent brightness of the projected image will vary depending on the

ambient lighting conditions, selected input signal contrast/brightness settings,

and is proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp

manufacturers specifications. This is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these

items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your

dealer for detailed information.

Projector Remote control & batteries

Power cord Warranty card*

Quick start guide User manual CD

Introduction 9

Optional accessories

1. Spare lamp kit

2. Ceiling mount kit

3. carry bag

4. 3D glasses

Introduction10

Projector exterior view

1. External control panel

(See "Projector" on page 11 for

details.)

2. Lamp cover

3. Focus ring

4. Quick-release button

5. Lens cover

6. Projection lens

7. Front IR remote sensor

8. Security bar

9. Ventilation holes (intake)

10. Speaker

11. Zoom ring

12. Audio output jack

13. Audio input jack

14. Audio (L/R) input jack

15. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

16. HDMI input jack

17. RS-232 control port

18. USB type A/1.5A jack

19. USB mini-B jack

20. Kensington anti-theft lock slot

21. Ventilation holes (exhaust)

22. Rear adjuster foot

23. Quick-release adjuster foot

24. Ceiling mount holes

25. AC power cord inlet

26. Video input jack

27. Microphone input jack

Front/upper side

15 18

12 14

16 19

24 23

Rear/lower side
