BenQ SX912 Manual de usuario

SX912

Digital Projector

User Manual

Table of contents2

Ta b l e o f c o n t e n t s

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view...........................9

Controls and functions ..........................11

Positioning your

projector ..................... 16

Choosing a location................................16

Obtaining a preferred projected

image size..................................................17

Connection ................. 19

Connecting video source devices........20

Playing sound through the

projector...................................................21

Operation ................... 22

Starting up the projector ......................22

Adjusting the projected image .............23

Using the menus......................................25

Securing the projector...........................26

Utilizing the password function ...........26

Switching input signal .............................29

Magnifying and searching for details ...30

Selecting the aspect ratio ......................30

Optimizing the image .............................32

Setting the presentation timer.............35

Remote paging operations ....................36

Freezing the image ..................................37

Hiding the image......................................37

Locking control keys ..............................37

Operating in a high altitude

environment............................................. 38

Adjusting the sound ............................... 38

Using the test pattern............................ 39

Using the teaching templates............... 40

Using the quick install............................ 40

Shutting down the projector ............... 41

Menu operation ...................................... 42

Maintenance ............... 53

Care of the projector............................ 53

Lamp information ................................... 54

Troubleshooting......... 60

Specifications.............. 61

Projector specifications......................... 61

Dimensions .............................................. 62

Timing chart............................................. 63

Warranty and

information................. 68

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that

you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before

you operate your projector. Save

it for future reference.

2. Do not look straight at the

projector lens during operation.

The intense light beam may damage

your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power cuts

or surges of 10 volts occur. In

areas where the mains voltage

may fluctuate or cut out, it is

recommended that you connect

your projector through a power

stabilizer, surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire. To

temporarily turn off the lamp, press

ECO BLANK on the projector or

remote control.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

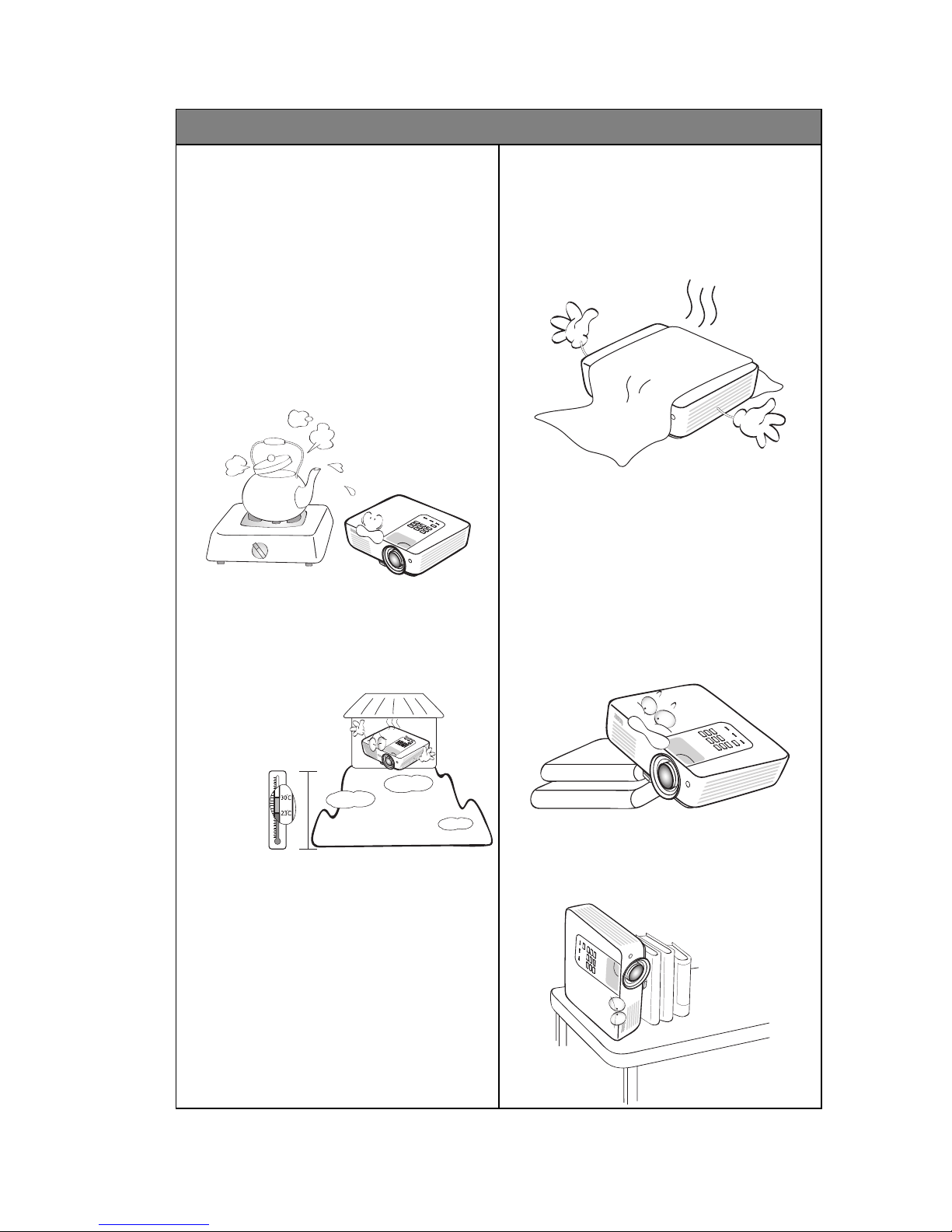

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around

the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span and

darkening the image.

- Locations near fire alarms

- Locations with an ambient temperature

above 40°C / 104°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth

or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector,

doing so may result in accidents and

possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power supply's

wall socket and call BenQ to have the

projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it is

securely installed.

Ceiling mounting the

projector

We want you to have a pleasant

experience using your BenQ

projector, so we need to bring this

safety matter to your attention to

prevent possible damage to person

and property.

If you intend to mount your projector

on the ceiling, we strongly recommend

that you use a proper fitting BenQ

projector ceiling mount kit and that

you ensure it is securely and safely

installed.

If you use a non-BenQ brand

projector ceiling mount kit, there is a

safety risk that the projector may fall

from the ceiling due to an improper

attachment through the use of the

wrong gauge or length screws.

You can purchase a BenQ projector

ceiling mount kit from the place you

purchased your BenQ projector.

BenQ recommends that you also

purchase a separate Kensington lock

compatible security cable and attach it

securely to both the Kensington lock

slot on the projector and the base of

the ceiling mount bracket. This will

perform the secondary role of

restraining the projector should its

attachment to the mounting bracket

become loose.

Hg - Lamp contains mercury. Manage

in accordance with local disposal

laws. See www.lamprecycle.org.

Introduction 7

Introduction

Projector features

The projector offers the following features

•SmartEco™ starts your dynamic power saving

The SmartEco™ technology offers a new way of operating the projector lamp system

and saves lamp power up to 70% depending on the content brightness level.

•Longer lamp life with SmartEco™ technology

The SmartEco™ technology lowers the power consumption and increases the lamp life

when SmartEco mode is selected.

•ECO BLANK saves 70% of lamp power

By pressing the ECO BLANK button to hide the image and immediately lower 70% of

the lamp power at the same time.

•Less than 0.5W in standby condition

Less than 0.5W power consumption under standby mode.

•Filter Free

Filter free design to lower maintenance and operating costs.

•Network Control

Integrated RJ45 connector for wired network control allowing management of

projector status from a computer using a web browser.

•Crestron RoomView®, PJ Link and AMX supported

The projector supports Crestron eControl and RoomView, PJ Link and AMX allowing

you to control and manage equipment from a remote computer via LAN connection.

•One-key auto-adjustment

Pressing AUTO on the keypad or remote control to show the best picture quality

immediately.

•Built-in 5W speaker(s)

Built-in 5W speaker(s) providing mixed mono audio when an audio input is connected.

•Quick Cooling, Auto Power Off, Signal Power On, Direct Power On

Quick Cooling function speeds up the cooling process when turning off the

projector. Auto Power Off function allows the projector to turn off automatically if

no input signal is detected after a set period of time. Signal Power On function turns

on your projector automatically once detecting the signal input and Direct Power On

boots up the projector automatically when the power is connected.

•Instant Restart

Selectable Instant Restart function enables you to restart the projector immediately

within 90 seconds after turning it off.

•3D Function supported

Various 3D formats make the 3D function more flexible. By presenting the depth of the

images, you can wear BenQ 3D glasses to enjoy the 3D movies, videos and sporting

events in a more realistic way.

• The apparent brightness of the projected image will vary depending on the ambient lighting conditions,

selected input signal contrast/brightness settings, and is directly proportional to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers specifications. This

is normal and expected behavior.

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

Optional accessories

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Projector Remote control with battery

Power cord VGA cable

Quick start guide User manual CD Warranty card*

1. Spare lamp kit

2. Ceiling mount kit

3. Soft Carry Case

4. RS232 Cable

Digital Projector

Quick Start Guide

Introduction 9

Projector exterior view

1. Lamp compartment cover

2. Quick-release button

3. Projection lens

4. Focus ring and Zoom ring

5. External control panel

(See "Projector" on page 11 for

details.)

6. Vent (cool air intake)

7. Front IR remote sensor

8. Lens cap & string

9. USB Type B port

10. RGB signal output jack

11. COMPUTER-1 input jack

12. COMPUTRR-2 input jack

13. HDMI 1 input jack

14. HDMI 2 input jack

15. 12V TRIGGER input jack

16. Kensington anti-theft lock slot

17. Rear adjuster foot

18. Audio speaker

19. Rear IR remote sensor

20. VIDEO input jack

21. S-VIDEO input jack

22. Audio (L/R) input jack

23. RS-232 control port

24. Audio input/output jack

25. Quick-release foot

26. RJ45 LAN input jack

27. AC power cord inlet

Front/upper side

Rear/lower side

12 14 15

1620212223242627

139 10 11

19 1725 18

Introduction10

28. Celling mount holes

29. Rear adjuster foot

Bottom side

Otros manuales para SX912

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ V6000 Manual de usuario

BenQ

BenQ MW712 Manual de usuario

BenQ

BenQ MX813ST Manual de usuario

BenQ

BenQ LU9915 Manual de usuario

BenQ

BenQ L890UST Series Instrucciones de funcionamiento y mantenimiento

BenQ

BenQ HT1075 Manual de usuario

BenQ

BenQ LU9750 Manual de usuario

BenQ

BenQ 7765PA - PalmPro XGA DLP Projector Manual de usuario

BenQ

BenQ MW571H Manual de usuario

BenQ

BenQ MX710 Manual de usuario

BenQ

BenQ W1500 Manual de usuario

BenQ

BenQ Home Entertainment Series W1800i Manual de usuario

BenQ

BenQ TK700 Series Manual de usuario

BenQ

BenQ Joybee GP2 Manual de uso y mantenimiento

BenQ

BenQ SX930 Manual de usuario

BenQ

BenQ MS504 Manual de usuario

BenQ

BenQ SH960 Manual de usuario

BenQ

BenQ MH5005 Manual de usuario

BenQ

BenQ MW767 Manual de usuario

BenQ

BenQ Home Cinema W10000 Manual de usuario

BenQ

BenQ Home Entertainment Series Manual de usuario

BenQ

BenQ CineHome I Series Manual de usuario

BenQ

BenQ DX819ST Manual de usuario

BenQ

BenQ PB6100 - SVGA DLP Projector Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
