Welcome

SH910

Digital Projector

User Manual

Table of contents2

Table of contents

Important safety

instructions .........................3

Introduction........................7

Projector features .................................. 7

Shipping contents.................................. 8

Projector exterior view.......................... 9

Controls and functions ....................... 10

Positioning your projector15

Choosing a location............................. 15

Obtaining a preferred projected image

size........................................................ 16

Connection .......................19

Connecting Video source devices....... 21

Operation ........................22

Starting up the projector..................... 22

Adjusting the projected image ............ 23

Using the menus.................................. 25

Securing the projector......................... 26

Switching input signal......................... 28

Magnifying and searching for details . 29

Selecting the aspect ratio..................... 29

Optimizing the image.......................... 31

Remote paging operations .................. 34

Hiding the image ................................. 34

Setting the Sleep Timer ....................... 34

Freezing the image............................... 34

Operating in a high altitude

environment ........................................ 35

Adjusting the sound ............................ 35

Displaying more than one image source

simultaneously..................................... 37

Personalizing the projector menu

display...................................................37

Shutting down the projector ...............38

Controlling the projector through a LAN

environment.........................................39

Displaying image through Q Presenter49

Using the Web Control Lock...............53

Using the Projection Login Code........54

Presenting From a USB Reader...........55

Remote Desktop Control through Q

Presenter...............................................58

Menu operation ...................................60

Maintenance......................73

Care of the projector............................73

Lamp information................................74

Troubleshooting ...............80

Specifications ....................81

Dimensions...........................................82

Ceiling mount installation...................82

Timing chart.........................................83

Warranty and Copyright

information.......................86

Regulation statements ......87

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information

technology equipment. However, to ensure safe use of this product, it is important that you

follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

1. Please read this manual before you

operate your projector. Save it for

future reference.

2. Do not look straight at the projector

lens during operation. The intense

light beam may damage your eyes.

3. Refer servicing to qualified service

personnel.

4. Always open the lens shutter or

remove the lens cap when the

projector lamp is on.

5. In some countries, the line voltage is

NOT stable. This projector is designed

to operate safely within a mains

voltage between 100 to 240 volts AC,

but could fail if power cuts or surges

of ±10 volts occur. In areas where the

mains voltage may fluctuate or cut

out, it is recommended that you

connect your projector through a

power stabilizer, surge protector or

uninterruptible power supply (UPS).

6. Do not block the projection lens with

any objects when the projector is

under operation as this could cause

the objects to become heated and

deformed or even cause a fire.

Important safety instructions4

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for approximately

45 minutes prior to removing the

lamp assembly for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive operation

of lamps beyond the rated life could

cause them to break on rare

occasions.

9. Never replace the lamp assembly or

any electronic components unless

the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining serious

damage.

11. Do not attempt to disassemble this

projector. There are dangerous high

voltages inside which may cause

death if you should come into

contact with live parts. The only

user serviceable part is the lamp

which has its own removable cover.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm clearance

from walls and free flow of air around the

projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows rolled up.

- Locations where excessive humidity, dust,

or cigarette smoke may contaminate

optical components, shortening the

projector's life span and darkening the

image.

- Locations near fire alarms

- Locations with an ambient temperature

above 35°C / 95°F

- Locations where the altitudes are higher

than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a blanket,

bedding or any other soft surface.

- Do not cover this projector with a cloth or

any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a level,

horizontal surface during operation.

- Do not use if tilted at an angle of more

than 10 degrees left to right, nor at angle

of more than 15 degrees front to back.

Using the projector when it is not fully

horizontal may cause a malfunction of, or

damage to, the lamp.

3000 m

(10000 feet)

0 m

(0 feet)

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury or

resulting in damage to the projector.

17. Do not step on the projector or place

any objects upon it. Besides probable

physical damage to the projector, doing

so may result in accidents and possible

injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet, disconnect

it from the power supply's wall socket

and call BenQ to have the projector

serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling Mount Kit for

mounting the projector and ensure it

is securely installed.

Introduction 7

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly

design to deliver high reliability and ease of use.

The projector offers the following features.

• LAN display for network control and web server

• LAN display 4-1 (maximum 4PC/ NB display to 1 projector)

• Remote desktop feature for LAN and USB display 1-M (maximum 1PC/ NB can display

to 8 projectors at the same time)

• USB display supports computer connection via USB mini-B type to A type cable

• USB Reader supports USB flash drive or HDD display

• Variable audio output

• Microphone input with big speakers (10W x2) can save extra audio systems for schools

•SRSWOWHD

TM significantly improves the playback quality of audio, delivering a

dynamic 3D entertainment experience with deep, rich bass and high frequency clarity

for crisp detail.

• HDMI compatibility

• HDCP compatibility

• Quick auto search speeding up the signal detecting process

• Selectable password protected function

• 3D color management allowing color adjustments to your liking

• One-key auto-adjustment to display the best picture quality

• Digital keystone correction to correct distorted images

• Adjustable color balance control for data/video display

• High brightness projection lamp

• Multi-language On-Screen Display (OSD) menus

• Component HDTV compatibility (YPbPr)

• The apparent brightness of the projected image will vary depending on the ambient

lighting conditions, selected input signal contrast/brightness settings, and is proportional

to projection distance.

• The lamp brightness will decline over time and may vary within the lamp manufacturers

specifications. This is normal and expected behavior.

Introduction8

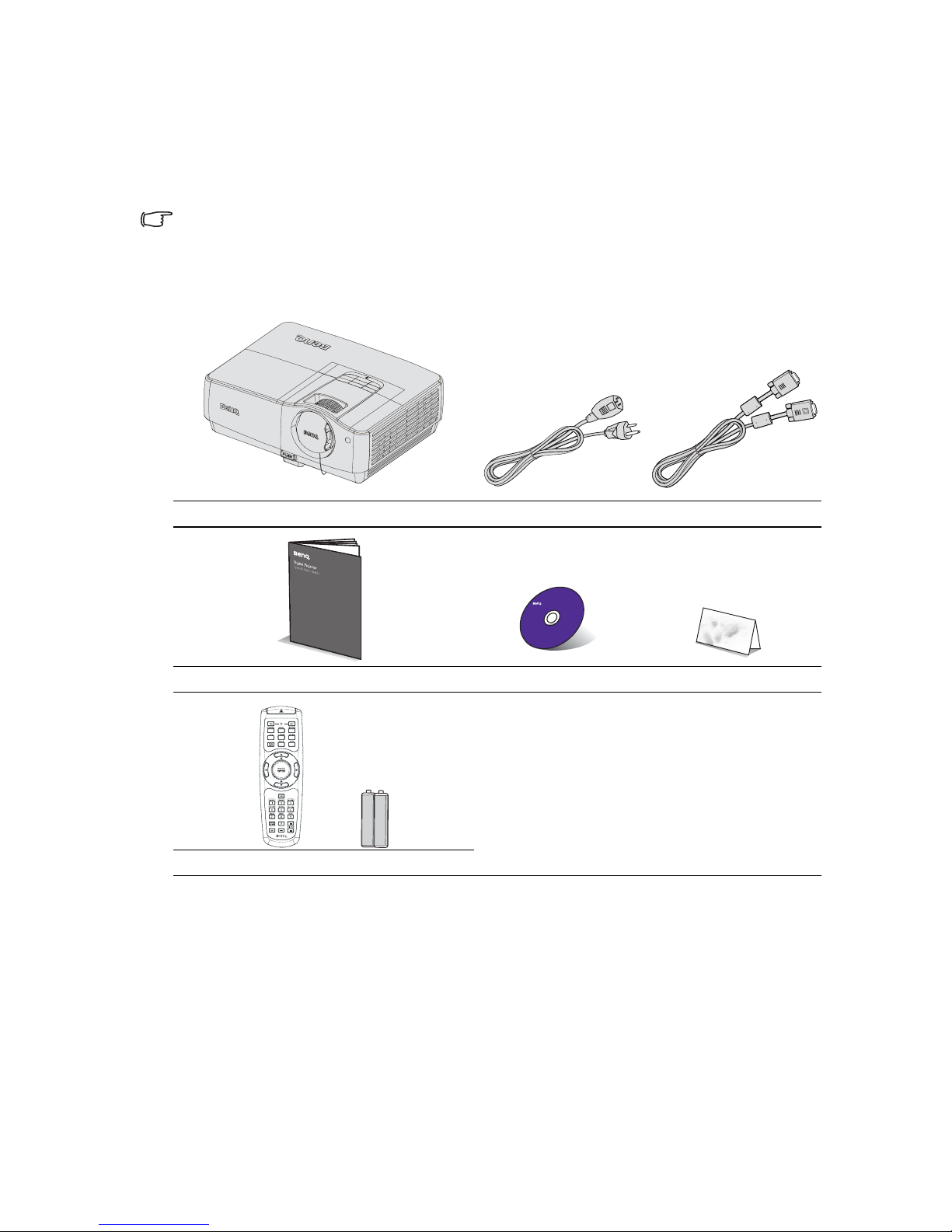

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items

are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those

illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for

detailed information.

Optional accessories

Projector Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with batteries

1. Spare lamp kit

2. Ceiling mount kit

3. Soft carry case

4. RS232 cable

Introduction 9

Projector exterior view

1. External control panel

(See "Projector" on page 10 for

details.)

2. Lamp cover

3. Zoom ring

4. Focus ring

5. Lens cover

6. Vent

7. Speaker

8. Front IR remote sensor

9. Projection lens

10. Quick-release button

11. Kensington anti-theft lock slot

12. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

13. RS-232 control port

14. RGB signal output jack

15. Component input jacks

16. S-Video input jack

Video input jack

17. Type B USB jack

18. mini-B USB jack

19. Type A USB jack

20. RJ45 LAN input jack

21. HDMI input jack

22. Rear IR remote sensor

23. 12V DC output terminal Used to

trigger external devices such as

anelectric screen or light control,

etc. Consult your dealer for how to

connect these devices.

24. Rear adjuster foot

25. Microphone input jack

26. Audio intput jack

Audio output jack

27. Quick release foot

28. Audio (L/R) input jack

29. Ceiling mount holes

30. AC power cord inlet

Front/upper side

Rear/lower side

29 24

30 26

27 2528

13 16 21

14 19

15 22

11 20

17 18 23

Introduction10

Controls and functions

Projector

6. BLANK

Used to hide the screen picture. See

"Hiding the image" on page 34 for details.

7. TEMPerature indicator light

Lights up red if the projector's

temperature becomes too high. See

"Indicators" on page 79 for details.

8. Power/POWER indicator light

Toggles the projector between standby

mode and on.See "Starting up the

projector" on page 22 and "Shutting down

the projector" on page 38 for details.

Lights up or flashes when the projector is

under operation. See "Indicators" on page

79 for detail.

9. LAMP indicator light

Indicates the status of the lamp. Lights up

or flashes when the lamp has developed a

problem. See "Indicators" on page 79 for

details.

10. Source

Displays the source selection bar. See

"Switching input signal" on page 28 for

details.

11. AUTO

Automatically determines the best picture

timings for the displayed image. See

"Auto-adjusting the image" on page 23 for

details.

12. MODE/ENTER

Selects an available picture setup mode.

See "Selecting a picture mode" on page 31

for details.

Activates the selected On-Screen Display

(OSD) menu item. See "Using the menus"

on page 25 for details.

1. Focus ring

Adjusts the focus of the projected image.

See "Fine-tuning the image size and clarity"

on page 24 for details.

2. Zoom ring

Adjusts the size of the image. See "Fine-

tuning the image size and clarity" on page

24 for details.

3. Keystone/Arrow keys ( / Up, /

Down)

Manually corrects distorted images

resulting from an angled projection. See

"Correcting keystone" on page 24 for

details.

4. MENU/EXIT

Turns on the On-Screen Display (OSD)

menu. Goes back to previous OSD menu,

exits and saves menu settings.

5. Volume/Arrow keys ( / Left, /

Right)

Adjusts the sound level.

When the On-Screen Display (OSD) menu

is activated, the #3 and #5 keys are used as

directional arrows to select the desired

menu items and to make adjustments. See

"Using the menus" on page 25 for details.

8 9

Otros manuales para SH910

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ LW500ST Manual de usuario

BenQ

BenQ EW600 Manual de usuario

BenQ

BenQ Mainstream MP510 Manual de usuario

BenQ

BenQ SH963 Manual de usuario

BenQ

BenQ LU935ST Manual de usuario

BenQ

BenQ W2000w Manual de usuario

BenQ

BenQ PB7200 - XGA DLP Projector Manual de usuario

BenQ

BenQ CineHome I Series Manual de usuario

BenQ

BenQ Commuter CP220 Manual de usuario

BenQ

BenQ MP771 - XGA DLP Projector Manual de usuario

BenQ

BenQ SX920 Manual de usuario

BenQ

BenQ Home Entertainment Series Manual de usuario

BenQ

BenQ HT6050 Manual de usuario

BenQ

BenQ L710 Series Manual de usuario

BenQ

BenQ RS232 Commands Manual de usuario

BenQ

BenQ MS550 Manual de usuario

BenQ

BenQ LW600ST Manual de usuario

BenQ

BenQ LU9915 Manual de usuario

BenQ

BenQ LX810STD Manual de usuario

BenQ

BenQ MX760 Manual de usuario

BenQ

BenQ PX9210 Manual de usuario

BenQ

BenQ ES500 Manual de usuario

BenQ

BenQ PX9510 Manual de usuario

BenQ

BenQ MX766 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
