BenQ MW855UST+ Manual de usuario

P/N: 4J.JKS01.001

BenQ.com

Quick Start Guide

Digital Projector

MW855UST+ / MH856UST+

Quick Start Guide

Digital Projector

MW855UST+

MH856UST+

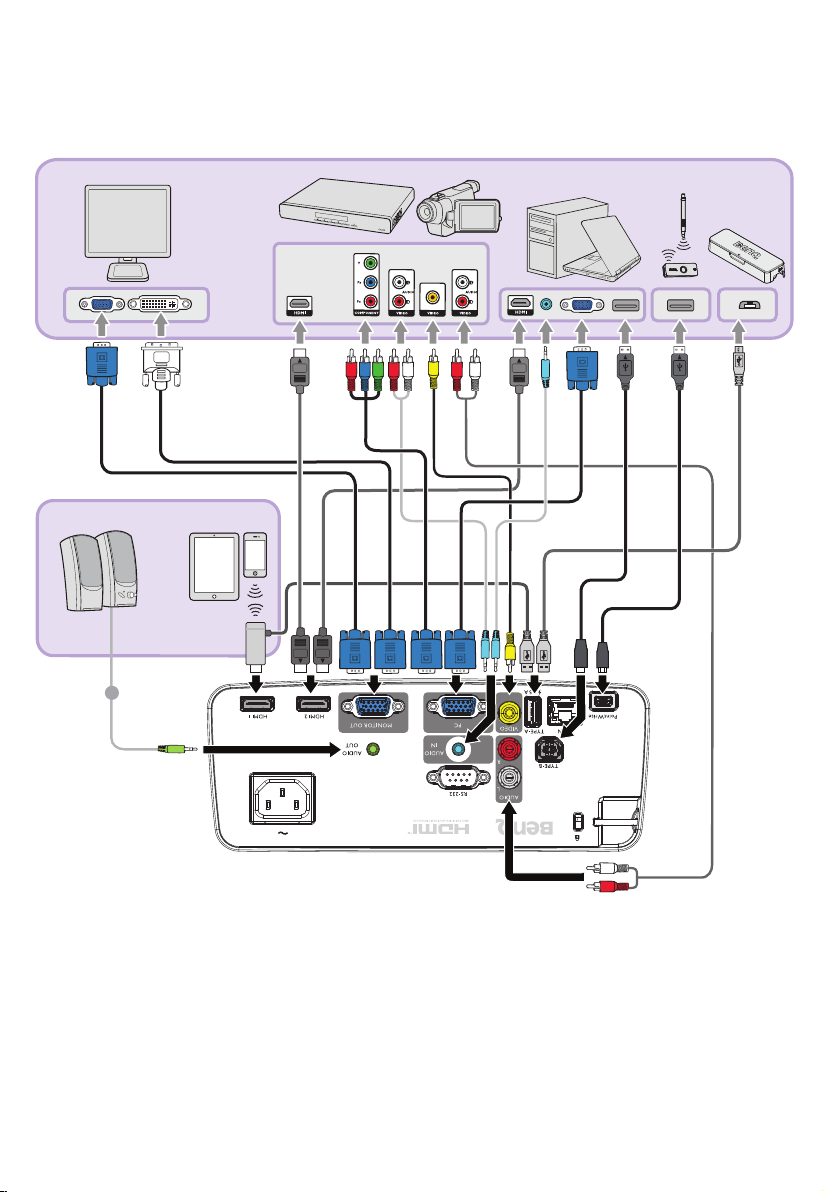

WM04G4/WM04G41

(2.5mm)

No available in

MH856UST+

(Computer 2, S-Video and

Network are not available

in this model)

Source selection buttons

NETWORK

AUTO

MODE/ENTER

PAGE +/PAGE -

MIC/VOL +/MIC/VOL -

MUTE

SMART ECO

QUICK INSTALL

SOURCE

ECO BLANK

ZOOM+/ZOOM-

ASPECT

FREEZE

NETWORK SETTING

Numeric buttons

LASER

(Not available in Japan)

MHL control buttons

(Not available

this model

)

MENU/EXIT

OFF/ON

Keystone/Arrow keys

( / Up)

▲

Keystone/Arrow keys

( / Down)

▲

Left/

◄Right/

►

PointWrite kit

Projection dimensions

MW855UST+

The screen aspect ratio is 16:10 and the projected picture is 16:10.

WXGA

Screen size

(Diagonal) Screen

width (W) Screen

height (H) Projection

distance (D) Offset (H) Scale

parameter

Distance

between

Wall plate &

projection

screen (V)

inch mm inch mm inch mm inch mm inch mm mm

80 2032 67 1723 42 1077 11.40 289.0 11.80 300.0 505 274.7

85 2159 71 1831 45 1144 12.90 326.9 12.40 314.3 540 289.0

87 2210 73 1874 46 1171 13.50 341.9 12.60 320.2 555 294.9

90 2286 76 1939 47 1212 14.40 364.7 13.00 328.9 580 303.6

92 2337 77 1982 48 1239 15.00 379.7 13.20 334.4 595 309.1

95 2413 80 2046 50 1279 15.80 402.1 13.50 343.0 615 317.7

97 2464 81 2089 51 1306 16.40 417.2 13.70 348.9 630 323.6

100 2540 85 2154 53 1346 17.30 439.9 14.00 356.9 655 331.6

Limited lens shift specification (No available in MH856UST+)

Hex Key

(2.5mm)

Hx±2%

The above numbers are approximate and may be slightly different from the actual

measurements. Only the recommended screen sizes are listed.

If your screen size is not in the table above, please contact your dealer for assistance.

1080P

The screen aspect ratio is 16:9 and the projected picture is 16:9.

MH856UST+

There is 5% tolerance among these numbers due to optical component variations. BenQ recom-

mends that if you intend to permanently install the projector, you should physically test the

projection size and distance using the actual projector before you permanently install it, so as to

make allowance for this projector's optical characteristics. This will help you determine the exact

mounting position so that itbest suits your installation location.

It is recommended to adjust focus 15 minutes after powering on due to the slight shifting of

the lens from temperature changing.

inch mm inch mm inch mm inch mm inch mm mm

Screen size

(Diagonal) Screen

width (W) Screen

height (H) Projection

distance (D) Offset (H) Scale

parameter

Distance

between

Wall plate &

projection

screen (V)

89 2258 77.5 1968 43.6 1107 13.20 335.4 13.00 331.2 550 305.9

90 2286 78.4 1991 44.1 1120 13.50 343.0 13.20 334.5 560 309.2

95 2413 82.8 2103 46.6 1183 14.96 380.0 13.80 350.5 595 325.2

97 2464 84.5 2148 47.6 1208 15.55 395.0 14.00 356.7 610 331.4

100 2540 87.1 2213 49.0 1245 16.39 416.3 14.40 366.2 630 340.9

102 2594 89.1 2262 50.1 1272 17.03 432.514.70 373.3 645 348.0

Unit: mm

Ceiling Mount Installation

Wall Mount Installation

(For wall mount installation information, please refer to the wall mount

installation guide in the wall mount box.)

287.5 mm (W) x 206.9 mm (H) x 233.8 mm (D)

233.8 130.2

373.3

287.5

206.9

287.50

43.25 149.25

255.25

206.25

OPTICAL AXIS

247.01

135.51

360~665

141

Regulating

Range

0~30

Regulating Range

0~40

235 195

137.0

55.0 55.0

3.0 12.5

170.0

7.0

195.0

Positioning your projector

Using the quick install

The projector provides a hot key to set Projector

Installation, Test Pattern, and Keystone quickly.

Press Quick Install on the remote control and press ▲/▼

to select:

It is recommended to adjust focus 15 minutes after powering on due to

the slight shifting of the lens from temperature changing.

2. Use the test pattern

3. Correct the image

2D Keystone correction

Corner t correction

Front Wall Rear Table Front Table Rear Wall

1. Choosing a location

Digital shrink and shift Focus
