BenQ MS524E Manual de usuario

Digital Projector

MS524E/MX525E/MW526E

Downloaded From projector-manual.com BenQ Manuals

Table of contents2

Important safety

instructions ................... 3

Introduction.................. 7

Projector features.....................................7

Shipping contents ......................................8

Projector exterior view.........................10

Positioning your

projector ..................... 17

Choosing a location................................17

Obtaining a preferred projected image

size..............................................................18

Connection ................. 20

Connecting a computer or monitor...21

Connecting Video source devices.......22

Operation ................... 26

Starting up the projector ......................26

Adjusting the projected image .............27

Using the menus......................................30

Securing the projector...........................31

Switching input signal .............................33

Magnifying and searching for details ...34

Selecting the aspect ratio ......................35

Optimizing the image .............................36

Setting the presentation timer.............40

Remote paging operations ....................41

Hiding the image......................................42

Freezing the image ..................................42

Operating in a high altitude

environment.............................................43

Adjusting the sound................................43

Use Teaching Template .........................44

Personalizing the projector menu

display ........................................................45

Select the lamp saver mode................. 45

Shutting down the projector ............... 46

Menu operation ...................................... 47

Maintenance ............... 60

Care of the projector............................ 60

Lamp information ................................... 61

Troubleshooting......... 68

Specifications.............. 69

Dimensions .............................................. 70

Ceiling mount installation..................... 70

Timing chart............................................. 71

Warranty and Copyright

information................. 75

Ta b l e o f c o n t e n t s

Downloaded From projector-manual.com BenQ Manuals

Important safety instructions 3

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of

information technology equipment. However, to ensure safe use of this product, it is

important that you follow the instructions mentioned in this manual and marked on

the product.

Safety Instructions

1. Please read this manual before

you operate your projector.

Save it for future reference.

2. Do not look straight at the

projector lens during

operation. The intense light beam

may damage your eyes.

3. Refer servicing to qualified

service personnel.

4. Always open the lens shutter

or remove the lens cap when

the projector lamp is on.

5. In some countries, the line voltage

is NOT stable. This projector is

designed to operate safely within a

mains voltage between 100 to 240

volts AC, but could fail if power

cuts or surges of ±10 volts occur.

In areas where the mains

voltage may fluctuate or cut

out, it is recommended that

you connect your projector

through a power stabilizer,

surge protector or

uninterruptible power supply

(UPS).

6. Do not block the projection lens

with any objects when the

projector is under operation as this

could cause the objects to become

heated and deformed or even cause

a fire.

Downloaded From projector-manual.com BenQ Manuals

Important safety instructions4

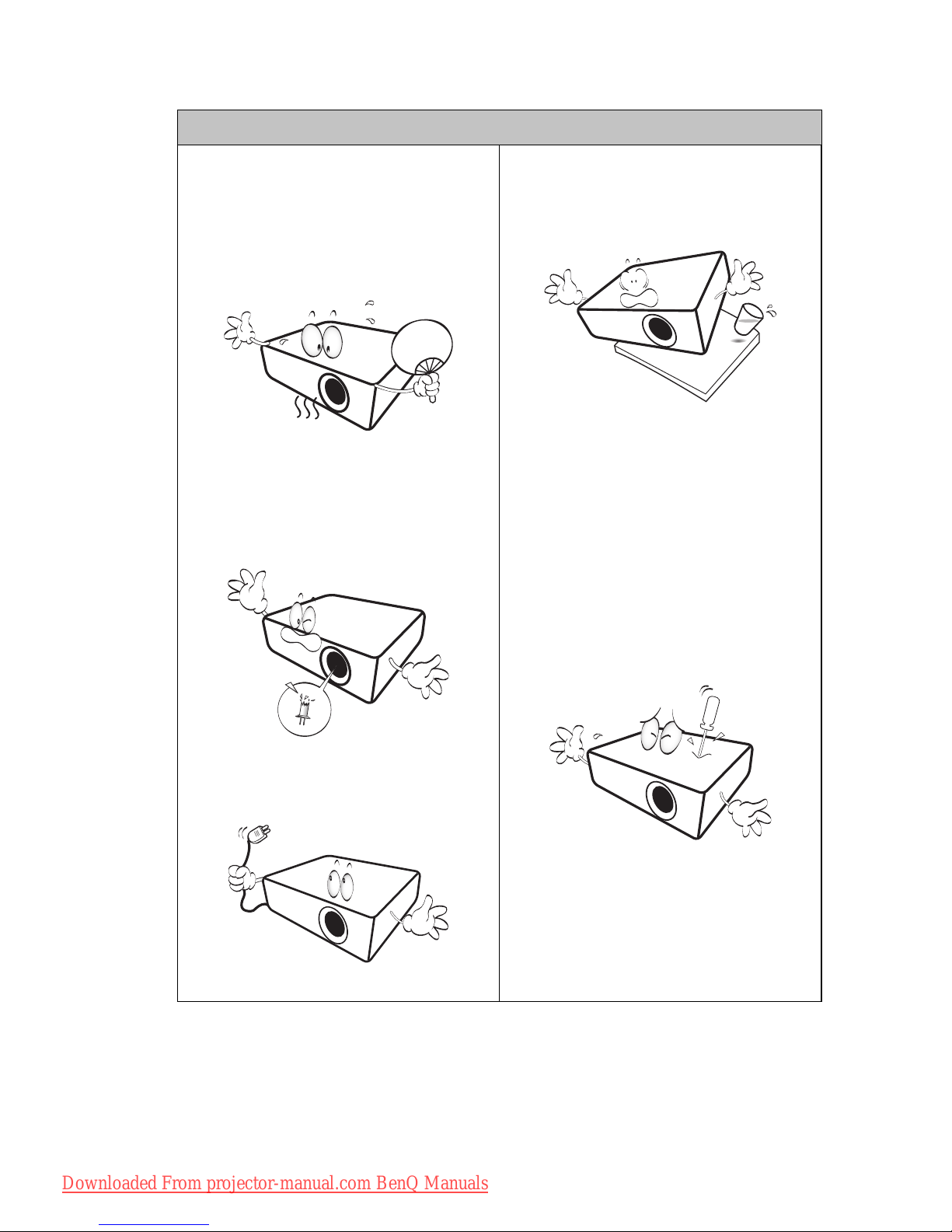

Safety Instructions (Continued)

7. The lamp becomes extremely hot

during operation. Allow the

projector to cool for

approximately 45 minutes prior

to removing the lamp assembly

for replacement.

8. Do not operate lamps beyond the

rated lamp life. Excessive

operation of lamps beyond the

rated life could cause them to

break on rare occasions.

9. Never replace the lamp assembly

or any electronic components

unless the projector is unplugged.

10. Do not place this product on an

unstable cart, stand, or table. The

product may fall, sustaining

serious damage.

11. Do not attempt to disassemble

this projector. There are

dangerous high voltages inside

which may cause death if you

should come into contact with

live parts.

Under no circumstances should you

ever undo or remove any other

covers. Refer servicing only to

suitably qualified professional

service personnel.

12. When the projector is under

operation, you may sense some

heated air and odor from its

ventilation grill. It is a normal

phenomenon and not a product

defect.

Downloaded From projector-manual.com BenQ Manuals

Important safety instructions 5

Safety Instructions (Continued)

13. Do not place this projector in any of

the following environments.

- Space that is poorly ventilated or

confined. Allow at least 50 cm

clearance from walls and free flow of

air around the projector.

- Locations where temperatures may

become excessively high, such as the

inside of a car with all windows

rolled up.

- Locations where excessive humidity,

dust, or cigarette smoke may

contaminate optical components,

shortening the projector's life span

and darkening the image.

- Locations near fire alarms

- Locations with an ambient

temperature above 40°C / 104°F

- Locations where the altitudes are

higher than 3000 m (10000 feet).

14. Do not block the ventilation holes.

- Do not place this projector on a

blanket, bedding or any other soft

surface.

- Do not cover this projector with a

cloth or any other item.

- Do not place inflammables near the

projector.

If the ventilation holes are seriously

obstructed, overheating inside the

projector may result in a fire.

15. Always place the projector on a

level, horizontal surface during

operation.

- Do not use if tilted at an angle of

more than 10 degrees left to right,

nor at angle of more than 15

degrees front to back. Using the

projector when it is not fully

horizontal may cause a malfunction

of, or damage to, the lamp.

3000 m

(10000

feet)

0 m

(0 feet)

Downloaded From projector-manual.com BenQ Manuals

Important safety instructions6

Safety Instructions (Continued)

16. Do not stand the projector on end

vertically. Doing so may cause the

projector to fall over, causing injury

or resulting in damage to the

projector.

17. Do not step on the projector or

place any objects upon it. Besides

probable physical damage to the

projector, doing so may result in

accidents and possible injury.

18. Do not place liquids near or on the

projector. Liquids spilled into the

projector may cause it to fail. If the

projector does become wet,

disconnect it from the power

supply's wall socket and call BenQ

to have the projector serviced.

19. This product is capable of displaying

inverted images for ceiling mount

installation.

Use only BenQ's Ceiling

Mount Kit for mounting the

projector and ensure it is

securely installed.

Downloaded From projector-manual.com BenQ Manuals

Introduction 7

Introduction

Projector features

This model is one of the best projectors available in the world. You can enjoy the best

performance video quality with up to 300-inch projection across various devices such

as PC, laptop, DVD and VCR even document camera to bring all possibility to life.

The projector offers the following features

• SmartEco™ starts your dynamic power saving

SmartEco™ technology saves lamp power consumption depending on the content

brightness level when SmartEco mode is selected

• Longest hours lamp life with SmartEco™ technology

SmartEco™ technology increases the lamp life hours when selecting SmartEco

mode to lower the power consumption

• ECO BLANK saves lamp power

Pressing the ECO BLANK bottom to immediately hide the image, lowering the

lamp power at the same time your image is hiding

• Less than 0.5W in standby condition

Less than 0.5W power consumption under standby mode

•FilterFree

Filter free design to lower maintenance and operating costs.

• One-key auto-adjustment

Pressing AUTO on the keypad or remote control to show the best picture quality

immediately

• Quick Cooling, Auto Power Off, Direct Power On

Quick Cooling function speeds up the cooling process when turning off the

projector. Auto Power Off function allows the projector to turn off automatically

if no input signal is detected after a set period of time. Direct Power On turns

your projector when the power is fed.

•InstantRestart

Selectable Instant Restart function enables you to restart the projector

immediately within 90 seconds after turning it off.

• 3D Function supported

Various 3D formats make the 3D function more flexible. By presenting the depth

of the images, you can wear BenQ 3D glassed to enjoy the 3D movies, videos and

sporting events in a more realistic way.

• The apparent brightness of the projected image will vary depending on

the ambient lighting conditions, selected input signal contrast/

brightness settings, and is proportional to projection distance.

• The lamp brightness will decline over time and may vary within the

lamp manufacturers specifications. This is normal and expected

behavior.

Downloaded From projector-manual.com BenQ Manuals

Introduction8

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these

items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ

from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult

your dealer for detailed information.

Projector Power cord VGA cable

Quick start guide User manual CD Warranty card*

Remote control with battery

Digital Projector

uick Start Guide

Downloaded From projector-manual.com BenQ Manuals

Introduction 9

Optional accessories

1. Spare lamp kit

2. Ceiling mount kit

3. Carry bag

4. 3D glasses

5. Presentation plus

Downloaded From projector-manual.com BenQ Manuals

Introduction10

Projector exterior view

1. External control panel

(See "Projector" on page 11 for

details.)

2. Lamp cover

3. Zoom ring

4. Focus ring

5. Lens cover

6. Vent (heated air exhaust)

7. Front IR remote sensor

8. Projection lens

9. Quick-release button

10. Audio input jack

11. S-Video input jack

12. RGB (PC)/Component video

(YPbPr/ YCbCr) signal input jack

13. RGB signal output jack

14. HDMI input jack

15. RS-232 control port

16. USB input jack

17. Kensington anti-theft lock slot

18. Audio output jack

19. Video input jack

20. AC power cord inlet

21. Ceiling mount holes

22. Rear adjuster foot

Front/upper side

Rear/lower side

10 12 14

189

15 16

Downloaded From projector-manual.com BenQ Manuals

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ MX842UST Manual de usuario

BenQ

BenQ SP870 - XGA DLP Projector Manual de usuario

BenQ

BenQ W1100 Manual de usuario

BenQ

BenQ X500i Manual de usuario

BenQ

BenQ LX810STD Manual de usuario

BenQ

BenQ W1350 Manual de usuario

BenQ

BenQ QSG-3 Series Manual de usuario

BenQ

BenQ Home Cinema WI300 Manual de usuario

BenQ

BenQ LX60ST Manual de usuario

BenQ

BenQ MW721 Manual de usuario

BenQ

BenQ GSI Outdoor Leisure Series Manual de usuario

BenQ

BenQ PE8700 - DLP Projector - HD Manual de usuario

BenQ

BenQ LU9915 Manual de usuario

BenQ

BenQ MW712 Manual de usuario

BenQ

BenQ V7000i Manual de usuario

BenQ

BenQ MX766 Manual de usuario

BenQ

BenQ DLP Manual de usuario

BenQ

BenQ SP891 Manual de usuario

BenQ

BenQ MP610 - SVGA DLP Projector Manual de instrucciones de instalación

BenQ

BenQ MX662 Manual de usuario

BenQ

BenQ BH3002 Manual de usuario

BenQ

BenQ LW730 Manual de usuario

BenQ

BenQ CH100 Manual de usuario

BenQ

BenQ CH100 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
