BenQ HT5550 Manual de usuario

English

Table of Contents

Important safety instructions .............................................................................................. 2

Shipping contents ....................................................................................................................................... 4

Specifications ............................................................................................................................................... 4

Projector dimensions ................................................................................................................................ 5

Terminals ...................................................................................................................................................... 5

Projection dimensions ............................................................................................................................... 7

Ceiling mount installation diagram ......................................................................................................... 8

RS-232 command .................................................................................................................. 9

RS-232 pin assignment .............................................................................................................................. 9

English

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology

equipment. However, to ensure safe use of this product, it is important that you follow the instructions

mentioned in the user manual / installation guide and marked on the product.

1. Please read the user manual / installation guide before you operate your projector. Save

it for future reference.

2. Do not look straight at the projector lens during operation. The intense light beam may

damage your eyes.

3. Refer servicing to qualified service personnel.

4. Always open the lens shutter (if any) or remove the lens cap (if any) when the

projector light source is on.

5. The light source becomes extremely hot during operation.

6. In some countries, the line voltage is NOT stable. This projector is designed to operate safely

within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10

volts occur. In areas where the mains voltage may fluctuate or cut out, it is

recommended that you connect your projector through a power stabilizer, surge

protector or uninterruptible power supply (UPS).

7. Do not block the projection lens with any objects when the projector is under operation as this

could cause the objects to become heated and deformed or even cause a fire. To temporarily turn

off the light source, use the blank function.

8. Do not operate light sources beyond the rated light source life.

9. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

10. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining

serious damage.

11. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may

cause death if you should come into contact with live parts.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to

suitably qualified professional service personnel.

12. Do not block the ventilation holes.

- Do not place this projector on a blanket, bedding or any other soft surface.

- Do not cover this projector with a cloth or any other item.

- Do not place inflammables near the projector.

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

13. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to

back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

14. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing

injury or resulting in damage to the projector.

15. Do not step on the projector or place any objects upon it. Besides probable physical damage to the

projector, doing so may result in accidents and possible injury.

16. When the projector is under operation, you may sense some heated air and odor from its

ventilation grill. It is a normal phenomenon and not a product defect.

English

17. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail.

If the projector does become wet, disconnect it from the power supply's power outlet and call

BenQ to have the projector serviced.

18. This product is capable of displaying inverted images for ceiling mount installation.

19. This apparatus must be earthed.

20. Do not place this projector in any of the following environments.

- Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the

projector.

- Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the

projector's life span and darken the image.

- Locations near fire alarms

- Locations with an ambient temperature above 40°C / 104°F

- Locations where the altitudes are higher than 3000 m (10000 feet).

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

Cooling notice

Risk Group 2

1. According to the classification of photobiological safety of light

sources and light source systems, this product is Risk Group 2,

IEC 62471-5:2015.

2. Possibly hazardous optical radiation emitted from this product.

3. Do not stare at operating light source. May be harmful to the

eyes.

4. As with any bright source, do not stare into the direct beam.

Ventilation Caution for installation

Avoid using the projector

in a poorly ventilated or

confined space.

For proper ventilation of the projector, make sure to leave some space

around the projector as shown in the illustration below:

• Table • Table

• Ceiling • Stacking

Air inlet

Air outlet

50 cm

above

70 cm

above

50 cm

above 50 cm

above

30 cm

above 50 cm

above

Minimum 100 mm

English

Product information

Shipping contents

Optional accessories

Specifications

Projector Remote control with batteries Power cord

Installation guide User manual CD Warranty card*

• The supplied accessories will be suitable for your region, and may differ from those illustrated.

• *The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

1. Spare lamp kit

2. Ceiling mount kit

3. BenQ WDP02

4. BenQ 3D glasses

Display system 1-CHIP DMD

Resolution 3840 x 2160 with XPR

Light source 240 W lamp

Brightness 1800 Lumens

Power consumption 405 W (Max); < 0.5 W (Standby)

Weight 6.5 Kg + 100 g (14.33 + 0.22 lbs)

Installation Guide

Digital Projector

English

Projector dimensions

492 mm (W) x 168.5 mm (H) x 349 mm (D))

Te r m i n a l s

1. LAN (10/100M)

For connection to a RJ45 Cat5/Cat6

Ethernet cable to control the projector

through a network.

2. SPDIF

For digital audio output connection.

3. IR IN

For use with an IR extender cable to

ensure better signal reception from the

remote control.

4. 12V TRIGGER

Triggers external devices such as an

electric screen or light control, etc.

5. MEDIA READER (USB 3.0 Type-A)

Connects to a USB flash drive for reading

multimedia files.

6. HDMI 1 (Version 2.0b)

For connection to an HDMI source.

7. HDMI 2 (Version 2.0b)

For connection to an HDMI source.

8. USB MINI-B

For firmware upgrade only.

9. RS-232

Standard 9-pin D-sub interface for connection to a

PC control system and projector maintenance.

10. MEDIA READER (USB 2.0 Type-A)

Connects to a USB flash drive for reading

multimedia files.

11. 2.5A (USB 2.0 Type-A, Power Supply)

Supports 2.5A power supply.

12. AUDIO OUT

For connection to external speakers.

Unit: mm

492

349 168.5

11 12

1 2 3

5 6 7 8 9

English

Remote control

On Off

SOURCE

Left

BACK

CONTRAST

PIC MODE

COLOR TEMP

GAMMA

SHARP

TEST PATTERN

DEFAULT

Right

Down MENU

CINEMAMASTER

INVERT

DYNAMIC IRIS

LIGHT MODE

COLOR MANAGE

ECO BLANK

LIGHT

HDR

BRIGHT

Keystone

MOTION ENHANCER

English

Installation

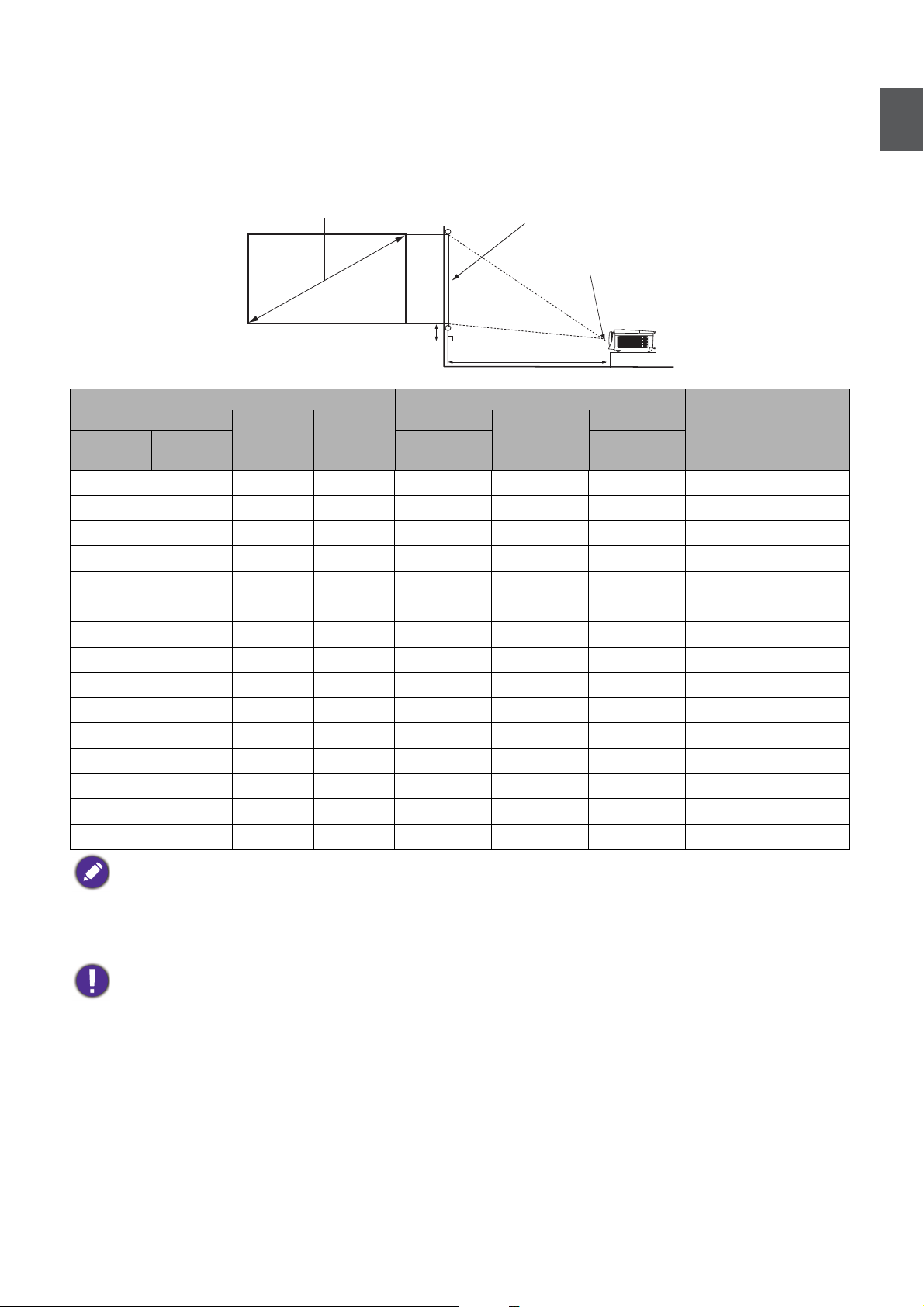

Projection dimensions

• The screen aspect ratio is 16:9 and the projected picture is in a 16:9 aspect ratio

Screen size Distance from screen (mm) Vertical offset

(Lowest/Highest lens

position) (mm)

Diagonal

H (mm) W (mm)

Min length

Average

Max length

Inch mm (max.

zoom)

(min.

zoom)

60 1524 747 1328 1800 2348 2896 75

70 1778 872 1550 2100 2739 3378 87

80 2032 996 1771 2400 3130 3861 100

90 2286 1121 1992 2700 3522 4343 112

100 2540 1245 2214 3000 3913 4826 125

110 2794 1370 2435 3300 4304 5309 137

120 3048 1494 2657 3600 4696 5791 149

130 3302 1619 2878 3900 5087 6274 162

140 3556 1743 3099 4200 5478 6757 174

150 3810 1868 3321 4500 5870 7239 187

160 4064 1992 3542 4800 6261 7722 199

170 4318 2117 3763 5100 6652 8204 212

180 4572 2241 3985 5400 7043 8687 224

190 4826 2366 4206 5700 7435 9170 237

200 5080 2491 4428 6000 7826 9652 249

All measurements are approximate and may vary from the actual sizes.

BenQ recommends that if you intend to permanently install the projector, you should physically test the projection

size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this

projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your

installation location.

• Ceiling installation must be done by a qualified professional. Contact your dealer for more information. It is not

recommended you install the projector yourself.

• Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped.

• Do not use the projector in an environment where extreme temperature occurs. The projector must be used at

temperatures between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees

Celsius).

• Screen damage will occur if the projector is exposed to moisture, dust or smoke.

• Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the projector

will occur if the vents are covered.

Projection distance

Center of lens

Screen16:9 Screen diagonal

Vertical offset

English

Shifting the projection lens

Ceiling mount installation diagram

Vertical shift

Max. 0.65V

Height of

projected


Max. 0.65V

Projection range

Width of projected image

Shift to

right

Desk-front

projection

Ceiling mount-front

projection

Max. 0.65V

Max. 0.28H Max. 0.28H

Shift to

left

Height of

projected


150

280

Ceiling mount screw: M4

(Max L = 25 mm; Min L = 20 mm)

Unit: mm

English

RS-232 command

RS-232 pin assignment

No. Serial No. Serial

1NC 6NC

2RX 7RTSZ

3TX 8CTSZ

4NC 9NC

5GND

Function Ty p e Operation ASCII

Power

Write Power On <CR>*pow=on#<CR>

Write Power Off <CR>*pow=off#<CR>

Read Power Status <CR>*pow=?#<CR>

Source Selection

Write COMPUTER/YPbPr <CR>*sour=RGB#<CR>

Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR>

Write COMPUTER 3/YPbPr3 <CR>*sour=RGB3#<CR>

Write Component <CR>*sour=ypbr#<CR>

Write Component2 <CR>*sour=ypbr2#<CR>

Write DVI-A <CR>*sour=dviA#<CR>

Write DVI-D <CR>*sour=dvid#<CR>

Write HDMI (MHL) <CR>*sour=hdmi#<CR>

Write HDMI 2 (MHL2) <CR>*sour=hdmi2#<CR>

Write Composite <CR>*sour=vid#<CR>

Write S-Video <CR>*sour=svid#<CR>

Write Network <CR>*sour=network#<CR>

Write USB Display <CR>*sour=usbdisplay#<CR>

Write USB Reader <CR>*sour=usbreader#<CR>

Write HDbaseT <CR>*sour=hdbaset#<CR>

Write DisplayPort <CR>*sour=dp#<CR>

Write 3G-SDI <CR>*sour=sdi#<CR>

Write Smart System <CR>*sour=smartsystem#<CR>

Read Current source <CR>*sour=?#<CR>

Audio Control

Write Mute On <CR>*mute=on#<CR>

Write Mute Off <CR>*mute=off#<CR>

Read Mute Status <CR>*mute=?#<CR>

Write Volume + <CR>*vol=+#<CR>

Write Volume - <CR>*vol=-#<CR>

Write Volume level for customer <CR>*vol=value#<CR>

Read Volume Status <CR>*vol=?#<CR>

Write Mic. Volume + <CR>*micvol=+#<CR>

Write Mic. Volume - <CR>*micvol=-#<CR>

Read Mic. Volume Status <CR>*micvol=?#<CR>

Audio source select

Write Audio Pass Through off <CR>*audiosour=off#<CR>

Write Audio-Computer1 <CR>*audiosour=RGB#<CR>

Write Audio-Computer2 <CR>*audiosour=RGB2#<CR>

Write Audio-Video/S-Video <CR>*audiosour=vid#<CR>

Write Audio-Component <CR>*audiosour=ypbr#<CR>

Write Audio-HDMI <CR>*audiosour=hdmi#<CR>

Write Audio-HDMI2 <CR>*audiosour=hdmi2#<CR>

Read Audio Pass Status <CR>*audiosour=?#<CR>

12345

6789

English

Function Ty p e Operation ASCII

Picture Mode

Write Dynamic <CR>*appmod=dynamic#<CR>

Write Presentation <CR>*appmod=preset#<CR>

Write sRGB <CR>*appmod=srgb#<CR>

Write Bright <CR>*appmod=bright#<CR>

Write Living Room <CR>*appmod=livingroom#<CR>

Write Game <CR>*appmod=game#<CR>

Write Cinema (Rec.709) <CR>*appmod=cine#<CR>

Write Standard/Vivid <CR>*appmod=std#<CR>

Write Football <CR>*appmod=football#<CR>

Write Football Bright <CR>*appmod=footballbt#<CR>

Write DICOM <CR>*appmod=dicom#<CR>

Write THX <CR>*appmod=thx#<CR>

Write Silence mode <CR>*appmod=silence#<CR>

Write DCI-P3 mode (D. Cinema) <CR>*appmod=dci-p3#<CR>

Write Vivid <CR>*appmod=vivid#<CR>

Write Infographic <CR>*appmod=infographic#<CR>

Write User1 <CR>*appmod=user1#<CR>

Write User2 <CR>*appmod=user2#<CR>

Write User3 <CR>*appmod=user3#<CR>

Write ISF Day <CR>*appmod=isfday#<CR>

Write ISF Night <CR>*appmod=isfnight#<CR>

Write 3D <CR>*appmod=threed#<CR>

Write Sport <CR>*appmod=sport#<CR>

Write HDR <CR>*appmod=hdr#<CR>

Write HLG <CR>*appmod=hlg#<CR>

Read Picture Mode <CR>*appmod=?#<CR>

Picture Setting

Write Contrast + <CR>*con=+#<CR>

Write Contrast - <CR>*con=-#<CR>

Write Set Contrast value <CR>*con=value#<CR>

Read Contrast value <CR>*con=?#<CR>

Write Brightness + <CR>*bri=+#<CR>

Write Brightness - <CR>*bri=-#<CR>

Write Set Brightness value <CR>*bri=value#<CR>

Read Brightness value <CR>*bri=?#<CR>

Write Color + <CR>*color=+#<CR>

Write Color - <CR>*color=-#<CR>

Write Set Color value <CR>*color=value#<CR>

Read Color value <CR>*color=?#<CR>

Write Sharpness + <CR>*sharp=+#<CR>

Write Sharpness - <CR>*sharp=-#<CR>

Write Set Sharpness value <CR>*sharp=value#<CR>

Read Sharpness value <CR>*sharp=?#<CR>

Write Flesh Tone + <CR>*fleshtone=+#<CR>

Write Flesh Tone - <CR>*fleshtone=-#<CR>

Write Set Flesh Tone value <CR>*fleshtone=value#<CR>

Read Flesh Tone value <CR>*fleshtone=?#<CR>

Write Color Temperature-Warmer <CR>*ct=warmer#<CR>

Write Color Temperature-Warm <CR>*ct=warm#<CR>

Write Color Temperature-Normal <CR>*ct=normal#<CR>

Write Color Temperature-Cool <CR>*ct=cool#<CR>

Write Color Temperature-Cooler <CR>*ct=cooler#<CR>

Write Color Temperature-lamp native <CR>*ct=native#<CR>

Read Color Temperature Status <CR>*ct=?#<CR>

Write Aspect 4:3 <CR>*asp=4:3#<CR>

Otros manuales para HT5550

Tabla de contenidos

Otros manuales de Proyector de BenQ

BenQ

BenQ GP20 Manual de usuario

BenQ

BenQ PW9500 Manual de usuario

BenQ

BenQ PX9210 Manual de usuario

BenQ

BenQ Home Entertainment Series W1800i Manual de usuario

BenQ

BenQ W1800 Manual de usuario

BenQ

BenQ EX600 Manual de usuario

BenQ

BenQ DX550 Manual de usuario

BenQ

BenQ SP870 - XGA DLP Projector Manual de usuario

BenQ

BenQ L710 Series Manual de usuario

BenQ

BenQ MS630ST Manual de usuario

BenQ

BenQ MX613ST Manual de usuario

BenQ

BenQ Installation Series PB8250 Manual de usuario

BenQ

BenQ mp612 Manual de usuario

BenQ

BenQ MS614 Manual de usuario

BenQ

BenQ Home Entertainment Series Manual de usuario

BenQ

BenQ MP727 - XGA DLP Projector Manual de usuario

BenQ

BenQ TH530 Manual de usuario

BenQ

BenQ MX660P series Instrucciones de instalación y funcionamiento

BenQ

BenQ W1100 Manual de usuario

BenQ

BenQ MW814ST Manual de usuario

BenQ

BenQ W1400 Manual de usuario

BenQ

BenQ W1050 Manual de usuario

BenQ

BenQ W703D Instrucciones de uso

BenQ

BenQ MP512 - SVGA DLP Projector Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario
