BenQ HT2050 Manual de usuario

Optional

Wireless FHD Kit (WDP01)

Digital Projector

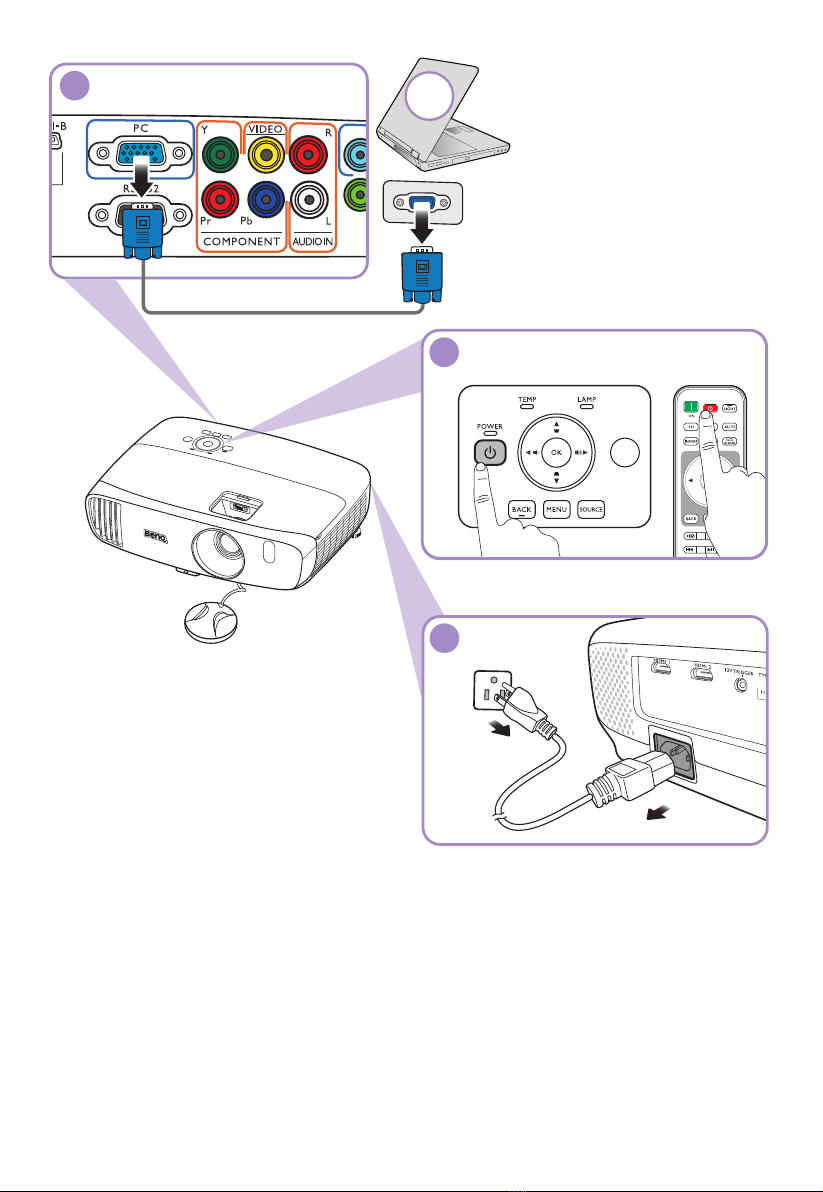

Quick Start Guide

Projection dimensions

Installation for a 16:9 ratio screen

The screen aspect ratio is 16:9 and the projected picture is in 16:9 aspect ratio

Projection distance

Center of lens

Screen

16:9 Screen diagonal

Screen size Projection distance (mm) Lowest/Highest offset

lens position (mm)

Diagonal H (mm) W (mm) Min. distance Average Max. distance

Inch mm (max. zoom) (min. zoom) min max.

60 1524 747 1328 1519 1747 1975 37 112

70 1778 872 1550 1772 2038 2304 44 131

80 2032 996 1771 2025 2329 2633 50 149

90 2286 1121 1992 2278 2620 2962 56 168

100 2540 1245 2214 2532 2911 3291 62 187

110 2794 1370 2435 2785 3203 3620 68 205

120 3048 1494 2657 3038 3494 3949 75 224

130 3302 1619 2878 3291 3785 4278 81 243

140 3556 1743 3099 3544 4076 4608 87 262

150 3810 1868 3321 3797 4367 4937 93 280

160 4064 1992 3542 4051 4658 5266100 299

170 4318 2117 3763 4304 4949 5595106 318

180 4572 2241 3985 4557 5241 5924112 336

Lowest/Highest

offset lens position

All measurements are approximate and may vary from the actual sizes. If you want a

permanent installation of the projector, we recommend that you use the actual

projector to phys ically test the projection size, distance, and the projector's optical

characteristics prior to the installation. This helps you determine the exact

mounting position which best suits your installation.

If your screen size is not in the table above, please contact your dealer for assistance.

Ceiling Mount Screws:

M4 (Max. L = 25 mm; Min. L= 20 mm)

Unit: mm

35.00

285.96

113.37 142.1

172.23

380.49

537.9

577.7

35 132.9

630.44

53.9

160

122.14 47

oror

OFF

Table of contents

English ........................................................................................... 9

Français ......................................................................................... 10

Deutsch ......................................................................................... 11

Italiano ........................................................................................... 12

Español .......................................................................................... 13

Português ......................................................................................14

Svenska .......................................................................................... 15

Русский ........................................................................................ 16

Nederlands ................................................................................... 17

Polski .............................................................................................. 18

Türkçe ........................................................................................... 19

Čeština .......................................................................................... 20

Suomi .............................................................................................27

繁體中文 ...................................................................................... 22

................................................................................................... 21

...................................................................................... 23

............................................................................................ 24

............................................................................................ 25

..............................................................................................26

All specifications are subject to change without notice.

Optical

Resolution

1920 (H) x 1080 (V)

Display system

Single-chip DLP™system

Lens F/Number

F = 2.59 to 2.87, f = 16.88 to 21.88 mm

Lamp

240 W lamp

Electrical

Power supply

AC100–240V, 3.5 A, 50-60 Hz

(Automatic)

Power consumption

375 W (Max); < 0.5 W (Standby)

Mechanical

Weight

3.2 Kg (7.05 lbs)

Output terminals

Speaker

(Stereo) 5 watt x 1

Audio signal output

PC audio jack x 1

Control

RS-232 serial control

9 pin x 1

IR receiver x 2

12VDC (Max. 0.5 A) x 1

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x 1

Video signal input

VIDEO

RCA jack x 1

SD/HDTV signal input

Analog - Component RCA jack x 3

(through RGB input)

Digital - HDMI x 2

Audio signal input

Audio in

RCA audio jack (L/R) x 2

PC audio jack x 1

USB port (Type-A x 1; Mini-B x 1)

Environmental Requirements

Operating temperature

0°C–40°C at sea level

Operating relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C

(with High Altitude Mode on)

Specifications

(EN)

W1110-QSG-18L-FM12.fm Page 9 Monday, July 13, 2015 9:21 AM
