BenQ GW2381 Manual de usuario

Recycle Disassemble Instruction

(Dismantled Information)

Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU

on waste electrical and electronic equipment (WEEE)

Materials and components with hazardous content

LCDs may contain hazardous substances like Pb and BFRs which are covered by

exemptions under the RoHS directive. However, the majority is present in the printed

circuit boards assembly. In order to reduce emissions as much as possible, a complete

disposal of the old appliance is required. This treatment may only be performed in

authorized handling plants.

Product Name: LCD Monitor

Model No.: GW2381,GW2381E

Disassembly Tools

Tool


Philips Screwdriver for M3 Screw

Nosed Pliers

Diagonal Cutting Pliers

Slotted screwdriver

Six Point Sockets

Philips Screwdriver for M2.5 Screw

Knife

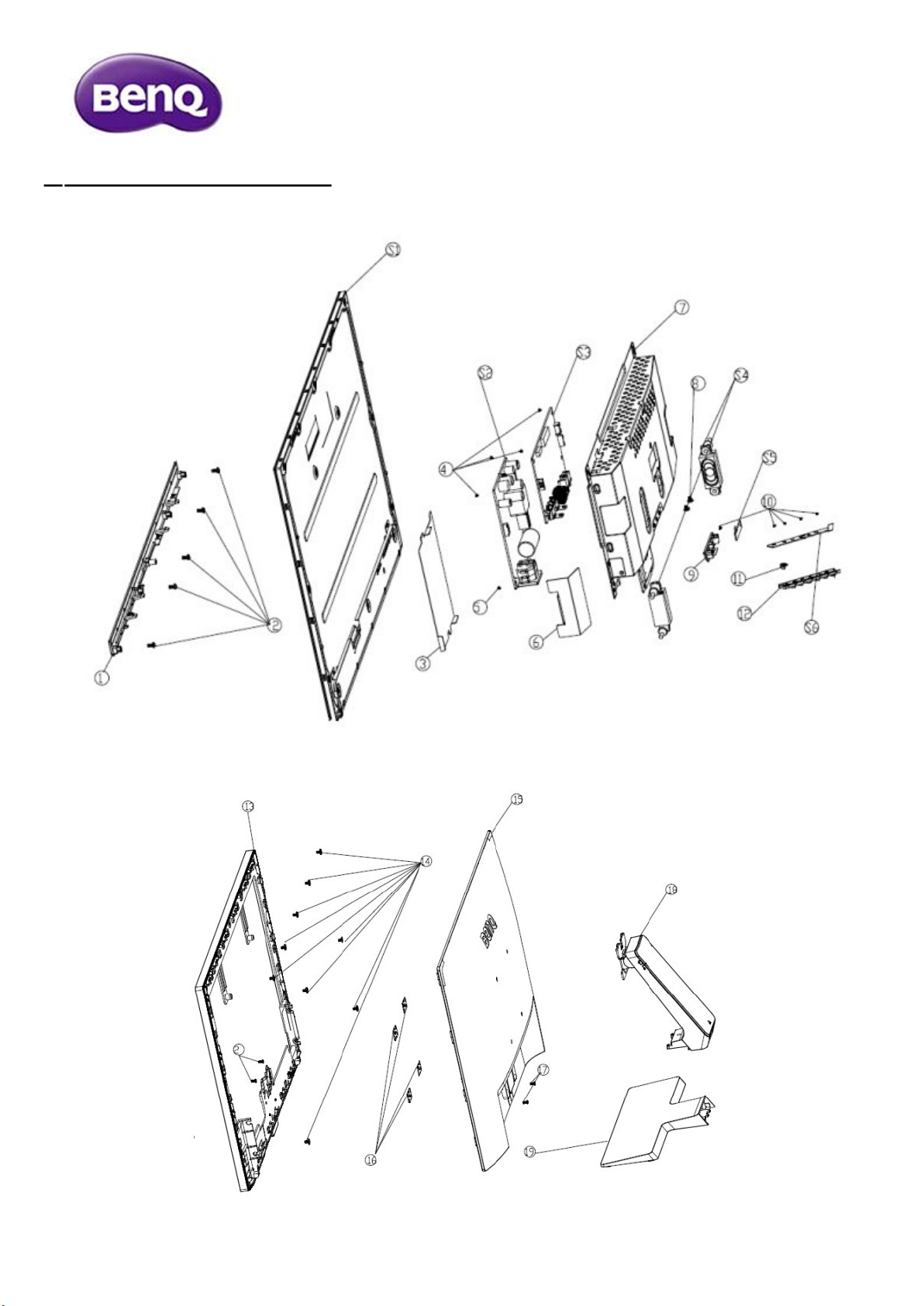

Product exploded view

Package view

External cable

Item

Description

Qty

Unit

P01

Power cable

PCS

P02

D-Sub cable

PCS

P03

DVI cable

PCS

P04

IP cable

PCS

P05

Audio cable

PCS

Disassembly process

Remove the base

1.1.

Place the monitor face down on a smooth surface, use your fingers to release the screw located at the bottom of the

base.

Place the monitor face down on a smooth surface, use your fingers to release the screw located at the bottom of the

base.

Remove the stand assembly with both hands.

While using the sharp object to insert into the release hole, slide the base out.

Remove the rear cover

3.1

Use the screwdriver (not provided) to release the screws first.

3.2

Use the tool (as below picture) to open all the latches slowly and carefully from one of opening hole designed on

the bottom sides of back cover.

Remove

the

boards

from

the

main

frame

Remove the main frame from the panel.

4.1

Remove all the tapes.

4.2

Release the screws located on the top of main frame and disconnect all the cables to remove the main frame.

Remove

the

middle

frame

and

bezel

from

panel

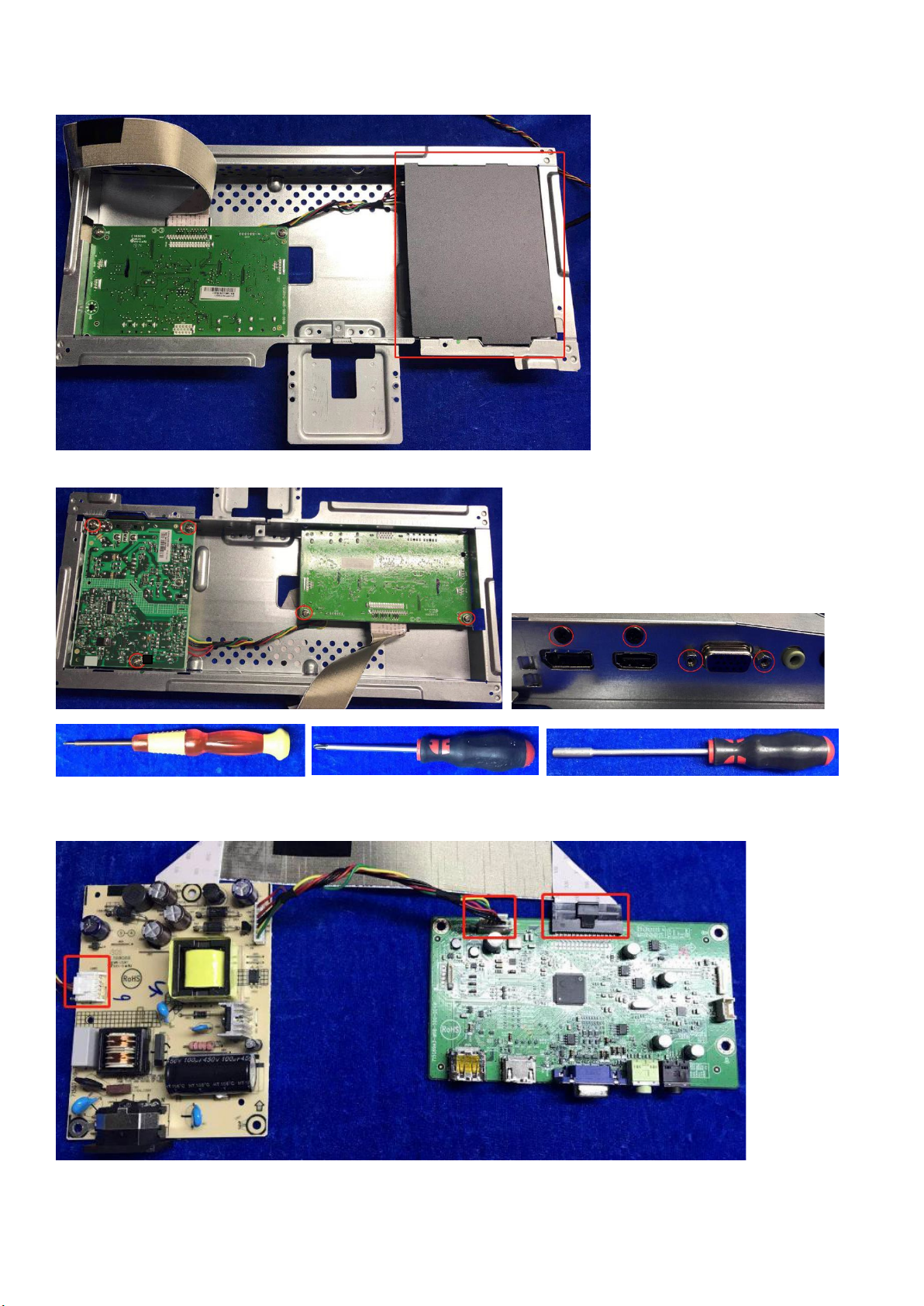

5.1

Turn over the main frame and remove the mylar from board first.

5.2

Release all the screws from the boards and main frame.

5.3

Disconnect all the cables to separate the boards from each other.

6.1

Release all the screws first.

6.2

Carefully pull down the bezel. Now, the panel is totally separated from middle frame.

7) Disassemble the sensor board and key board from middle frame.

1.1 Remove the sensor board

1.1.1 Take out the cover first, then release the screw on the top of board.

7.2 Remove the key board, press the key button to take the board out of middle frame.

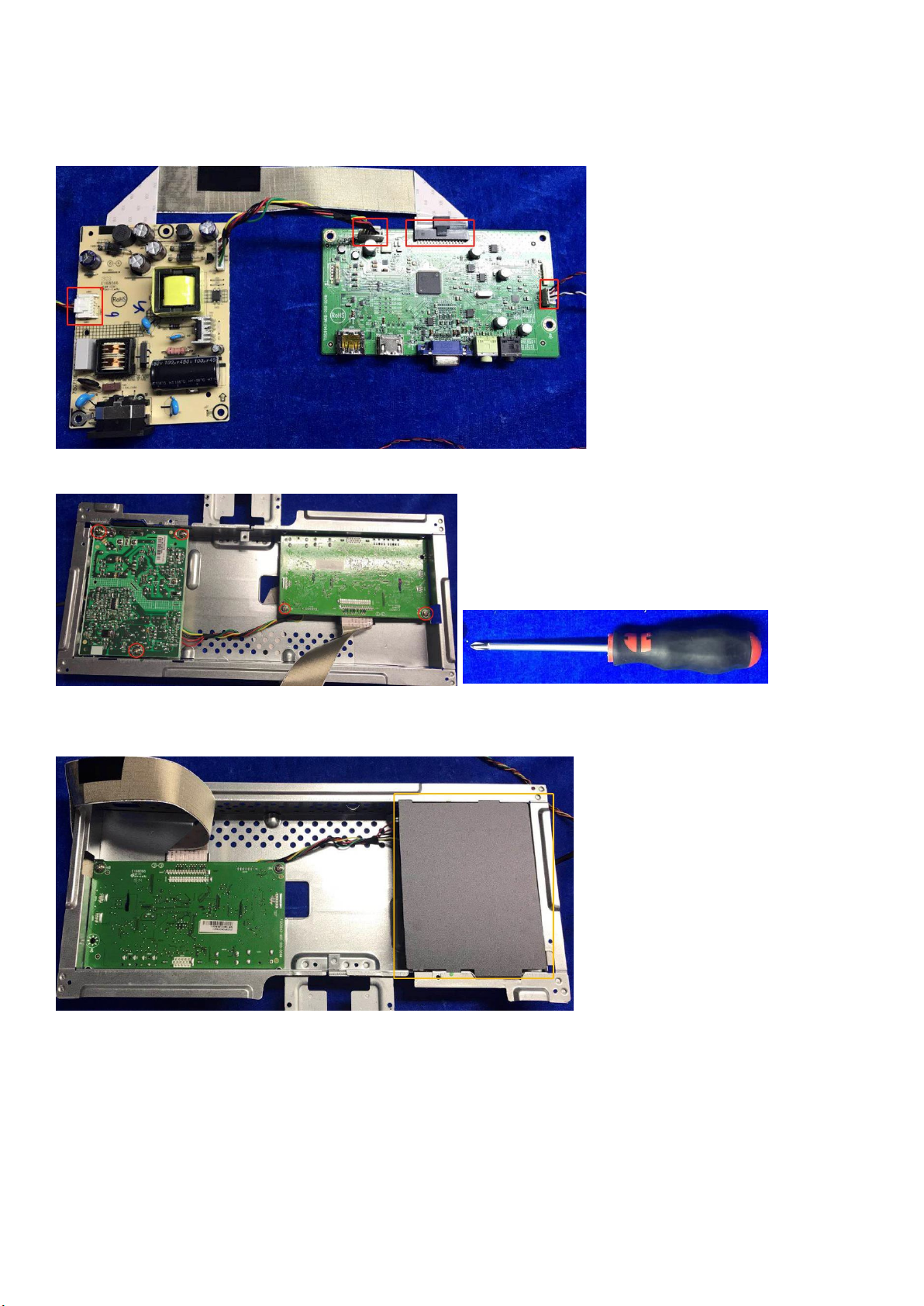

Assembly:

1) Prepare main board, power board and some essential cables. Connect the cables between boards as below

picture showed.

2) Put the boards to main frame in the place by tightening the screws to fasten it.

3) Return Mylar back to the power board.

4) Tighten the screws on the side of main frame

5) Assemble the sensor board to the bottom center of middle frame as above reverse steps.

6) Assemble the key board to the middle frame as above reverse steps.

7) Assemble the middle frame and main frame to the panel.

7.1

Locate the assembled middle frame in the place, install the bezel and tighten all the screws.

7.2

Put the speakers in the place.
