BenQ EW2770QZ Manual de usuario
E Series
LCD Monitor
User Manual
2
Copyright
Copyright © 2016 by BenQ Corporation. All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any
language or computer language, in any form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written permission of BenQ
Corporation.
Disclaimer
BenQ Corporation makes no representations or warranties, either expressed or implied, with
respect to the contents hereof and specifically disclaims any warranties, merchantability or
fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this
publication and to make changes from time to time in the contents hereof without obligation of
BenQ Corporation to notify any person of such revision or changes.
The performance of flicker-free may be affected by external factors such as poor cable quality,
unstable power supply, signal interference, or poor grounding, and not limited to the above
mentioned external factors. (Applicable for flicker-free models only.)
Power Safety
• The AC plug isolates this equipment from the AC supply.
• The power supply cord serves as a power disconnect device for pluggable equipment. The
socket outlet should be installed near the equipment and be easily accessible.
• This product should be operated from the type of power indicated on the marked label. If you
are not sure of the type of power available, consult your dealer or local power company.
• An approved power cord greater or equal to H03VV-F or H05VV-F, 2G or 3G, 0.75mm2must
be used.
Care And Cleaning
• Cleaning. Always unplug your monitor from the wall outlet before cleaning. Clean the LCD
monitor surface with a lint-free, non-abrasive cloth. Avoid using any liquid, aerosol or glass
cleaners.
• Slots and openings on the back or top of the cabinet are for ventilation. They must not be
blocked or covered. Your monitor should never be placed near or over a radiator or heat
source, or in a built-in installation unless proper ventilation is provided.
• Never push objects or spill liquid of any kind into this product.
Please follow these safety instructions for best performance, and long life for your monitor.
3
Servicing
Do not attempt to service this product yourself, as opening or removing covers may expose
you to dangerous voltages or other risks. If any of the above mentioned misuse or other
accident such as dropping or mishandling occurs, contact qualified service personnel for
servicing.
BenQ ecoFACTS
BenQ has been dedicated to the design and development of greener product as part of its
aspiration to realize the ideal of the "Bringing Enjoyment 'N Quality to Life" corporate vision
with the ultimate goal to achieve a low-carbon society. Besides meeting international regulatory
requirement and standards pertaining to environmental management, BenQ has spared no
efforts in pushing our initiatives further to incorporate life cycle design in the aspects of
material selection, manufacturing, packaging, transportation, using and disposal of the products.
BenQ ecoFACTS label lists key eco-friendly design highlights of each product, hoping to ensure
that consumers make informed green choices at purchase. Check out BenQ's CSR Website at
http://csr.BenQ.com/ for more details on BenQ's environmental commitments and
achievements.
4
Table of Contents
Copyright ......................................................................................................................................2
Getting started .............................................................................................................................5
Getting to know your monitor ................................................................................................7
Front view.................................................................................................................................................... 7
Back view ..................................................................................................................................................... 7
Connection ...................................................................................................................................................8
How to assemble your monitor hardware ...........................................................................9
How to detach the stand and the base ............................................................................................... 13
Getting the most from your BenQ monitor ...................................................................... 14
How to install the monitor on a new computer .............................................................................. 15
How to upgrade the monitor on an existing computer ................................................................. 16
How to install on Windows 10 system .............................................................................................. 17
How to install on Windows 8 (8.1) system .......................................................................................18
How to install on Windows 7 system ................................................................................................ 19
How to adjust your monitor ................................................................................................. 20
The control panel..................................................................................................................................... 20
Basic menu operation ............................................................................................................................. 21
Customizing the hot keys....................................................................................................................... 22
Adjusting display mode ........................................................................................................................... 22
Choosing an appropriate picture mode.............................................................................................. 23
Connecting the monitor to your MacBook series product ........................................................... 23
Adjusting screen brightness automatically (Bright Intelligence Plus)............................................ 23
Navigating the main menu ...................................................................................................... 24
Eye Care menu ......................................................................................................................................... 25
Picture menu ............................................................................................................................................. 27
Picture Advanced menu ......................................................................................................................... 29
Display menu ............................................................................................................................................. 32
Audio menu ............................................................................................................................................... 33
System menu ............................................................................................................................................. 34
Troubleshooting ....................................................................................................................... 37
Frequently asked questions (FAQ) ...................................................................................................... 37
Need more help?...................................................................................................................................... 39
5Getting started
Getting started
When unpacking please check you have the following items. If any are missing or damaged,
please contact the place of purchase for a replacement.
BenQ LCD Monitor
Monitor Stand
Monitor Base
Quick Start Guide
CD-ROM
Power Cord
(Picture may differ from product supplied
for your region.)
Video Cable: HDMI
Video Cable: DP to mini DP
(Optional accessory)
6 Getting started
Video Cable: DP
(Optional accessory)
Audio Cable
(Optional accessory)
• Available accessories and the pictures shown here may differ from the actual contents and the product supplied
for your region. And the package contents may subject to change without prior notice. For cables that are not
supplied with your product, you can purchase them separately.
• Consider keeping the box and packaging in storage for use in the future when you may need to transport the
monitor. The fitted foam packing is ideal for protecting the monitor during transport.
Always keep the product and accessories out of reach of small children.
7Getting to know your monitor
Getting to know your monitor
Front view
Back view
1. Light sensor
2. Power LED indicator
1 2
3. Control buttons
4. Power button
5. AC power switch
6. AC power input jack
7. Cable management hole
8. HDMI socket x 2
9. DisplayPort socket
10. Headphone jack
11. Kensington lock slot
12. Quick release button
• Above diagram may vary depending on the model.
• Picture may differ from product supplied for your region.
758101169
3
4
12
8 Getting to know your monitor
Connection
The following connection illustrations are for your reference only. For cables that are not
supplied with your product, you can purchase them separately.
For detailed connection methods, see page 10 -11.
9How to assemble your monitor hardware
How to assemble your monitor hardware
• If the computer is turned on you must turn it off before continuing.
Do not plug-in or turn-on the power to the monitor until instructed to do so.
• The following illustrations are for your reference only. Available input and output jacks may vary depending on
the purchased model.
1. Attach the monitor base.
Please be careful to prevent damage to the monitor. Placing the screen surface on an object like a stapler or a
mouse will crack the glass or damage the LCD substrate voiding your warranty. Sliding or scraping the monitor
around on your desk will scratch or damage the monitor surround and controls.
Protect the monitor and screen by clearing a flat open
area on your desk and placing a soft item like the
monitor packaging bag on the desk for padding.
Gently lay the screen face down on a flat clean padded
surface.

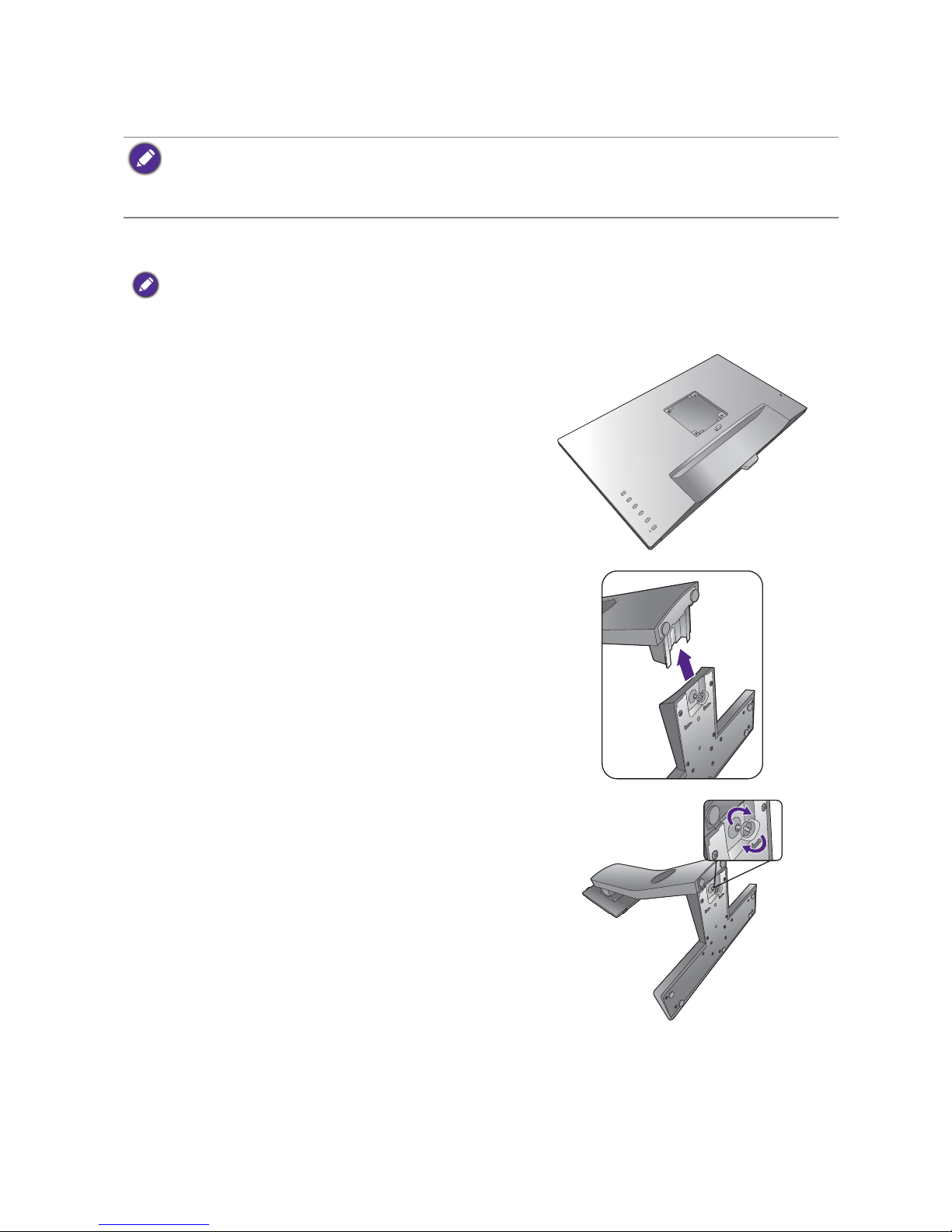

Attach the monitor stand to the monitor base as
illustrated until it locks in place.
Tighten the screw on the bottom of the monitor base
as illustrated.
10 How to assemble your monitor hardware
Orient and align the stand arm with the monitor, then
push them together until they click and lock into place.
Gently attempt to pull them back apart to check that
they have properly engaged.
Carefully lift the monitor, turn it over and place it
upright on its stand on a flat even surface.
You should position the monitor and angle the screen to
minimize unwanted reflections from other light sources.
Your monitor is an edge to edge monitor and should be
handled with care. Adjust the screen angle by placing your
hands on the top and on the base of the monitor as
illustrated. Excessive force on the display is prohibited.
2. Connect the PC video cable.
To Connect the HDMI Cable
Connect the plug of the HDMI cable to the HDMI port
on the monitor. Connect the other end of the cable to
the HDMI port of a digital output device.
Either
1
2
