BenQ FPLA2 Manual de usuario

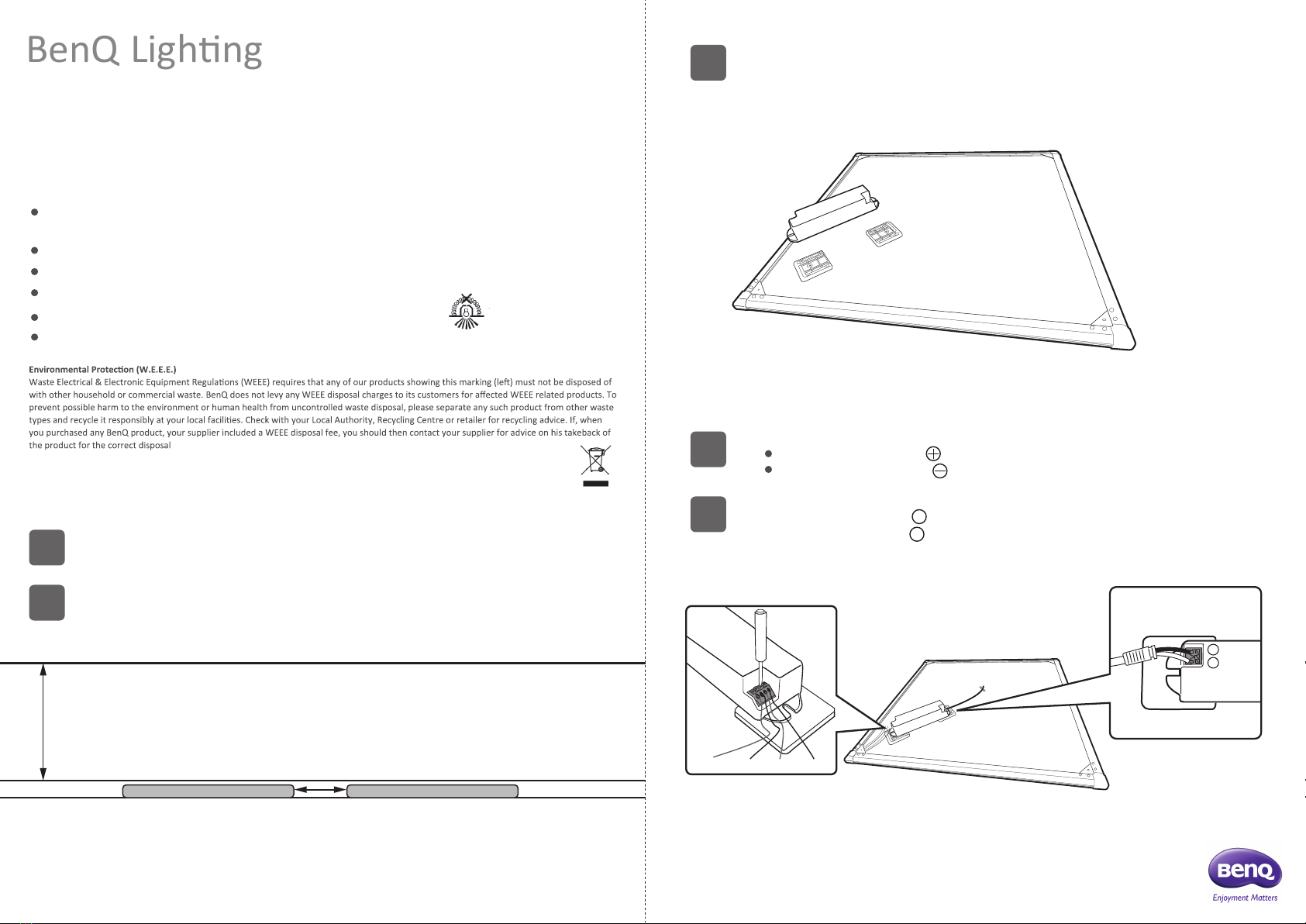

Install the driver on the back of the Flat Panel Light as shown in Figure 2
3
1
4
5
2
Connect LED wires to driver (OUTPUT) as shown in Figure 3-1
Two Red Wires connect to insulation terminals.
Two Black Wires connect to insulation terminals.
Connect AC power cable to Driver (INPUT) as shown in Figure 3-2
(a) White Wire connect to insulation terminal.
(b) Black Wire connect to insulation terminal.
N
L
N
L
Bringing Enjoyment & Quality to life
RED RED BLACKBLACK
BenQ
Lighng
Remove the selected ceiling panel and an adjacent panel to allow for installation of the
LED Panel and LED Driver.
Ensure the clearances shown in Figure 1 are observed.
Beware of joists, water pipes and electric cables.
INSTALLATION INSTRUCTIONS:Isolate the mains supply before servicing or installation
Minimum void depth 120mm
50mm min clearance to joists...etc.
Figure 1
Figure 2
Figure 3-1
Figure 3-2
Installation should be carried out in accordance with the latest edition of the
National Wiring Regulations. If in doubt, consult a qualified electrician.
Make sure the power is off before installation.
Input Voltage 100-240V~ AC
The luminaire is for indoor use only.
This luminaire is not suitable for covering with insulation material.
Insure that ALL electrical connections are tight with no loose strands.
IMPORTANT INSTALLATION INFORMATION
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
LED Flat Panel Light FPLA2 – Installation Manual
Make sure the cabling is complete for luminaire to install on the ceiling as shown in Figure 6
68.1
8.2 9.2
9.1
Use the suspension accessory to
install the luminaire to the ceiling as
shown in Figure 8
Completion (Figure 7)
Completion (Figure 9)
7
Mount the driver to the back of the panel light as shown in Figure 4-1.
Use the wire ring to tie the wires together before installing with the cover. (Figure 4-2)
Screw and lock the two covers to the back of the Flat Panel Light.
Make sure the cover is tightly screwed.
AC Power Cables
Connect WHITE Wire to insulation terminal
Connect BLACK wire to insulation terminal
N
L
Suspension Mode
Recessed Mode
Bringing Enjoyment & Quality to life
BenQ
Lighng
Figure 4-1
Figure 4-2
Figure 6
Figure 5
Figure 7
Figure 9
Figure 8
Spring washer
