SDIHDMI Cross Converter

User's Manual

Model No :VCF-HS01

Please read this manual carefully before using this product. Please

keep this manual for future reference.

As we are always improving our products’ functions, so our product

technical parameters may be changed without notice.

Summary

SDI HDMI cross converter is a device that converts high-

definition Serial Digital Interface SDI signal to HDMI signal and also converts

HDMI signal to high-definition Serial Digital Interface SDI signal. Our device

can automatically adapt to SD, HD, 3GB/s video format, which could meet your

needs no matter if you need the mutual transformation between SDI signal and

HDMI signal, or SDI signal distribution.

Our device is widely used in video conference system, multimedia signal

broadcast, radio and television program production and broadcast, SDI/ HDMI

signal extension and video security monitoring field.

Features

●Support 1 X SDI input，2 X SDI output, 1 X HDMI input and output.

●Support SMPTE 424M, SMPTE 292M, SMPTE 259Mstandard.

●SD/HD/3G-SDI signals converse perfectly.

●Adopt the adaptive signal enhancement technology, and

simultaneously ensure the undistorted reduction

undistorted compression video signals.

●Support 5V-24V power input.

●Flexible power supply system, adapter power supply or battery

power supply.

●Portable design and convenient for project use.

●Standard 1/4 mounting screw holes on both sides.

●DC power, signal input, signal output state indicator.

●Die-casting technology of aluminum alloy housing, strong and

durable.

●To charge by the back battery, convenient to use outside.

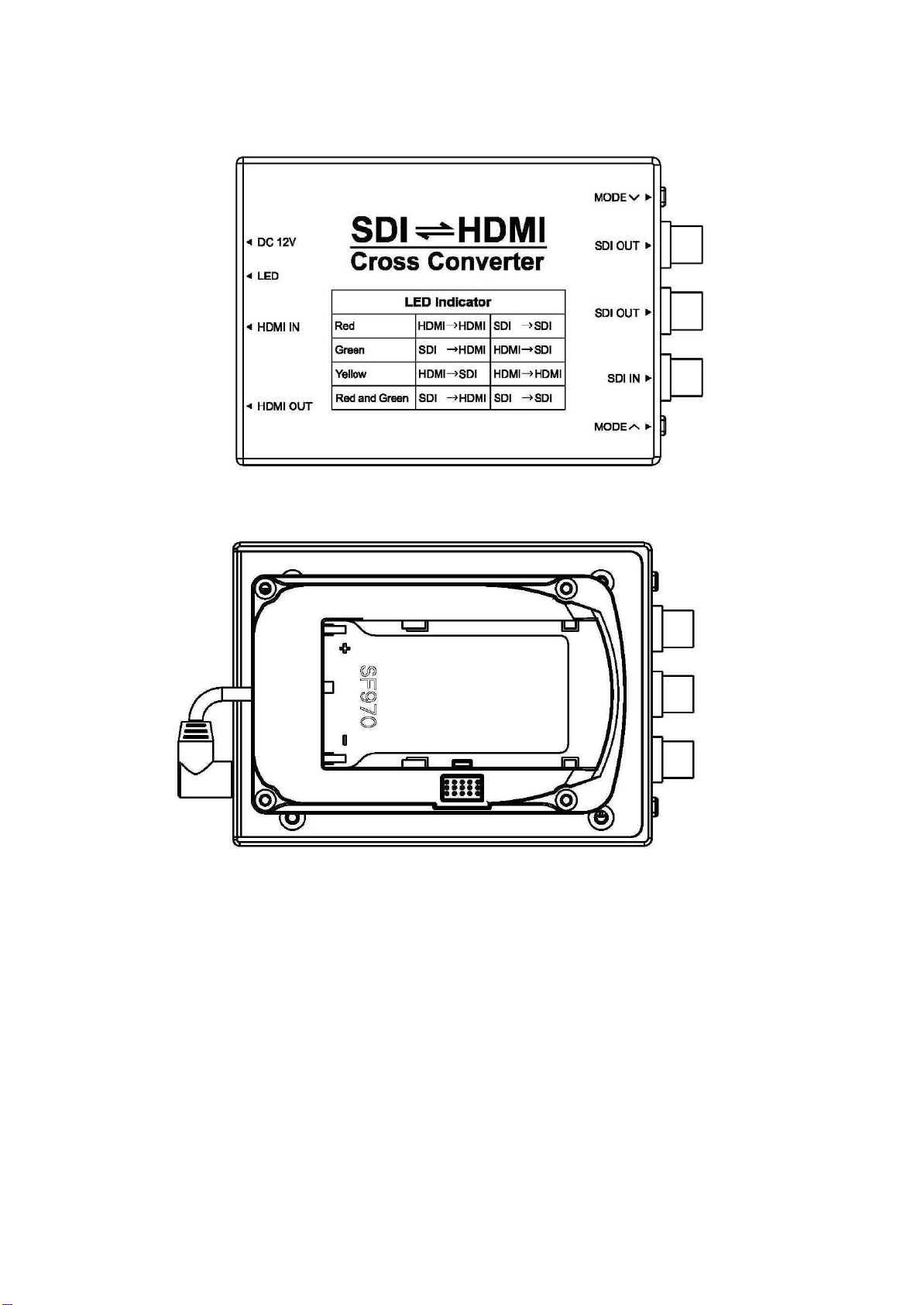

Panel and Interface Introduction

①DC power input interface.

②Mode status switching LED indicator.

③HDMI input interface.

④HDMI output interface.

⑤MODE ∨conversion mode switch button. (Switch down circularly)

⑥SDI output interface.

⑦SDI output interface.

⑧SDI input interface.

⑨MODE ∧conversion mode switch button. (switch up

circularly)

⑩F970 battery plate (When install the battery, insert the DC

plug on the battery plate into the DC socket of the device to power it).

Switching Mode Introduction

Press MODE button (The two MODE buttons are with same function,

MODE ∨is to switch down circularly, MODE ∧is to switch up

circularly) to switch the signal conversion mode,

the LED status indicator will change colors correspondingly.

1. Indicator Red:

To convert HDMI input to HDMI output; SDI

input to SDI X 2 output.

2. Indicator Green:

To convert SDI to HDMI output;

convert HDMI to SDI X2 output.

Signal conventions between SDI and HDMI are synchronous and no

interference.

3. Indicator Yellow:

To convert HDMI input to HDMI output;

convert HDMI to SDI X 2 output.

4. Indicator Flashes between Red and Green: To

convert SDI input to SDI X 2 output; convert SDI to

HDMI output.

System Connection Diagram

Support Format

SDI Support Format

3G-SDI:1080P(60/59.94/50)

HD-SDI:1080P(30/29.97/25/24)

1080I(60/59.94/50)

1080PsF24

720P(60/59.94/50/30/25/24)

SD-SDI:576I(50),480I(60)

HDMI Support Format

1080P(60/59.94/50/30/29.97/25/24)

1080I(60/59.94/50)

1080PsF24

720P(60/59.94/50/30/25/24)

576I(50),480I(60)

Product Specification

Input

3G/HD/SD-SDI × 1, HDMI× 1

Output

3G/HD/SD-SDI × 2, HDMI× 1

Power Consumption

≤4.2W

Input Voltage

DC 5V～24V

Connector

DC 12V

Battery Plate

F970 (Standard); D28S, E6 (Optional)

Unit Size

108.5L×78.8H×23D (mm)

Unit Weight

230g/ 260g (With F970 Plate)

Working Temperature

-20℃～60℃

Storage Temperature

-30℃～70℃

Installation Way

1/4"-20 screw threads on both sides

SafetyCaution

Please observe the following cautions during the process of installing, to

ensure the reliable performanceof the equipmentand the safety of the user.

■Please do not use this product in a dust, soot, electric

conductivitydust, corrosive gas, combustiblegas, high temperature,wind

and rain, condensation,shock and other occasions.

■Please avoid wiring and inserting cable plug in

charged state, otherwise it is easy to damage the device.

■The installation of wiring and inserting cable plug

should be strong and reliable, poor connect may lead to the false action

of the device.

■When use the back battery to supply the power,

please notice whether it is under normal power supply, or it might cause

the abnormal work for equipment due to the low voltage.
