Bellini BGT705X Instrucciones de instalación

*BGT705X and all variations of model

INSTALLATION & OPERATION

INSTR \

UCTIONS

70cm Gas Cooktop

Model No.

BGT705X

BGT705X-W

BGT705X-F

V.8 AUG21

GSM Retail Australia Pty Ltd ABN: 53 007 582 475

For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ

Model: BGT705X FINELINE: 70cm Gas Cooktop

Thank you

Thank you for choosing Bellini Appliances.

Bellini appliances carry a 3 year In Home warranty,

be sure to retain your installation and user manual and receipt.

For all warranty and technical queries please contact

Australia 1300 373 199

New Zealand 0800 764 912

GSM Retail Australia Pty Ltd ABN: 53 007 582 475

For Warranty and technical queries: 1300 373 199 Aust OR 0800 764 912 NZ

Model: BGT705X FINELINE: 70cm Gas Cooktop

This manual explains the proper installation and use of your appliance, please read it

carefully before using even if you are familiar with the product. The manual should be kept

in a safe place for future reference. In case of failure, only the Authorized Technical Service

may repair this hob. Otherwise, the guarantee will be null and void.

Warning

General Safety

⚫The appliance may only be installed and connected by licensed gasfitters / authorized

persons.

⚫Built-in appliances may only be used after they have built into suitable built-in units and

work surfaces that meet local authority standards.

⚫Repairs to the appliance must only be carried out by trained registered authorized service

persons / engineers.

⚫The technical and identification data for the hob is located on the reference data plate

fixed to the underside of the appliance.

⚫This reference data plate must be consulted before making the electrical connections.

⚫The electrical connections must be made by specialist installers to the legal and

regulatory, requirements in each country.

⚫If the cable is damaged in any way it must be replaced by the manufacturer or after sale

service or by authorized technical staff, to avoid hazard.

⚫DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.

⚫DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN

OPERATION.

⚫DO NOT MODIFY THIS APPLIANCE.

⚫DO NOT USE THIS APPLIANCE AS A SPACE HEATER.

Correct Use

⚫People (including children) who, because of their physical, sensory or mental capabilities

or their inexperience or ignorance are not able to use the device safely, should not use

this device without supervision or instruction by a responsible person.

⚫This appliance should be used only for normal domestic cooking and frying of food.

⚫The appliance must not be used as a work surface or as a storage surface.

⚫Additions or modifications to the appliance are not permitted.

⚫Do not place or store flammable liquids, highly inflammable materials or fusible objects

(e.g., plastic film, plastic, aluminum) on or near the appliance.

⚫Do not heat an empty pan on the appliance.

Important Safety Instructions

Children’s Safety

⚫The cooking zones will become hot when you cook. Therefore, always keep small children

away from the appliance.

⚫The appliance is not intended for use by young children or infirm persons without

supervision.

⚫Young children should be supervised to ensure that they do not play with the appliance.

Safety During Use

⚫There is the risk of burns from the appliance if used carelessly.

⚫Cables from electrical appliances must not touch the hot surface of the appliance or hot

cookware.

⚫Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

⚫Switch the cooking zones off after each use.

⚫Users with implanted pacemakers should keep their upper body at least 30 cm from

cooking zones that are switched on.

⚫Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and

saucepan lids on the cooking surface, as they can get hot.

⚫Special conditions, which shall be avoided, e.g., marine environment, and any

conditions necessary to ensure optimum performance.

⚫The appliances can be used in freezing conditions.

Safety Instructions

Safety When Installation

⚫DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.

⚫DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN

OPERATION.

⚫WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR CARAVANS, IT

SHALL NOT BE USED AS A SPACE HEATER.

⚫This hotplate must be installed in accordance with:

AS/NZS5601 - Gas Installations (for Australia) – current edition

NZS 5261 – Code of Practice for the Installation of Gas Burning Appliances and

Equipment (for New Zealand) This standard may not be now current!!

Local gas fitting regulations

AS/NZS 3000 –Electrical Installations (Wiring Rules)

Building codes

Any other relevant statutory regulations.

⚫Check the gas type label on the underside of the hotplate, adjacent to the gas connection

to ensure it corresponds to the installation gas supply. If in doubt, contact the supply

authority.

⚫The power supply cord (supplied) must not touch against any hot surfaces and must be

placed so that its temperature does not exceed 75 degrees at any point along its length.

⚫After connecting to gas, check for leaks using soapy solution, never a naked flame.

⚫Where a flexible hose assembly is used, ensure it is approved to AS/NZS 1869, Class B

10mm diameter and no more than 1.0metre in length. Any hose assembly used must be

restrained from accidental contact with the flue outlet of an under-bench oven.

How To Avoid Damage to The Appliance

⚫Do not use the cooking zones with empty cookware or without cookware.

⚫The ventilation gap of 5mm between the worktop and front of the unit underneath it must

not be covered.

⚫DO NOT MODIFY THIS APPLIANCE.

Safety When Cleaning

⚫For cleaning, the appliance must be switched off and cooled down.

⚫For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning

equipment is not permitted.

Disposing Of the Device

When disposing of the device, do not bring it to regular municipal waste

containers. Instead, bring it to electrical and electronic waste recycling and reuse

center. A relevant label has been put on the device, its instructions manual, or the

package. The device has been manufactured of recyclable material.

Product Description

No.

Model

Burner*

FSD

Pan

supports

Knob

positio

Total gas

consump

tion

Overview

*BGT705X and all

variations of model

1W+1R

+2SR+1A

With

2 types for

option

Front

LPG:

39.6MJ/h

NG:

39.0MJ/h

*Note:

For burner: W=Triple Ring Wok burner, R=Rapid burner, SR=Semi-Rapid burner, A=Auxiliary

burner

NOTE: On completion of the installation of the cooktop to the kitchen bench, the

distance from benchtop surface to the highest part of any trivet is 47mm as shown in

illustrations.

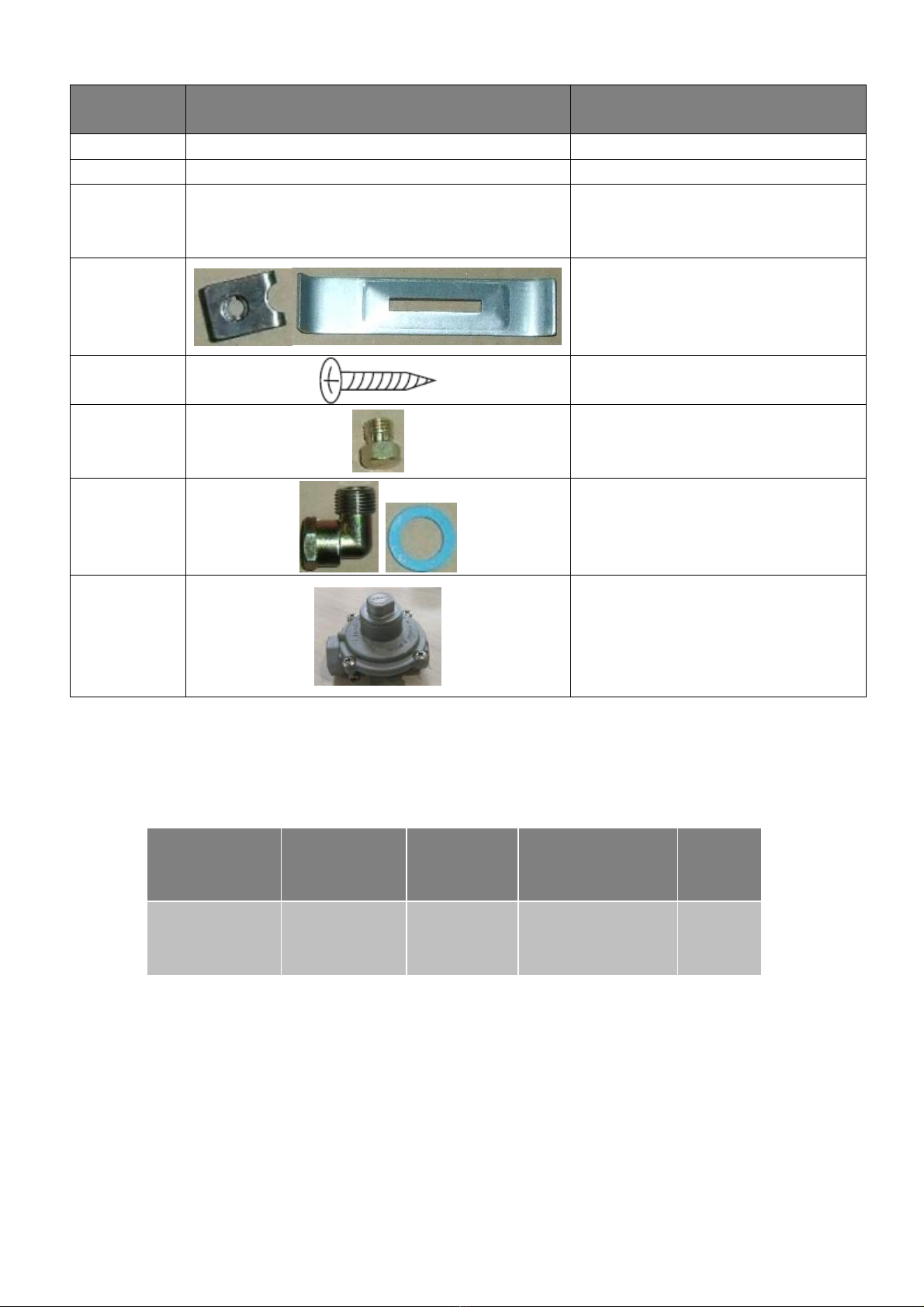

Accessory

Name


( for reference only, physical unit maybe different)

Quantity

User Manual

Sealing tape

1 roll

Additional

labels

You have additional rating label in accessory bag, suggest

attach it onto a surface where it can be read e.g., inside

surface of adjacent cupboard

1 set

Installation

clip

4 sets

Screws

ST4.2x24

4 pcs

LPG Injectors

4 pcs

Elbow

&Washers

1 Elbow, 3 washers

Natural gas

regulator

Technical Specifications

Model

Product

Dimensions

(h x w x d) mm

Cut-out

Size

( w x d)mm

Electrical

Connection

Rated

Input

Power

*BGT705X and all

variations of model

85x680x500

552 x 470

220-240V/50Hz

0.5W

Installation

Before Installation:

⚫Before cutting into any bench tops, ensure the minimum clearances to walls, adjacent surfaces and

overhead surfaces required by the relevant gas appliance installation code (see above) will comply.

Dimensions are specified in millimeters (mm)

Overhead cupboards and range hood = 650 mm.

Side and rear clearance = 200 mm to any burner edge.

Overhead exhaust/ceiling fan = 750 mm

Horizontal surfaces adjacent the hob = less than or equal to the hob height.

Ensure there is sufficient clearance to fit the regulator and/or flexible hose connection with the hotplate in

the installed position.

Before the appliance is installed into the cabinet, please make sure any transit protection is removed.

NOTE: This appliance is built in appliance, the immediate surrounds of the appliance material must be

non-combustible materials or combustible material.

When you have installed the hob, make sure that

⚫The GPO (general purpose outlet) must always be in an accessible position.

⚫The supply connection point, test point and natural gas regulator adjustment screw (for Natural gas

installation) are accessible for testing and/or adjustment with the hotplate in the installed position.

1. Cupboard Cutting

TO BE INSTALLED ONLY BYAN AUTHORIZED PERSON.

2. Place Burner Box

Apply the adhesive sealing tape to the underside lip of the burner box. Shown at G opposite.

Place burner box into cutout hole and fit clamping brackets to clamp the hotplate to the bench.

3.Fit Burners and Trivet.

Replace burners and ensure they are correctly repositioned over the ignitor (S) and thermocouple (T). The ignitor

(S) must be clean for trouble free sparking. Test burner ignition and burner flame for correct operation, if burner

is placed correctly, it will not rotate on its supports.

The Triple Ring (Wok) burner (diagrams below) does not fit over the igniter or thermocouple but must be placed

on its supports. Make sure trivet is fitted onto its locator on burners and can’t rotate after assembled.

3. Electrical Connection

Install a 10 amp general purpose outlet (GPO) in accordance with relevant electrical standards and/or codes of

practice applicable.

After having installed the hotplate, the GPO must always be in an accessible position.

Wiring diagram

4. Gas Connection

Install in accordance with relevant gas standards and/or codes of practice applicable.

Connect the elbow fitting to the appliance gas manifold connection, and check that seals between the elbow and

manifold connection are in place and in good condition.

•For Natural gas: connect the naturalgas appliance regulator (pictured opposite) with integral test point using

approved gas thread tape or compound to the elbow fitting.

•For Universal LPG: see page 11

Ensure the supply connection point, test point and natural gas regulator adjustment

screw (for Natural gas installation) are accessible for testing and/or adjustment with the

hotplate in the installed position. Where a flexible hose assembly is

used, ensure it is approved to AS/NZS 1869, Class B. Any hose

assembly used must be restrained from accidental contact with the flue

outlet of an under-bench oven. This hose assembly shall be suitable for

connection to a fixed consumer piping outlet located as follows:

Hotplates at a point 800 mm to 850 mm above the floor and in the

region outside the width of the appliance to a distance of 250 mm.

Note: Hose diameter 10mm, Length 1000mm (Maximum)

After connecting to gas, check for leaks using soapy solution, never

a naked flame.

Fit the duplicate data plate (supplied in separate bag) on a surface adjacent to the hotplate, for example, the

inside of the cupboard door so it is clearly visible for any service technician.

SETTING THE GAS PRESSURE:

Fit a manometer with a 6 mm rubber hose to the test point on the regulator (for natural gas).

Light Triple Ring and Auxiliary burner on and adjust test point pressure to 1.00 kPa. Turn the two burners off and

on again and recheck the pressure is same as set previously or adjust as required.

TEST FOR CORRECT OPERATION:

After installation and adjusting burner pressure using test point, each burner ignition and operation must be

tested individually and with all burners operating. This testing must be done by the installer before leaving.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa de cocina de Bellini

Bellini

Bellini BGM604 Manual de usuario

Bellini

Bellini BC604T Manual de usuario

Bellini

Bellini BCS604X-F Instrucciones de instalación

Bellini

Bellini BDC302TG Instrucciones de instalación

Bellini

Bellini BOT608X Instrucciones de instalación

Bellini

Bellini BDI604SG Instrucciones de instalación

Bellini

Bellini BCS604X Manual de usuario

Bellini

Bellini BGM604 Instrucciones de instalación

Bellini

Bellini BDI904SFBG-F Manual de usuario

Bellini

Bellini BDC906OTG Manual de usuario

Bellini

Bellini BI64T Manual de usuario

Bellini

Bellini BDCM604T Manual de usuario

Bellini

Bellini CCH77601 Manual de usuario

Bellini

Bellini BCT604TG-F Instrucciones de instalación

Bellini

Bellini BCS604X-1 Manual de usuario

Bellini

Bellini BST601X-F Instrucciones de instalación

Bellini

Bellini BDGM64G-F Instrucciones de instalación

Bellini

Bellini BGT64XP-W Instrucciones de instalación

Bellini

Bellini BCA64CGP-W Instrucciones de instalación

Bellini

Bellini 5102880 Instrucciones de instalación

Bellini

Bellini BIA64EGP-W Instrucciones de instalación

Bellini

Bellini BDG604G Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Wolf

Wolf CI243C/B Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario
