CFP1691W

CFP1691B

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in a 1st-class

manufacturing facility and checked under the most meticulous quality control

procedures, will provide you with years of good service.

For this, we recommend you to carefully read the entire manual of your

product before using it and keep it at hand for future reference.

This manual

• Will help you use your appliance quickly and safely.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful usage tips.

AWarning against dangerous conditions for life and property.

BWarning against electric voltage.

1 Your refrigerator 4

2 Warnings 5

Electrical requirements........................... 7

Warning! This appliance must be

earthed.......................................................... 7

Energy saving tips.....................................8

Compliance with WEEE Directive and

Disposing of the Waste Product: .......9

Compliance with rohs directive: .......10

Package information..............................10

3 Installation 11

Points to be considered when re-

transporting your refrigerator........... 11

Before operating your refrigerator.. 11

Electric connection................................. 11

Disposing of the packaging.................12

Disposing of your old refrigerator ....12

Placing and Installation.........................12

Transportation Instructions................13

Changing the illumination lamp .......14

Installation Instructions .......................14

4 Before operating 16

Final Check .................................................16

5 Using your refrigerator 17

Temperature Control And

Adjustment ................................................17

Thermostat setting button.................17

Storing Frozen Food ...............................18

Freezing Fresh Food...............................18

Making Ice Cubes.....................................18

Defrosting ..................................................18

6 Maintenance and

cleaning 20

7 Do's and Don'ts 21

Problem Solvıng...................................... 22

8 Guarantee Details 23

9 How To Obtain Service 24

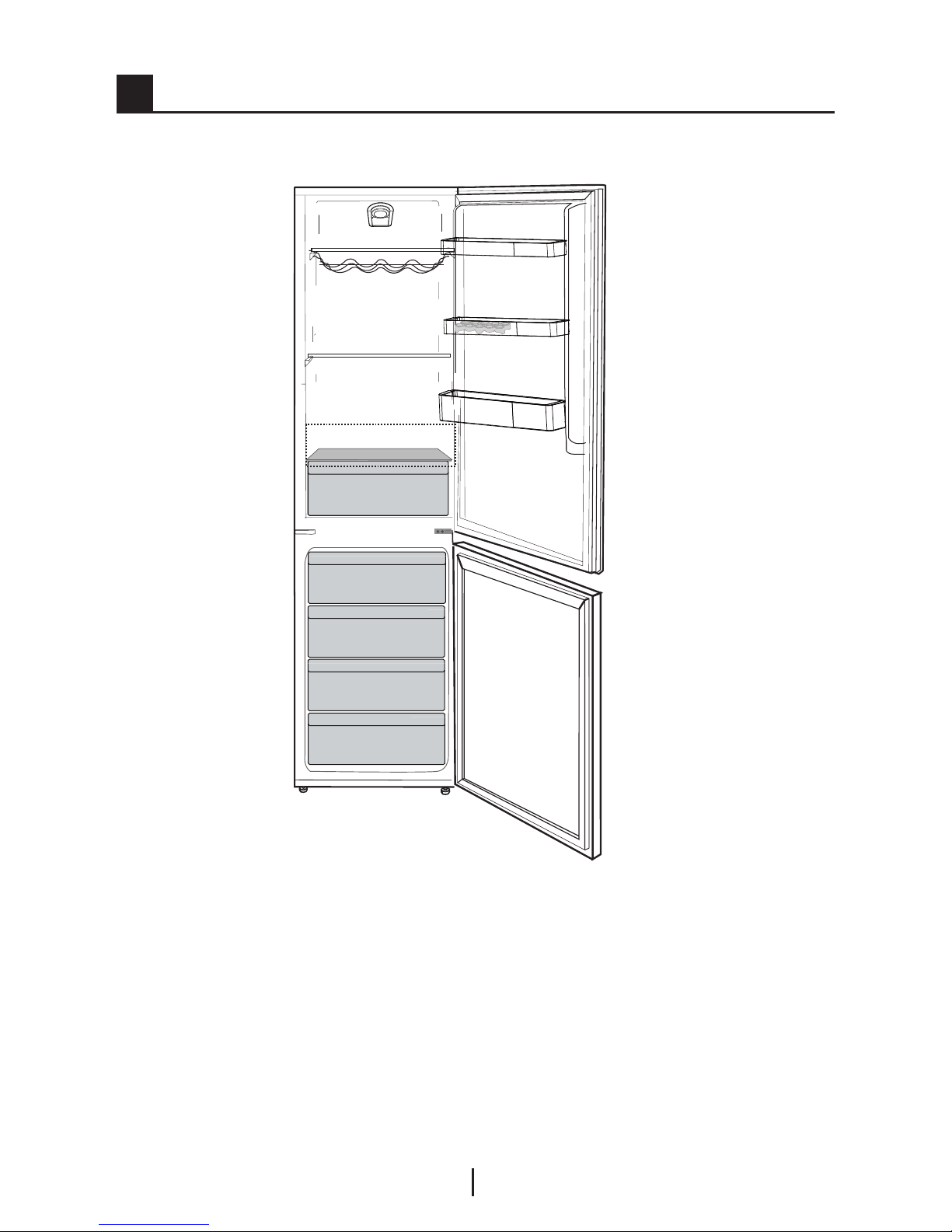

1Your refrigerator

CFigures that take place in this instruction manual are schematic and

may not correspond exactly with your product. If the subject parts are not

included in the product you have purchased, then it is valid for other models.

Congratulations on your choice of a Beko quality Appliance which has been

designed to give you service for many years.

1. Adjustable door shelves

2. Egg section

3. Bottle shelf

4. Adjustable Front Feet

5. Freezing and Storage (store

fresh food to be frozen lower down)

6. Freezer compartment

7. Chiller compartment

8. Adjustable shelves

9. Wine rack

10. Thermostat knob

*10

2Warnings

• Do not connect your

appliance to the

electricity supply until

all packing and transit

protectors have been

removed.

• If transported

horizontally leave to

stand upright for at

least 4 hours before

switching on to allow

compressor oil to settle

• If you are discarding an

old refrigerator with a

lock or latch fitted to the

door, disable the lock/

latch, ensure that it is

left in a safe condition to

prevent the entrapment

of young children.

• This fridge/freezer

must only be used for its

intended purpose i.e the

storing and freezing of

edible foodstuff.

• Do not dispose of the

appliance on a fire.

At Beko, the care

and protection of our

environment is an

ongoing commitment.

This appliance which is

among the latest range

introduced is particularly

environment friendly.

Your appliance

contains non CFC / HFC

natural substances

in the cooling system

(Called R600a) and

in the insulation

(Called cyclopentane)

which are potentially

flammable if exposed

to fire. Therefore, take

care not to damage,

the cooling circuit /

pipes of the appliance

in transportation

and in use. In case of

damage do not expose

the appliance to fire

or potential ignition

source and immediately

ventilate the room

where the appliance is

situated.

• We suggest you contact

your local authority for

disposal information

and facilities available.

• See Installation

Instructions on page

11 for information on

suitable location.

• To obtain the best

possible performance

and trouble free

operation from your

appliance it is very

important to carefully

read these instructions.

• On delivery, check to

make sure that the

product is not damaged

and that all the parts

and accessories are in

perfect condition.

• Ensure that the

plug remains readily

accessible. Do not use

multiple adapter or

extension cable.

• Failure to observe

these instructions may

invalidate your right to

free service during the

guarantee period.

• Keep ventilation

openings, in the

appliance enclosure or

in the built-in structure,

clear of obstruction.

• Do not use mechanical

devices or other means

to accelerate the

defrosting process,

other than those

recommended by the

manufacturer.

• Do not damage the

refrigerant circuit.

• Do not use electrical

appliances inside

the food storage

compartments of

the appliance, unless

they are of the type

recommended by the

manufacturer.

• We suggest you keep

these instructions in

a safe place for easy

reference.

• This appliance can

be used by children

aged from 8 years and

above and persons

with reduced physical,

sensory or mental

capabilities or lack

of experience and

knowledge if they have

been given supervision

or instruction

concerning use of the

appliance in a safe

way and understand

the hazards involved.

Children shall not play

with the appliance.

Cleaning and user

maintenance shall not

be made by children

without supervision.

• Children should be

supervised to ensure

that they do not play

with the appliance.

Electrical

requirements

Before you insert

the plug into the wall

socket make sure that

the voltage and the

frequency shown on the

rating plate inside the

appliance corresponds to

your electricity supply.

Rating label is on the

left hand side of fridge

inner liner.

We recommend that this

appliance be connected

to the mains supply

via a suitable switched

and fused socket. The

appliance must be

positioned so that the

plug is accessible.

WARNING:

When positioning the

appliance ensure the

supply cord is not trapped

or damaged.

Should the mains lead

of the appliance become

damaged or should it

need replacing at any

time, it must be replaced

by a special purpose

made mains lead which

can only be obtained

from a Beko authorised

service agent.

Warning! This

appliance must be

earthed

If the fitted moulded

plug is not suitable for

your socket, then the

plug should be cut off

and an appropriate plug

fitted. Destroy the old

plug which is cut off as

a plug with bared cord

could cause a shock

hazard if inserted into a

socket elsewhere in the

house.

Themouldedplugonthis

appliance incorporates

a 13 A fuse. Should the

fuse need to be replaced

an ASTABEAB approved

BS 1362 fuse of the same

rating must be used. Do

not forget to refit the

fuse cover. In the event of

losing the fuse cover the

plug must not be used

until a replacement fuse

cover has been fitted.

Colour of the

replacement fuse cover

must be the same colour

as that visible on the pin

face of the plug. Fuse

covers are available from

any good electrical store.

Important! Fitting A

Different Plug

1. As the colours of the

wires in the mains

lead of this appliance

may not correspond

with the coloured

markings identifying the

terminals in your plug

proceed as follows: (See

diagram).

2.Connect the green-

yellow or green (Earth)

wire to the terminal

in the plug marked ‘E’

or with the symbol

or coloured green and

yellow or green.

3.Connect the blue

(Neutral) wire to the

terminal in the plug

marked ‘N’ or coloured

black.

4.Connect the brown

(Live) wire to the

terminal in the plug

marked ‘L’ or coloured

red.

FITTED WITH

BS 1362 13A FUSE ALWAYS

FIT BS 1362 REPLACEMENT

CARTRIDGE FUSE

GREEN &

YELLOW

GREEN

BLUE

BLACK

BROWN

RED

22mm.

6mm.

6mm. 32mm.

12mm.

FUSE

CORD GRIP

5.With alternative plugs a

13 A fuse must be fitted

either in the plug or

adaptor or in the main

fuse box. If in doubt

contact a qualified

electrician.

Energy saving tips

1. Ensure your appliance

is installed in a well

ventilated area.

2.Ensure the time

between buying chilled/

frozen food and placing

them in your appliance

is kept at minimum,

particularly in summer.

We recommend you use

a cool bag or a special

carrier bag to carry

perishable food.

3.Do not leave the door (s)

of your appliance open

longer than necessary

and ensure they are

closed properly after

each opening.

4.Defrost frozen

food in the fridge

compartment, so that

frozen food acts as an

ice pack to assist cooling

in the fridge.

5.Energy consumption

of this appliance is

measured while freezer

compartment is loaded

without use of top shelf

lid and the drawers

except the bottom

drawer. It is advised that

freezer compartment

is loaded without use

of drawers except the

bottom drawer in order

to achieve maximum

loading capacity.

Compliance with

WEEE Directive and

Disposing of the

Waste Product:

This product

complies with EU

WEEE Directive

(2012/19/EU).

This product

bears a classification

symbol for waste

electrical and electronic

equipment (WEEE).This

product has been

manufactured with high

quality parts and

materials which can be

reused and are suitable

for recycling. Do not

dispose of the waste

product with normal

domestic and other

wastes at the end of its

service life. Take it to the

collection center for the

recycling of electrical and

electronic equipment.

Please consult your local

authorities to learn

about these collection

centers.

Compliance with rohs

directive:

The product you have

purchased complies

with EU RoHS Directive

(2011/65/EU). It does

not contain harmful and

prohibited materials

specified in the Directive.

Package information

Packaging materials

of the product are

manufactured from

recyclable materials in

accordance with our

National Environment

Regulations. Do not

dispose of the packaging

materials together

with the domestic or

other wastes. Take

them to the packaging

material collection points

designated by the local

authorities.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Beko

Beko

Beko RCNA365E30W Manual de usuario

Beko

Beko QC55F Manual de usuario

Beko

Beko RDNE390K21W Manual de usuario

Beko

Beko RCNE520E31ZM Manual de usuario

Beko

Beko QLS3682 Manual de usuario

Beko

Beko CFF 6873 GR Manual de usuario

Beko

Beko RCSA406K30W Manual de instrucciones

Beko

Beko RCHE390K30XPN Manual de usuario

Beko

Beko RCSA366K40GN Manual de usuario

Beko

Beko DN135120S Manual de usuario

Beko

Beko REC36S2 Manual de usuario

Beko

Beko GN1416220CX Manual de usuario

Beko

Beko BFBF3018SS Manual de usuario

Beko

Beko KS166022 Manual de usuario

Beko

Beko BBBF3019IMWE Manual de usuario

Beko

Beko RSSA215K40WN Manual de usuario

Beko

Beko DS 149010 1 Manual de usuario

Beko

Beko RDNE700E41XB IL Manual de usuario

Beko

Beko ICQFVD373 Manual de instrucciones

Beko

Beko GNE 60520 X Manual de usuario

Beko

Beko DN162230DJIZX Manual de usuario

Beko

Beko GNEV122X Manual de usuario

Beko

Beko RCNE560E40ZXPN Manual de usuario

Beko

Beko RSSE265K20W Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Teledyne

Teledyne 6712FR and Instrucciones de funcionamiento

Matsui

Matsui MTT50W12E Manual de usuario
