BEEK BT-LT1200 Manual de usuario

Multi Function LAN Cable Tester

BT-LT1200

User Manual

Multi Function LAN Cable Tester

BT-LT1200

User Manual

Thank you for purchasing the Cable Tester. Please read the manual before using the Cable Tester and use

properly.

For using the Cable Tester safely, please first read the「Safety Information」carefully in the manual.

The manual should be kept well in case of reference.

Keep the S/N label for after-sale service within warranty period. Product without S/N label will be charged for

repair service.

If there is any question or problem while using the Cable Tester, or damages occurred on the product, please

contact our technical department.

Multi Function LAN Cable Tester

BT-LT1200

User Manual

Content

1. Safety information.................................................................................................................................................. 1

2. Production Introduction......................................................................................................................................... 2

2.1 Feature........................................................................................................................................................ 2

2.2 Packing list .................................................................................................................................................. 2

2.3 Interface and Function Introduction ........................................................................................................... 3

3. Operation ............................................................................................................................................................. 6

3.1 Installing the Battery................................................................................................................................... 6

3.2 Auto power off function ............................................................................................................................. 6

3.3 OSD Menu................................................................................................................................................... 6

4. Cable tester ............................................................................................................................................................ 7

4.1 UTP cable test ............................................................................................................................................. 7

4.1.1 Cable tracer .................................................................................................................................... 7

4.1.2 UTP cable test ................................................................................................................................. 8

4.1.3 Short circuit detection .................................................................................................................. 10

4.14 Continuity detection in the state of connected switches .............................................................. 10

4.2 RJ45 cable TDR test................................................................................................................................... 11

4.3 TDR 2.0 Test (Optional) ............................................................................................................................. 12

5. Network test ........................................................................................................................................................ 13

5.1 Port flicker................................................................................................................................................. 13

5.2 PING.......................................................................................................................................................... 14

5.3 IP search.................................................................................................................................................... 15

5.4 NetSpeed .................................................................................................................................................. 15

6. Video level meter test .......................................................................................................................................... 16

7. Other functions .................................................................................................................................................... 16

7.1 Setting....................................................................................................................................................... 16

7.2 PD powered detected ............................................................................................................................... 17

7.3 Telephone status....................................................................................................................................... 17

8. Specification......................................................................................................................................................... 18

Multi Function LAN Cable Tester

BT-LT1200

User Manual

1. Safety information

◆The cable tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply

at the places which are inapplicable for the use of electrics such as hospital, gas station etc.

◆To prevent the functional decline or failure, the product should not be sprinkled or damped.

◆The exposed part of the cable tester should not be touched by the dust and liquid.

◆During transportation and use, it is highly recommended to avoid the violent collision and vibration of the tester,

lest damaging components and causing failure.

◆Don't leave the tester alone while charging and recharging. If the battery is found severely hot, the tester should

be powered off from the electric source at once. The tester should not be charged over 10 hours.

◆Don't use the tester where the humidity is high. Once the tester is damp, power off immediately and move away

other connected cables.

◆The cable tester should not be used in the environment with the flammable gas.

◆Do not disassemble the instrument since no component inside can be repaired by the user. If the disassembly is

necessary indeed, please contact with the technician of our company.

◆The instrument should not be used under the environment with strong electromagnetic interference

◆Don't touch the tester with wet hands or waterish things.

◆Don't use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove, the soft

cloth with water or neutral detergent can be used. But the cloth should be tweaked sufficiently.

Multi Function LAN Cable Tester

BT-LT1200

User Manual

2. Production Introduction

2.1 Feature

●2.4 inch TFT-LCD screen, 320x240 resolution

●Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.

●Advanced UTP cable test, test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end

and far-end fault point of RJ45 cable connector.

●RJ45 cable TDR test, test cable quality, length and attenuation.

●HD Coaxial video level meter, can detect the TVI/CVI/AHD/CVBS signal peak value, SYNC value and burst value.

●Port Flash, can search the switch port which connect the meter.

●PING test, check whether IP camera or other network equipment’s Ethernet port is working normally, the IP

address whether is correct.

●IP Scan, quickly find the IP address of the IP camera or other network equipment which connected to the meter.

●Link status, quickly identify the connected network port (10/100/ 1000M) and duplex mode (full duplex / half

duplex)

●TDR cable test 2.0, can test break point and short-circuit of cat 6e/5e (4 pairs), power line, BNC cable and

Telephone line, etc. the Max. 1.2km length （Optional）

●3.7 V /2000mAh Lithium Ion Battery, after 3 hours charging, working time lasts 18 hours

2.2 Packing list

1) Multi-function cable tester

2) Wire receiver

3) Adaptor DC5V 1A

4) Micro USD charging cable

5) RJ45 cable

6) RJ11 cable

7) TDR alligator clip cable

8) Polymer lithium ion battery (3.7V DC 2000mAh)

9) User Manual

Multi Function LAN Cable Tester

BT-LT1200

User Manual

2.3 Interface and Function Introduction

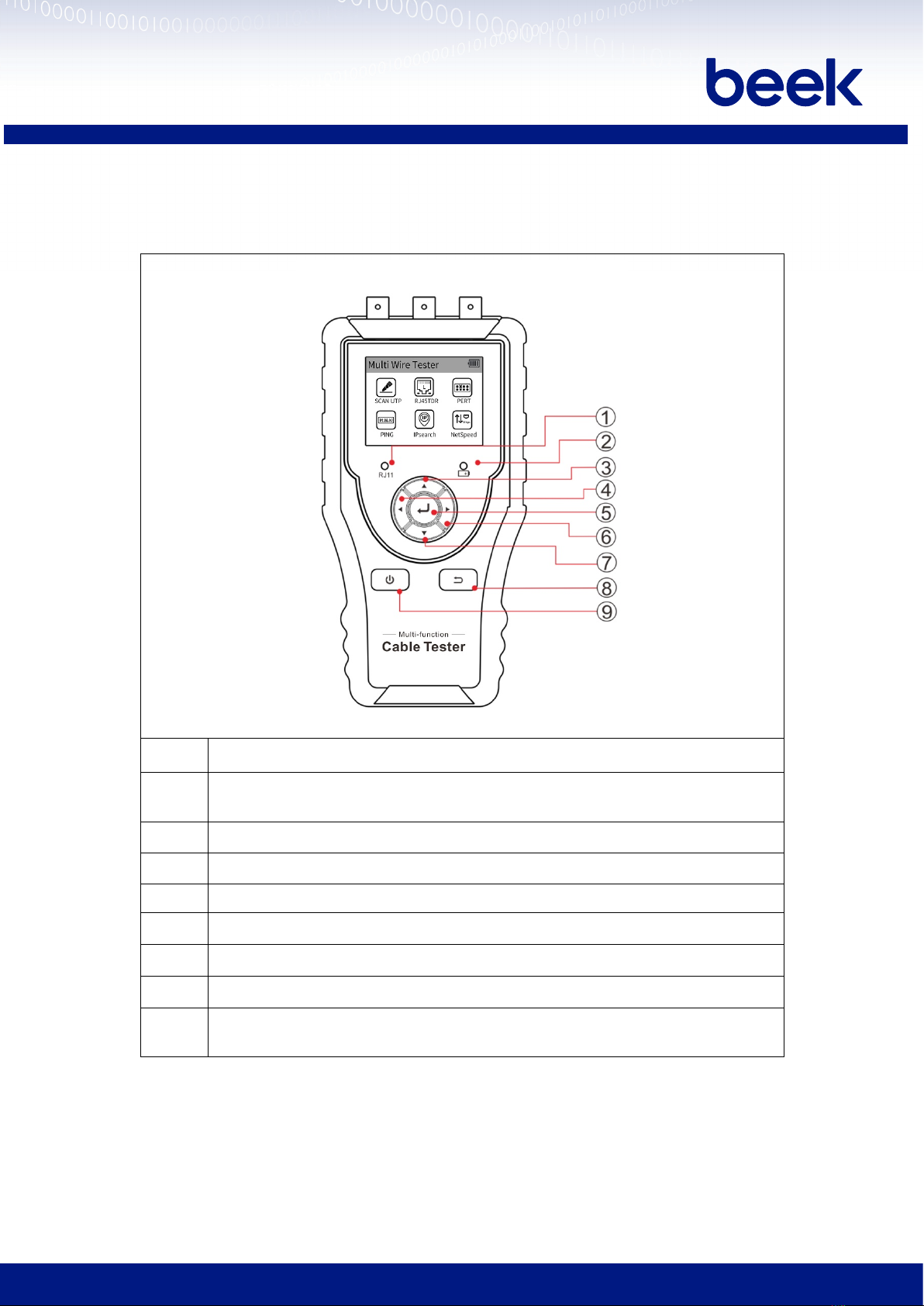

1) Cable tester Interfaces :

1 Telephone status indicator

2 The charge indicator: It lights red while the battery is being charged. As the charging is complete,

the indicator turns off automatically

3 Upward, set or modify parameters

4 Leftward, set or modify parameters

5 Confirm key

6 Rightward, set or modify parameters

7 Downward, set or modify parameters

8 Return/Close: Return or cancel while setting parameters of the menu

9 Power: Press more than 2 seconds, turn on or off the device, short press to turn on or off the menu

display

Multi Function LAN Cable Tester

BT-LT1200

User Manual

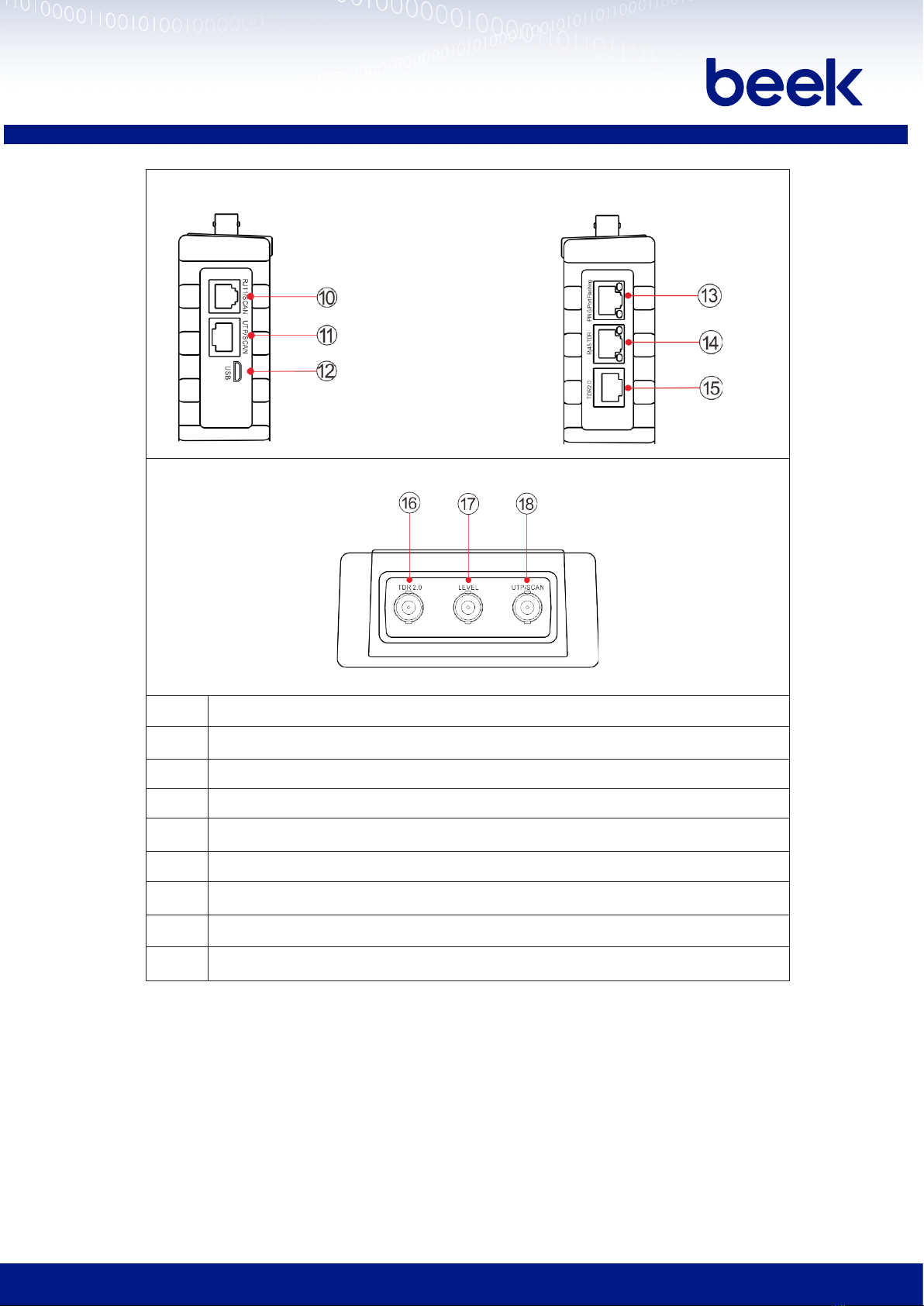

Left Interface: Right Interface:

Top Interface:

10 RJ11 cable tracer and status test port

11 UTP cable test, cable tracer and switch test port

12 DC 5V 1A charging port

13 Network cable test port (Ping/ Port flicker/ IP scan)

14 RJ45 cable TDR/ Network link status test port

15 TDR 2.0 test port (RJ45)

16 TDR 2.0 test port(BNC) (Optional)

17 Video level meter port (CVBS/TVI/CVI/AHD) (Optional)

18 Cable tracker port(BNC/2P cable)

Multi Function LAN Cable Tester

BT-LT1200

User Manual

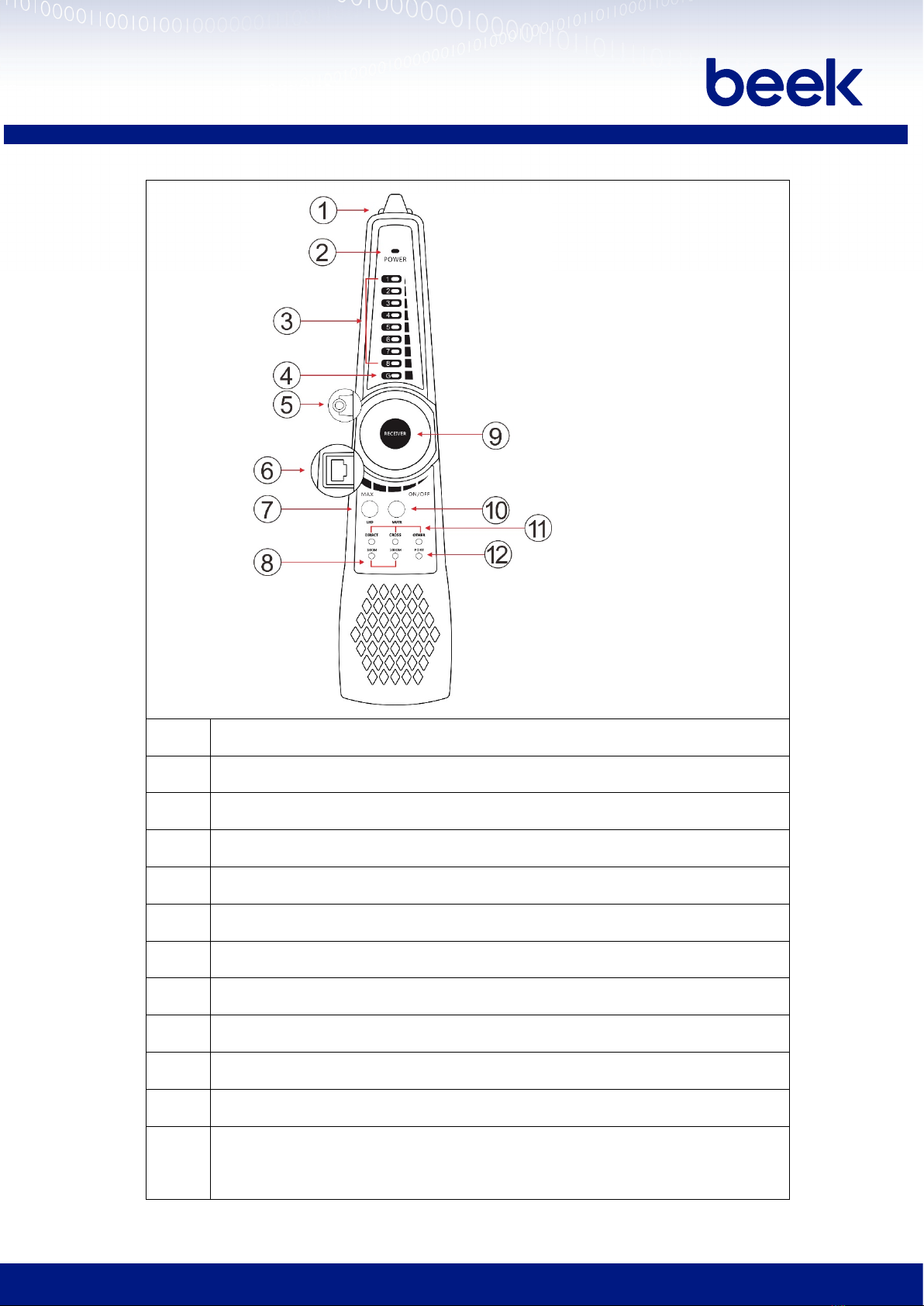

2) Cable tracer (Receiver) Interfaces and functions：

1 LED light

2 Power Indicator

3 UTP cable sequence / signal strength indicator

4 Shielded layer continuity indicator

5 Earphone jack

6 UTP cable test port

7 LED light switch

8 100M /1000M indicator

9 Switch / Sensitivity knob

10 MUTE button (long press to silent mode, short press to port connectivity detection)

11 UTP cable type indicator: straight /cross /other

Port continuity detection indicator (ON indicates local end cable connectivity function, OFF

indicates cable sequence function)

Multi Function LAN Cable Tester

BT-LT1200

User Manual

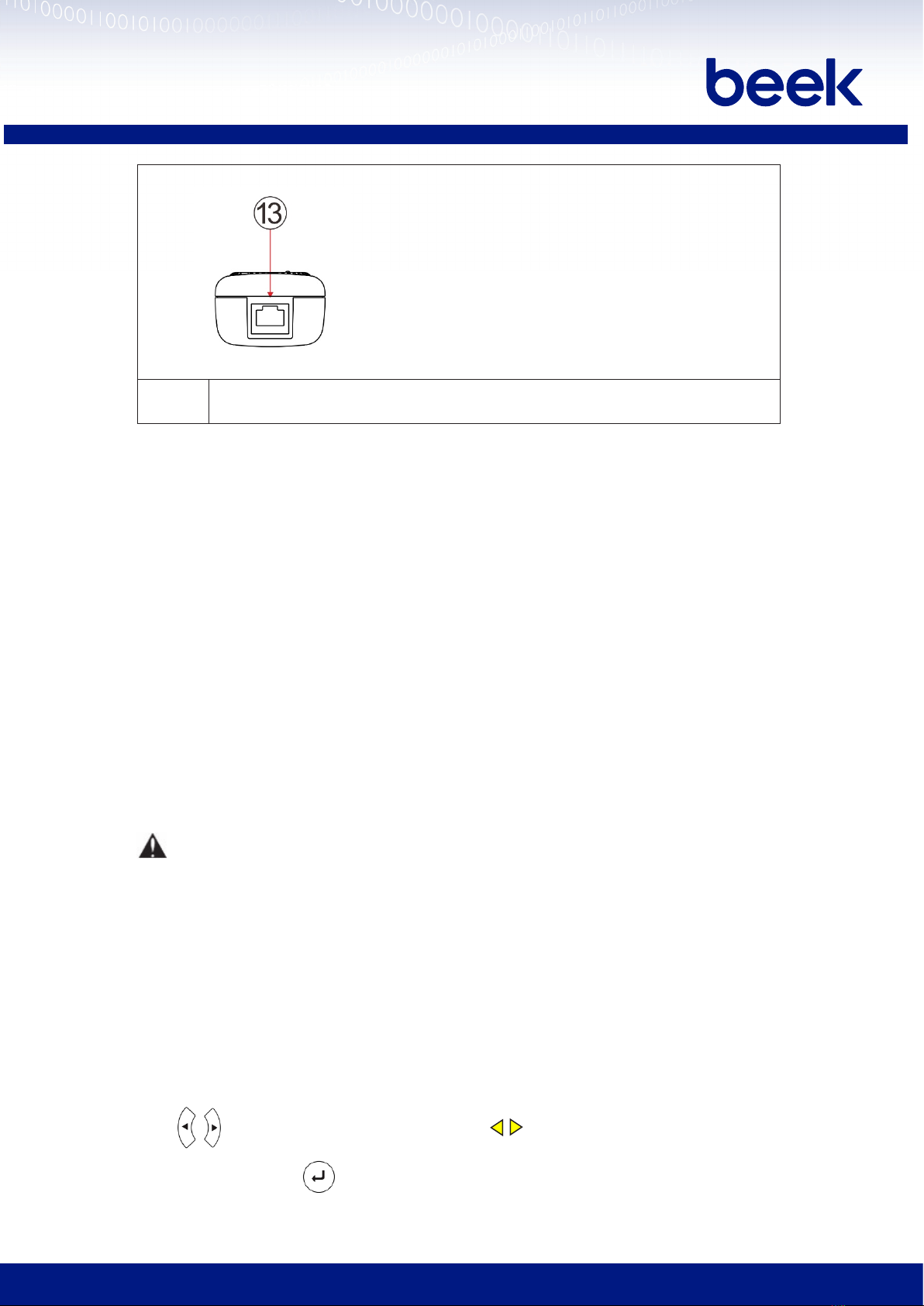

Bottom interface

13 PD Powered test port (detect whether the power output of the PoE switch pins is normal.)

Note: Receiver port continuity detection only supports the local end, does not support the remote end. Emitter

can support the near end, middle end and far end port detection.

3. Operation

3.1 Installing the Battery

The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery cabin should be

disconnected for safety during transportation!

Prior to the use of the instrument, the battery cables inside the battery cabin should be well connected.

When the battery icon is full or the charge indicator turns off automatically, indicate the battery charging is

completed.

Notice: Please use the original adaptor and connected cable of the device!

3.2 Auto power off function

The meter can set 10-120 minutes auto power off, or close the auto power off function. Can set power off time in

Setting function.

If you don’t press key, the meter will start the auto power off. If you press the key, the meter will retime. The Auto

power off is off by default.

3.3 OSD Menu

Press key to choose the function, the Icon of screen means has menu interfaces. Select the

Function icon, then click the key to enter the function.

Multi Function LAN Cable Tester

BT-LT1200

User Manual

4. Cable tester

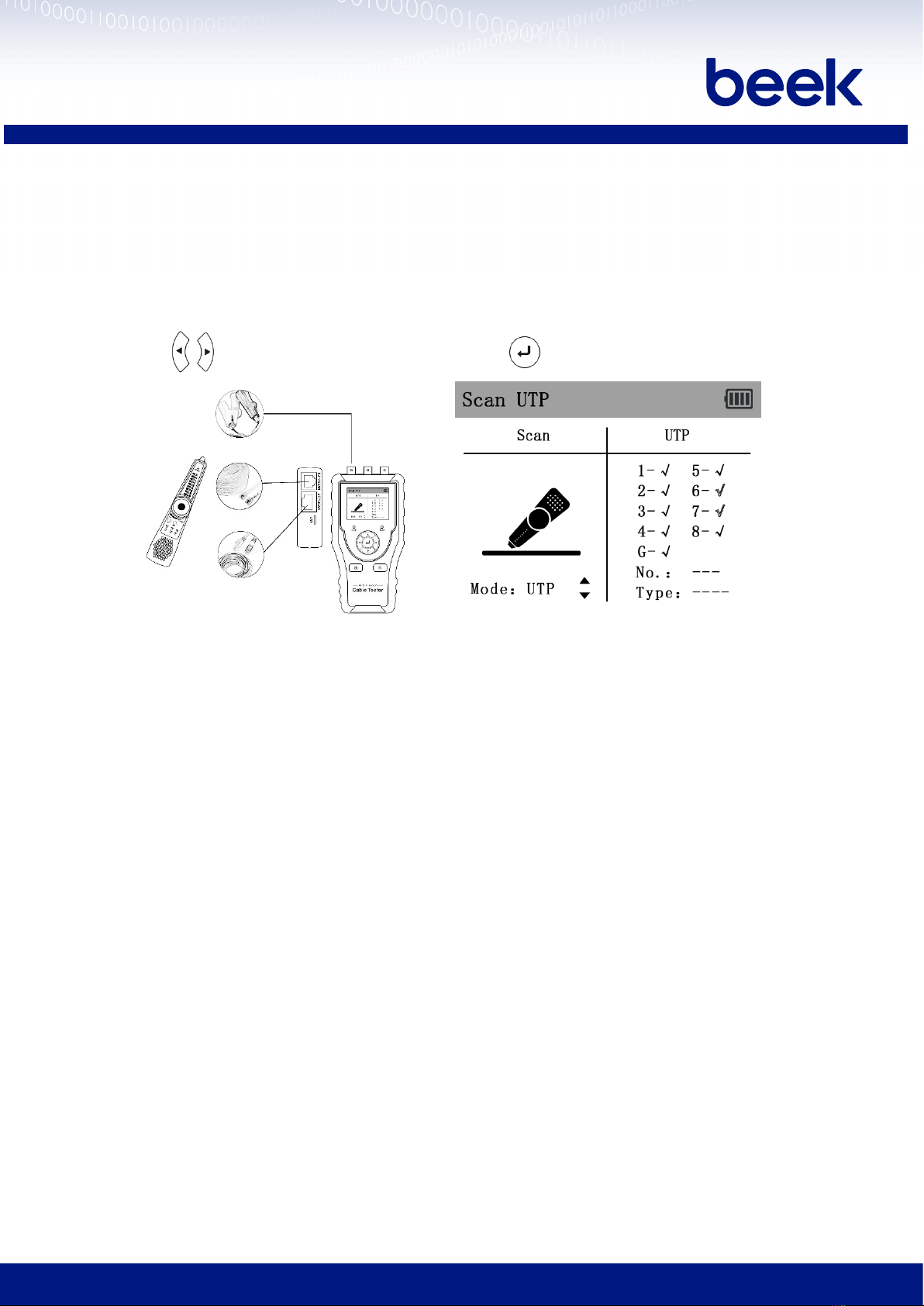

4.1 UTP cable test

Connect the network cable into the cable tester’s RJ45 port, the BNC cable or RJ11 telephone line connect to the

cable tester’s BNC or RJ11 port. If no connector cable, can use alligator clips to clip the bare copper wire.

Press key to select the “SCAN UTP” function, press the key to enter cable tracer interface.

4.1.1 Cable tracer

The UTP mode and STP mode can be optional. The UTP mode is for searching the normal cable or other cable.

The STP mode is for searching shielded cable.

Turn on the wire receiver, can search cable. Rotating the knob of receiver to adjust the sensitivity. When the

cables are very close, can adjust to the small sensitivity to find the cable.

Long press the “MUTE” key for silent mode. In this mode, the signal strength indicator light is used to trace the wi

re. When received the strongest signal, the eight indicator lights are on. Press “MUTE” again to exit MUTE

mode.

(1) Quickly verify the tracking result (only for RJ45 port).

After found the cable, connect the network cable to wire receiver “UTP” port for pair line detection. For example,

When the "Straight/Cross/Other" lights up, indicates the verification of the matching cable. The indicator also

shows the type of the cable. The 1-8 and G indicators show the detection of line sequence by default, and the

order in which the indicator lights up is the sequence of the line.

(2) Port continuity detection:

Connect the network cable into the cable tester’s RJ45 port, the other end of network cable to cable tester’s RJ45

port. Press “MUTE” button, when the indicator light of port is on, the 1-8 and G indicator lights will show the
