Beef Eater Signature Trolley Manual de usuario

BeefEater Signature Trolley

Assembly Instructions

AUSTRALIA

USA/CANADA

Parts List

48 x screws, washers and nuts

(Allen head screw M6x12mm, washer & nut M6)

may not all be required

2 x fixed

wheels

hose protector

2 x side shelves

base panel

cylinder bracket

cross brace

left side panel

right side panel

2 back panels (identical)

left door right door

top enclosure panel

front infill

panel (5 burner

models only)

2 x magnets

2 x rotating

castors

2 x hubcaps 2 x circlips

1 x axle

Phillips Head

Screwdriver

adjustable

spanner/wrench

Allen key

Assembly Instructions

Fit the axle through the holes in the end of

the base panel. Fit the wheels as shown.

Before You Start

Note the tools you will need before you begin.

Check for damaged or missing parts, and

consult your retailer if necessary.

Many components and panels are covered

with a protective sheet of plastic. You will

need to remove this plastic covering from all surfaces, especially where two panels join. It is a good idea to

leave some plastic on the panels during assembly to protect the stainless steel during the assembly process.

Ensure however that all plastic covering is removed on completion.

Assemble on a clean, smooth, flat working surface that will not scratch the surface of the stainless steel..

1a) Fit The Fixed Wheels

2) Fit The Rotating

Castors

Fit the rotating castors into the holes

in the bottom of the base. Use only

two Allen head screws, washers and

nuts for each castor in the positions

shown.

Spanner/wrench tighten immediately.

Fit the circlips to the grooved ends

of the axle shaft. Fit the hubcaps.

1b) Fit The Circlips

and Hub Caps

Steel is folded

up towards you

The right side has

holes for the gas hose

3) Fit The Right And Left

Side Panels

Use 5 Allen head screws, washers and nuts

on each panel. You may find it easier to lay

the cart on its side for this step.

Only hand tighten at this stage - You will

wrench/spanner tighten at a later step.

5) Fit The Front Cross

Brace

Use 4 Allen head screws, washers and nuts.

Ensure the magnets are towards the bottom and

the folded tabs are facing outwards.

The cross brace “wraps around” the side panels,

to bring them closer together, as shown in the

inset.

Hand tighten only at this stage.

Assembly Instructions

4) Fit The Magnets To

The Cross Brace

Hold the cross brace so the folded

tabs are facing towards you. Push the

magnets into place so the magnetic

side is facing you.

Magnet here

Assembly Instructions

6) Fit The Lower Back

Panel

Both back panels are identical.

Screw one of the back panels to the base and

side panels using 7 Allen head screws, washers

and nuts.

Hand tighten only at this stage.

7) Fit The Upper Back

Panel

Screw the other back panel to the side

panels. Use only one Allen head screw,

washer and nut on each side, in the

uppermost hole.

Hand tighten only at this stage.

Assembly Instructions

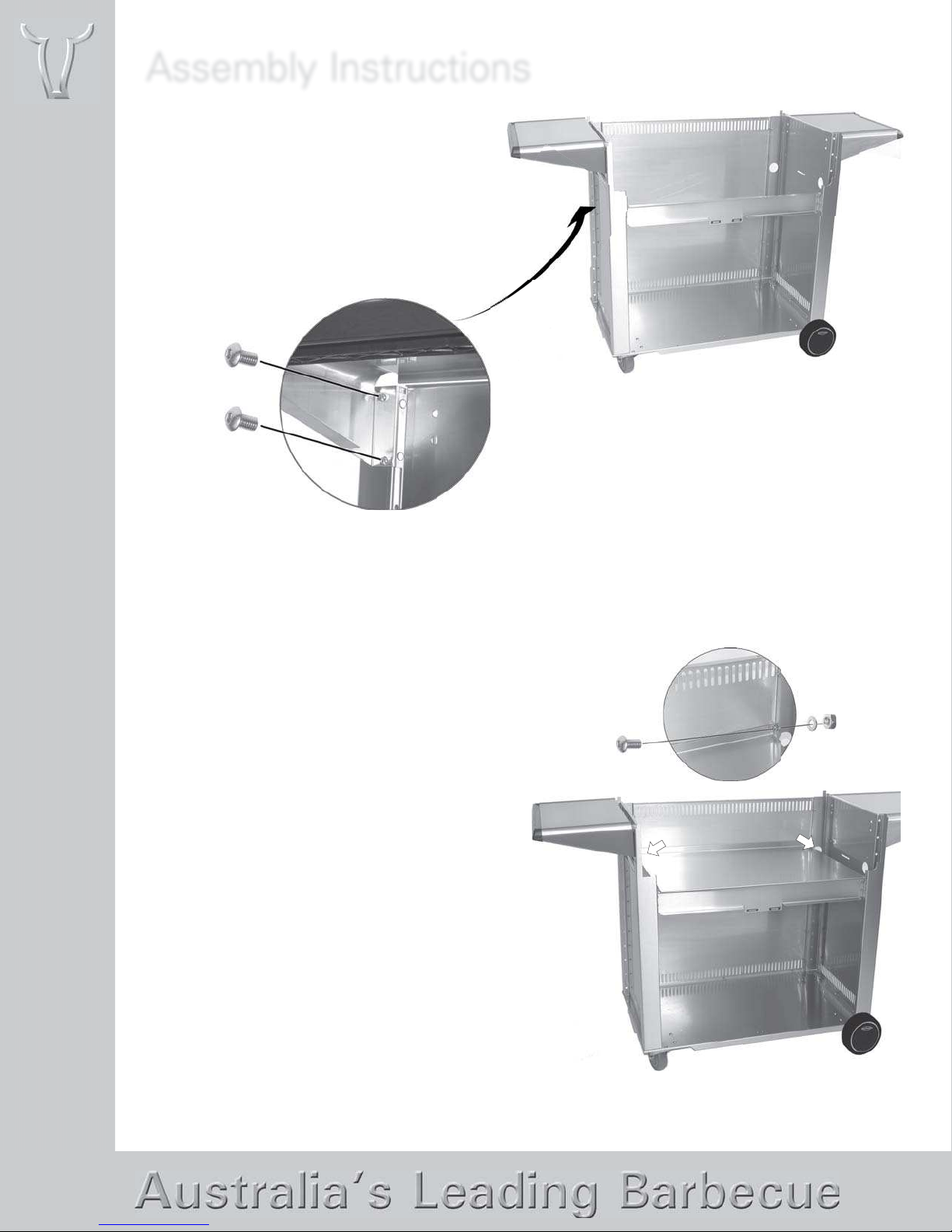

8) Fit The Side Shelves

Use 4 Allen head screws, nuts and washers

for each side shelf. Get in underneath the

side shelf and screw the shelf to the side

panel. The screws go into the slotted holes

as shown.

9) Fit The Top Enclosure

Panel

The front of the enclosure panel sits neatly on

the front cross brace. The back of the panel

screws into both the upper back panel and the

side panel. Use two Allen head screws, washers

and nuts.

Hand tighten only at this stage.

11) Fit The Doors

Support the door rod from

underneath, slip the top of the

rod into the hole in the cross

brace, and allow the bottom of

the rod to fall into the hole in the

base plate.

You should now wrench/spanner

tighten the infill panel if one has

been fitted.

Assembly Instructions

10) Fit The Infill Panel

(5 burner models only)

5 burner models require an infill panel between the

two doors. Use 4 Allen head screws, washers and

nuts to secure the panel between the front cross

brace and the base plate.

Hand tighten only at this stage.

Magnets here

Assembly Instructions

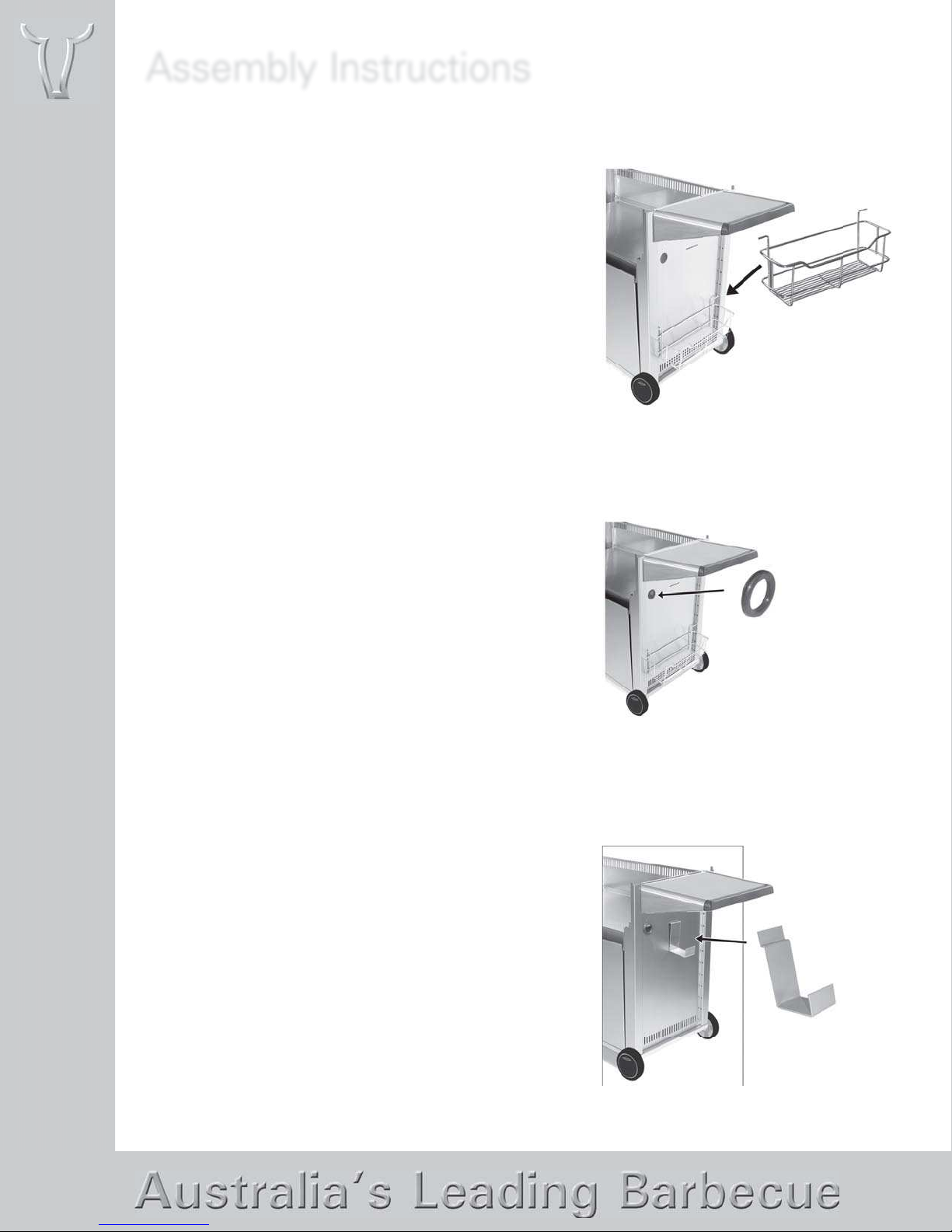

13) Fit The Hose Protector

Squeeze the rubber hose protector and fit it

into one of the holes in the side panel. Yo u

have a choice as to which hole you use:

If you intend to use bottled gas, you should

use the hole in the side as shown.

If you will be using piped gas, then your

gas plumber may prefer it at the rear of the

barbecue.

14) Fit The Cylinder

Bracket

This slips into the slot on the right side panel,

on either the inside or the outside of the

cart. This allows a cylinder to be placed on

the outside of the cart, or inside the cabinet

enclosure.

12) Fit The Storage Racks

If you purchased any optional storage racks,

they slide easily into the holes on the right or

left side panel.

(Optional)

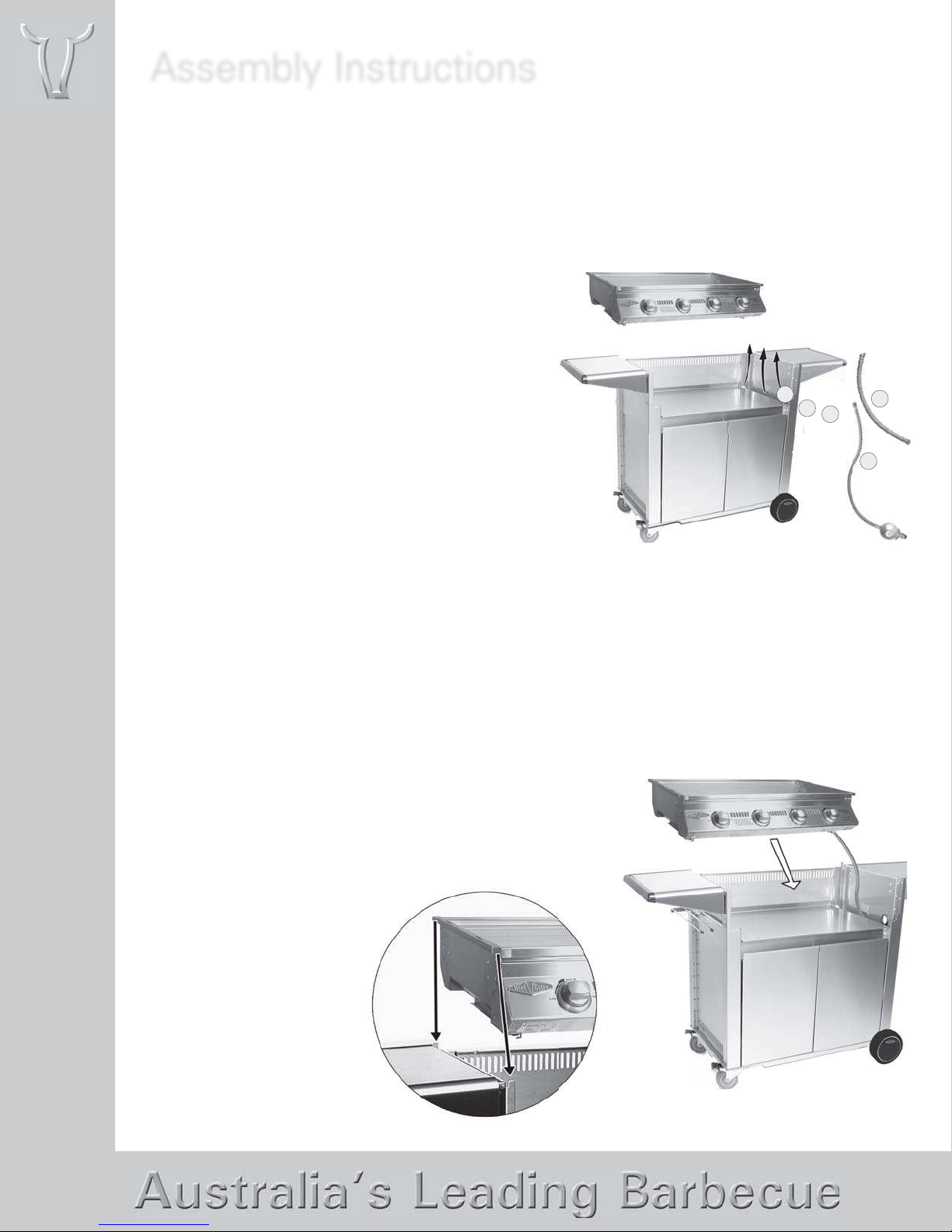

16) Lower The Barbecue Into The

Cart

You will need to tease the side panels apart slightly to be able to

put the barbecue into place. Make sure the barbecue is pushed

back against the rear edge of

the cart, and the front of the

barbecue is flush with the front

of the cart.

You do not need to screw

anything in at this stage. That

is done in the next two steps.

Assembly Instructions

15) Fit The Hose To The Barbecue

You need to connect the proper hose to the barbecue inlet before the barbecue is in place in the cart. You

should follow the separate barbecue instructions for directions on methods of connection and leak testing.

If you purchased a side burner:

Pass hose a through the side hole (arrow 1) and

connect to the barbecue. Follow your separate side

burner instructions for remaining connection details.

If you did not purchase a side burner:

If you are using a portable LPG/propane cylinder and

you wish to place the bottle on the outside of the

cabinet, thread the hose and regulator (b) through the

hole in the side panel (arrow 1), and connect to the

barbecue.

If you are using a portable LPG/propane cylinder

and you wish to place the bottle on the inside of the

cabinet, thread the hose and regulator (b) past the top

enclosure panel from underneath (arrow 2) and connect

to the barbecue.

If you are using piped gas, your gas plumber may

choose to thread a special hose from the rear of the

cart (arrow 3).

17) Finish Screwing In The

Barbecue

The barbecue should be secured using 4 Allen head

screws, washers and nuts, as shown. If you have

a side burner, the right side of the barbecue will

already be secured.

Assembly Instructions

To Fit The Optional Side

Burner

If you purchased a side burner, the side burner

must go on the right side of the barbecue. Use

4 Allen head screws, washers and nuts. The

screws go through the inside of the barbecue

and help to secure it.

For the rest of the side burner assembly and connection,

consult the instructions that came with the side burner.

Now tighten all remaining screws and your assembly is complete.

18) Slide The Drip

Tray Into Place

Ensure the drip tray slides along the

top of the tracks underneath the

barbecue..
