Important User Information
The UPS.500 contains lithium-ion batteries. The
product is not field-serviceable. Contact Bedrock
Automation for instructions on returning the
UPS.500.
Never attempt to open the UPS.500 enclosure. The
enclosure is securely sealed. Opening the enclosure
will void the warranty and cause the UPS.500 to be
inoperable.
The UPS.500 contains lithium-ion batteries. The
output port may carry voltage even when the
UPS.500 is not connected to a power source.
Always use an appropriate fuse on the power in
and power out connections.
For both the panel and pipe mount configurations,
it is required that the UPS.500 mounting bracket is
grounded.

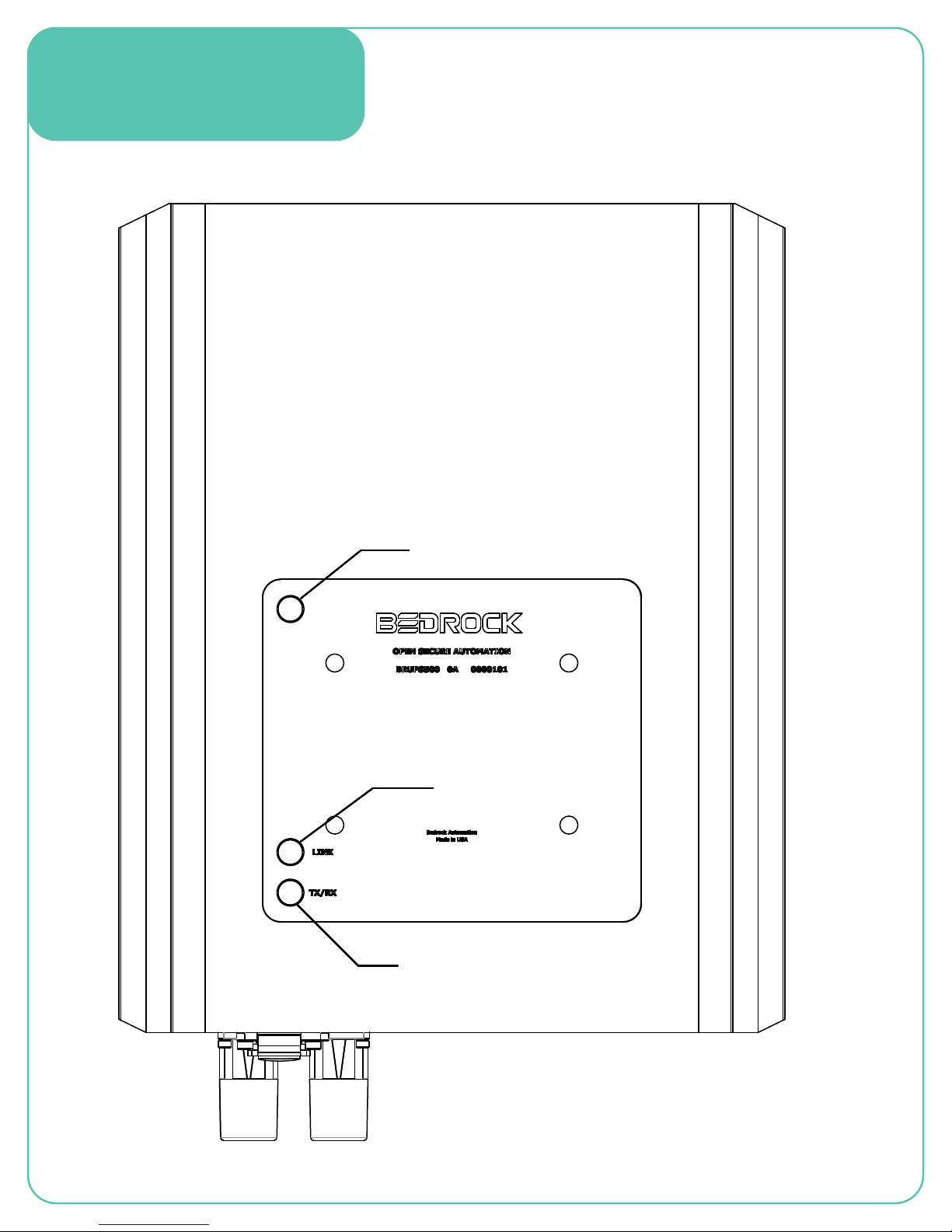

1 - Status LEDs
Ethernet Activity
Ethernet Link
Tri-color UPS Status

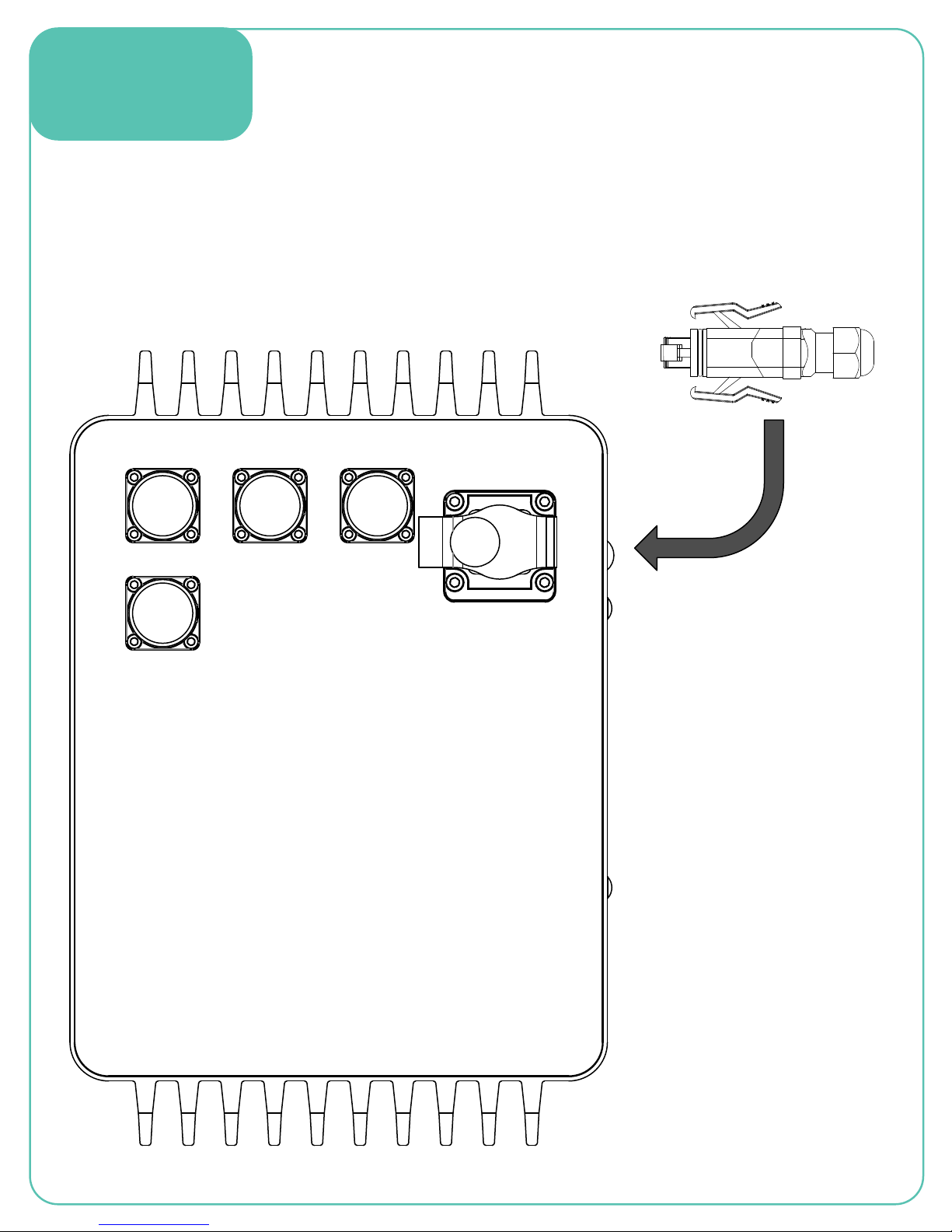

2 - Ports
Note: Bedrock part no. CI00100 or Phoenix
Contact part no. 1656990 must be
used for the Ethernet connector in
order to maintain the IP66/IP67 rating.
Note: A shielded
Ethernet cable is
required.
Power
Out
Power
In Relay
Enable
Ethernet
3 –UPS.500 Block Diagram
Note: Battery Enable Connector must be connected prior to power up
Workstation
Running
OPC UA
or
Bedrock
SIO4.E
comm.
module
Load
Power
Supply
Recommended
Fusing
Power
Out
Power
In
Recommended
Fusing
To Discrete
Inputs for
Alarming Relay
Output
(optional)
Ethernet
SPS.500 or Equivalent
24 V Power Supply
Battery
Enable
Connector
4 –Parts List (Panel Mount)
1
2
3
ITEM
NO.
DESCRIPTION
QTY.
1
UPS.500 ASSEMBLY
1
2
#14 x 1” SELF TAPPING
SCREW
4
3
UPS MOUNTING BRACKET
1
Use Bedrock Part No. MI00128 when ordering the
UPS Mounting Bracket Assembly (Panel Mount)
5 –Parts List (Pipe Mount)
1
2
4
Use Bedrock Part No. MI00127 when ordering the
UPS Mounting Bracket Assembly (Pipe Mount)
ITEM
NO.
DESCRIPTION
QTY.
1
UPS.500 ASSEMBLY
1
2
3/8”-16 x 3/4 HEX BOLT
4
3
UPS MOUNTING BRACKET
1
4
2” SCHEDULE 40 PIPE
MOUNTING BRACKET
1
5
3/8”- WASHER
4
6
3/8”-16 HEX NUT
4
3
5
6
6 –Mount UPS
2
1
7 –Clamp UPS
4
3
3
CAUTION: See panel 12 for relay
contact rating specification.
8 –UPS Cables
Note: See panel 9 for pin out tables.
Connect drain wire to panel ground.
Power In
Power Out
Relay
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
DRAIN WIRE
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
DRAIN WIRE
DRAIN WIRE
PIN 6 RELAY B (NO)
PIN 5 RELAY B (COM)
PIN 4 RELAY B (NC)
PIN 3 RELAY A (NO)
PIN 2 RELAY A (COM)
PIN 1 RELAY A (NC)
Bedrock Part No. UPSPOWRIN
Bedrock Part No. UPSPOWOUT
Bedrock Part No. UPSRLYCBL
